Introduction

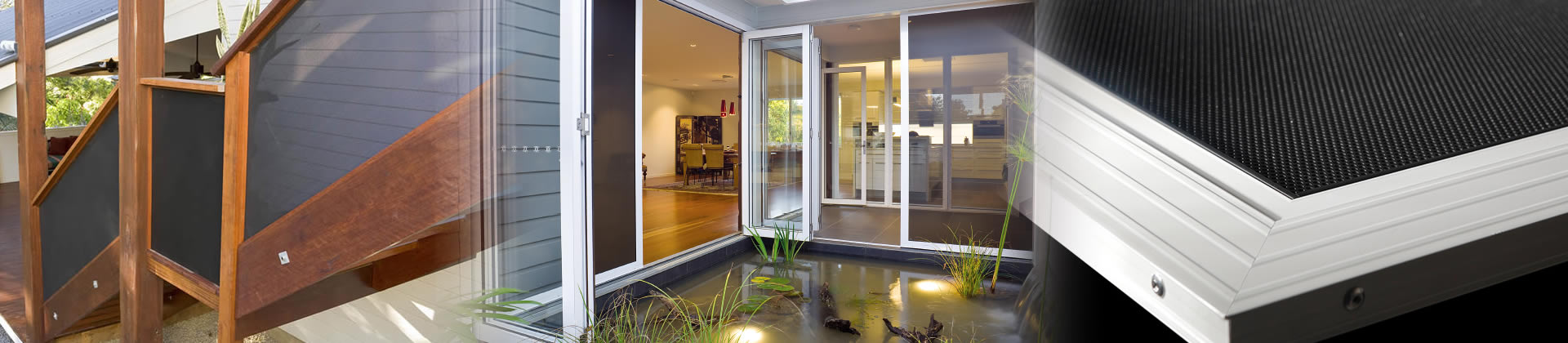

The All-Aluminium security screening solution for Australian conditions. Alu-Gard® 2.0 is a perforated aluminium sheet retained in an extruded aluminium frame.

Alu-Gard® 2.0 not only provides security, clarity of vision and strength, it is also corrosion resistant and looks great.

Alu-Gard Edge® 2.0 is the latest addition to the Alu-Gard® 2.0 range, the All-Aluminium security screening solution for Australian conditions. Edge is a PVC pressure retention system that retains the Alu-Gard® 2.0 perforated aluminium sheet in an extruded aluminium frame.

Please log in to access this information

Alu-gard 2.0 - Specifications
Material Grade 5005 H34
Thickness 1.6mm
Aperture Size 2.0mm
Paint Dulux Black Matt
% Open Area 40%
Alu-gard Edge 2.0 - Specifications
Material Grade 5005 H34
Thickness 1.6mm
Aperture Size 2.0mm
Paint Dulux Black Matt
% Open Area 40%
Alu-gard 2.0 - Tested Performance
Security
Australian Standard AS5041 - 2003 Methods of Test - Security Screen Doors and Window Grilles

Alu-gard Edge 2.0 - Tested Performance
Security
Australian Standard AS5041 - 2003 Methods of Test - Security Screen Doors and Window Grilles

Alu-gard 2.0 - Tested Performance
Child Fall Protection
Australian Standard AS5203 - 2016 Protection of Openable Windows/Fall Prevention - Test Sequence & Compliance Method

Fire Attenuation
Australian Standard AS1530.4 - 2014 Appendix B7

Bushfire
2mm hole diameter meets bushfire requirements up to BAL-29

Alu-gard Edge 2.0 - Tested Performance
Child Fall Protection
Australian Standard AS5203 - 2016 Protection of Openable Windows/Fall Prevention - Test Sequence & Compliance Method

Bushfire
2mm hole diameter meets bushfire requirements up to BAL-29
