Commercial Framing // ecoWALL 225

Introduction

The ecoWALL® 225 Flush Glazed Framing is arguably Alspec's® greatest engineering achievement. With 225mm x 60mm profiles it is not only proportionally correct but also boasts the structural integrity of it's 250mm alternatives available in the market. Add this to the fact that with ecoWALL® 225 you can single or double glazed unlike any of the competitors.

In many cases using ecoWALL® 225 can eliminate the requirement of unsightly and often very expensive steel frames to support the system.(this is determined subject to structural engineer's detail and project specific design criteria).

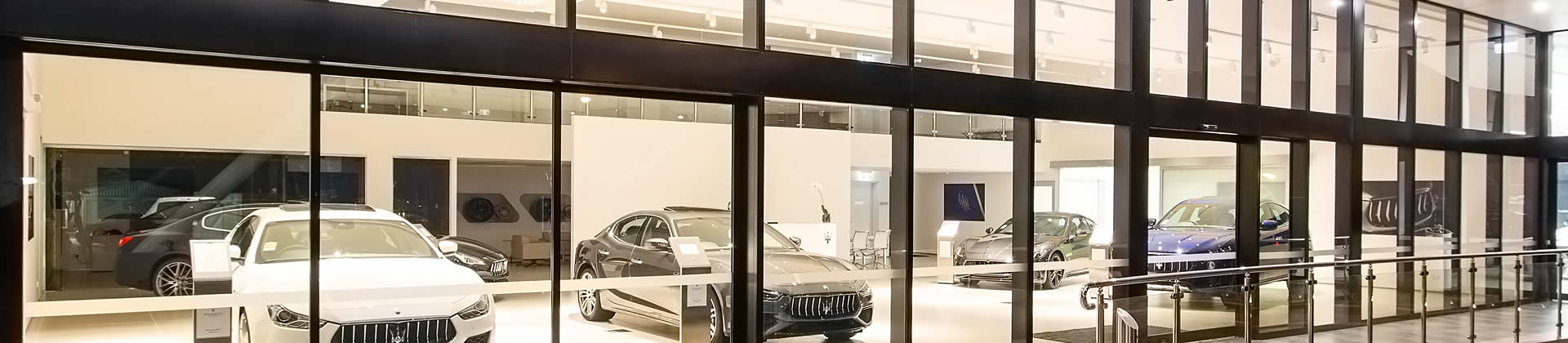

With reinforced subheads, mullion anti buckling technology, and self draining sub-sills to solve water leakage the ecoWALL® 225 is the complete structural system ideal for your next commercial foyer, auto showroom or high end residential project.

Videos

Projects

3D Revit Files

Please log in to access this information

Please log in to access this information

Please log in to access this information

WERS Ratings

Glazing
Frame
TVW
Air Inf
Frame Dimensions
Option 1 225 x 60mm
Maximum Product Performance
SLS (Pa) 4000
ULS (Pa) 6000
WATER (Pa) 1200
Compatible Systems
Windows & Doors Swan Evo 45mm Commercial Shopfront Door
Windows & Doors Torrens 45mm Commercial Shopfront Door
Glazing Details
Glass Position Front
Single Glazed 4 - 14mm
Double Glazed 20 - 28mm
Acoustic Performance: Rw (c;ctr)
6.38mm/10mm/8.38mm IGU 37 (-1,-4) dB
Maximum Recommended Sizes
Height 6300mm
Width 2700mm
Thermal Performance
Uw range SG 5.0 - 6.9
SHGC range SG 0.24 - 0.73
Uw range DG 3.5 - 4.3
SHGC range DG 0.16 - 0.63
WERSNatspec

Tested and Compliant Solutions
