Commercial Framing // Hastings 101.6mm Front Glazed Framing

Introduction

The Hastings Front Glazed Framing is a versatile and flexible system available in a frame depth of 101.6mm x 50mm. Ideal for shopfronts, upmarket residential and commercial applications.

With it's straight cuts and flush glazing the Hastings not only looks good, but is easy to fabricate and easy to install. Hastings 101.6mm is suitable for a range of single and double glazed options.

3D Revit Files

Please log in to access this information

Please log in to access this information

Please log in to access this information

WERS Ratings

Coming Soon

Frame Dimensions
Option 1 101.6 x 50mm
Maximum Product Performance
SLS (Pa) 2400
ULS (Pa) 3000
WATER (Pa) 1000
Glazing Details
Glass Position Front
Single Glazed 6 - 12.38mm
Double Glazed 24 - 32mm
Acoustic Performance: Rw (c;ctr)
6.38mm Laminate 32 (-1,-2) dB
Maximum Recommended Sizes
Height 3600mm
Width 2400mm
Compatible Systems
Windows & Doors Swan Evo 45mm Commercial Shopfront Door

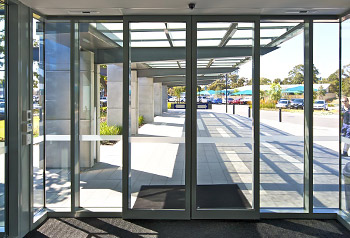

Windows & Doors Torrens 45mm Commercial Shopfront Door
WERSNatspec

Tested and Compliant Solutions
