101.6mm Centre Glazed Thermally Broken Framing

Alspec’s® ThermAFrame® Centre Pocket system is a versatile energy efficient Shopfront framing option that utilises the latest in European Polyamide Thermal Break technology combined with Australian design principles to achieve the best possible results in energy rating in a system that is easy to fabricate and install.

Tested and Compliant Solutions

Its versatility allows countless specifications to be achieved, from standard shopfront applications, through to the most challenging structural and energy requirements. It has been designed to accommodate high performance double glazed units that can maximise the performance of the building envelope.

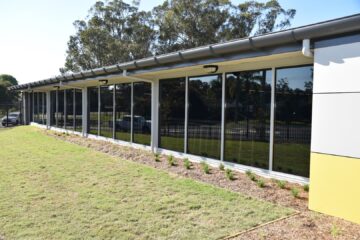

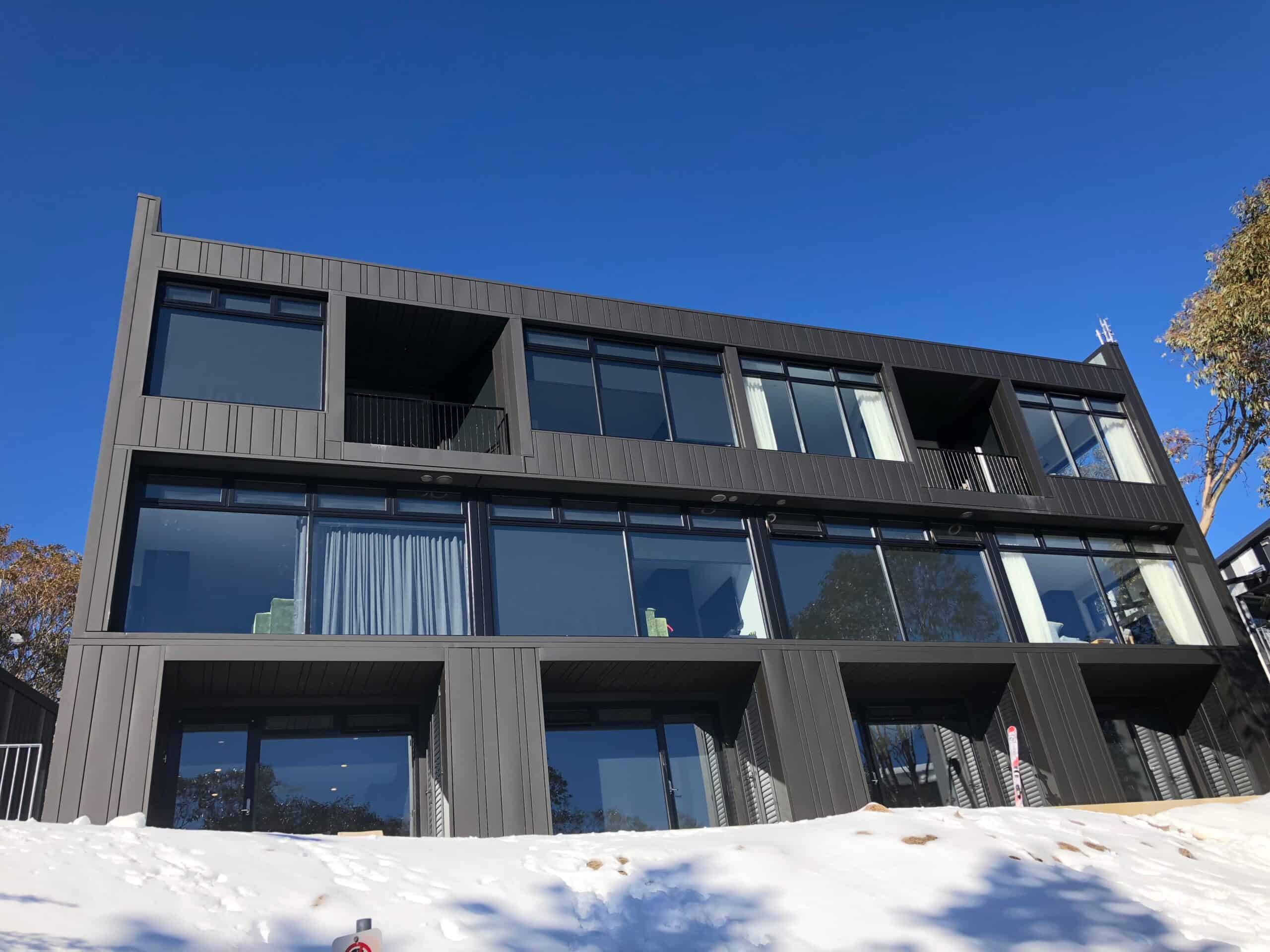

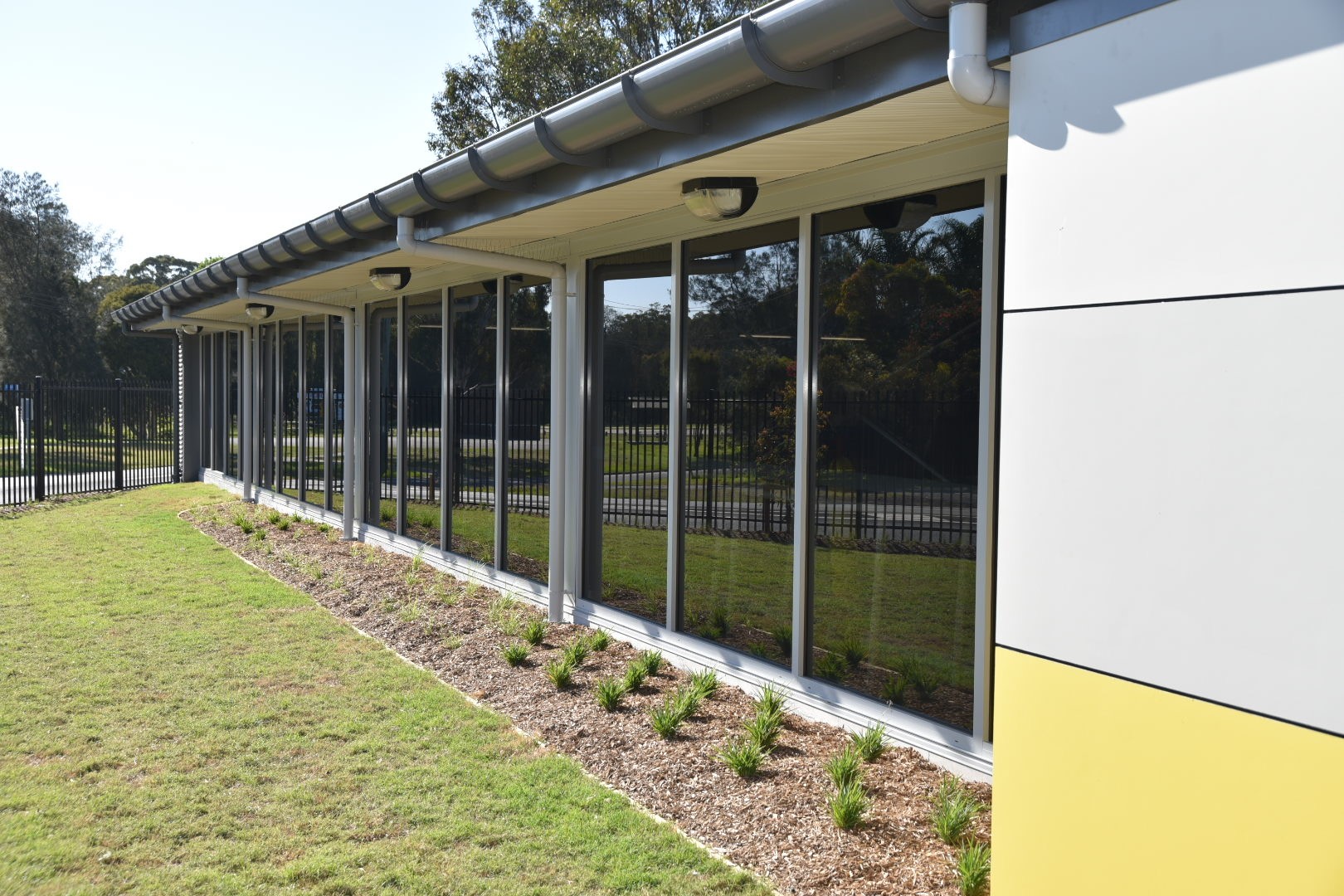

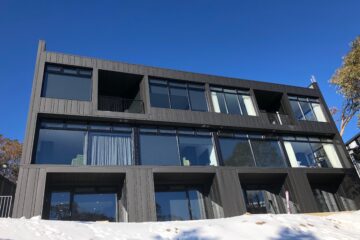

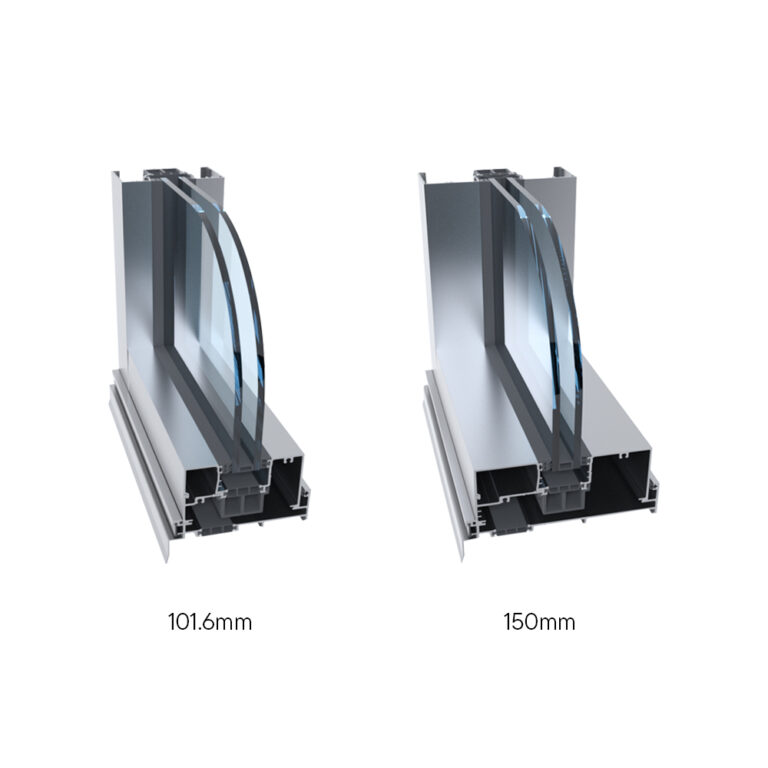

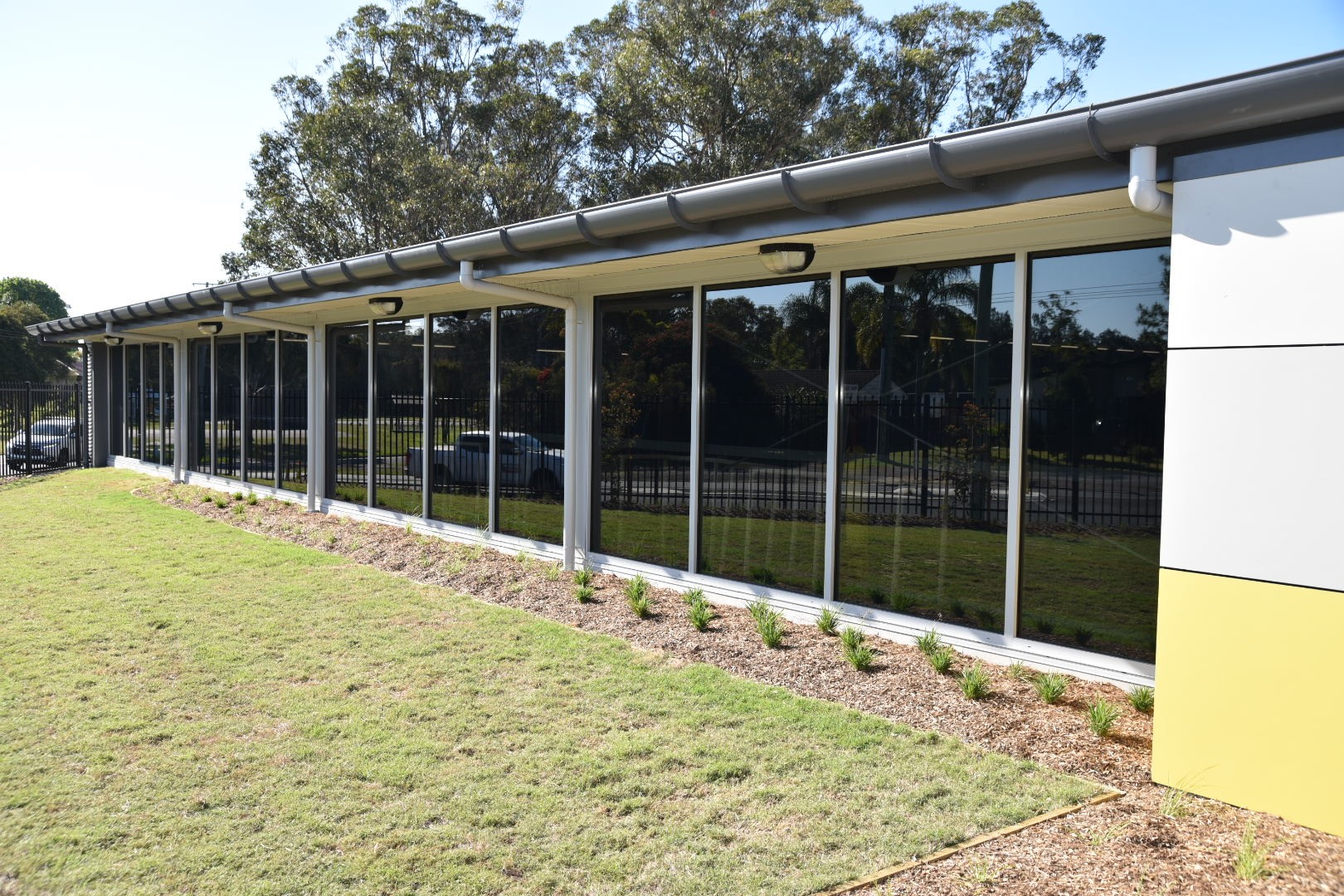

Available in two frame depths 101.6mm and 150mm x 60mm, ThermAFrame® Centre Pocket allows architects to minimise the transfer of heat or cold across a window with a standard system. Glazing could not be simpler with the colour coded wedges from standard Alspec® systems being utilised to deal with the many diverse glass options.

With the use of heavy duty mullions the ThermAFrame® 150mm Centre Pocket System can allow heights to reach and surpass 4.5m depending upon wind loading conditions.

Subsills are recommended for optimum weathering with all ThermAFrame® systems.



Key Features

  • Patent Pending Glazing Pocket Design maximises energy performance
  • Patent Pending Glazing Pocket Design allows for insertion of optional accessories to reduce total window Uw values where required
  • Excellent ‘Uw’ values down as low as 1.7
  • 101.6mm and 150mm x 60mm Framing System
  • 38mm wide glazing pocket accepts Double glazed options up to 32mm
  • Thermally Broken Sub Framing designed to support heavy double glazed frames
  • Thermally Broken Hinge Door Threshold also available
  • The glazing pockets are designed to allow for the installation of large IGUs and provides the required glass cover to comply with AS1288
  • Secure glazing using fully captive backing gaskets allowing for internal and external glazing
  • Colour coded glazing wedges ranging from 3mm to 7mm in one mm increments
  • Easily adapts to ThermAFrame® 50mm Commercial Door and Awning Window

Technical Specifications

Frame Dimensions

Option 1 101.6 x 60mm

Maximum Product Performance

SLS (Pa) 1300
ULS (Pa) 3600
Water (Pa) 1000

Compatible Systems

ThermAFrame Thermally Broken Awning & Casement Window
ThermAFrame Thermally Broken 50mm Commercial Door

Glazing Details

Glass Position Centre
Single Glazed 6 - 14.52mm
Double Glazed 16 - 32mm

Acoustic Performance: Rw (c;ctr)

10.38mm/12/6.38mm IGU 36 (-1,-3) dB

Maximum Recommended Sizes

Height 4200mm
Width 2200mm

Thermal Performance

Uw range DG 1.7 - 2.8
SHGC range DG 0.32 - 0.63

Downloads

Tech Manual

Log in to view all files

Customer Technical Memos

Log in to view all files

Wall Charts

Log in to view all files

CAD Drawings

Log in to view all files

3D Revit

Log in to view all files

Typical Configurations

WERS Ratings

Window ID Glazing Frame Uw SHGCw Tvw Air Inf
