45mm Display Suite

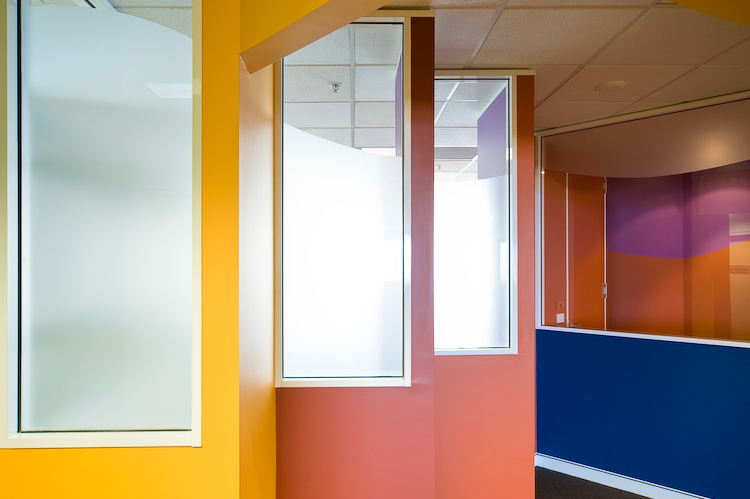

A narrowline, adaptable general purpose suite ideal for internal glazing and one of the simplest systems available for continuous glass walls.

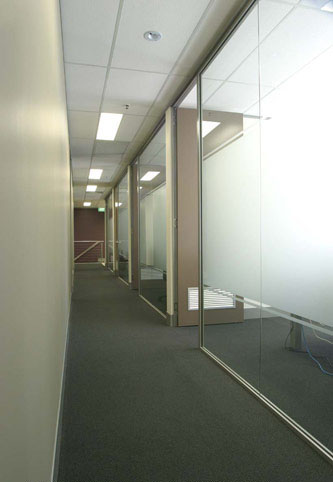

The 45mm Display Suite is a narrowline, adaptable general purpose suite ideal for internal glazing and one of the simplest systems available for continuous glass walls, with the glass panels silicone butt joined or mullions maybe utilised for extra strength.
The system can be used with a range of standard door frames from 35mm to 45mm and readily complements plasterboard walls.
May be used in conjunction with Alspec’s® range of aluminium skirting.
Technical Specifications
Frame Dimensions
| Option 1 | 45 x 26.2mm |
Compatible Systems
| Commercial Framing | Swan Evo™ 45mm/70mm Commercial Shopfront Door |
| Commercial Framing | Skirting Profiles |
Glazing Details
| Glass Position | Centre |
| Single Glazed | 4 - 10.38mm |
Maximum Recommended Sizes
| Height | 2700mm |
| Width | 2400mm |
Downloads
Brochures
Typical Configurations

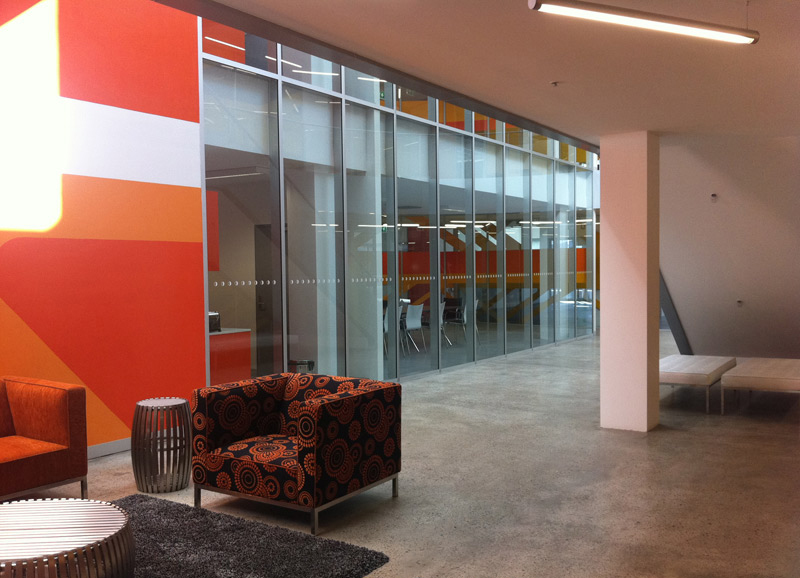

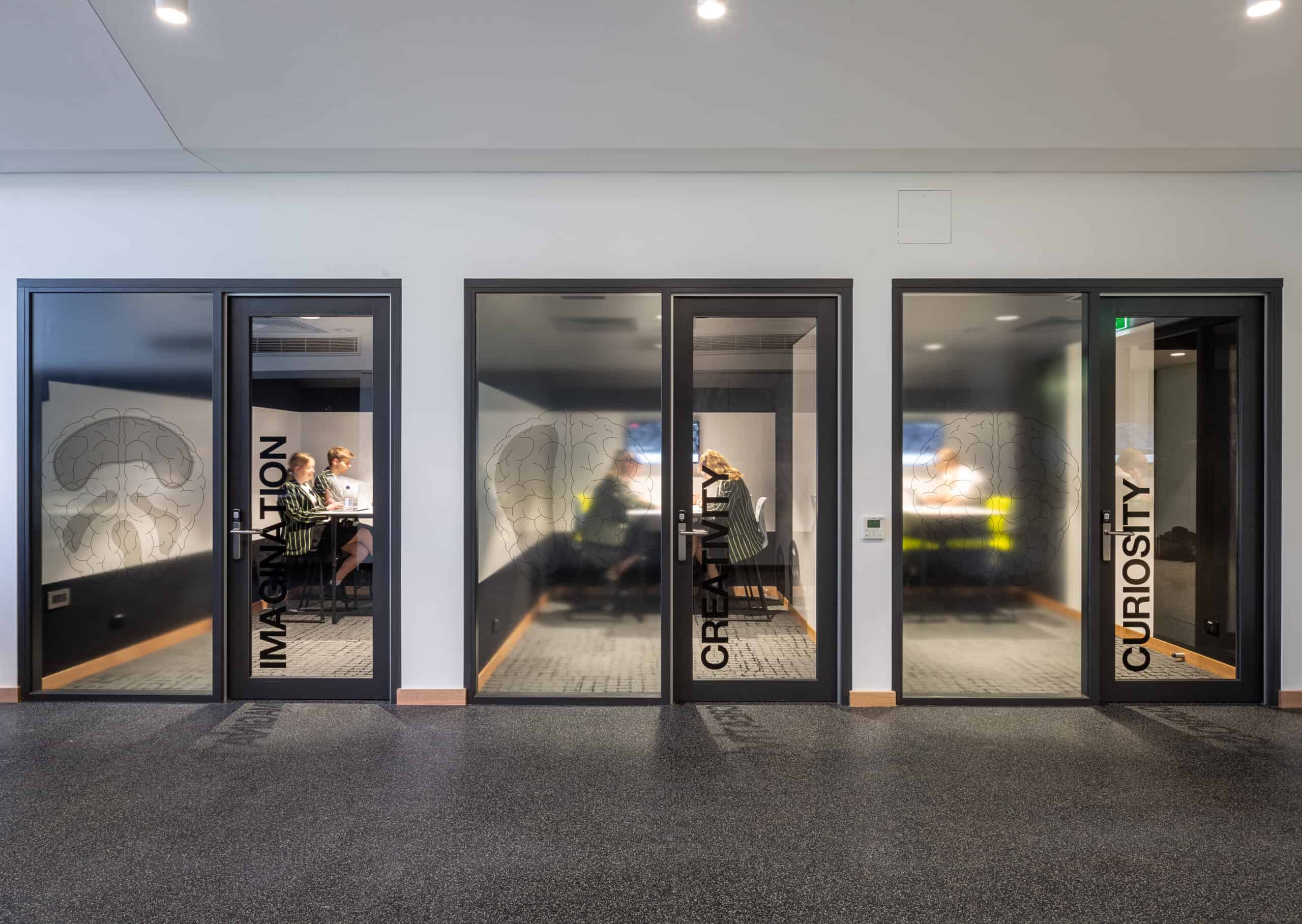

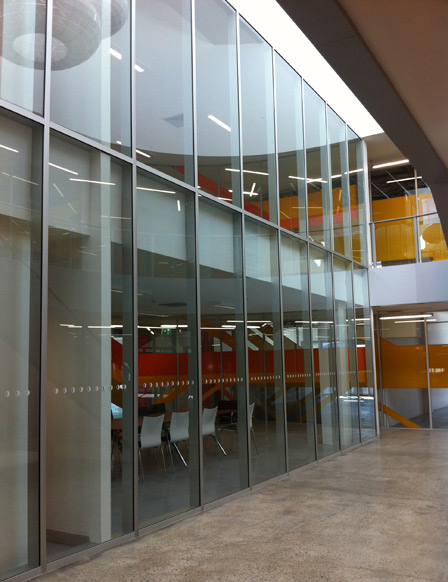

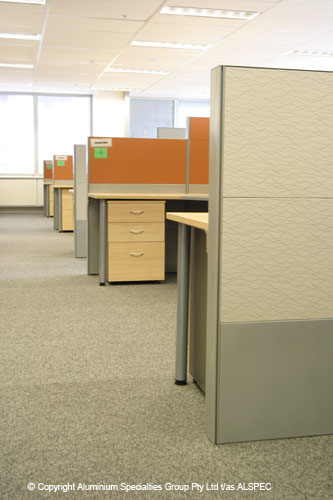

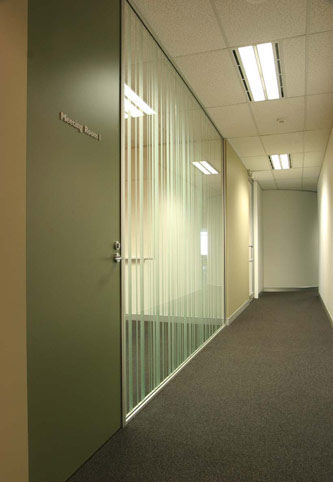

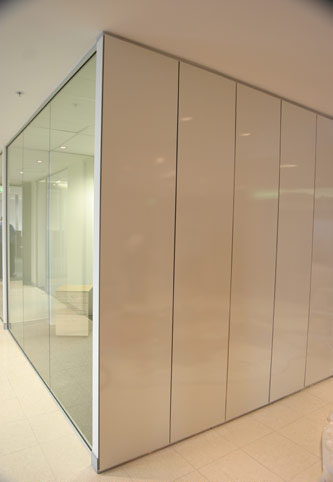

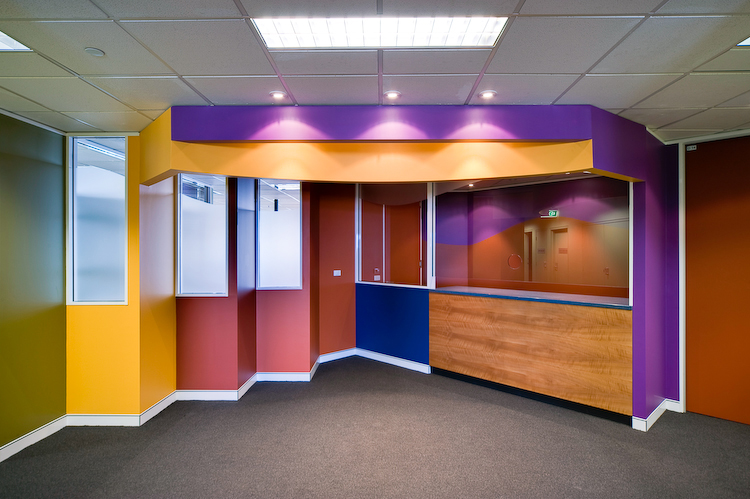

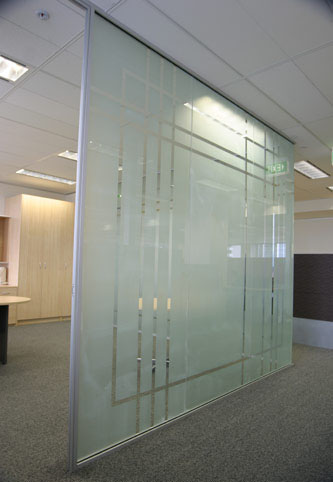

Gallery
