Alu-Gard® Edge Security Screening Systems

Alu-Gard Edge not only provides security, clarity of vision and strength, it is also corrosion resistant and looks great.

Tested and Compliant Solutions

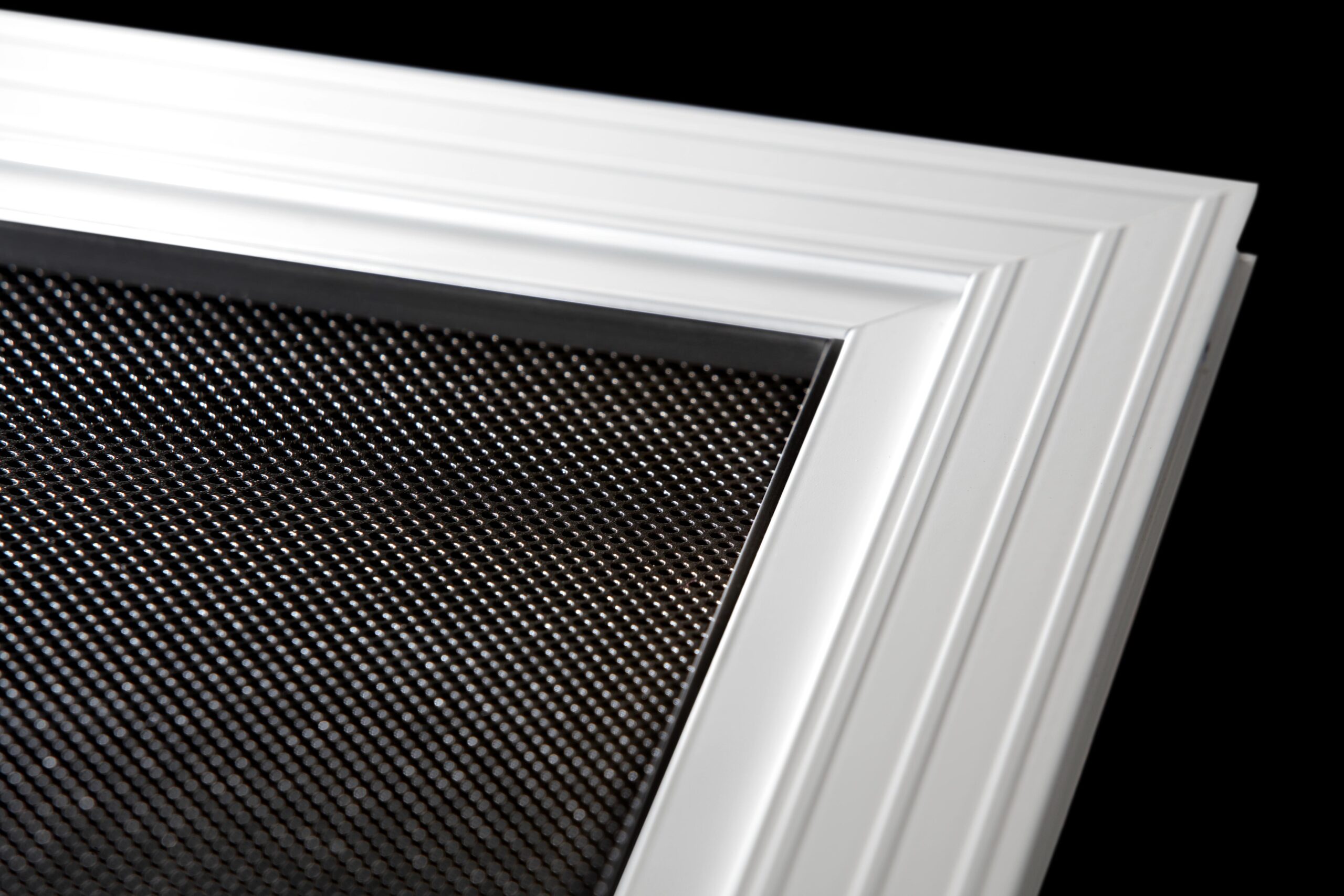

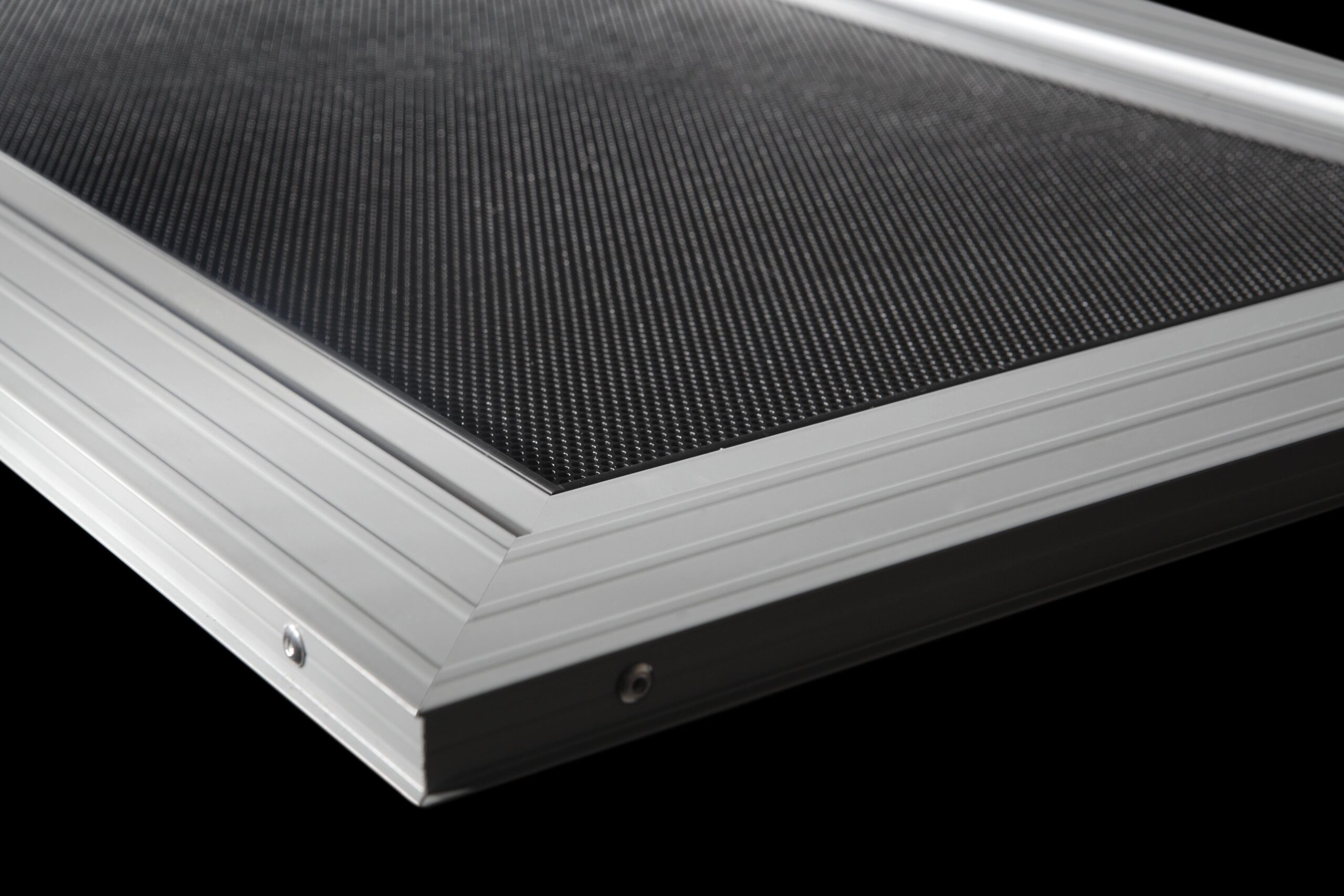

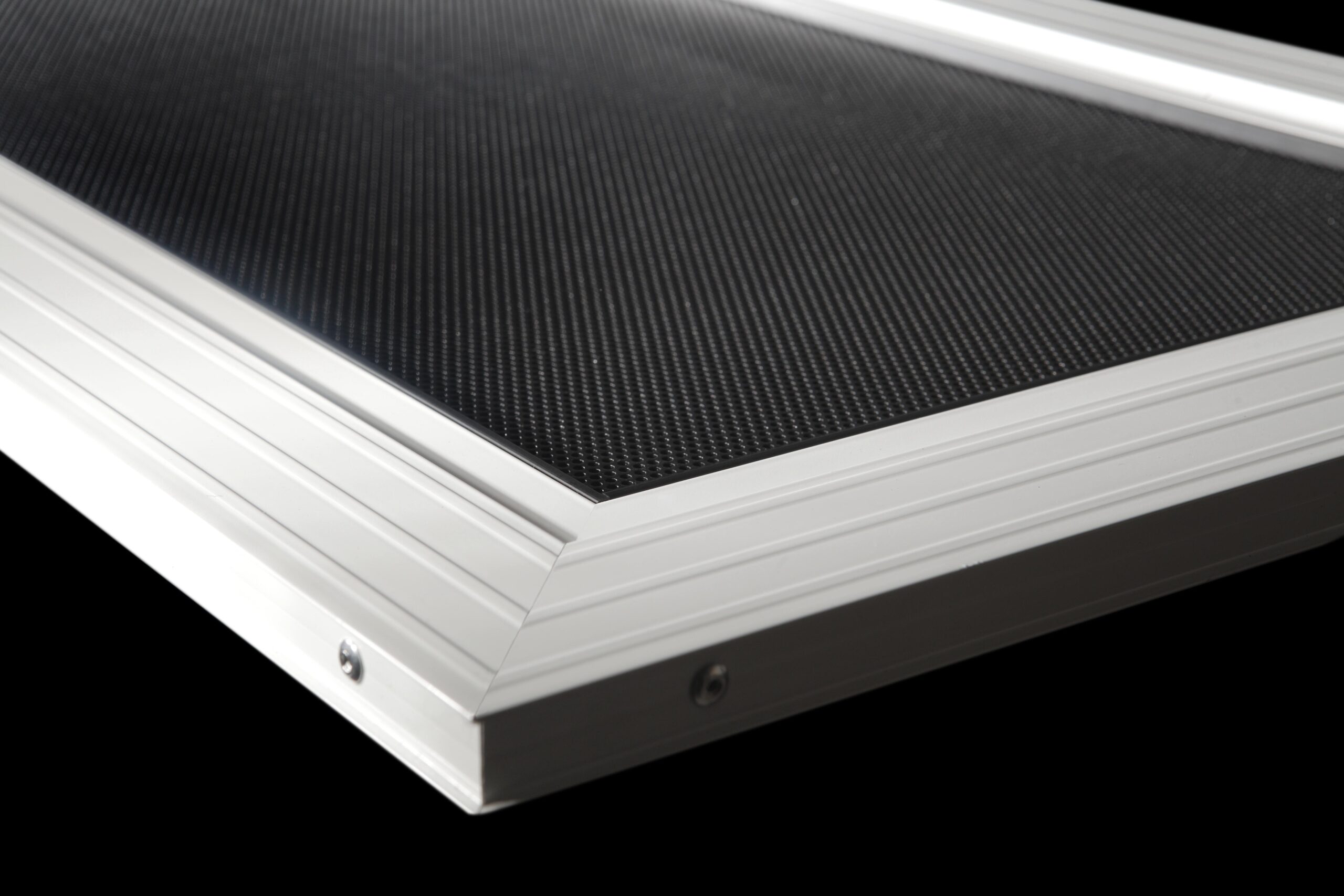

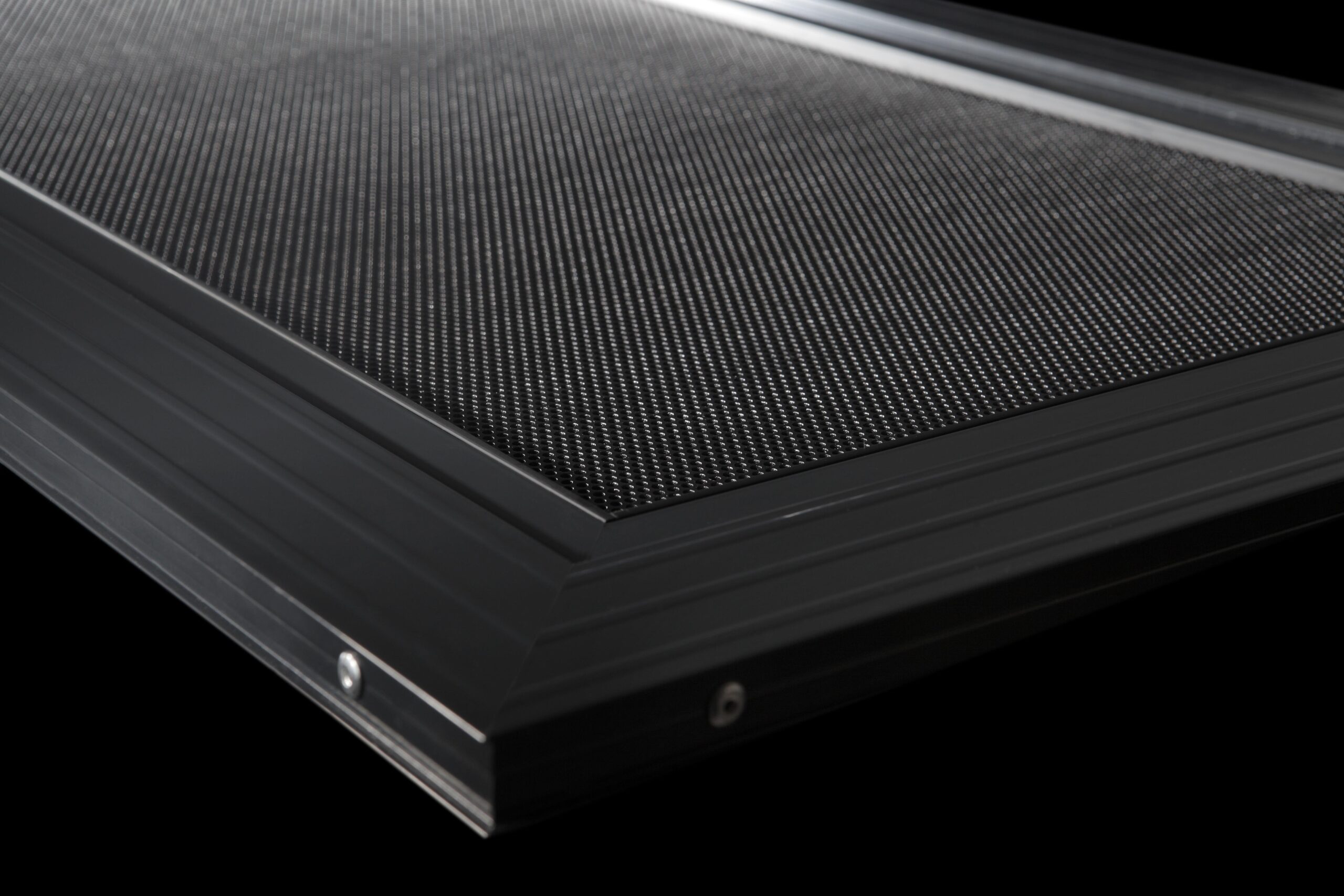

Alu-Gard Edge is the latest addition to the Alu-Gard range, the All-Aluminium security screening solution for Australian conditions. Edge is a PVC pressure retention system that retains the Alu-Gard perforated aluminium sheet in an extruded aluminium frame.

Alu-Gard Edge not only provides security, clarity of vision and strength, it is also corrosion resistant and looks great.

Key Features

  • Tested and passed Australian Standards.
  • Choice of retention systems.
  • Manufactured in Australia.
  • Part of a wide range of security and screening solutions.

Technical Specifications

Alu-gard Edge 2.0 - Specifications

Material Grade 5005 H34
Thickness 1.6mm
Aperture Size 2.0mm
Paint Dulux Black Matt
% Open Area 40%

Alu-gard Edge 2.0 - Tested Performance

Security
Australian Standard AS5041 - 2003 Methods of Test - Security Screen Doors and Window Grilles

Alu-gard Edge 2.0 - Tested Performance

Child Fall Protection
Australian Standard AS5203 - 2016 Protection of Openable Windows/Fall Prevention - Test Sequence & Compliance Method
Bushfire
2mm hole diameter meets bushfire requirements up to BAL-29
