Alu-Gard® Security Screening Systems

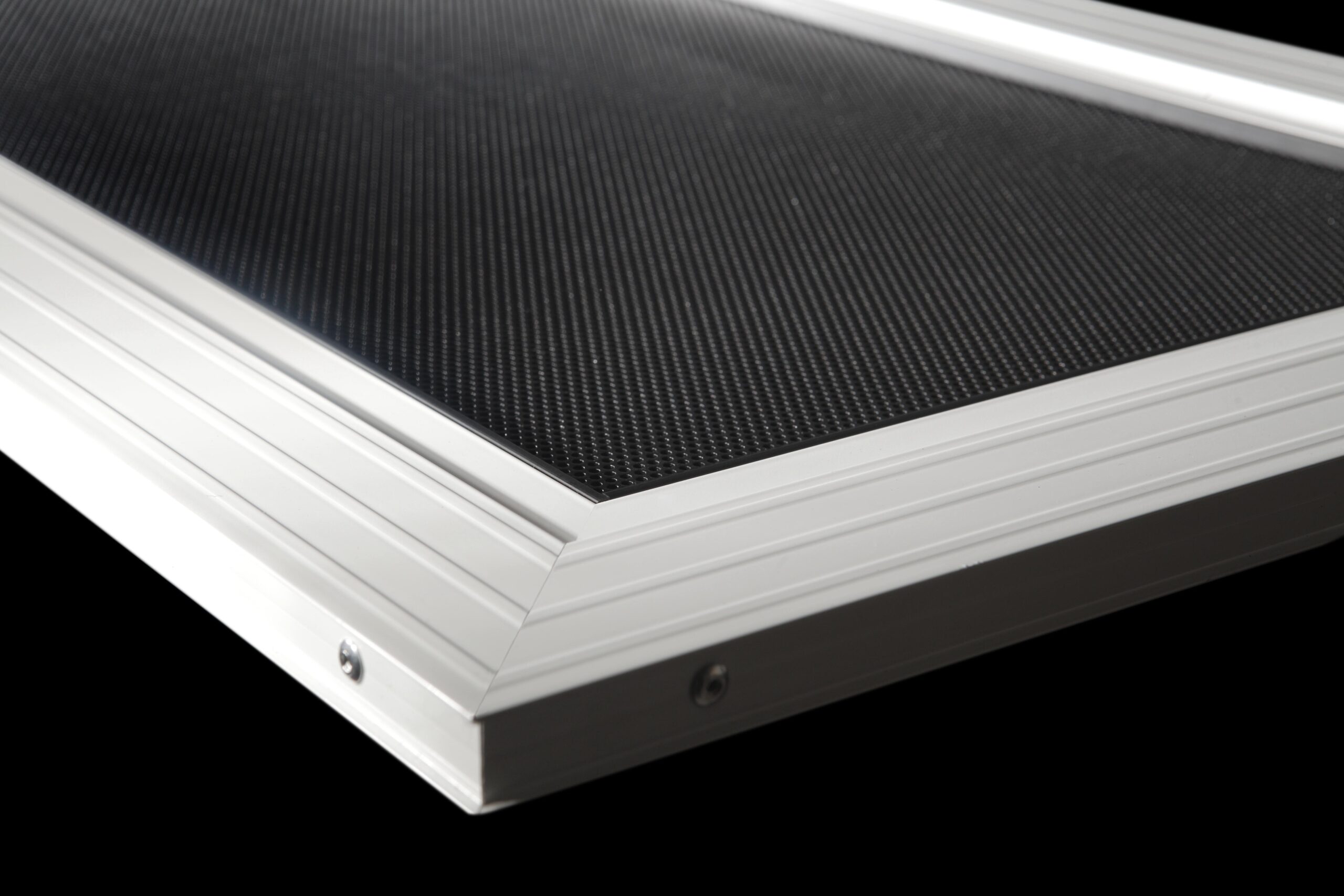

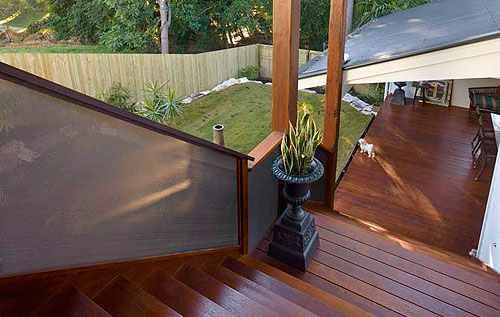

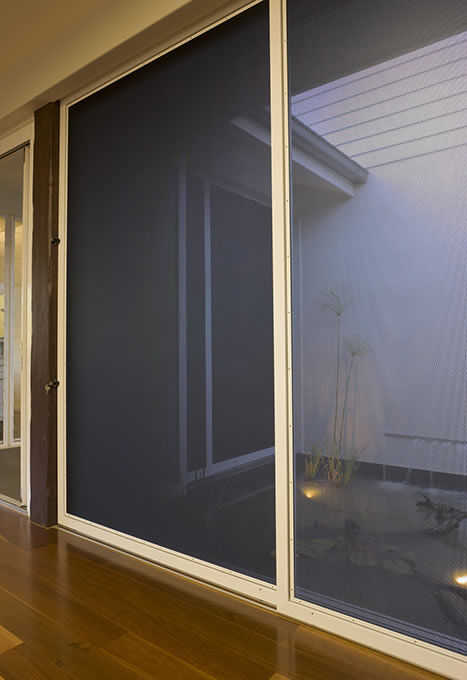

The All-Aluminium security screening solution for Australian conditions, Alu-Gard® is a perforated aluminium sheet retained in an extruded aluminium frame.

Tested and Compliant Solutions

The All-Aluminium security screening solution for Australian conditional. Alu-Gard is a perforated aluminium sheet or aluminium grille retained in and mechanically fixed to an extruded aluminium frame.

Alu-Gard not only provides security, clarity of vision and strength, it is also corrosion resistant and looks great.

Key Features

  • Tested and passed Australian Standards.
  • Choice of retention systems.
  • Manufactured in Australia.
  • Part of a wide range of security and screening solutions.

Technical Specifications

Alu-gard 2.0 - Specifications

Material Grade 5005 H34
Thickness 1.6mm
Aperture Size 2.0mm
Paint Dulux Black Matt
% Open Area 40%

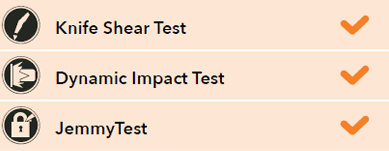

Alu-gard 2.0 - Tested Performance

Security
Australian Standard AS5041 - 2003 Methods of Test - Security Screen Doors and Window Grilles
Child Fall Protection
Australian Standard AS5203 - 2016 Protection of Openable Windows/Fall Prevention - Test Sequence & Compliance Method

Alu-gard 2.0 - Tested Performance

Fire Attenuation
Australian Standard AS1530.4 - 2014 Appendix B7
Bushfire
2mm hole diameter meets bushfire requirements up to BAL-29
