Aluminium Glazing Channels
Our Channels can be used as standard perimeter Glazing Channel applications or recessed Glazing Channel applications and come in a range of sizes.
Alspec® offers a range of Glazing Channels to meet your building and design requirements.
Alspec’s® Channels can be used as standard perimeter Glazing Channel applications or recessed Glazing Channel applications and come in a range of sizes from 25mm to 44mm to accommodate single or double glazed requirements.
Alspec’s® Aluminium Glazing Channel range can accept from 4mm to 12mm glass for single glazed, 24mm to 28mm double glazed when glazing with wedges and 12mm to 19mm when silicone glazing.
Technical Specifications
Frame Dimensions
| Option 1 | 25 x 25mm |
| Option 2 | 30 x 30/45mm |
| Option 3 | 30 x 32/45mm |
| Option 4 | 44 x 35mm |
Glazing Details
| Glass Position | Centre |
| Single Glazed | 4 - 12mm |
| Double Glazed | 24 - 28mm |
Maximum Recommended Sizes
| Height | 2400mm |
| Width | 2400mm |

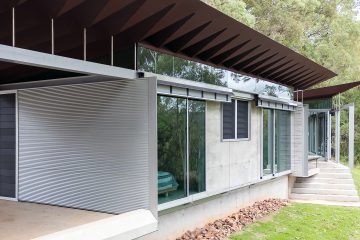

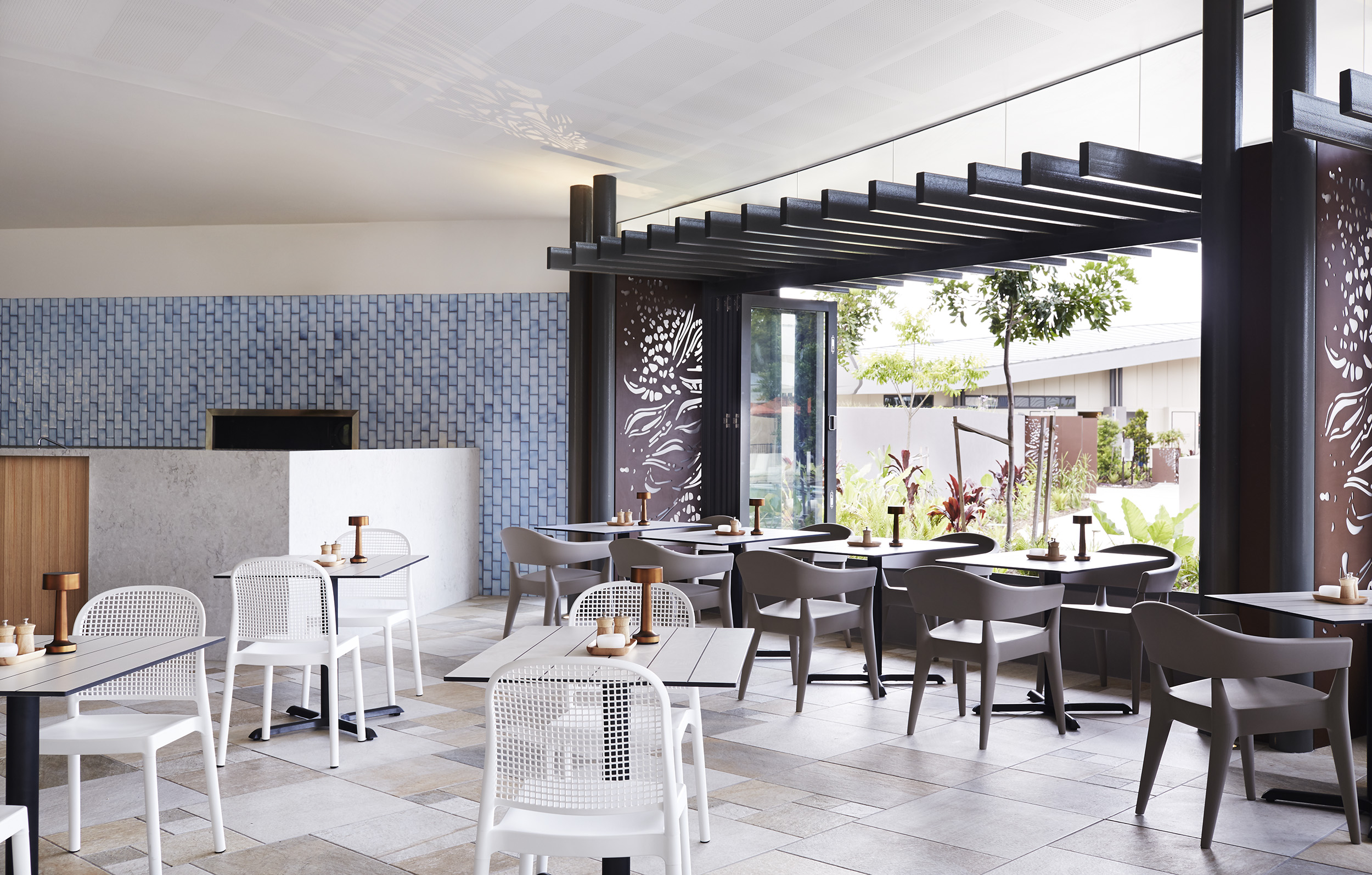

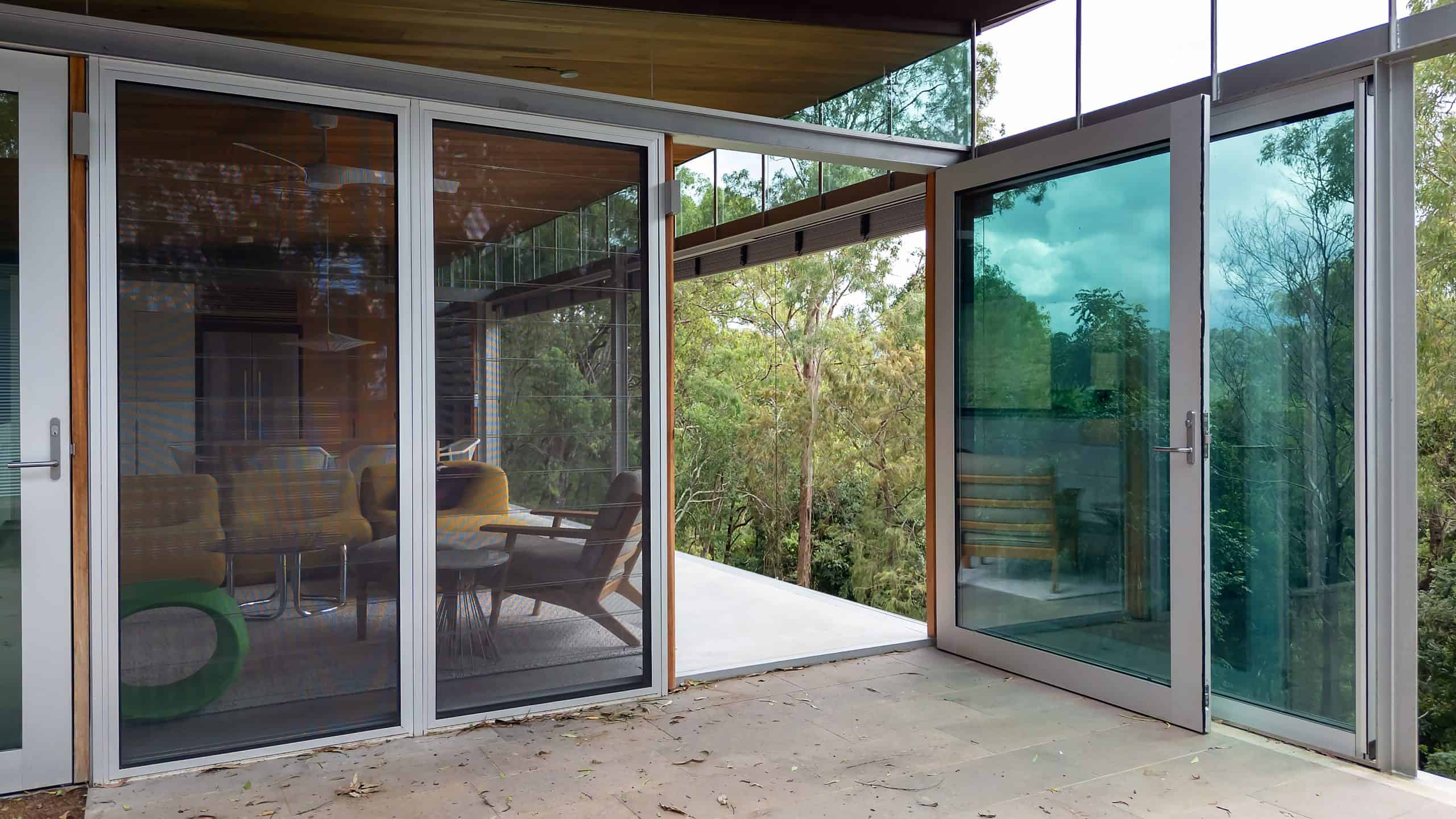

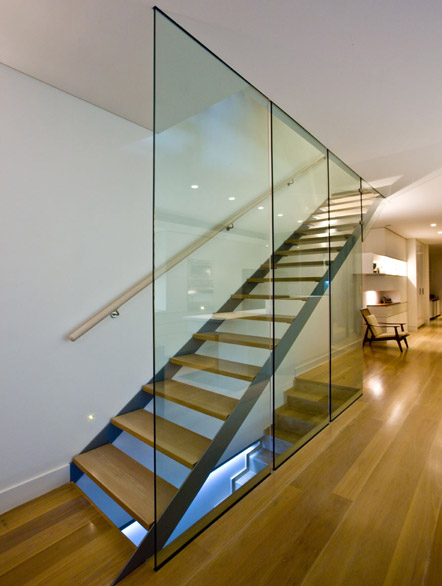

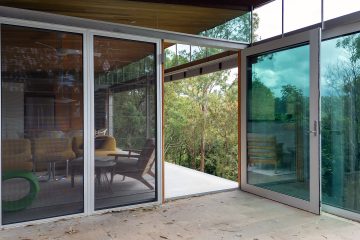

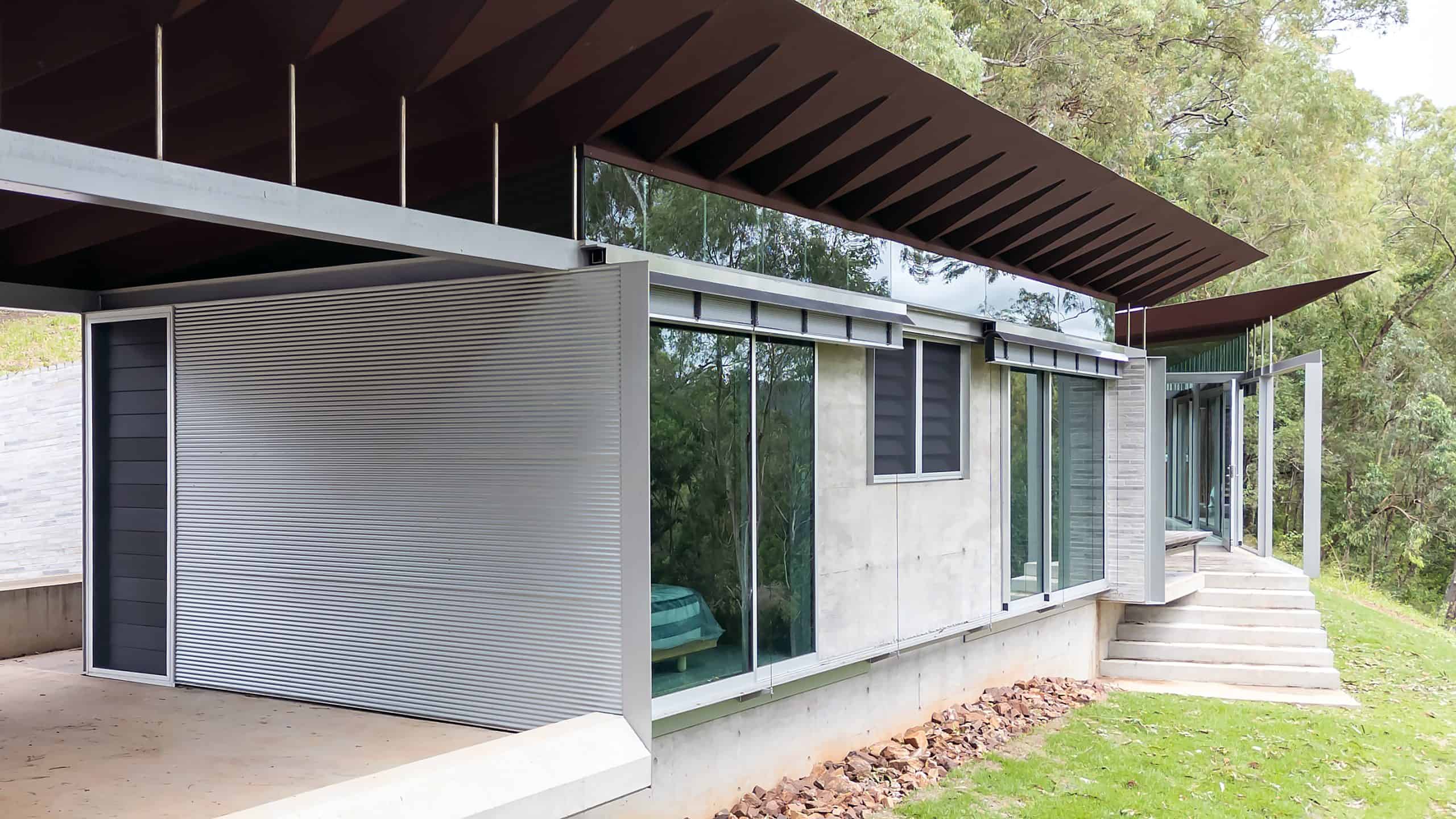

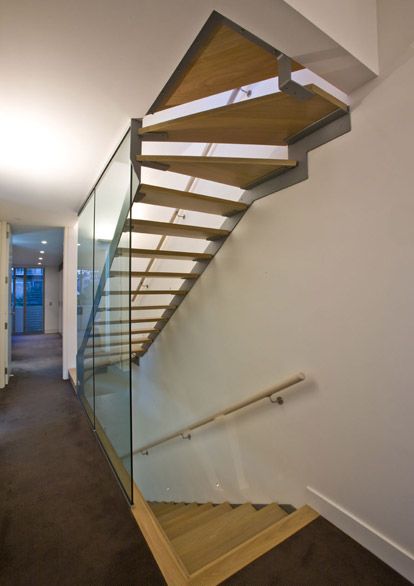

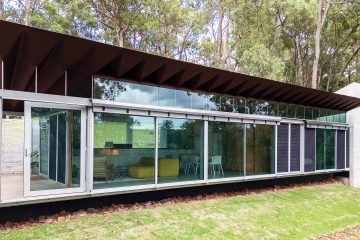

Gallery
