Classic Sliding & Stacking Door
The Carinya Classic Sliding Door is a product in the residential market having evolved out of a system designed for the high rise apartment market.
Tested and Compliant Solutions
- Rather than unsightly exposed tracks found in most residential doors, Carinya has a complete range of threshold and jamb in-fills as well as end caps to conceal all cavities. This not only provides a superior quality, commercial grade finish but also minimises places for insects, dirt and grit to gather.
- An internally concealed weather flap also reduces air and water infiltration and minimises insect intrusion through the drain holes.
- All Carinya sliding doors feature a choice of sill configurations catering for every weather performance requirement, including a wheelchair accessible sill.
- There is also a range of attractive interlock options to meet a wide variety of wind load requirements up to the most demanding cyclonic conditions.
Key Features
Downloads
Tech Manual
Log in to view all files
Brochures

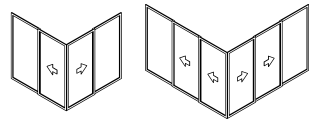

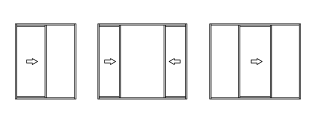

Typical Configurations
WERS Ratings
Downloads
Specifications
Specifications
- Maximum Sash Height: 2700mm
- Maximum Sash Width: 1500mm
- Maximum Glass Thickness:10.5mm or 18mm IGU
- Maximum Sash Weight: 160kg
- Frame width available in 92mm or 150mm
Application
- Region D Residential Construction for Cyclonic Compliance – Structural / Water & Impact Rated Glass
- Double Glazing without adaptors for a premium option
- Cyclonic Compliance – Structural / Water & Impact Rated Glass
- Low-Rise Multi-Unit Developments
Options
- A range of sill options available for increased structural, water performance and design flexibility.
- A range of internal interlocks complete with end caps for varying wind load requirements.
- Integral screening options for security or insect protection.
Energy Efficiency
