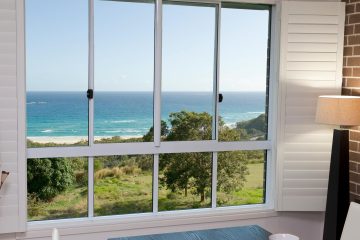

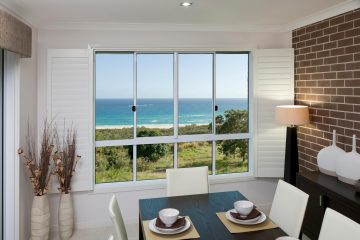

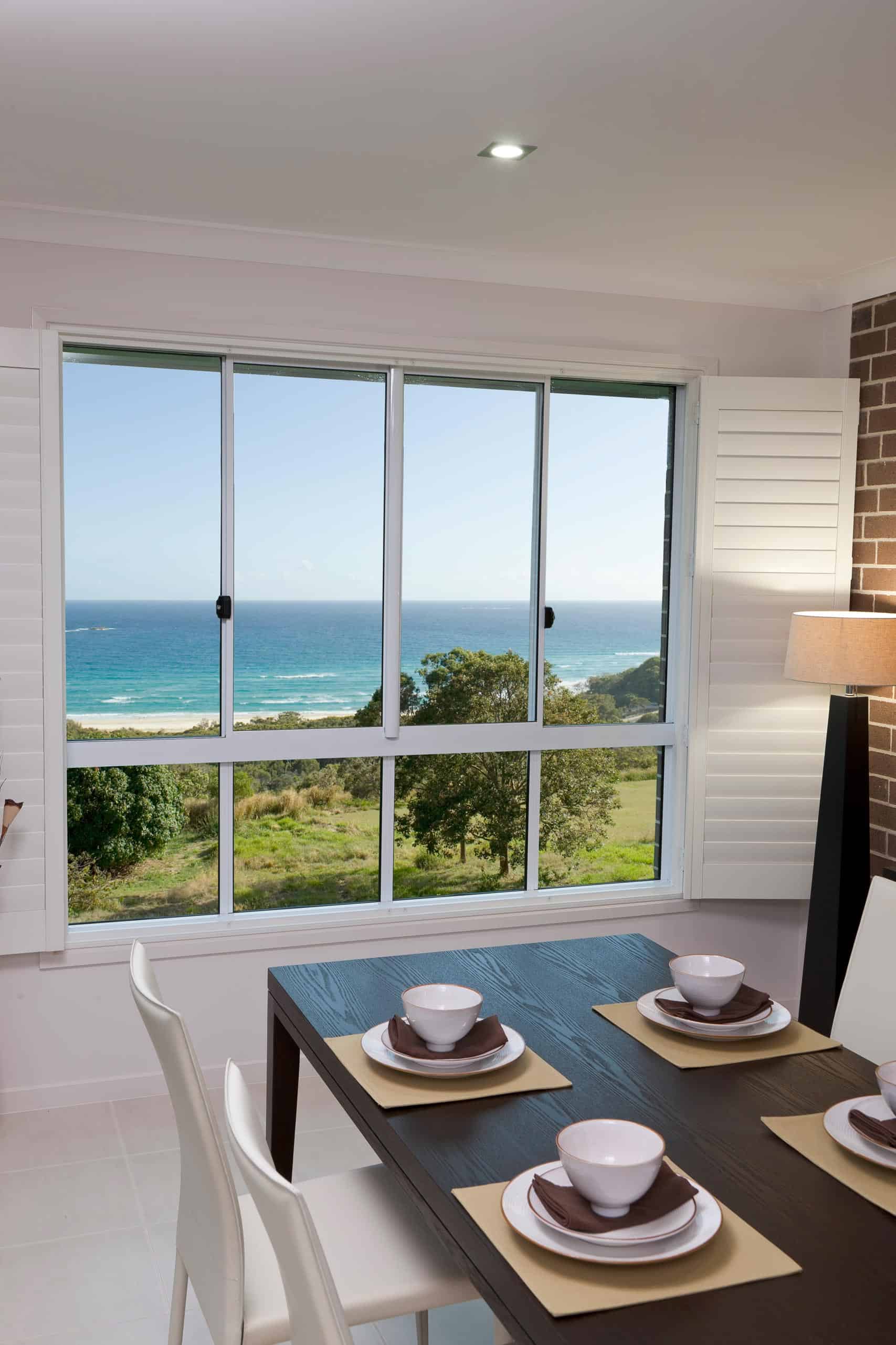

Classic Sliding Window
The Carinya Classic Sliding Window is a unique combination of form and function not previously available in the residential category.
Key Features

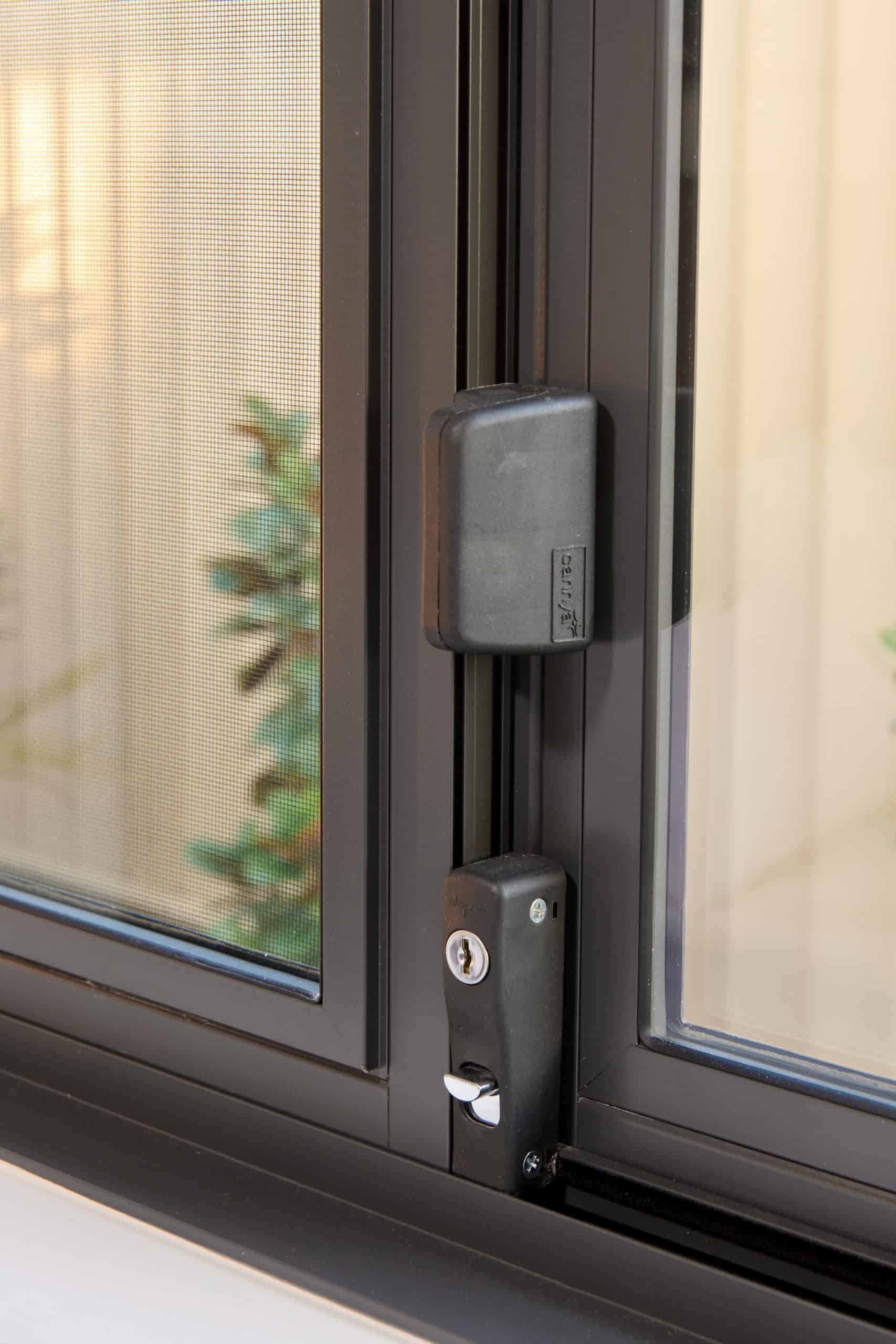

- Exclusive handle located on the mullion for ease of access and cleaner lines.
- In-built weather flaps – a feature of all Carinya windows – to reduce air and water infiltration, cover drain slots and minimise insect intrusion.
- Proprietary adjustable, non-corrosive roller system – the ‘engine room’ of these high-performance windows – provides an effortless gliding motion that makes the window a joy to operate.
- Anti-lift block fitted above the sash to prevent manipulation and increase security.
- Mullion and transom end caps that ensure insects have no place to hide.
- 101.6mm frame for architectural housing and schools
Brochures

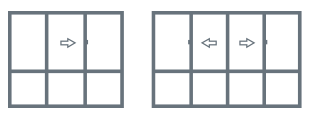

Typical Configurations
WERS Ratings
Specifications
Specifications
- Maximum Sash Height: 1500mm
- Maximum Sash Width: 1200mm
- Maximum Glass Thickness:10.5mm or 18mm IGU
- Maximum Sash Weight: 40kg
- Frame width available in 50mm & 92mm
Frame Width
- Option 1: 50mm
- Option 2: 92mm
- Option 3: 101.6
Application
- New residential construction
- Window replacement and renovation
- Low-rise building
Options
- A range of sill options are available for applications requiring increased weather performance.
- A range of mullions and transoms complete with end caps for a quality finish.
- Choice of screening options BetterVue® and UltraVue® for superior mesh solutions.

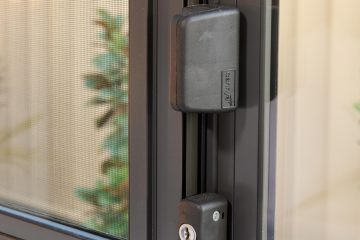

- A ventlock that allows the window to be secured in a partially opened position to allow ventilation whilst still being secure.

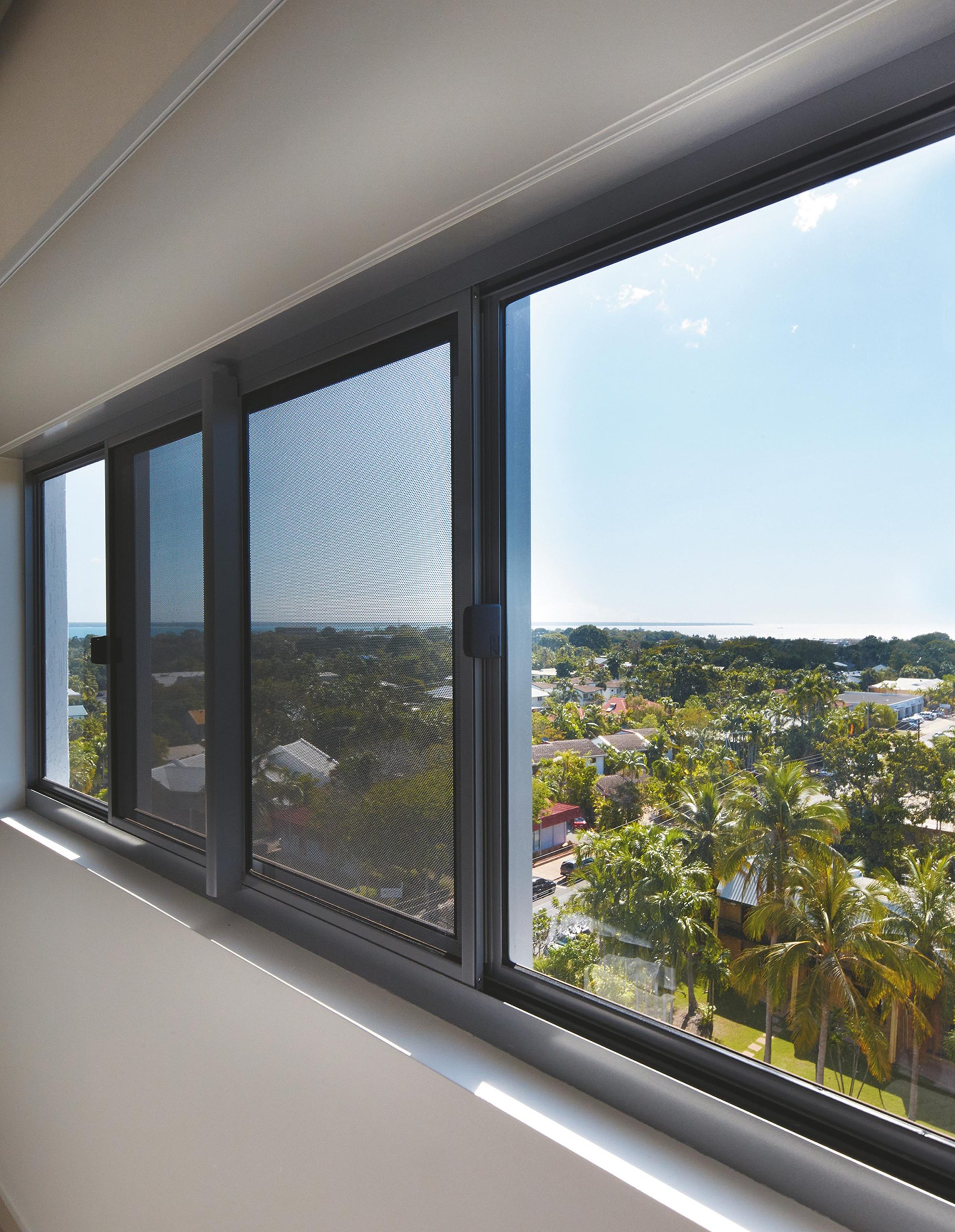

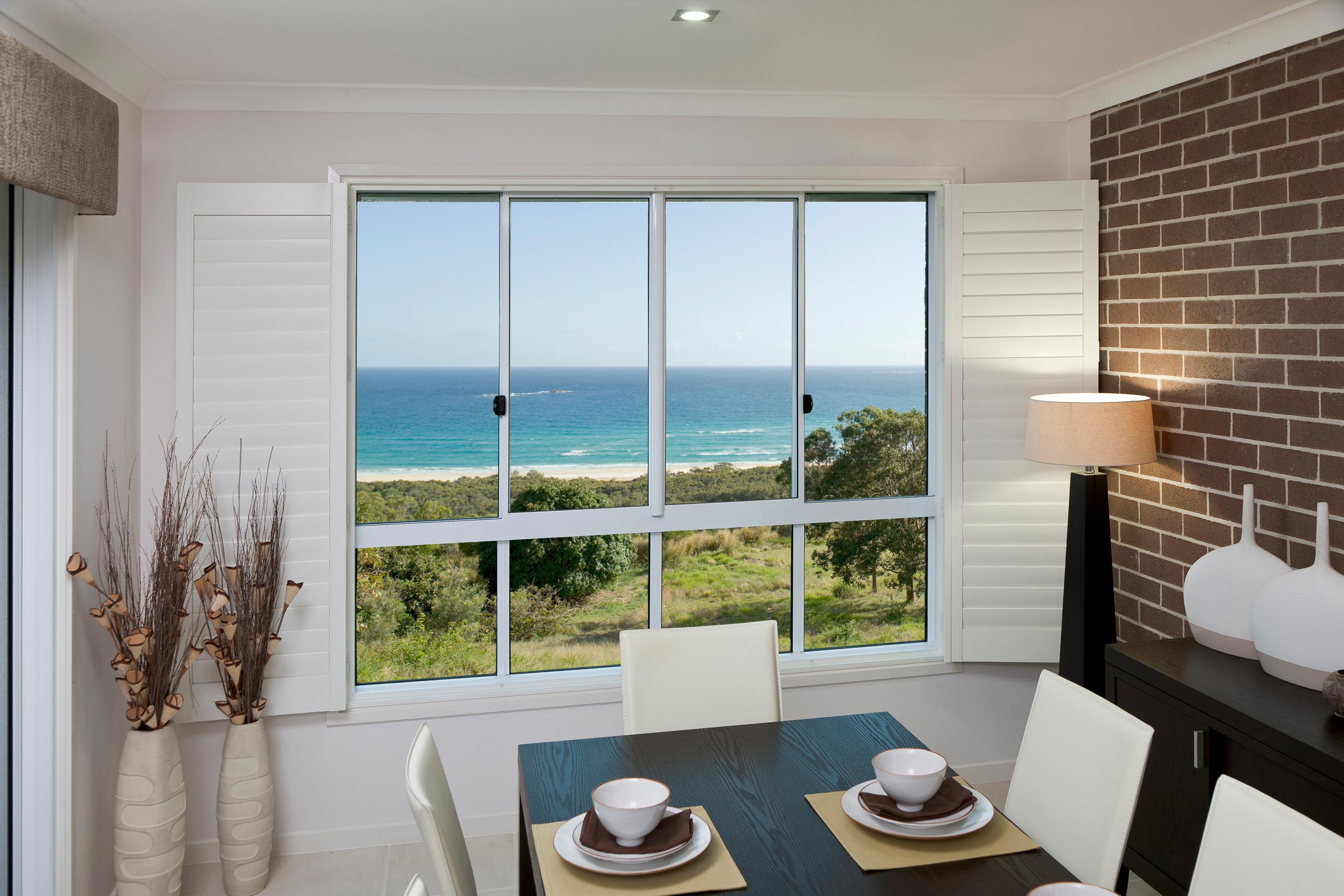

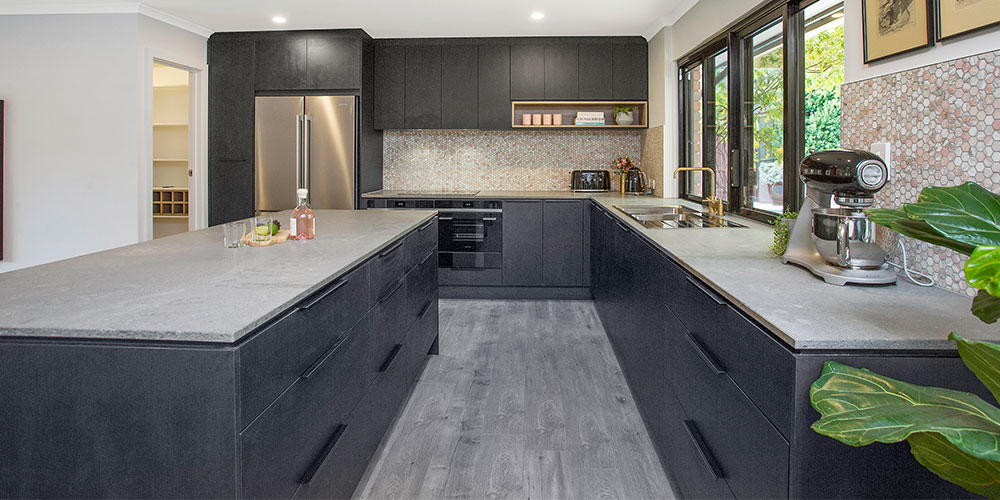

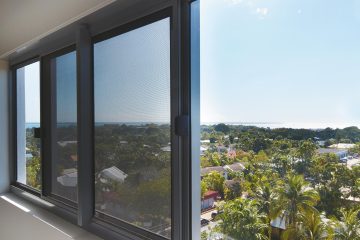

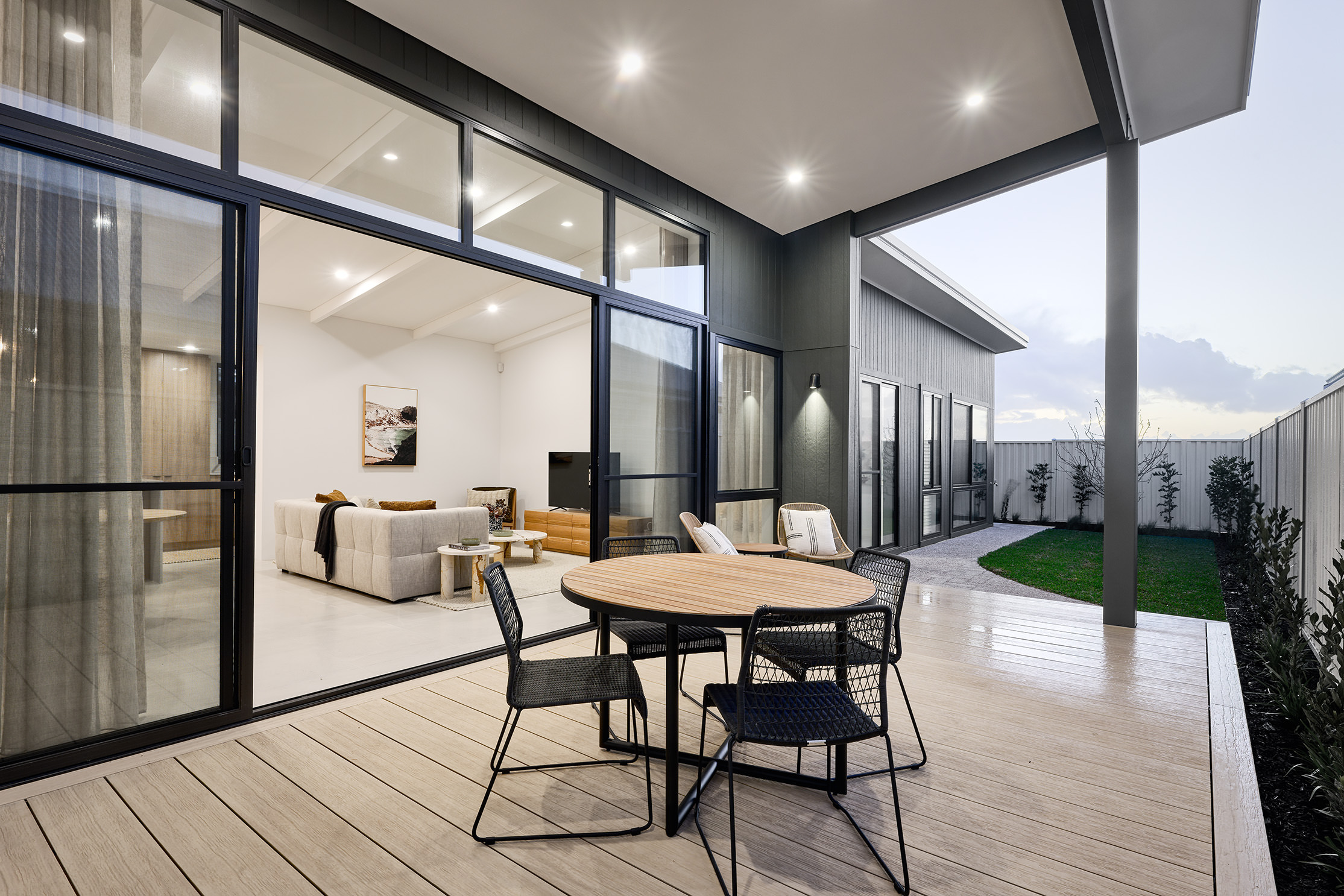

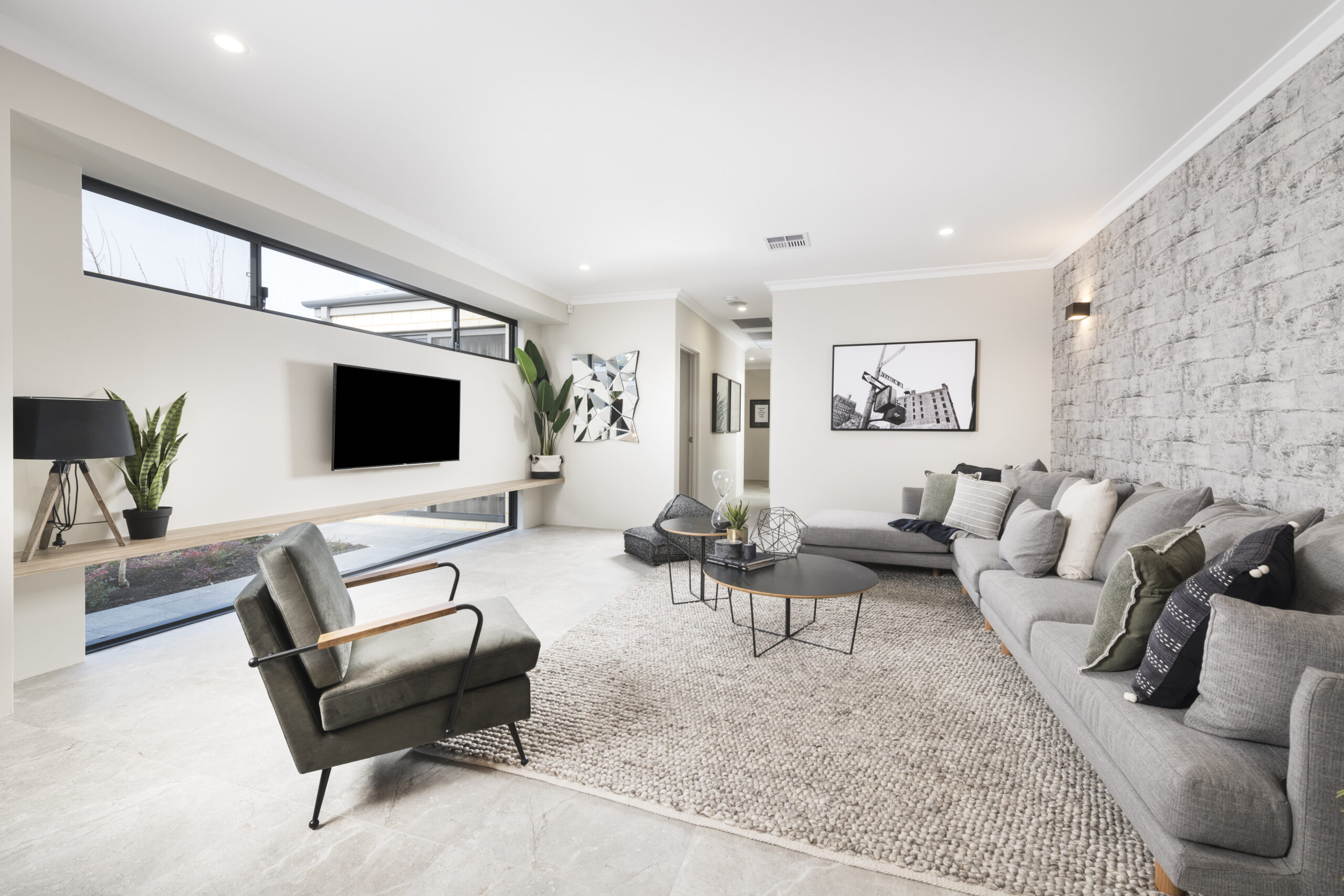

Gallery
