Products / Carinya Select

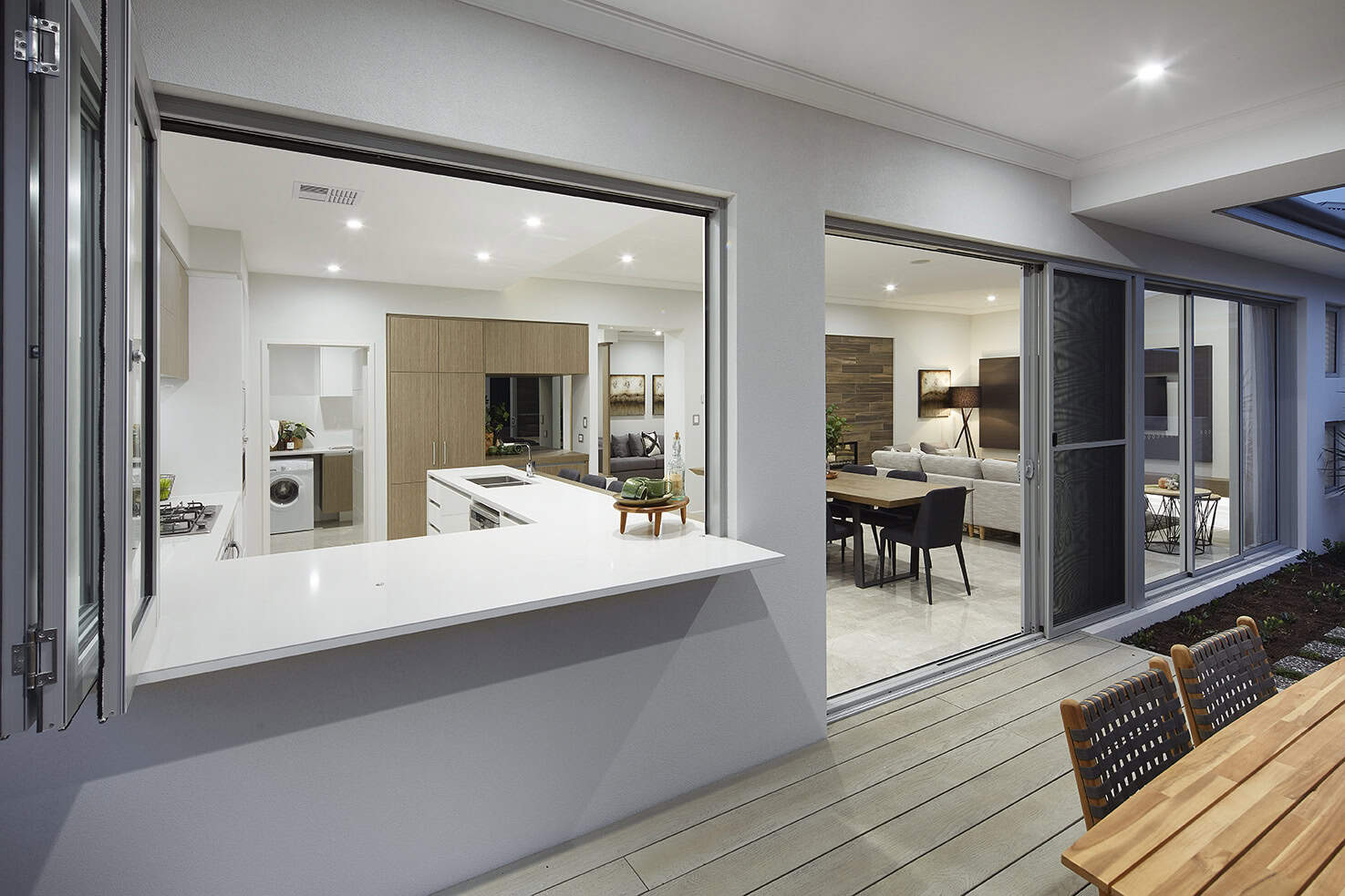

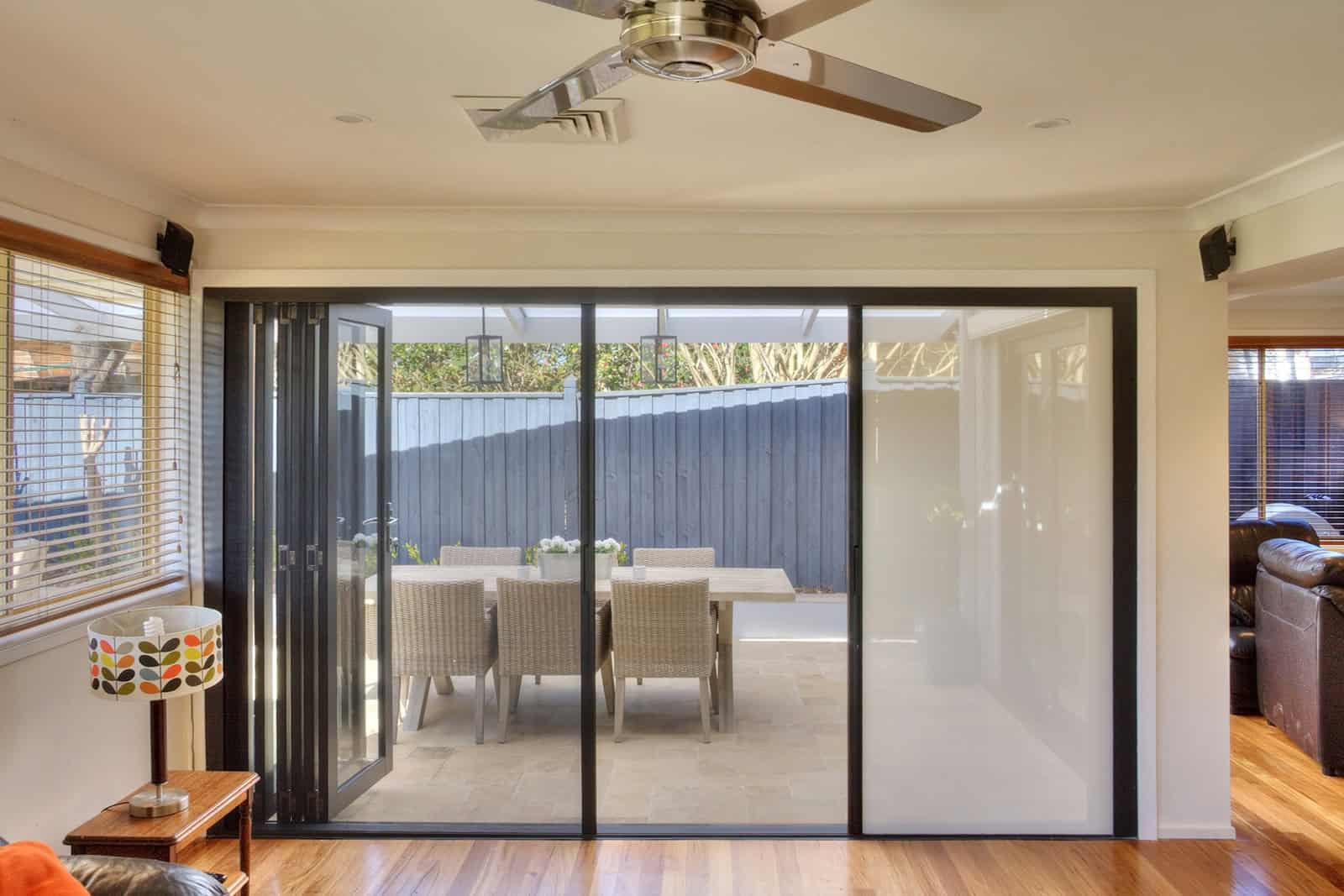

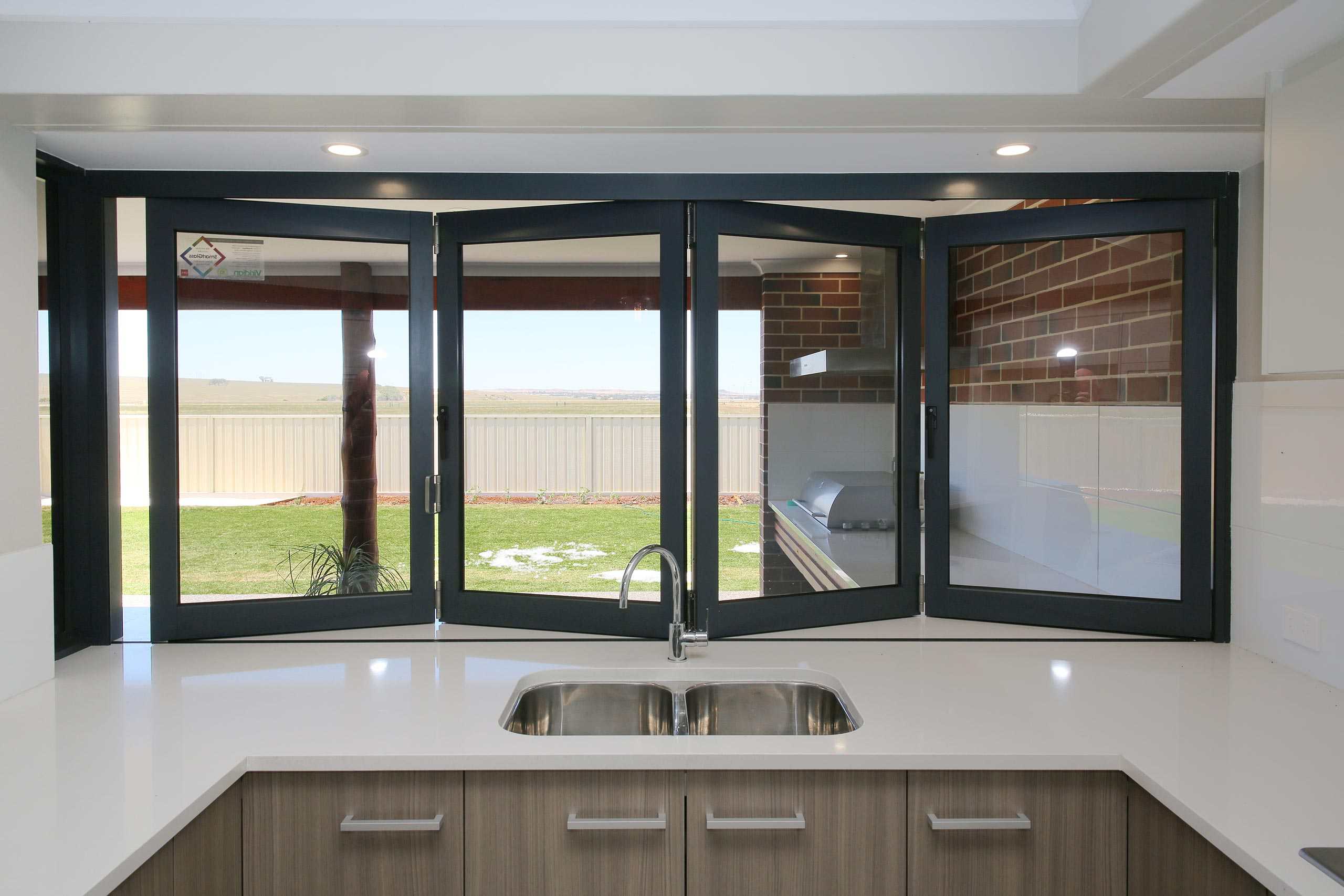

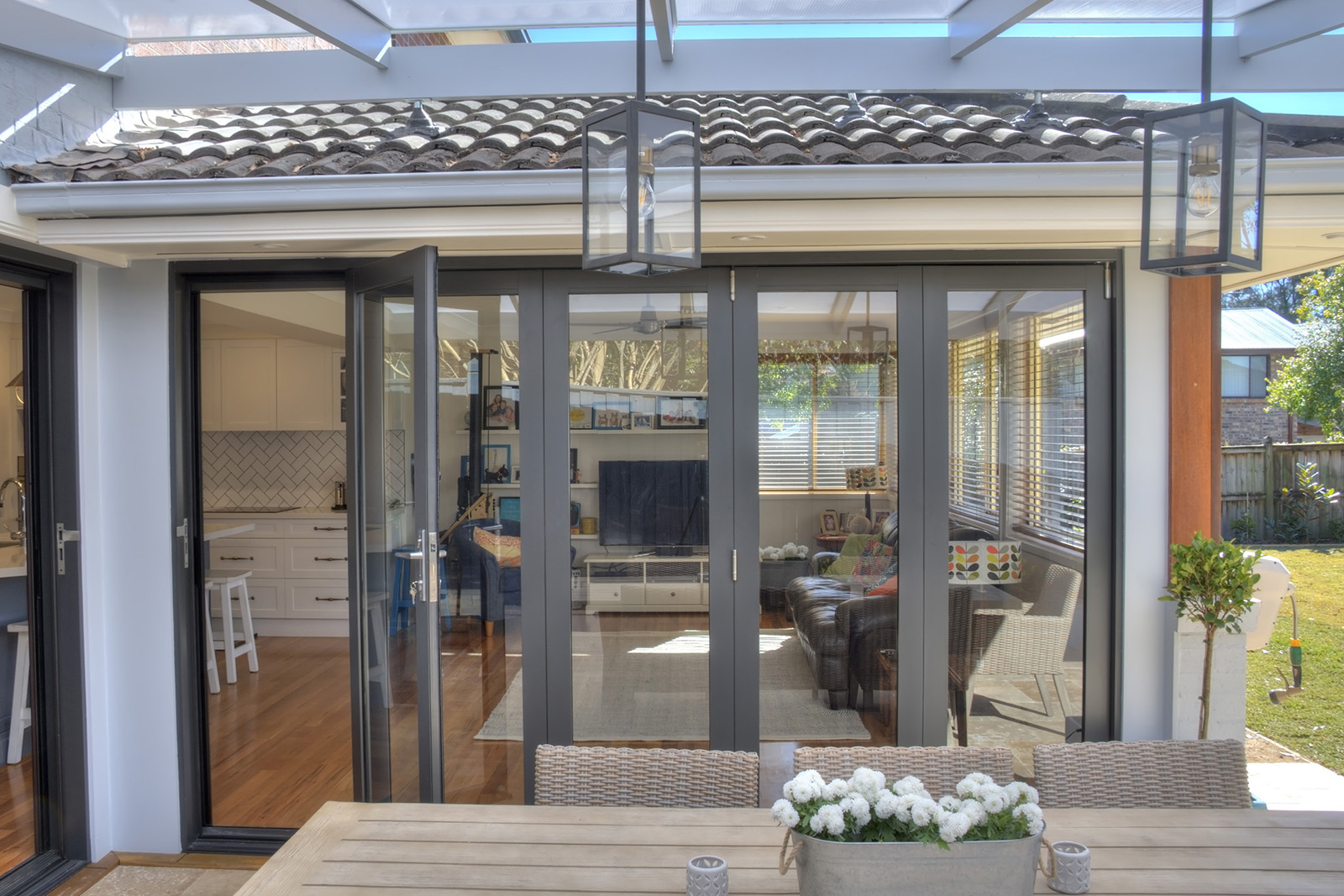

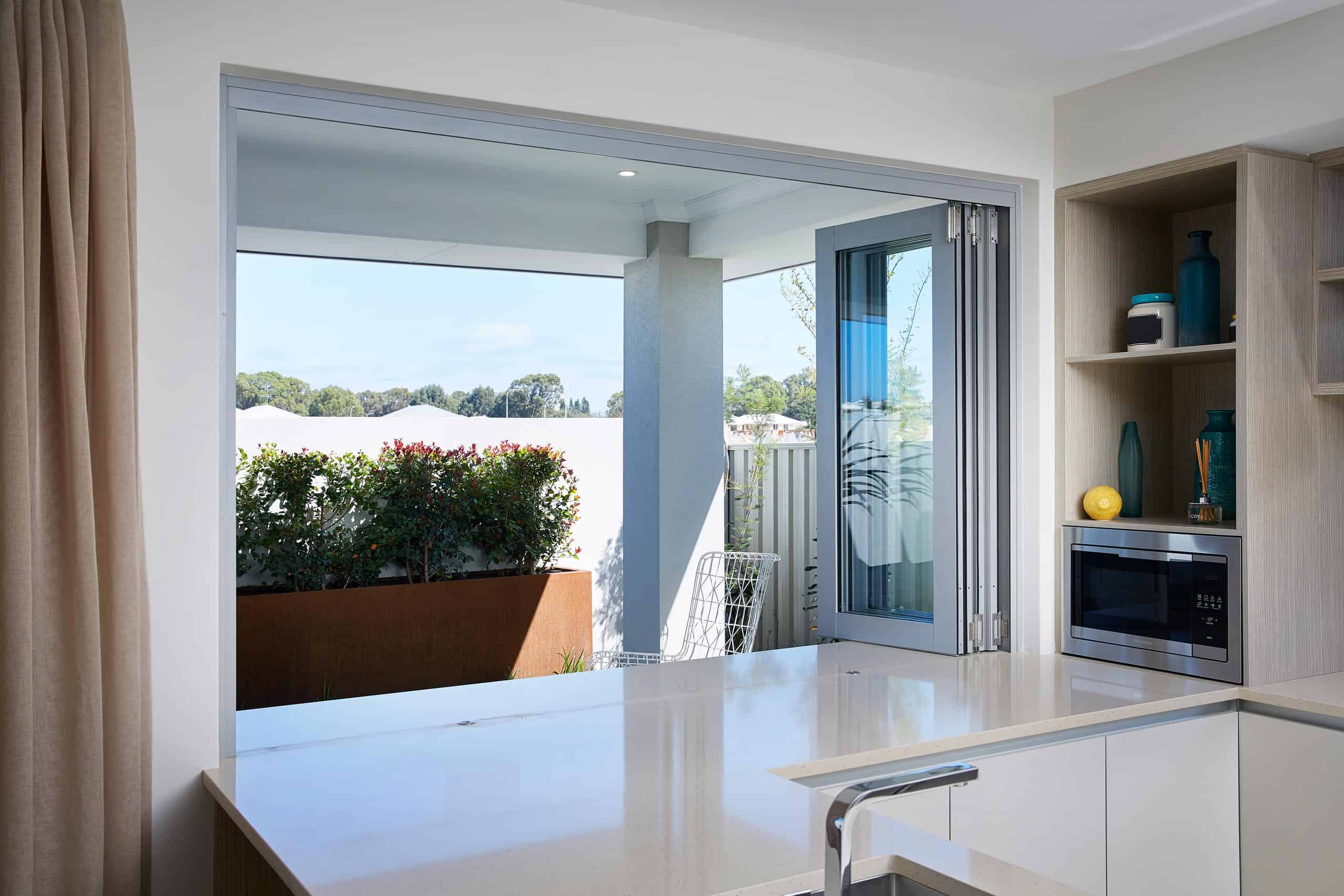

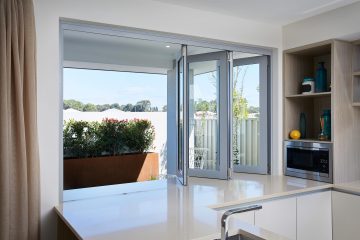

Select Bi-Fold Window & Door

For a modern designer look, the Carinya Bi-Fold extrusions are a consistent 85mm wide face on both the stiles and rails.

DOWNLOAD BROCHURE WERS Rating View on Carinya website

Tested and Compliant Solutions

BAL40
Cyclonic
Kid Safe
Acoustics
Compliant
  • The Carinya Select Top and Bottom Bi-Fold System features flat sill options for smooth accessibility and optional mid rails with multi-point locking in a range of opening configurations.
  • For a modern designer look, the Carinya Bi-Fold extrusions are a consistent 85mm wide face on both the stiles and rails. This allows a balanced visual face and allows a vast array of hardware lock options. Combined with commercial-grade spigots, these door panels are superior in strength and performance.
  • The Bottom rolling Bi-Fold system features the innovative F2/F3 Centor Bottom rolling hardware which overcomes the requirement for any structural beam as needed in a top hung Bi Fold system. This is ideal for the new or renovation market that want an Alfresco style opening without the additional cost of a structural beam.
  • The top-rolling Bi-Fold system features the Alspec commercial-grade E2A Centor rolling hardware, which has been used and proven over time in commercial projects. This is ideal for the new construction market that want an Alfresco-style opening.
  • The Carinya attention to detail includes concealed flush bolt brackets, reducing visible fixings, as well as custom extrusion design allowing for clean interaction with door hardware.
  • Compatible with Alspec’s Triser Architectural Hinge Door Lock
Read moreRead less

Downloads

Tech Manual

Log in to view all files

Customer Technical Memos

Log in to view all files

Wall Charts

Log in to view all files

CAD Drawings

Log in to view all files

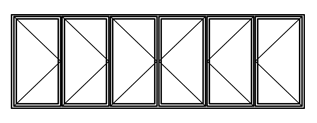

Typical Configurations

WERS Ratings

Window ID Glazing Frame Uw SHGCw Tvw Air Inf

Downloads

Carinya Fabricator Login

Specifications

Specifications

  • Maximum Panel Height: 2400mm
  • Maximum Panel Width: 900mm
  • Maximum Glass Thickness: 10.5mm or 24mm IGU
  • Maximum Panel Weight: 40kg (F2 & E2A) 80kg (F3
  • 92mm Frame

Application

  • Renovation Market
  • New Residential Construction
  • Window Replacement and Renovation
  • Low-Rise Multi-Unit Developments
  • Aged Care and Wheelchair Requirements

Options

  • A range of sill options for water or recessed openings.
  • A range of fixed light options including glass louvres.
  • Retractable screening options for insect protection.
