Dualair®

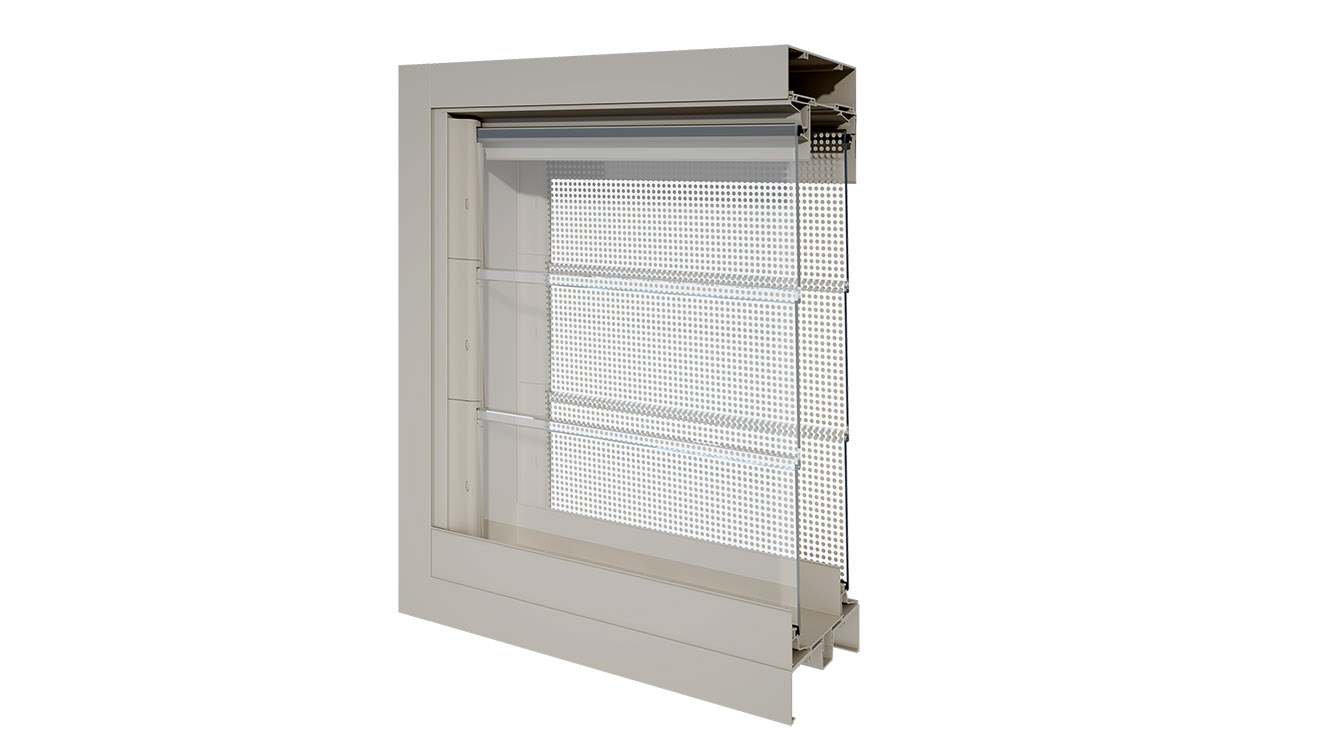

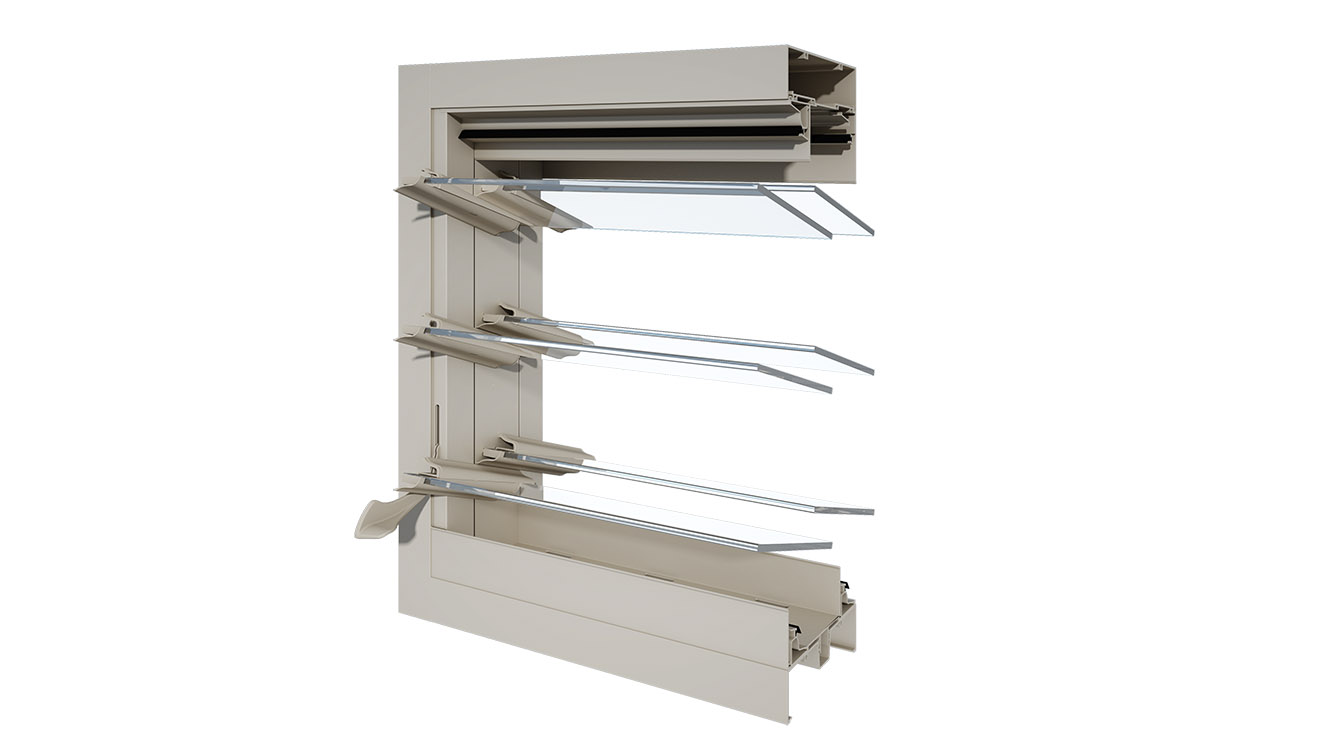

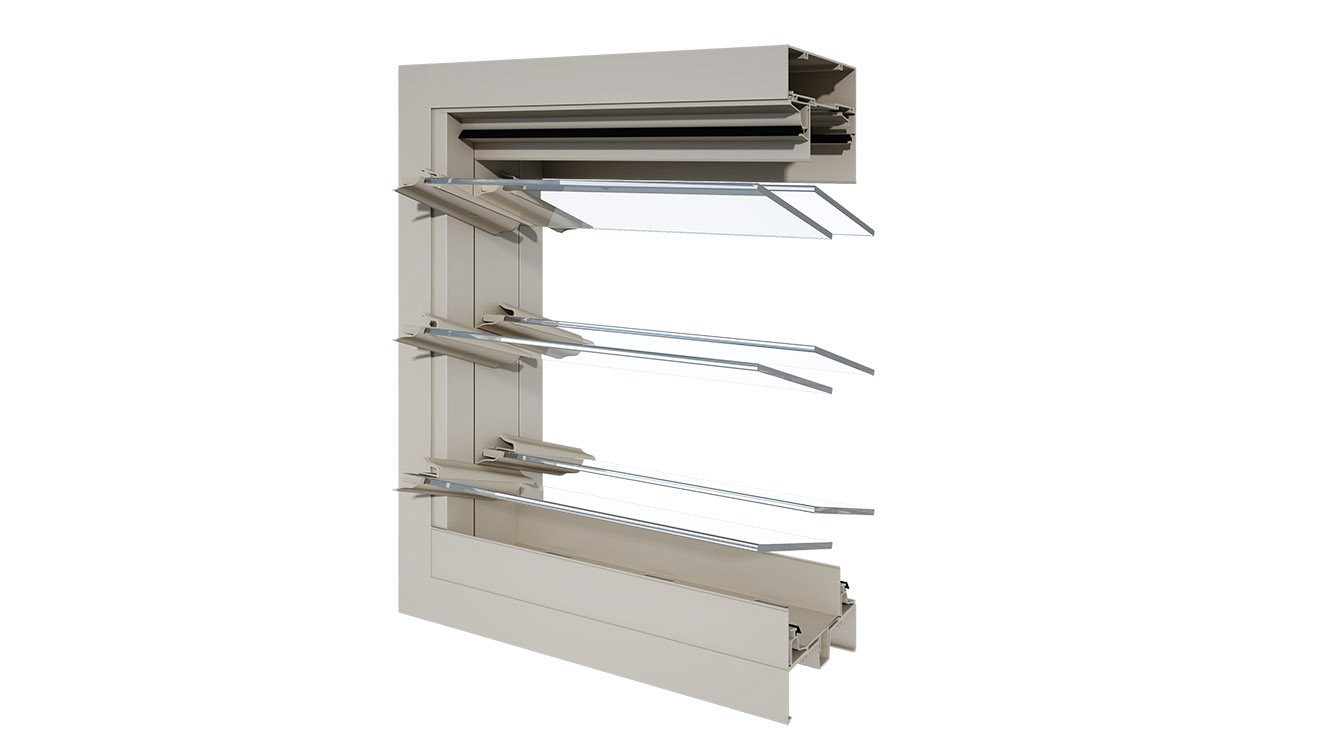

Alspec Dualair® component system has been carefully designed to deliver a high performance dual glazed louvre system to the commercial market.
Tested and Compliant Solutions
Alspec Dualair® component system has been carefully designed to deliver a high performance dual glazed louvre system to the commercial market.

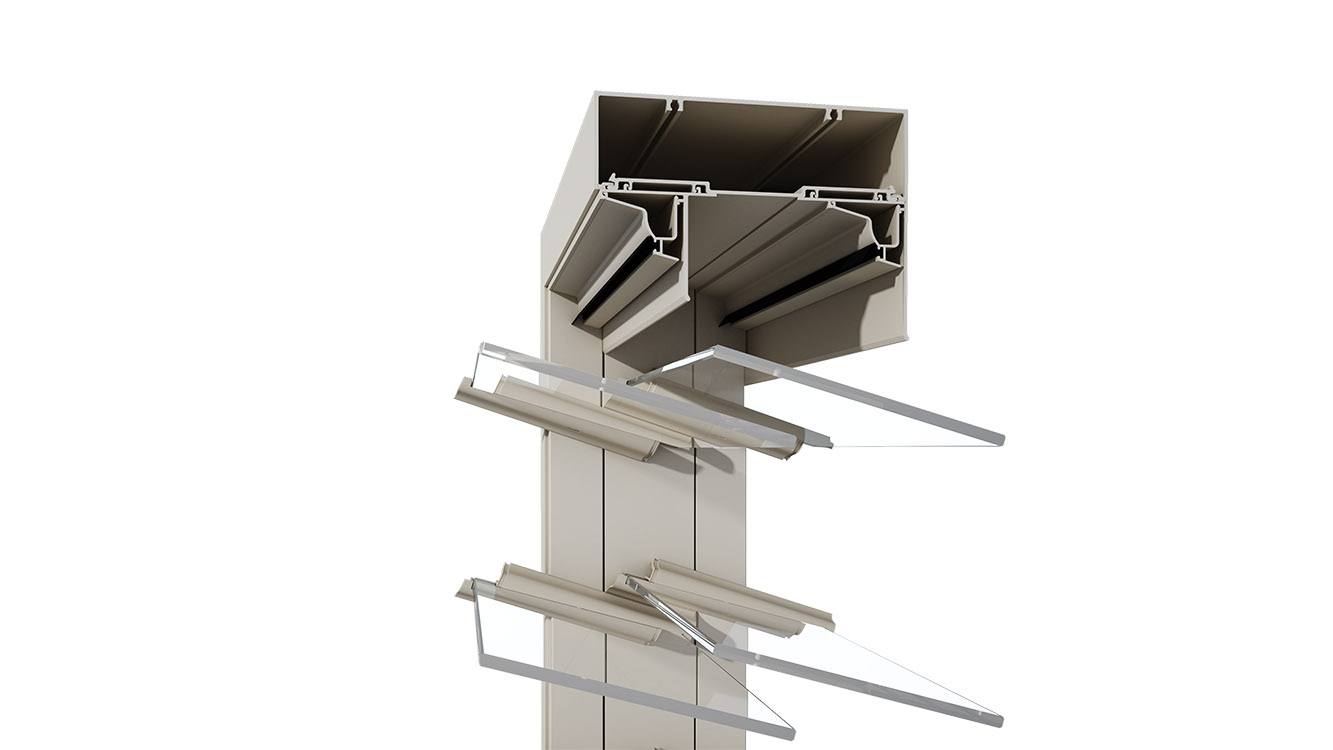

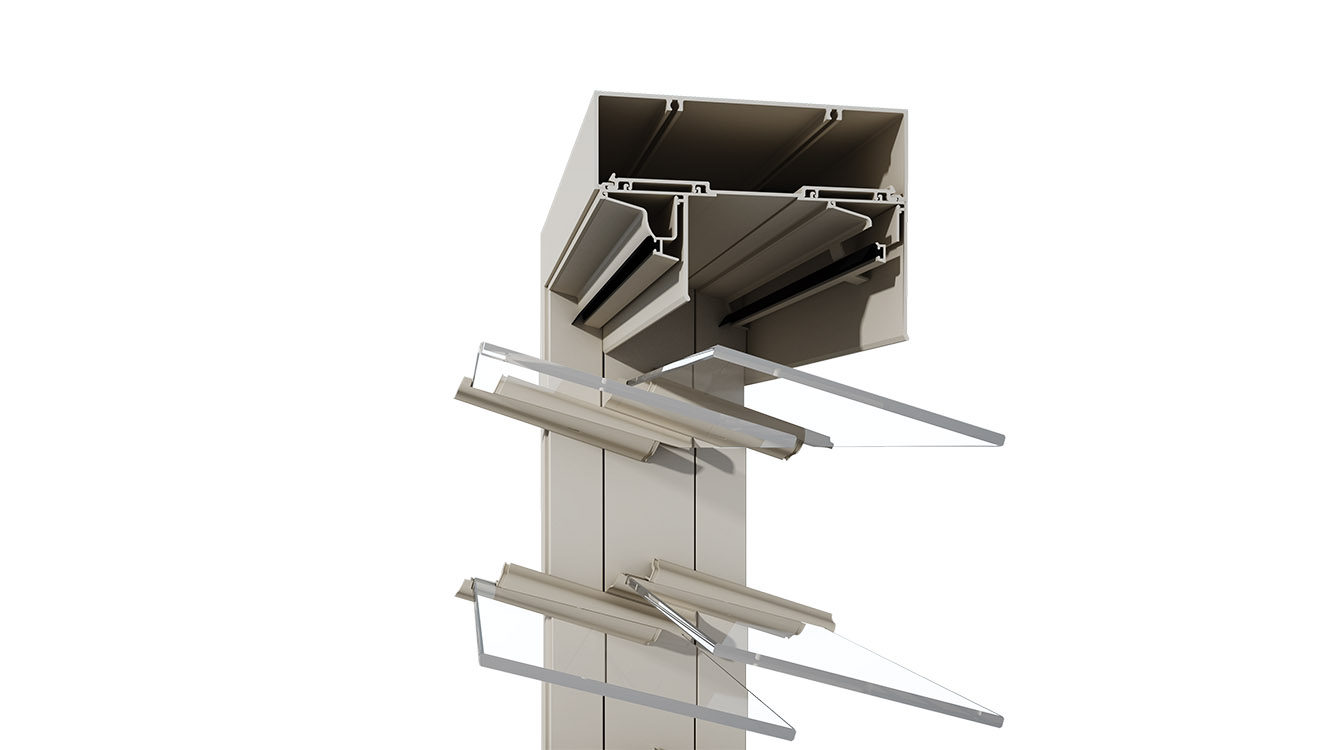

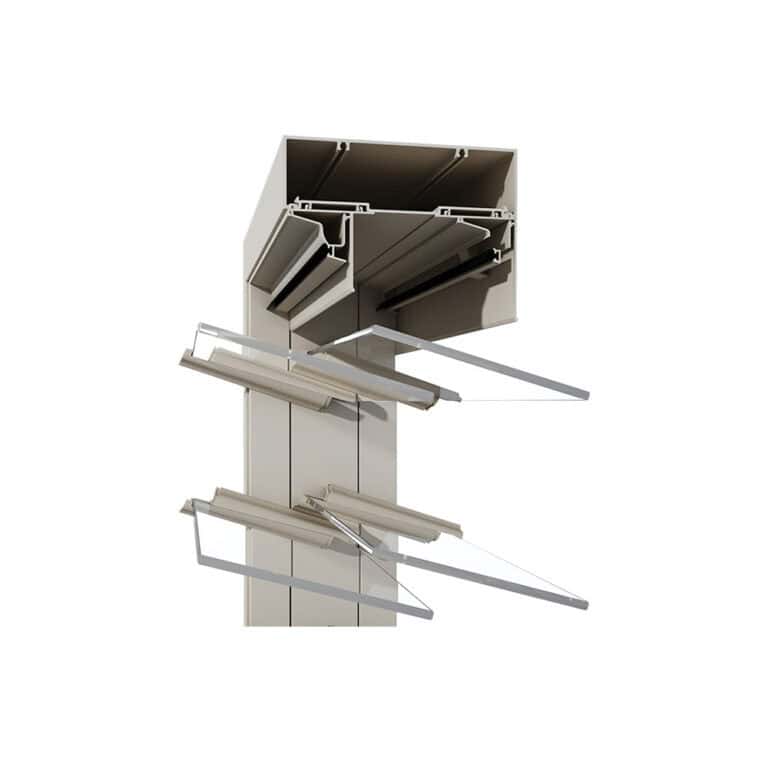

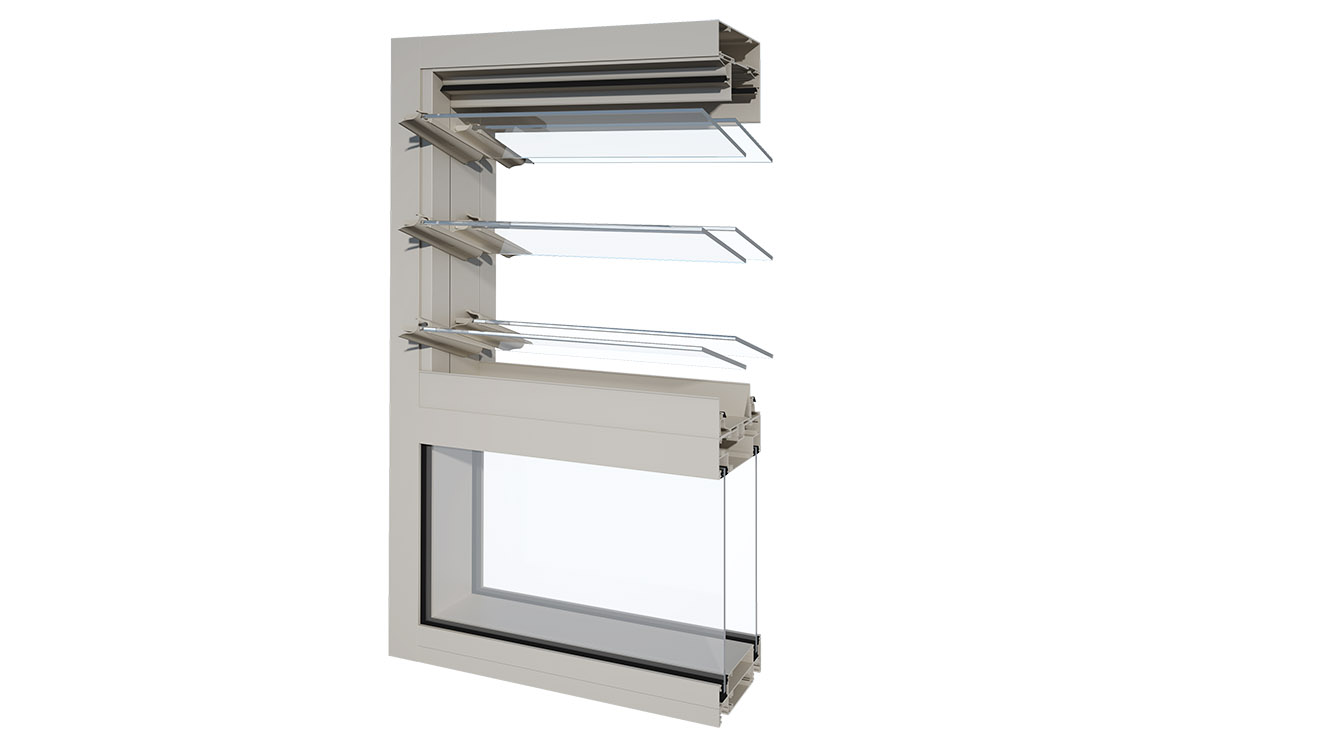

The system provides outstanding results for improved water penetration, allowing larger window sizes to be installed into project designs. Through the use of two louvre galleries inside the one frame, significant sound reduction can be achieved as well as excellent ventilation and shading to keep buildings cool and comfortable.
The Dualair® system has been built on the back of Alspec’s architectural systems knowledge, which balances the needs of both form and function.
Key Features

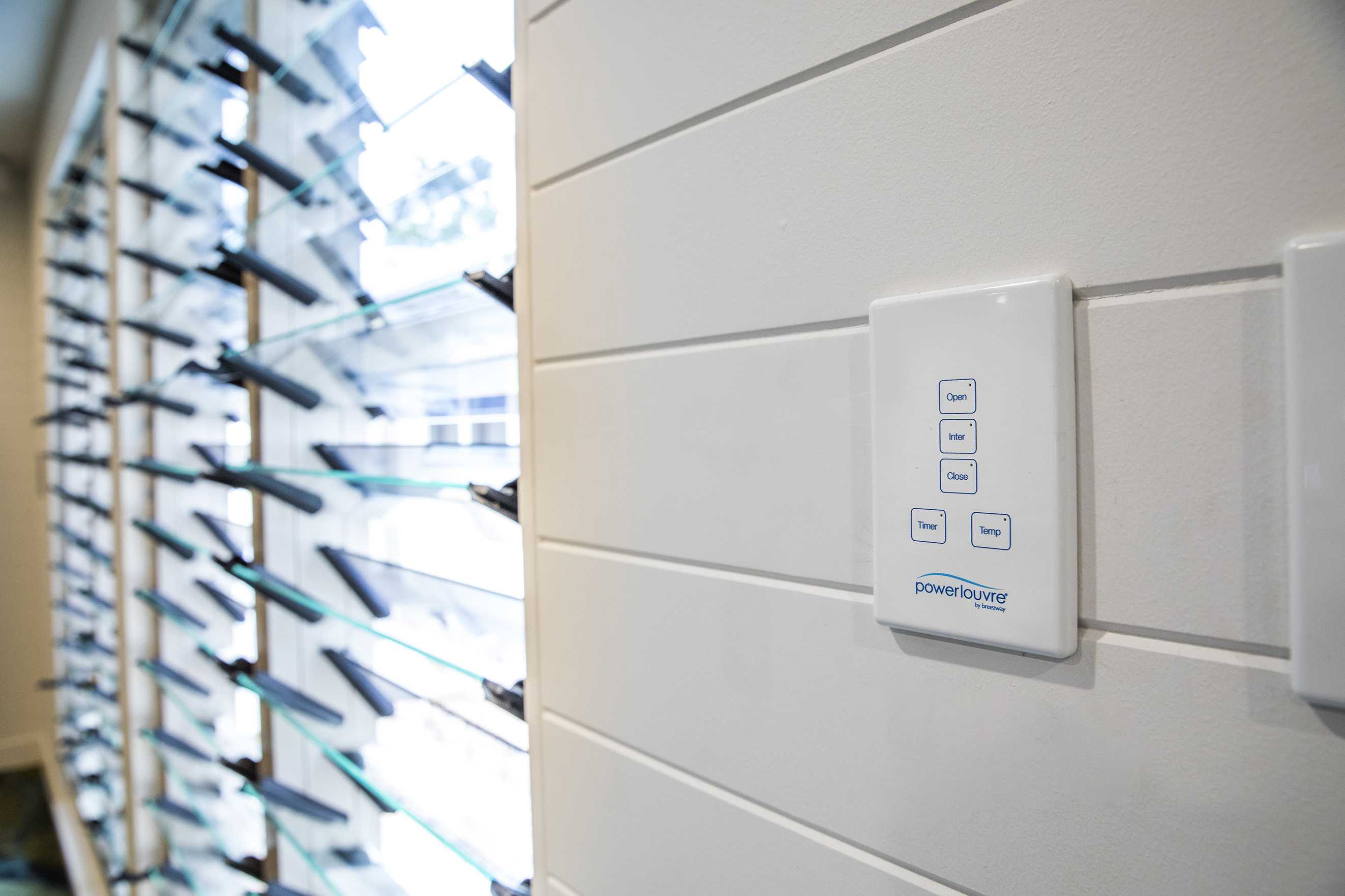

- The outer gallery must always be an Altair Powerlouvre®Gallery, the inner gallery can be a Powerlouvre®Gallery or manually operated.
- Fully compatible with the Stronghold® system with restricted openings to satisfy fall prevention requirements.
- Full range of colour and handle customising available.
- 6mm thick, 152mm glass or aluminium blades only.
Technical Specifications
Sound Performance
|
Toughened Glass / Toughened Glass |
|
| R'w (C;Ctr) | 35 (-1; -3) |
|
Aluminium outer / Toughened Glass inner |
|
| R'w (C;Ctr) | 35 (-2; -4) |
Thermal Performance
|
McArthur Evo 150mm Framing |
|
|
6mm glass / 6mm glass |
|
| U-Value | 3.4 |
| SHGC | 0.47 |
|
Low-E 6mm glass / 6mm glass |
|
| U-Value | 2.8 |
| SHGC | 0.14 |
|
Low-E 6mm glass / Low-E 6mm glass |
|
| U-Value | 2.4 |
| SHGC | 0.1 |
Thermal Performance
|
Hunter Evo Acoustic 150mm Framing |
|
|
6mm glass / 6mm glass |
|
| U-Value | 3.8 |
| SHGC | 0.46 |
|
Low-E 6mm glass / 6mm glass |
|
| U-Value | 3.2 |
| SHGC | 0.15 |
|
Low-E 6mm glass / Low-E 6mm glass |
|
| U-Value | 2.9 |
| SHGC | 0.11 |
