ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing

When energy efficiency is paramount, the versatility allows countless specifications to be achieved, from standard shopfront applications to the most challenging structural and energy requirements.

DOWNLOAD BROCHURE WERS Rating

Tested and Compliant Solutions

BAL40

Cyclonic

Acoustics Compliant

AS2047 Compliant

The ecoFRAMEplus® is the ideal system principally when energy efficiency is paramount. Its versatility allows countless specifications to be achieved, from standard shopfront applications, through to the most challenging structural and energy requirements.

With a frame depth of 101.6mm x 50mm, ecoFRAMEplus® allows a frame to transform from double to single glazed with ease. Glazing could not be simpler with the colour coded wedges to deal with the many diverse glass options.

Sub sills are recommended for optimum weathering with all ecoFRAMEplus® systems.

Key Features

Sharp unbroken lines
4mm – 14mm single glazed and up to 28mm double glazed options
Robust frame
Secure glazing using fully captive backing gaskets to outside of window frame
Excellent weathering performance
Colour coded glazing wedges for ease of identification
Easily adapts to Alspec’s awnings and hinged doors

Frame Dimensions

Option 1

101.6 x 50mm

Maximum Product Performance

SLS (Pa)	2000
ULS (Pa)	5500
WATER (Pa)	1000

Compatible Systems

Windows & Doors	Swan Evo™ 45mm/70mm Commercial Shopfront Door
Windows & Doors	Torrens 45mm Commercial Shopfront Door

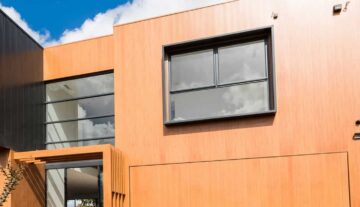

Windows & Doors	Awning and Casement Windows
Windows & Doors	ProTilt® High Performance Awning/Casement Window
Windows & Doors	View-Max® Commercial Sliding Window
Windows & Doors	ProGlide® High Performance Sliding Door
Windows & Doors	Altitude® Apartment Sliding Door
