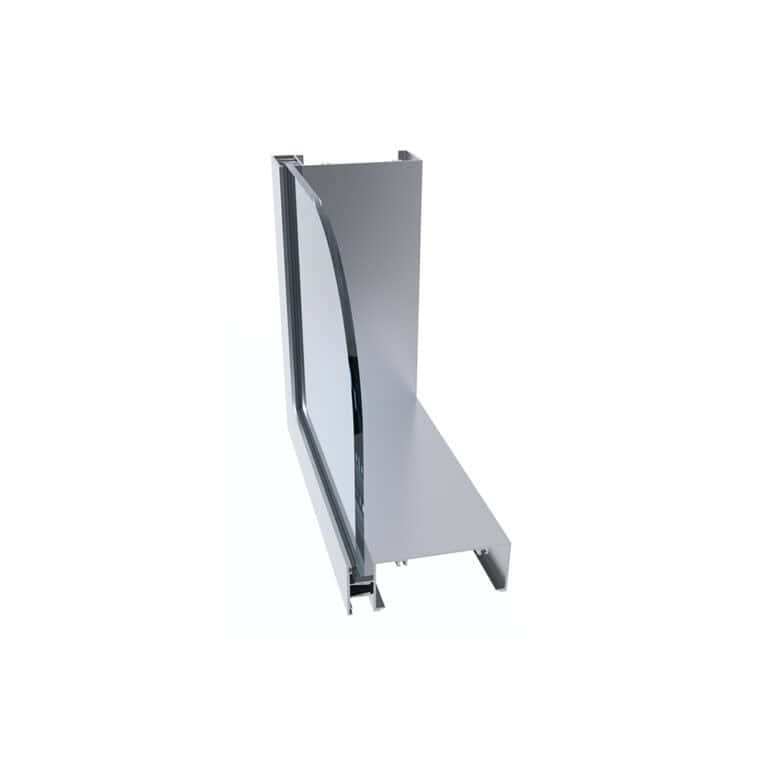

Hastings 101.6mm Front Glazed Framing

The Hastings 101.6mm Front Glazed Framing is a versatile and flexible system, ideal for shopfronts, upmarket residential and commercial applications.

Tested and Compliant Solutions

The Hastings Front Glazed Framing is a versatile and flexible system available in a frame depth of 101.6mm x 50mm. Ideal for shopfronts, upmarket residential and commercial applications.

With it’s straight cuts and flush glazing the Hastings not only looks good, but is easy to fabricate and easy to install. Hastings 101.6mm is suitable for a range of single and double glazed options.

Key Features

  • Sharp unbroken lines
  • Front glazed appearance
  • Robust frame
  • Good weathering performance
  • 4 –12.4mm single glazed and up to 32mm double glazed • Easily adapts to Alspec’s hinged doors

Technical Specifications

Frame Dimensions

Option 1 101.6 x 50mm

Compatible Systems

Windows & Doors Swan Evo™ 45mm/70mm Commercial Shopfront Door
Windows & Doors Torrens 45mm Commercial Shopfront Door

Maximum Product Performance

SLS (Pa) 2400
ULS (Pa) 3000
WATER (Pa) 1000

Glazing Details

Glass Position Front
Single Glazed 6 - 12.38mm
Double Glazed 24 - 32mm

Acoustic Performance: Rw (c;ctr)

6.38mm Laminate 32 (-1,-2) dB

Maximum Recommended Sizes

Height 3600mm
Width 2400mm

Downloads

Tech Manual

Log in to view all files

Customer Technical Memos

Log in to view all files

Wall Charts

Log in to view all files

CAD Drawings

Log in to view all files

3D Revit

Log in to view all files

Typical Configurations
