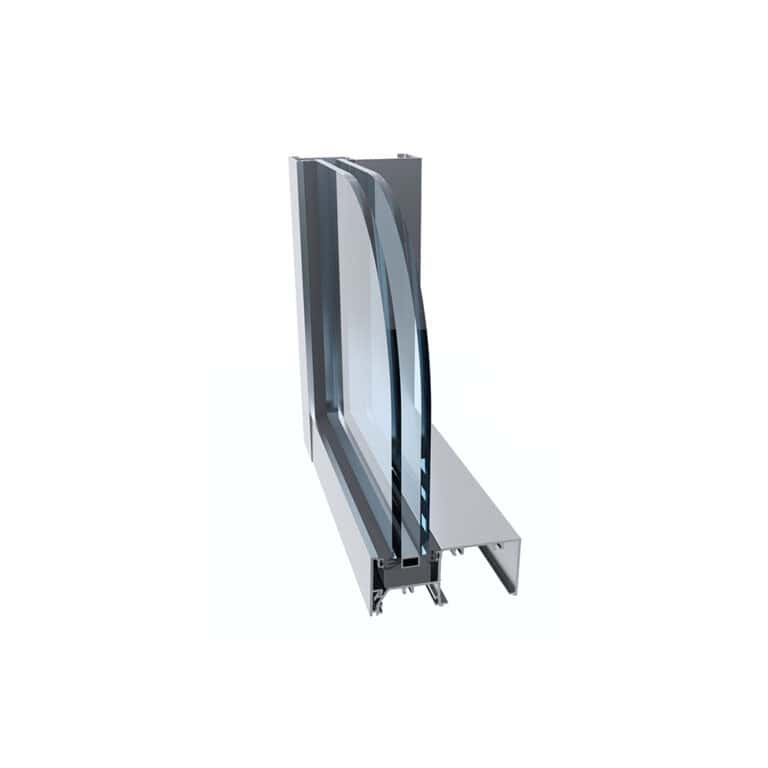

Hunter Evo 101.6mm Double Flush Glazed Framing
The most versatile and flexible of the Alspec® Commercial Framing Systems, it is available in a frame depth of 100mm x 50mm and is ideal for shopfronts.
Tested and Compliant Solutions
The Hunter Evo 101.6mm Double Flush Glazed Framing is the most versatile and flexible of the Alspec® Commercial Framing Systems. Available in a frame depth of 100mm x 50mm, it is ideal for shopfronts.
With it’s straight cuts and flush glazing the Hunter Evo not only looks good, but is easy to fabricate and easy to install. Suitable for a range double glazed options to address the most demanding energy requirements. With self draining sub sills it also solves water leakage problems. The system can be internally or externally glazed along with incorporating the flexibility and appeal of gently curved or faceted frame installations. The Hunter Evo also provides a seamless interface with Alspec’s® extensive product offer.
Key Features
- Sharp unbroken lines
- Flush glazed appearance
- Robust frame
- Up to 40mm double glazed
- Easily adapts to Alspec’s awnings and hinged doors
Technical Specifications
Frame Dimensions
| Option 1 | 101.6 x 50mm |
Glazing Details
| Glass Position | Front |
| Double Glazed | 15 - 30mm |
Maximum Recommended Sizes
| Height | 4200mm |
| Width | 2400mm |
Maximum Product Performance
| SLS (Pa) | 3500 |
| ULS (Pa) | 8900 |
| WATER (Pa) | 1200 |
Acoustic Performance: Rw (c;ctr)
| 6.38mm/12mm/6.38mm IGU | 36 (-1,-5) dB |
Thermal Performance
| Uw range DG | 2.4 - 3.6 |
| SHGC range DG | 0.17 - 0.64 |
