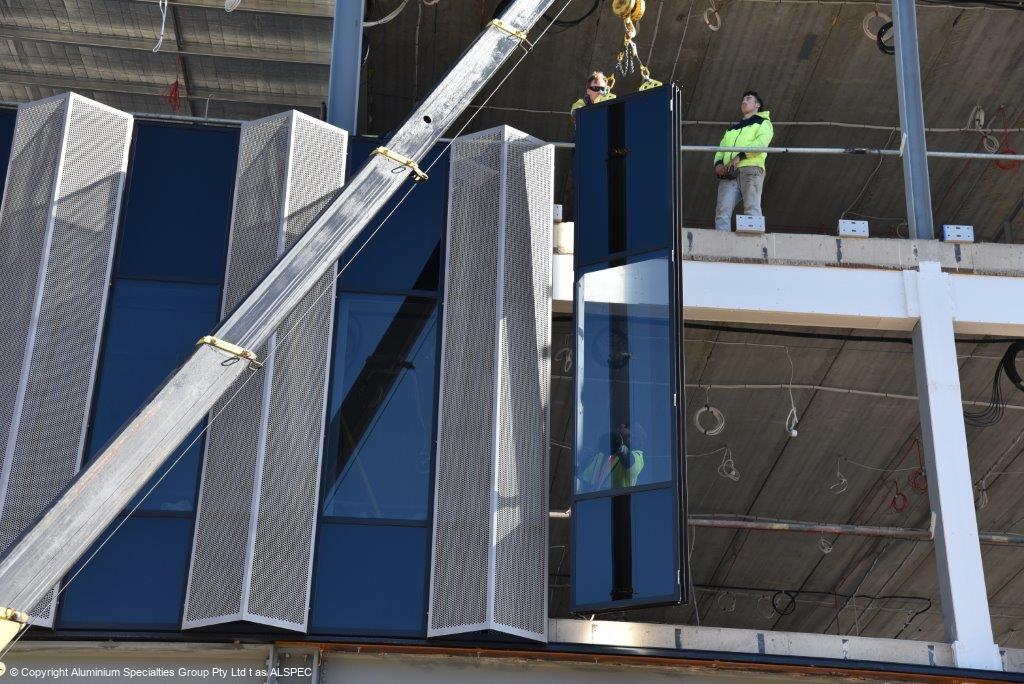

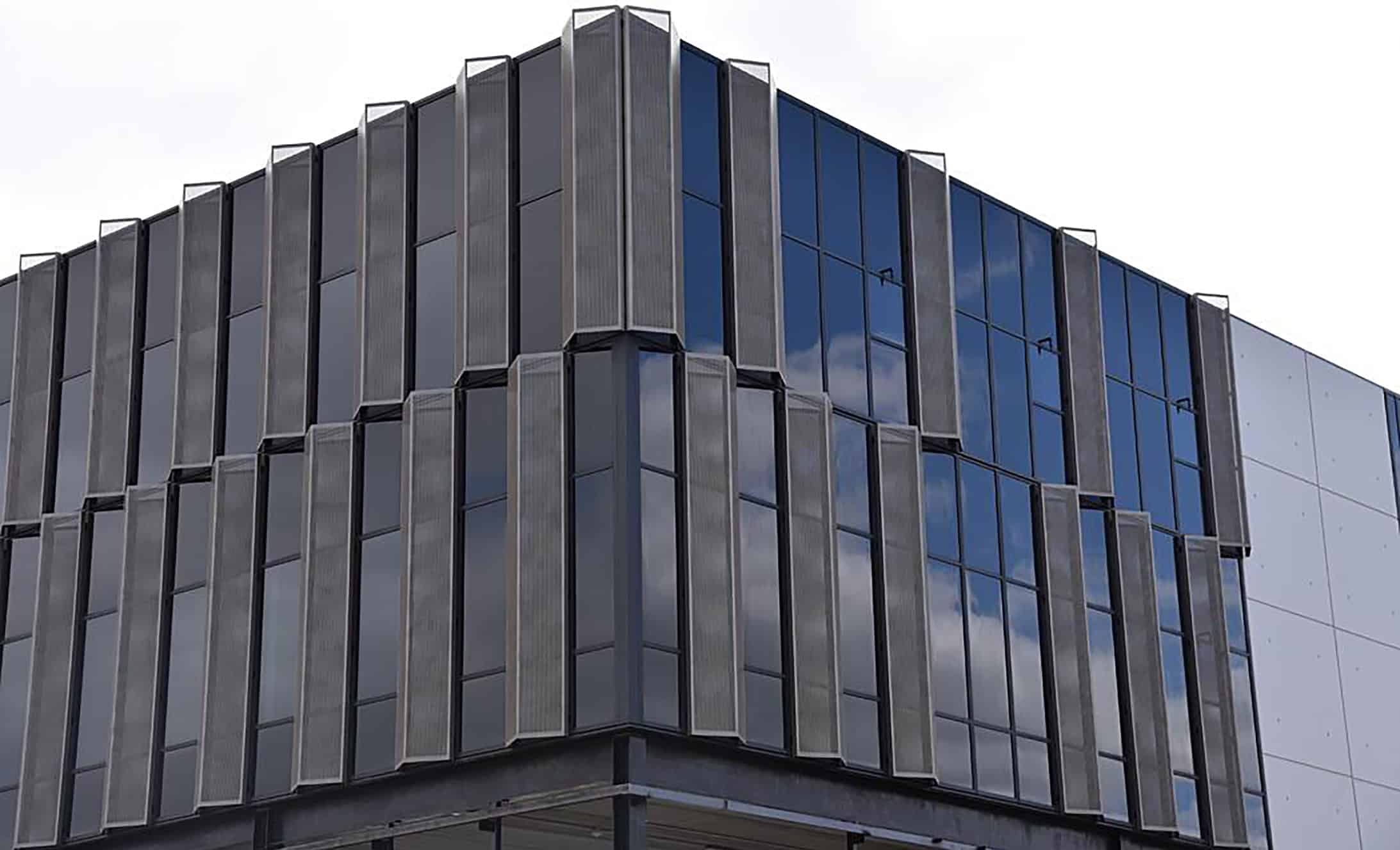

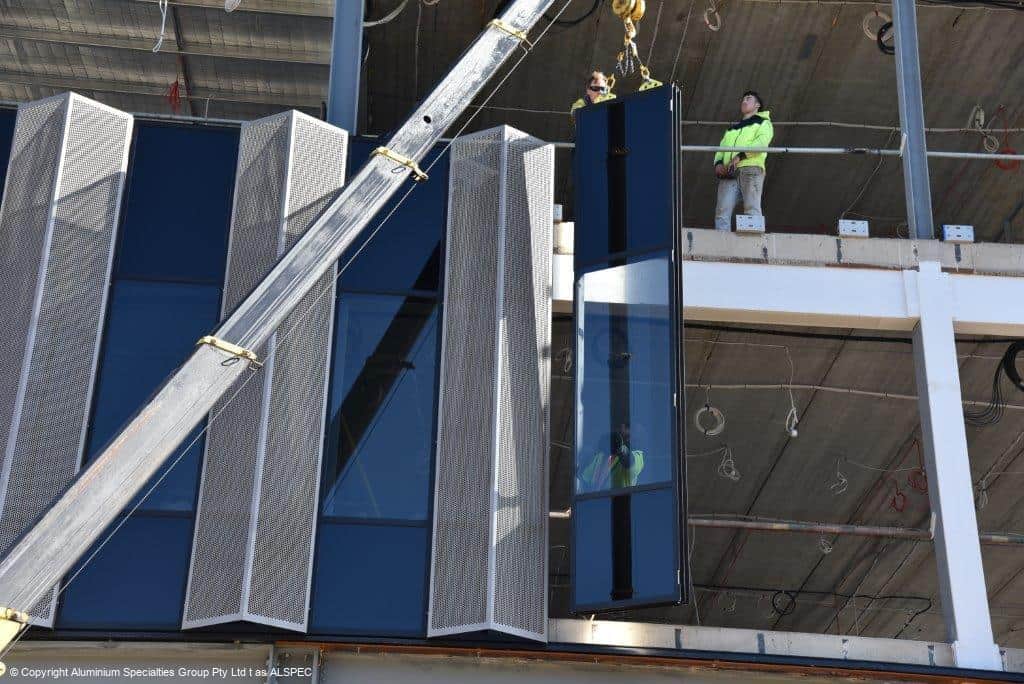

Hunter Evo 150mm Curtain Wall

The Hunter Evo 150mm Curtain Wall is a captive glazed Unitized Curtain Wall system. Available in a frame depth of 150mm * 80mm, it is ideal for low-rise to mid-rise curtain wall applications.

With its straight cut, captive glazing  configuration, the Hunter Evo 150mm Curtain Wall is both quick and easy to fabricate, as well as install.  Suitable for use with a range of glass thicknesses to address demanding energy and acoustic requirements.  The Hunter Evo 150 Curtain Wall systems has been tested to AS 4284, to ensure compliance and provide higher levels of confidence to the users.  Integrated Solar Shading can be directly fixed with the mullions, to ensure a seamless, fully tested system.

Technical Specifications

Frame Dimensions

Option 1 150 x 80mm

Acoustic Performance: Rw (c;ctr)

Coming soon Coming soon

Glazing Details

Single Glazed min 6mm
Double Glazed Up to 30mm

Maximum Recommended Sizes

Height 5100mm
Width 2400mm

Maximum Product Performance

SLS (Pa) 2000
ULS (Pa) 4500
WATER (Pa) 1200

Thermal Performance

Coming soon Coming soon
