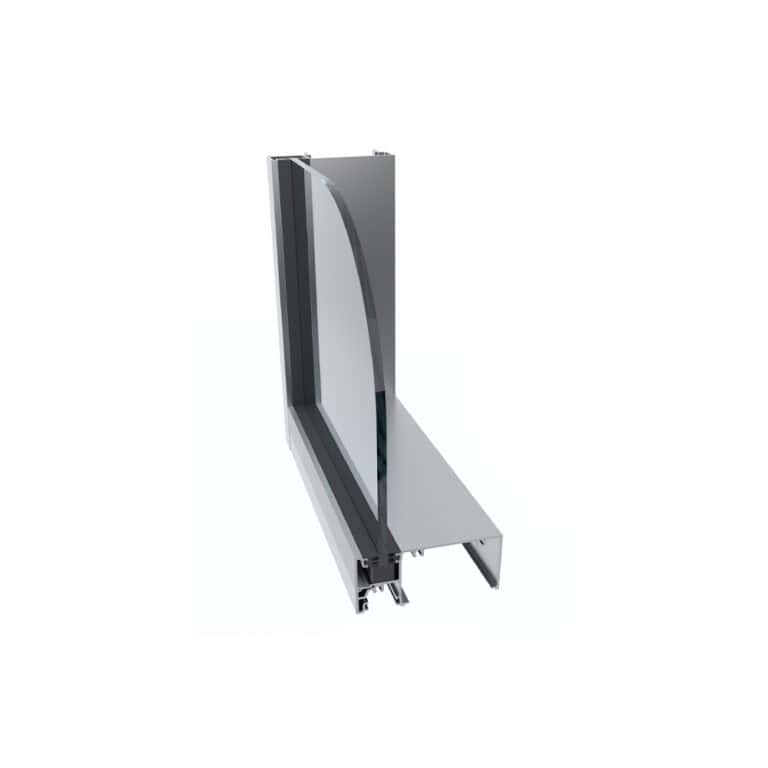

Hunter Evo 150mm Single Flush Glazed Framing

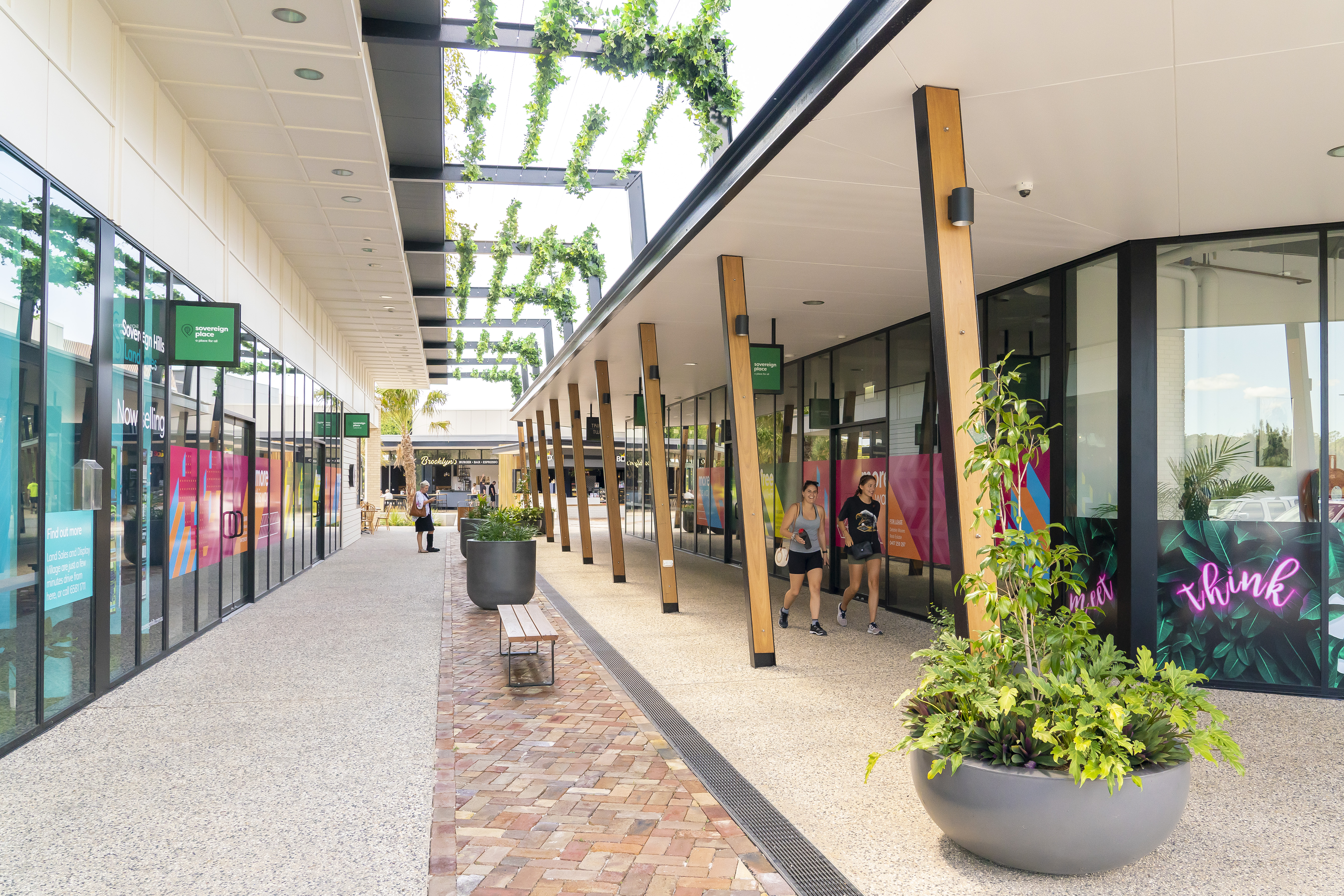

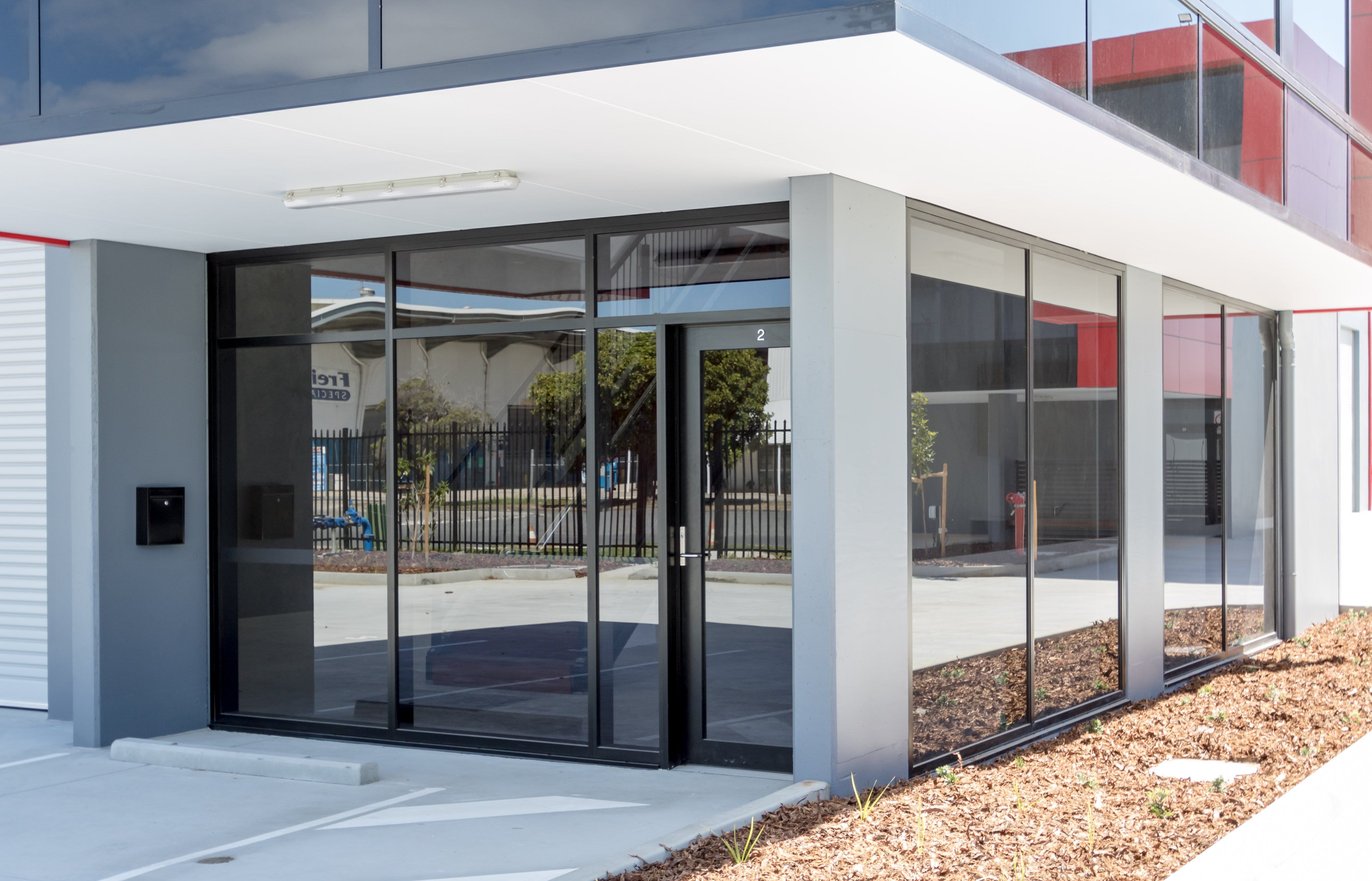

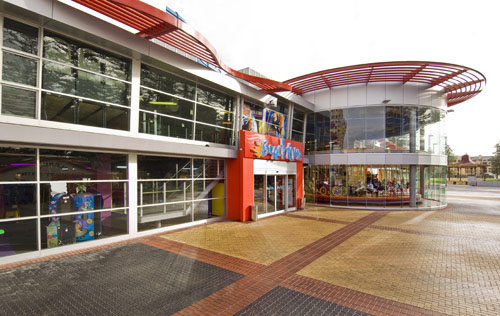

The most versatile and flexible of the Alspec® Commercial Framing Systems it is ideal for shopfronts and low-rise curtain wall applications.

Tested and Compliant Solutions

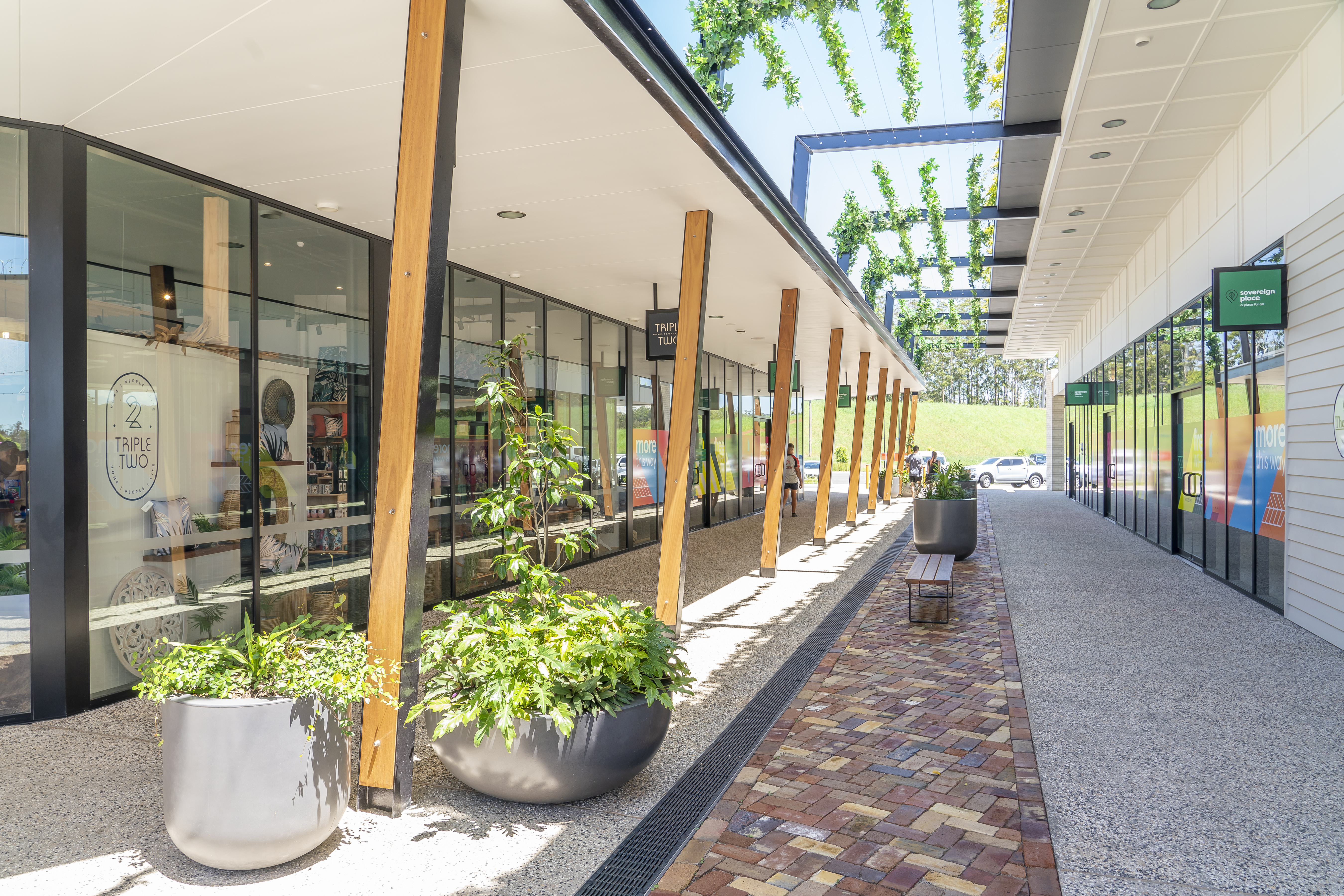

The Hunter Evo 150mm Single Flush Glazed Framing is the most versatile and flexible of the Alspec® Commercial Framing Systems. Available in a frame depth of 150mm x 50mm, it is ideal for shopfronts.

With it’s straight cuts and flush glazing the Hunter Evo not only looks good, but is easy to fabricate and easy to install. Suitable for a range of single glass thickness options to address the most demanding energy requirements. With self draining sub sills it also solves water leakage problems. The system can be internally or externally glazed along with incorporating the flexibility and appeal of gently curved or faceted frame installations. The Hunter Evo also provides a seamless interface with Alspec’s® extensive product offer.

Key Features

  • Sharp unbroken lines
  • Flush glazed appearance
  • Robust frame
  • Good weathering
  • 4mm – 14mm single glazed
  • Easily adapts to Alspec’s awnings and hinged doors

Technical Specifications

Frame Dimensions

Option 1 150 x 50mm

Maximum Product Performance

SLS (Pa) 6000
ULS (Pa) 9000
WATER (Pa) 1000

Compatible Systems

Windows & Doors Swan Evo™ 45mm/70mm Commercial Shopfront Door
Windows & Doors Torrens 45mm Commercial Shopfront Door
Windows & Doors Awning and Casement Windows
Windows & Doors ProTilt® High Performance Awning/Casement Window
Windows & Doors ProGlide® High Performance Sliding Door
Windows & Doors Altitude® Apartment Sliding Door

Cyclonic Performance

Glass Type 12.4 mm Gen II
Speed (m/sec) 38
Glass Type 12.84mm Ultra Forza
Speed (m/sec) 39

Glazing Details

Glass Position Front
Single Glazed 4 - 14mm

Acoustic Performance: Rw (c;ctr)

6mm/12mm/6.38mm IGU 33 (-2,-5) dB
6.5mm/12mm/6mm IGU 37 (-2,-6) dB
8.38mm/12mm/6mm IGU 34 (-1,-4) dB

Maximum Recommended Sizes

Height 4500mm
Width 2400mm

Thermal Performance

Uw range SG 4.5 - 6.5
SHGC range SG 0.24 - 0.74

Downloads

Tech Manual

Log in to view all files

Customer Technical Memos

Log in to view all files

Wall Charts

Log in to view all files

CAD Drawings

Log in to view all files

3D Revit

Log in to view all files

Typical Configurations

WERS Ratings

Window ID Glazing Frame Uw SHGCw Tvw Air Inf
