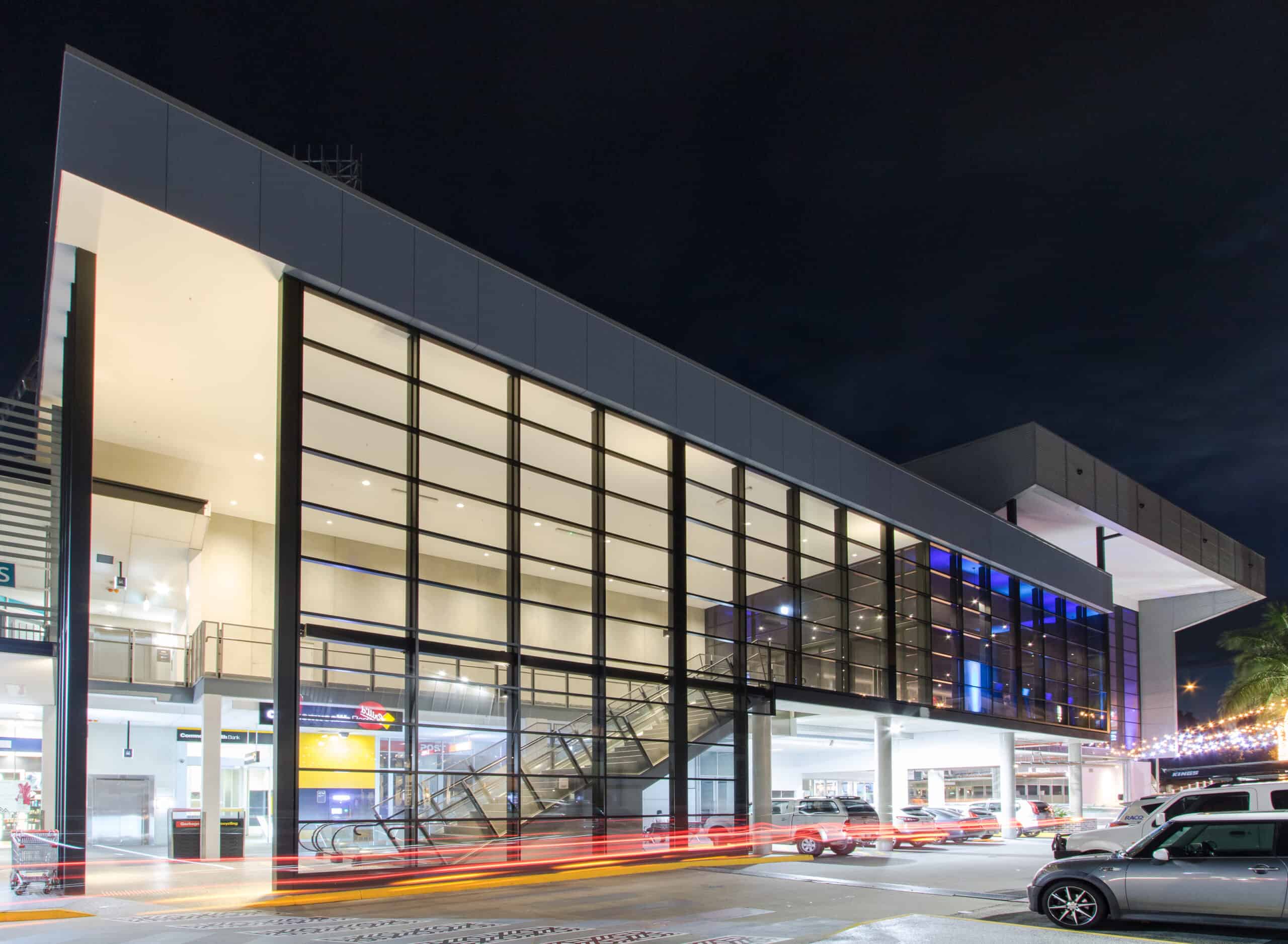

McArthur 150 Offset Pocket Framing

Alspec’s McArthur 150 Offset Pocket Framing is an extension of Alspec’s® popular and widely used McArthur Centre Pocket Framing which is widely favoured by architects and designers.

Tested and Compliant Solutions

Alspec’s McArthur 150 Offset Pocket Framing is an extension of Alspec’s® popular and widely used McArthur Centre Pocket Framing. Which is widely favoured by architects and designers for a multitude of applications.

Available in a frame depth of 150mm x 44.4mm the McArthur 150 Offset Pocket Framing is perfect for nesting such items as roller blinds and other shading systems within its frame. It also integrates with the smaller 101.6mm transom offering the structural requirements needed in the mullions and the ability to keep your project on budget.

Use as a standalone 150mm Offset Pocket Framing system or with the McArthur 101.6mm Centre Pocket Framing where it is important to keep the external appearance of the framing.

With it’s straight cuts and offset pocket glazing the McArthur 150 Offset Pocket Framing not only looks good, but is easy to fabricate and easy to install. McArthur 150 Offset Pocket is suitable for a range of glass thicknesses up to 10.38mm with self draining sub sills that solve water leakage problems. The McArthur also provides a seamless interface with Alspec’s extensive product offer.

Key Features

  • Sharp unbroken lines
  • Robust frame
  • Excellent weathering performance
  • 4mm up to 10.38 glazing options
  • The ability to incorporate 101.6mm transom
  • Can be used alongside McArthur 101.6mm and still keep external appearance of framing and glass
  • Perfect for nesting roller blinds and other shading systems within the frame
  • Offset pocket framing, reducing the number of beads required thus improving fabrication and installation time
  • Designed to meet AS2047

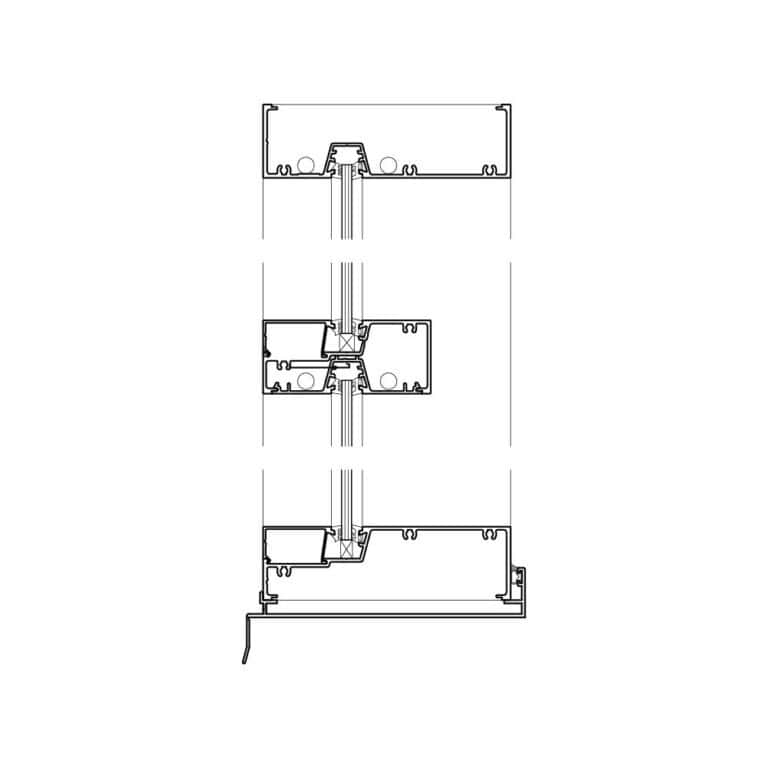

Technical Specifications

Frame Dimensions

Option 1 150 x 44.5mm

Compatible Systems

Windows & Doors Swan Evo™ 45mm/70mm Commercial Shopfront Door
Windows & Doors Torrens 45mm Commercial Shopfront Door
Windows & Doors Awning and Casement Windows
Windows & Doors ProGlide® High Performance Sliding Door
Windows & Doors Altitude® Apartment Sliding Door

Maximum Product Performance

SLS (Pa) 3200
ULS (Pa) 5300
WATER (Pa) 1000

Glazing Details

Glass Position Offset
Single Glazed 4 - 10.38mm

Acoustic Performance: Rw (c;ctr)

6.38mm Laminate 33 (-1,-2)
Max Glass 33 (-1,-2) 6.38mm

Maximum Recommended Sizes

Height 4800mm
Width 2200mm
