Thermally Broken 50mm Commercial Door

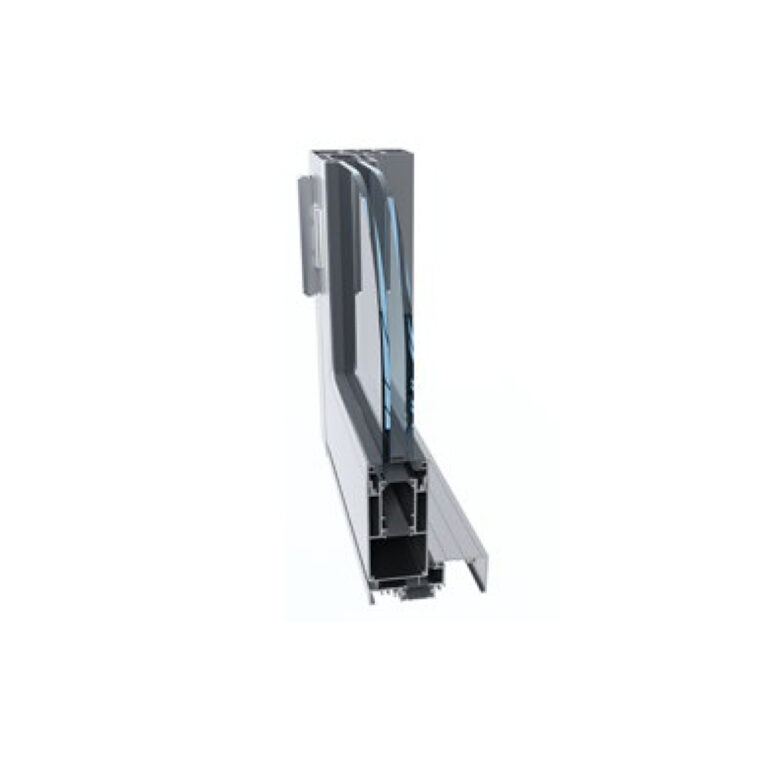

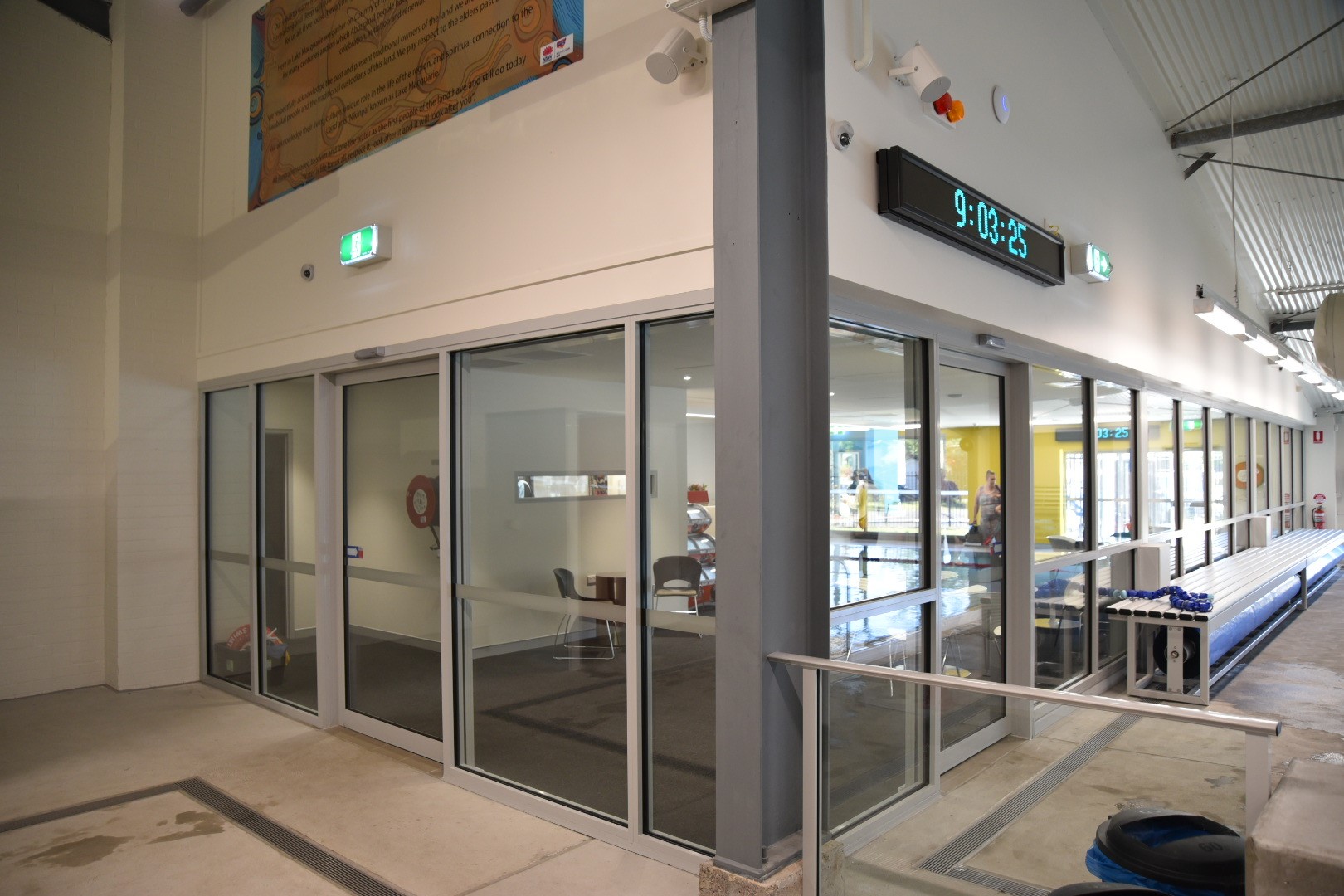

ThermAFrame® 50mm Commercial Door utilises the latest in European Polyamide Thermal Break technology to achieve the best possible results in energy rating in a system that is easy to fabricate and install.

Tested and Compliant Solutions

Alspec’s® ThermAFrame® 50mm Commercial Door is an energy efficient option that utilises the latest in European Polyamide Thermal Break technology combined with Australian design principles to achieve the best possible results in energy rating in a system that is easy to fabricate and install.

It’s versatility allows seamless integration into ThermAFrame® Centre Pocket and Flush Glazed Systems to achieve the most challenging structural and energy requirements. It has been designed to accommodate high performance double glazed units that can maximise the performance of the building envelope.

Available in a 50mm Door width featuring a ‘double wishbone’ Thermal Break design the ThermAFrame Commercial Door allows architects to minimise the transfer of heat or cold across a Door with a standard system.

Glazing could not be simpler with the colour coded wedges from standard Alspec® systems being utilised to deal with the many diverse glass options.

Featuring optional top and bottom seals for increased performance the ThermAFrame® Commercial Door is the preferred choice where superior weather performance is required. A range of glass thickness options up to 32mm allows the system to be configured for excellent thermal and acoustic performance. The system is complemented with proprietary Heavy Duty Aluminium Hinges to ensure maximum performance with large, heavy IGUs. Sashes can be fitted with most standard locking options.

Key Features

  • Excellent ‘Uw’ values down as low as 2.3
  • Utilises a strong ‘Double Strut’ thermal break construction for maximum strength in the door panel
  • 38mm wide glazing pocket accepts double beaded rolls in both sides
  • Colour coded glazing wedges ranging from 3mm to 7mm in one mm increments
  • Heavy Duty Aluminium Hinges designed for use with the system
  • Stronger sash achieved through the use of custom designed corner clamp spigot
  • Door can be installed as either Hinged, Pivot or Sliding
  • Integrates with ThermAFrame® Centre Pocket and Flush Glazed Systems

Technical Specifications

Frame Dimensions

Option 1 Width 50mm

Maximum Product Performance

SLS (Pa) 1500
ULS (Pa) 4000
WATER (Pa) 450

Compatible Systems

ThermAFrame 101.6mm Centre Glazed Thermally Broken Framing
ThermAFrame 150mm Centre Pocket Thermally Broken Framing
ThermAFrame 101.6mm Flush Glazed Thermally Broken Framing
ThermAFrame 150mm Flush Glazed Thermally Broken Framing

Glazing Details

Double Glazed 20 - 32mm

Acoustic Performance: Rw (c;ctr)

10.38mm/12/6.38mm IGU 36 (-1,-3) dB

Maximum Recommended Sizes

Height 3000mm (hinged)
Width 1200mm (hinged)
Weight Dependent on hardware
Sash SQMs 3

Thermal Performance

Uw range DG 2.3 - 3.0
SHGC range DG 0.22 - 0.44
