This window offers unparalleled levels of flexibility allowing designers and architects to cater for both the slimline applications and those of a more robust commercial design.

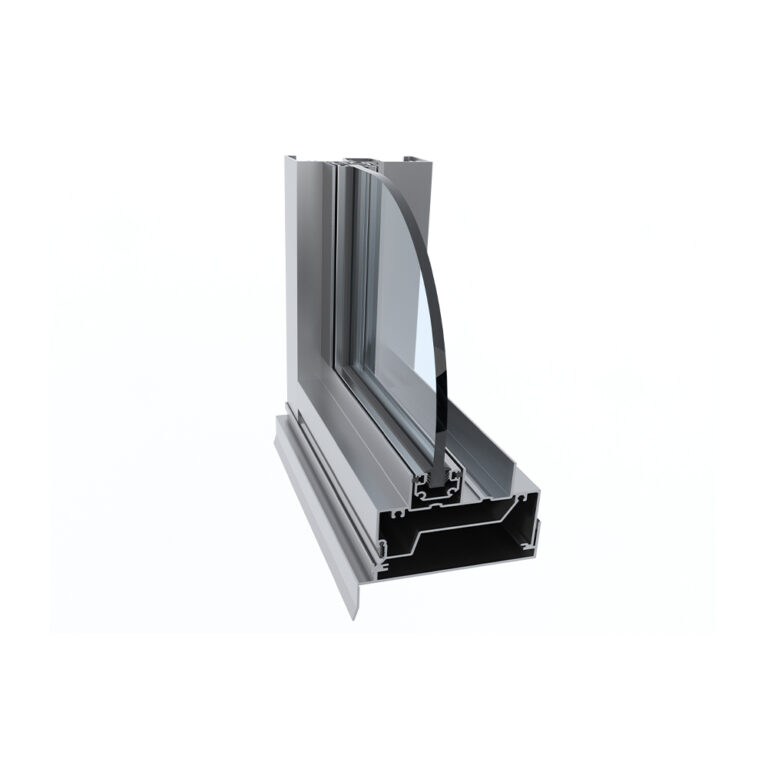

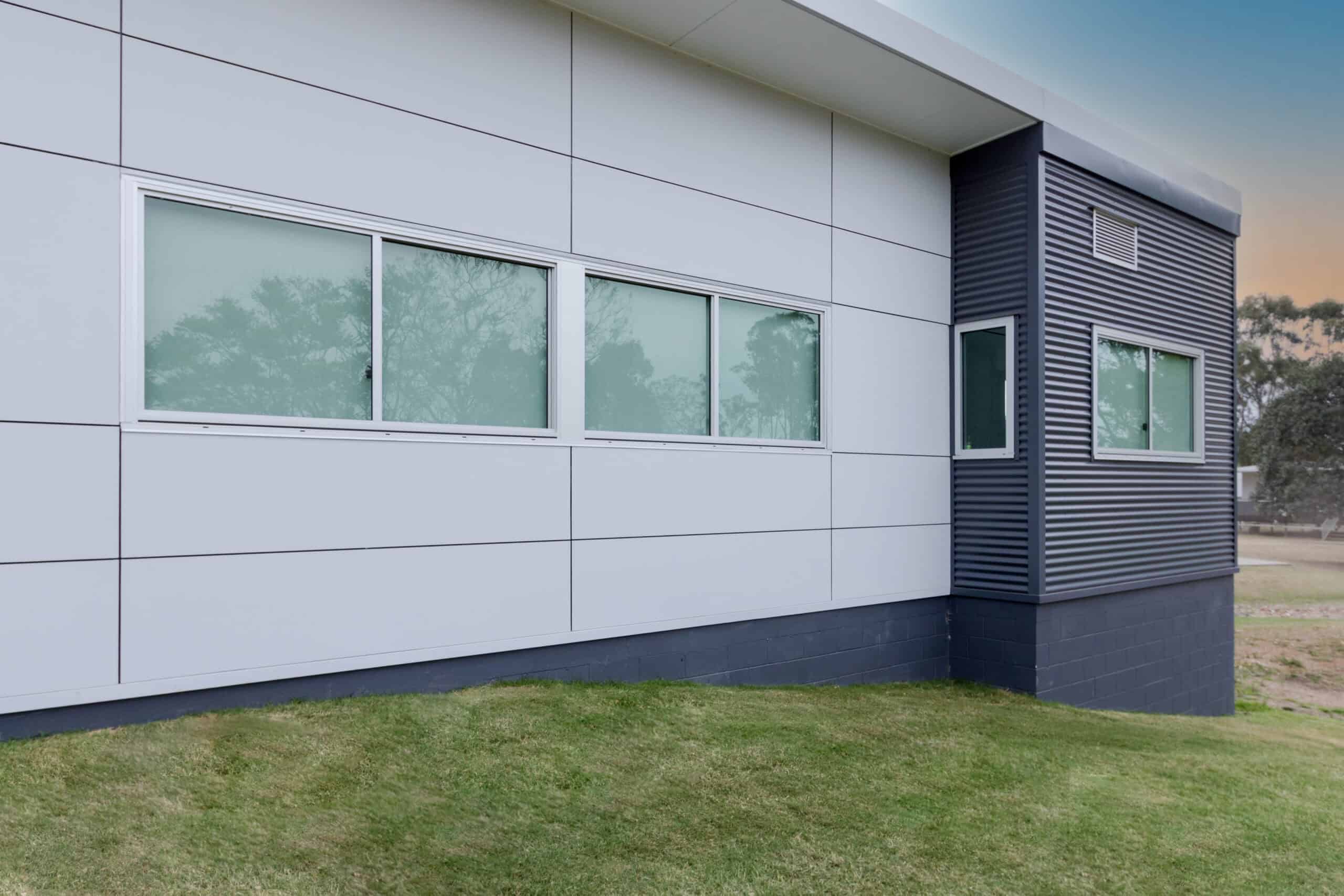

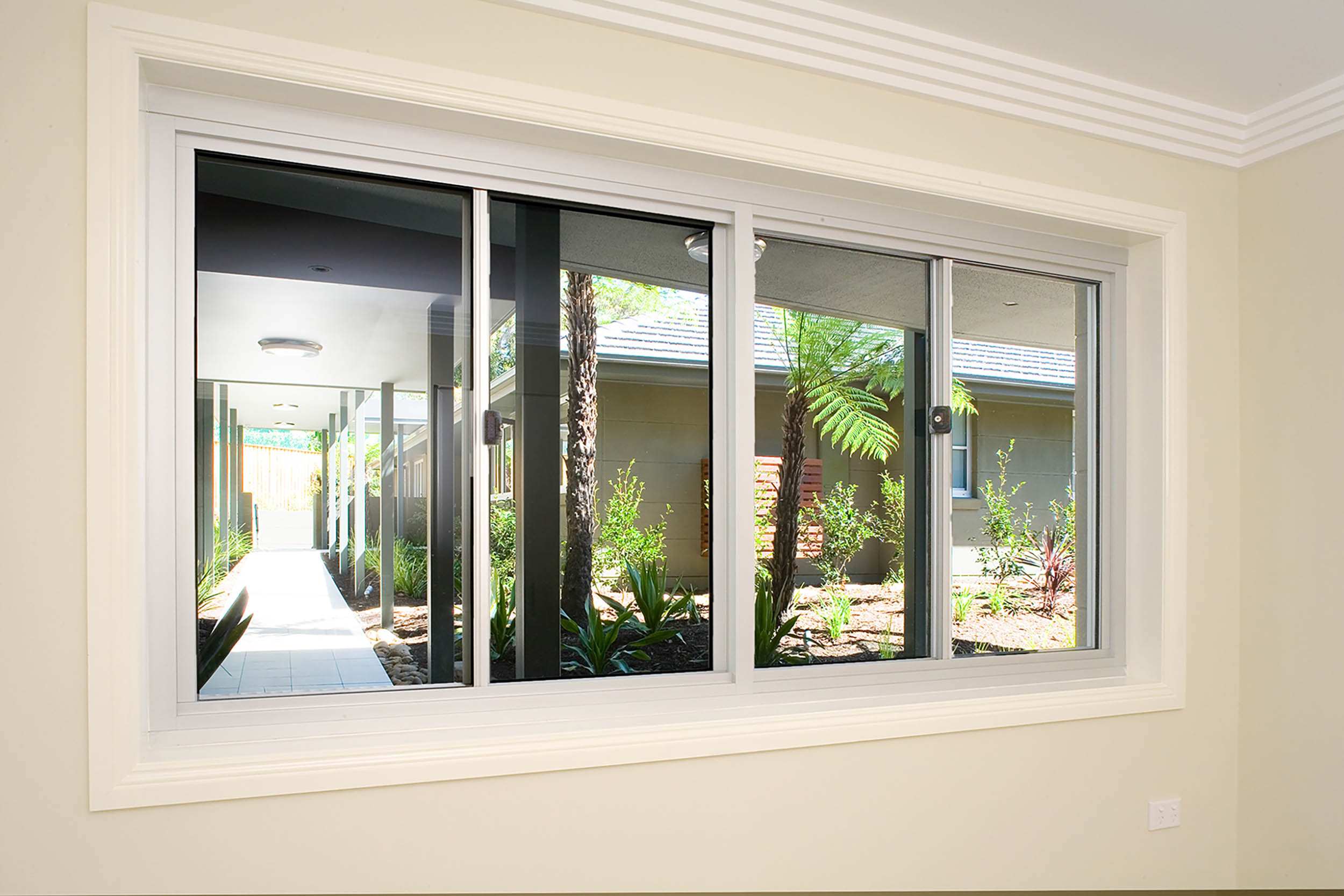

The View-Max® window offers unparallel levels of flexibility by allowing designers and architects the choice of 76mm (Derwent) or 101.6mm (McArthur) framing to cater for both the slimline applications and those of a more robust commercial design.
The View-Max® window offers the flexibility of single and double glazing options. The View-Max® integrates a number of design initiatives unique to Alspec® such as the proprietary locking, roller and drainage systems.
Developed specifically for multi-storey residential and architecturally designed housing View-Max® windows offer superior weather, thermal and acoustic performance.
Option 1 | 76 x 35mm |
Option 2 | 101.6 x 44.5mm |
SLS (Pa) | 2000 |
ULS (Pa) | 6000 |
WATER (Pa) | 600 |
Commercial Framing | Derwent 76mm Centre Pocket Framing |
Commercial Framing | McArthur 101.6mm Centre Pocket Framing |
Commercial Framing | ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing |
Single Glazed | 4 - 10.38mm |
Double Glazed | 18mm |
6.38mm Laminate | 31 (-0,-2) dB |
10.38mm Laminate | 32 (-1,-2) dB |
Height | 1600mm |
Width | 1200mm |
Weight | 50kgs |
Uw range SG | 4.7 - 6.6 |
SHGC range SG | 0.28 - 0.69 |
Uw range DG | 3.2 - 4.4 |
SHGC range DG | 0.16 - 0.6 |
