ThermAFrame® // Thermally Broken 50mm Commercial Door

Introduction

Alspec’s® ThermAFrame® 50mm Commercial Door is an energy efficient option that utilises the latest in European Polyamide Thermal Break technology combined with Australian design principles to achieve the best possible results in energy rating in a system that is easy to fabricate and install.

It's versatility allows seamless integration into ThermAFrame® Centre Pocket and Flush Glazed Systems to achieve the most challenging structural and energy requirements. It has been designed to accommodate high performance double glazed units that can maximise the performance of the building envelope.

ThermAFrame

Available in a 50mm Door width featuring a ‘double wishbone’ Thermal Break design the ThermAFrame Commercial Door allows architects to minimise the transfer of heat or cold across a Door with a standard system.

Glazing could not be simpler with the colour coded wedges from standard Alspec® systems being utilised to deal with the many diverse glass options.

ThermAFrame

Featuring optional top and bottom seals for increased performance the ThermAFrame® Commercial Door is the preferred choice where superior weather performance is required. A range of glass thickness options up to 32mm allows the system to be configured for excellent thermal and acoustic performance. The system is complemented with proprietary Heavy Duty Aluminium Hinges to ensure maximum performance with large, heavy IGUs. Sashes can be fitted with most standard locking options.

Key Features:

  • Excellent 'Uw' values down as low as 2.3

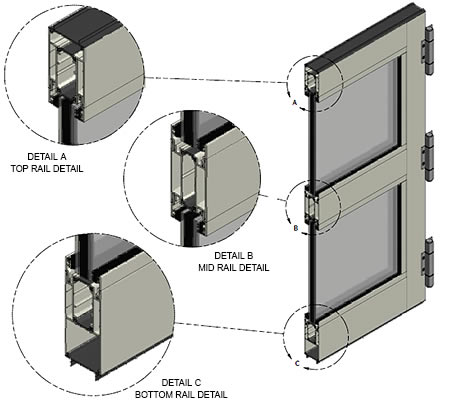

  • Utilises a strong ‘Double Strut’ thermal break construction for maximum strength in the door panel
  • 38mm wide glazing pocket accepts double beaded rolls in both sides
  • Colour coded glazing wedges ranging from 3mm to 7mm in one mm increments
  • Heavy Duty Aluminium Hinges designed for use with the system
  • Stronger sash achieved through the use of custom designed corner clamp spigot
  • Door can be installed as either Hinged, Pivot or Sliding
  • Integrates with ThermAFrame® Centre Pocket and Flush Glazed Systems


Gallery

3D Revit Files

Please log in to access this information

3D ArchiCAD Files

Please log in to access this information

Please log in to access this information

Please log in to access this information

WERS Ratings

Glazing
Frame
TVW
Air Inf
Frame Dimensions
Option 1 Width 50mm
Maximum Product Performance
SLS (Pa) 1500
ULS (Pa) 4000
WATER (Pa) 450
Compatible Systems
ThermAFrame 101.6mm Centre Pocket Thermally Broken Framing
ThermAFrame 150mm Centre Pocket Thermally Broken Framing
ThermAFrame 101.6mm Flush Glazed Thermally Broken Framing
ThermAFrame 150mm Flush Glazed Thermally Broken Framing
Glazing Details
Double Glazed 20 - 32mm
Acoustic Performance: Rw (c;ctr)
10.38mm/12/6.38mm IGU 36 (-1,-3) dB
Maximum Recommended Sizes
Height 3000mm (hinged)
Width 1200mm (hinged)
Weight Dependent on hardware
Sash SQMs 3
Thermal Performance
Uw range DG 2.3 - 3.0
SHGC range DG 0.22 - 0.44
WERSNatspec

Tested and Compliant Solutions
