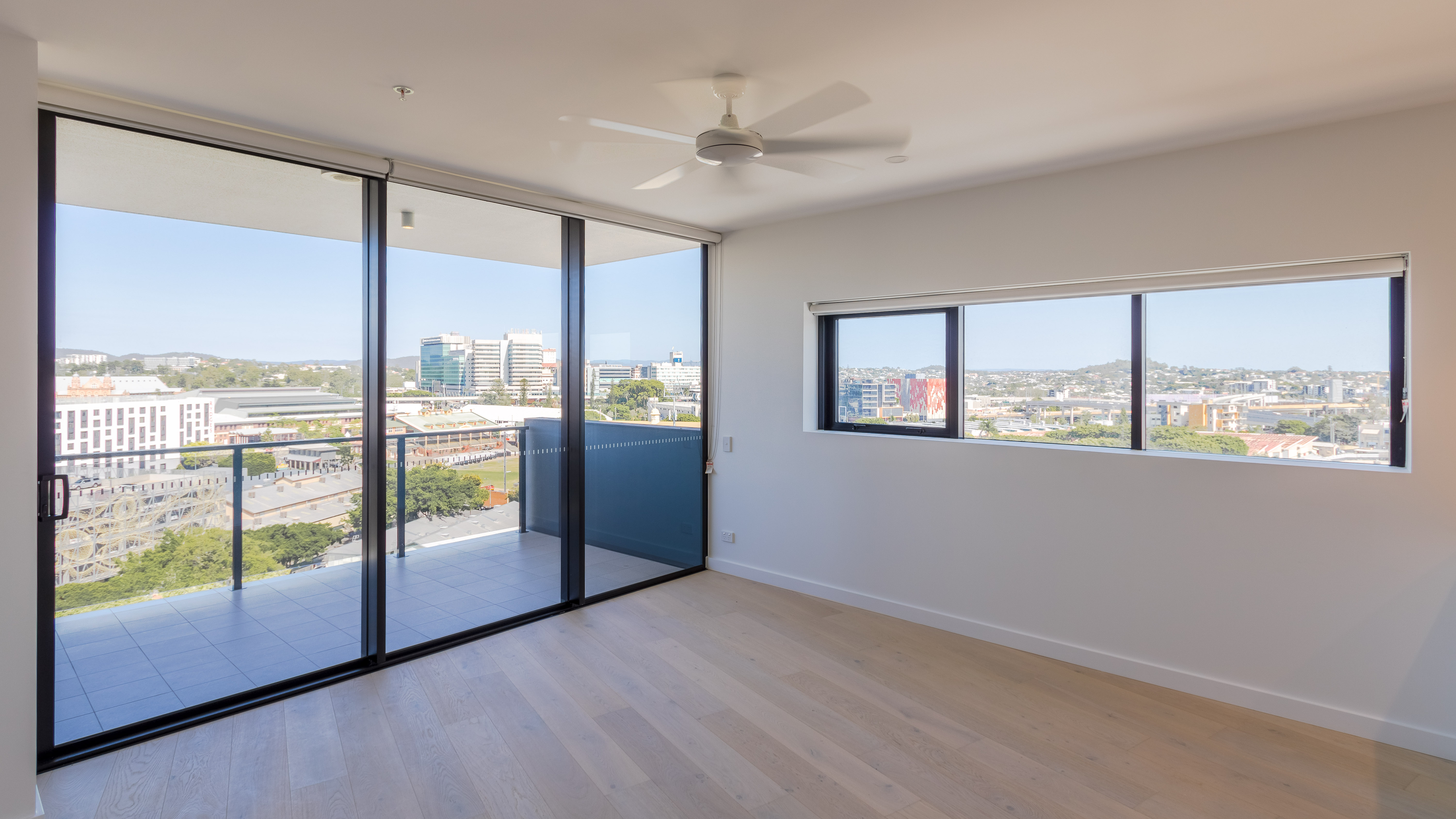

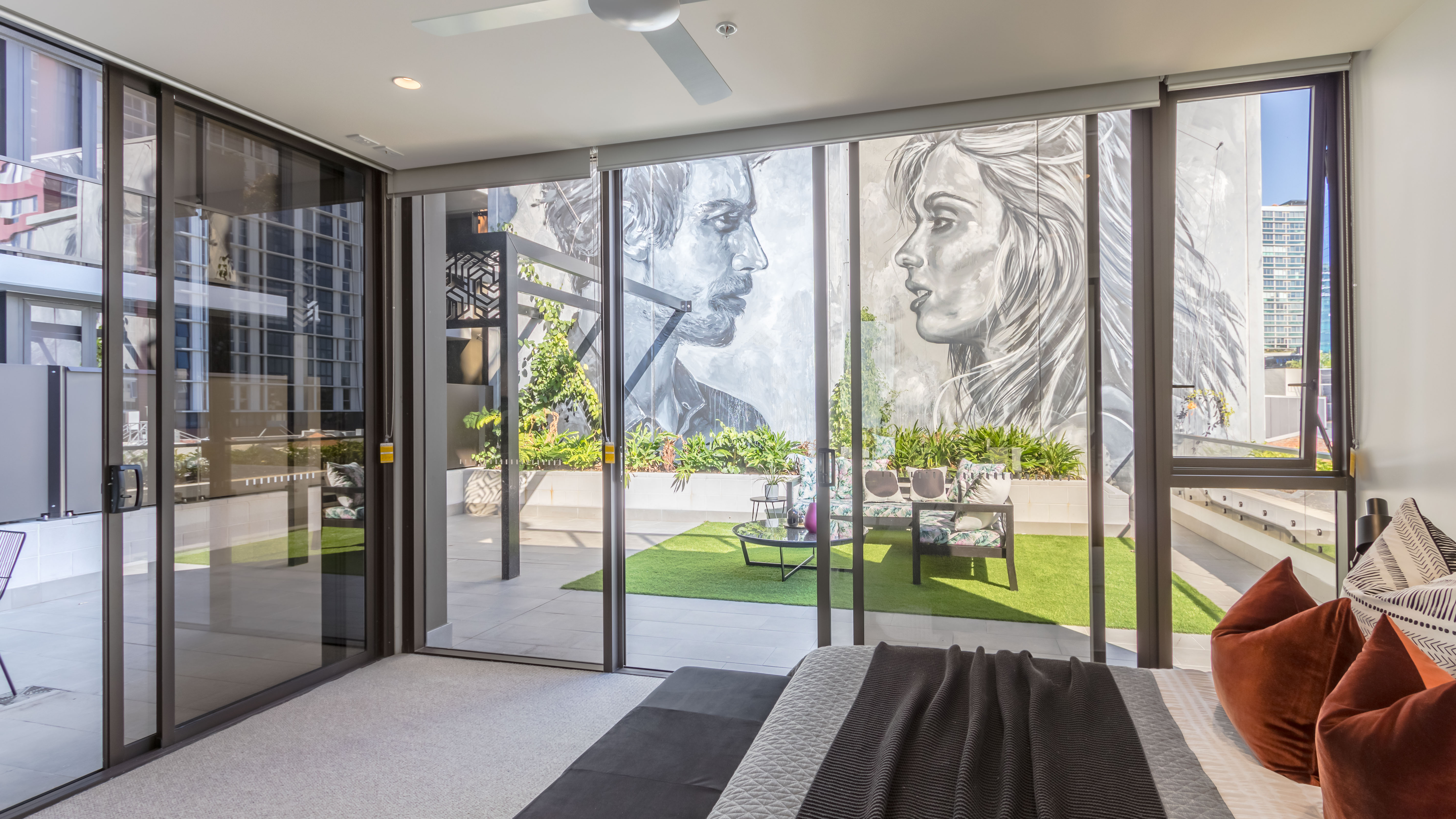

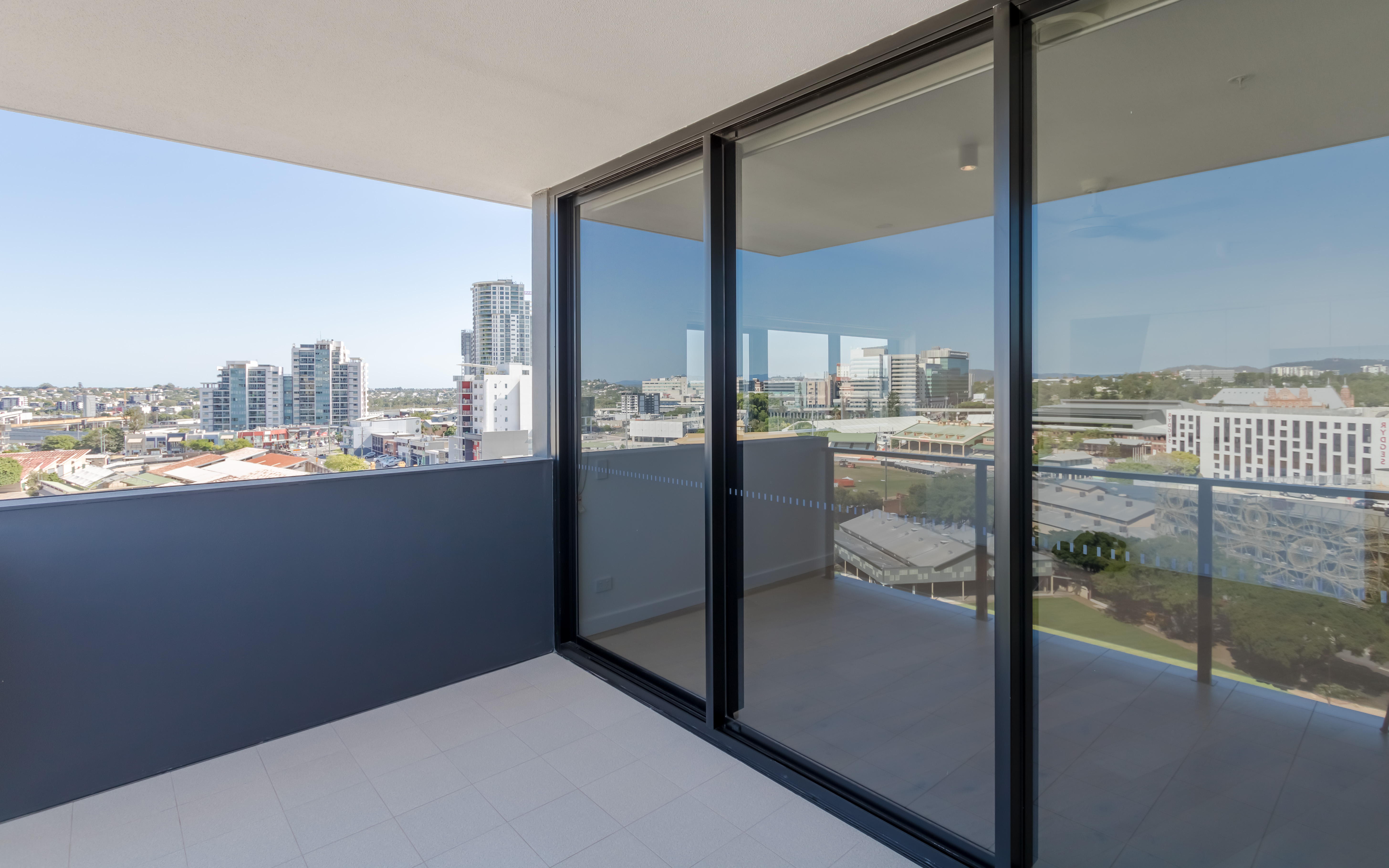

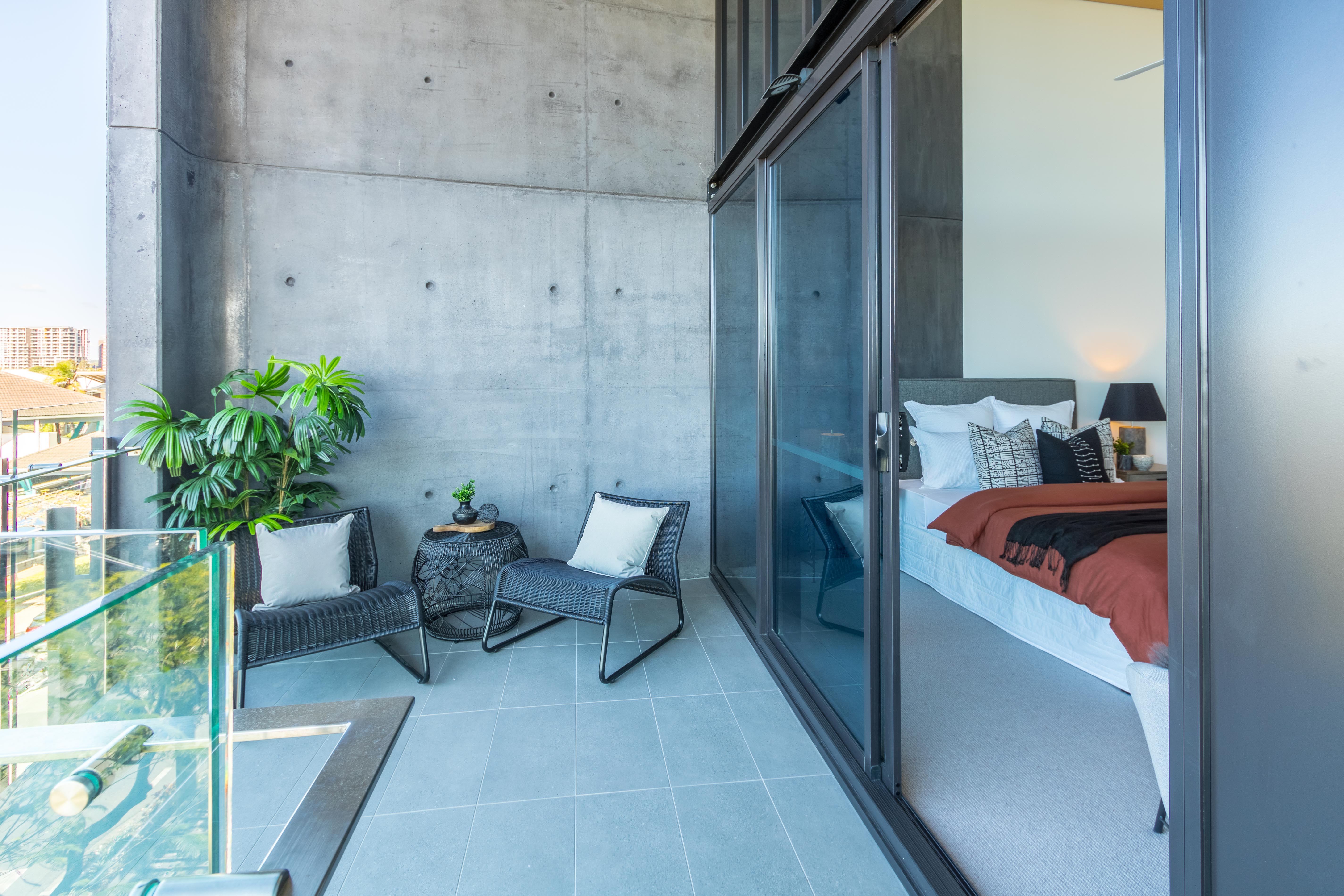

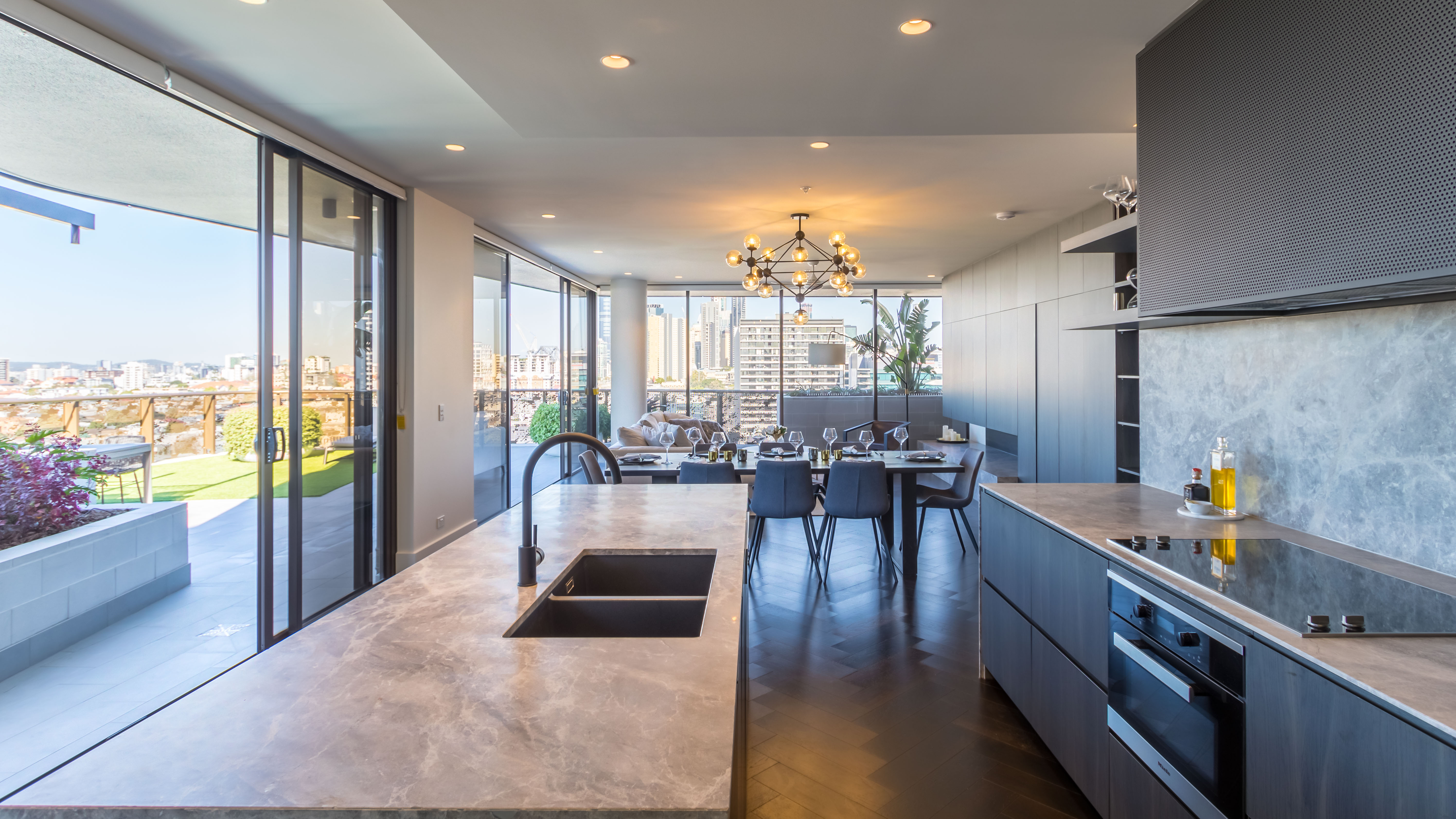

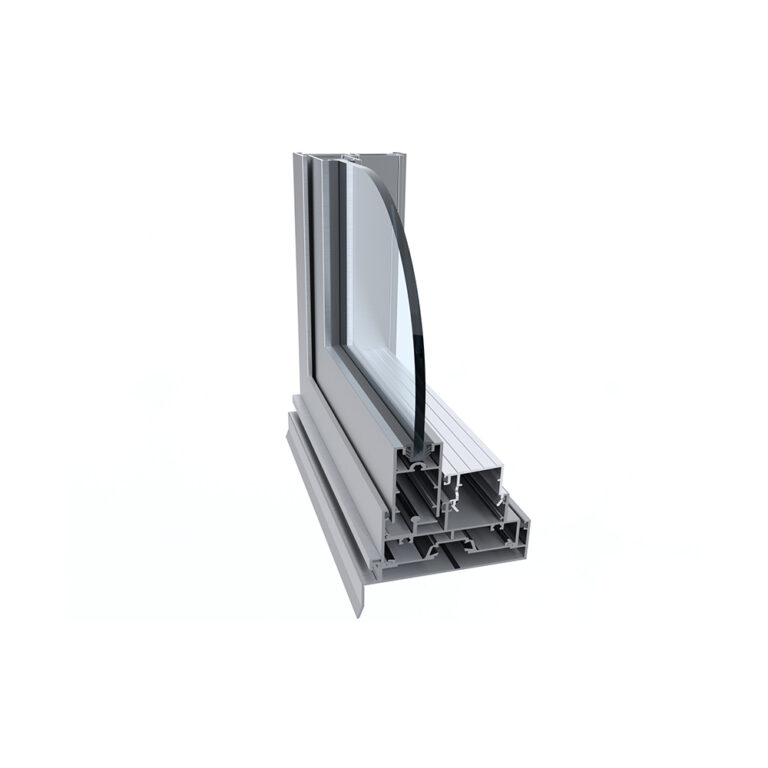

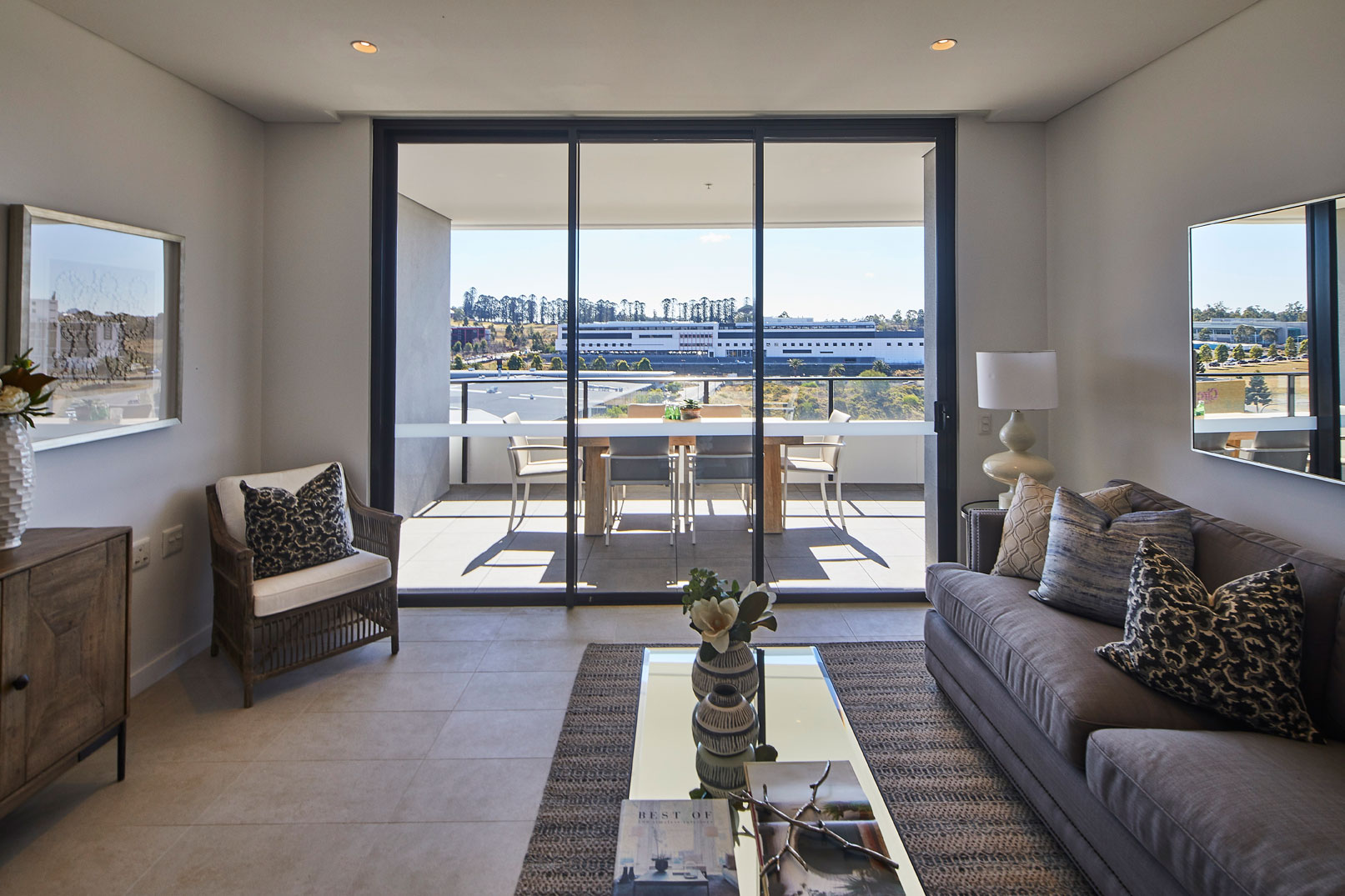

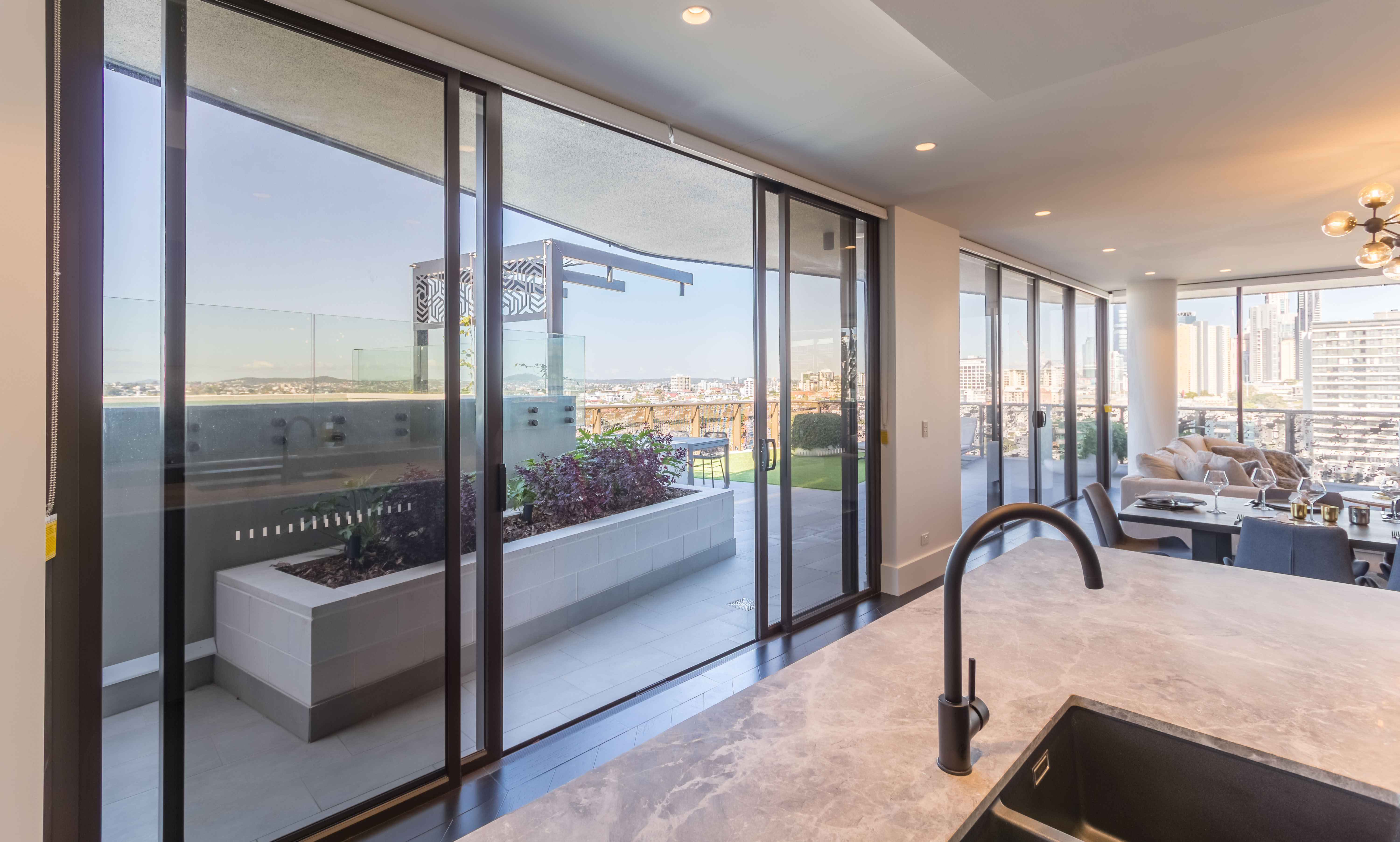

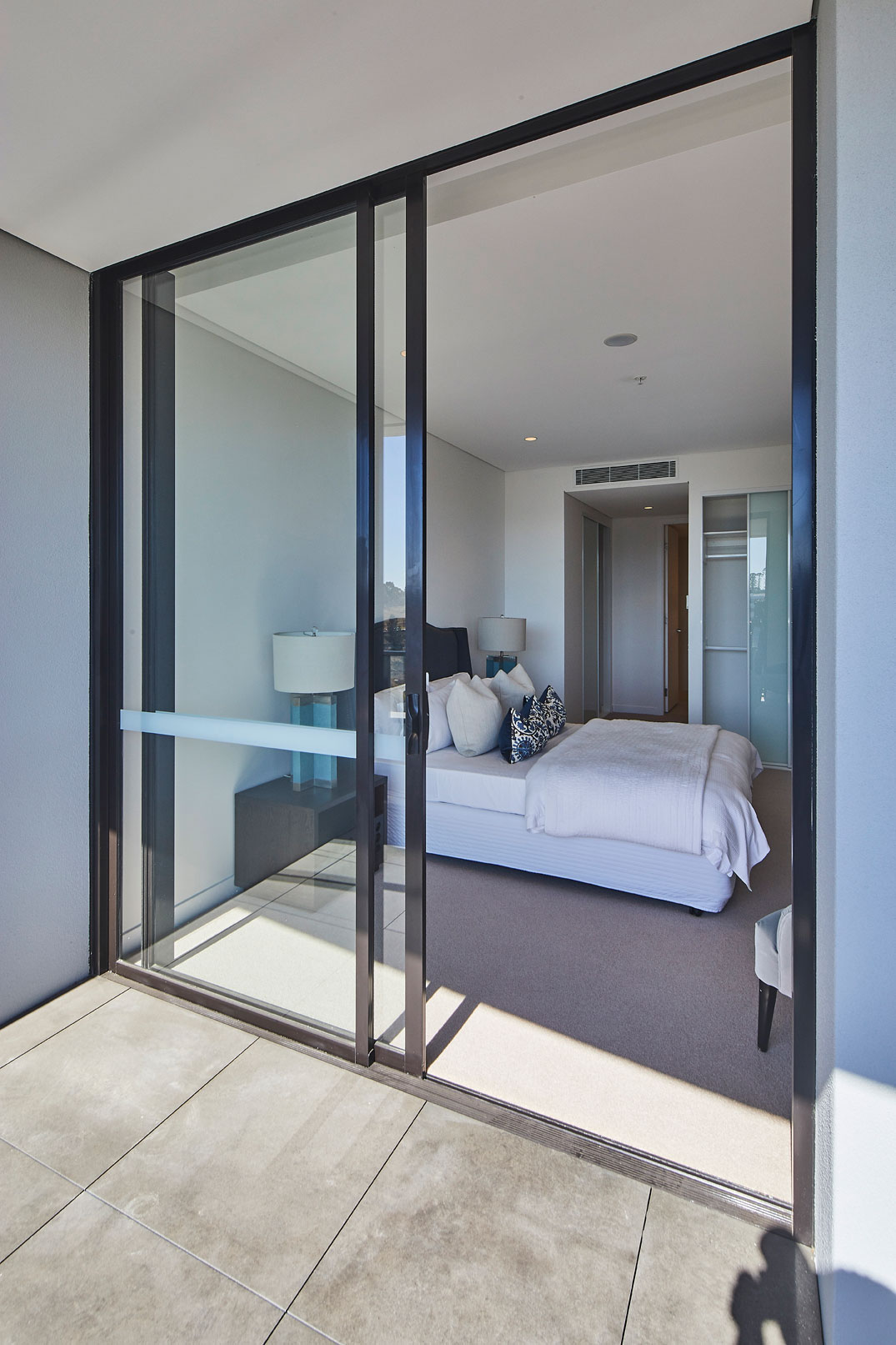

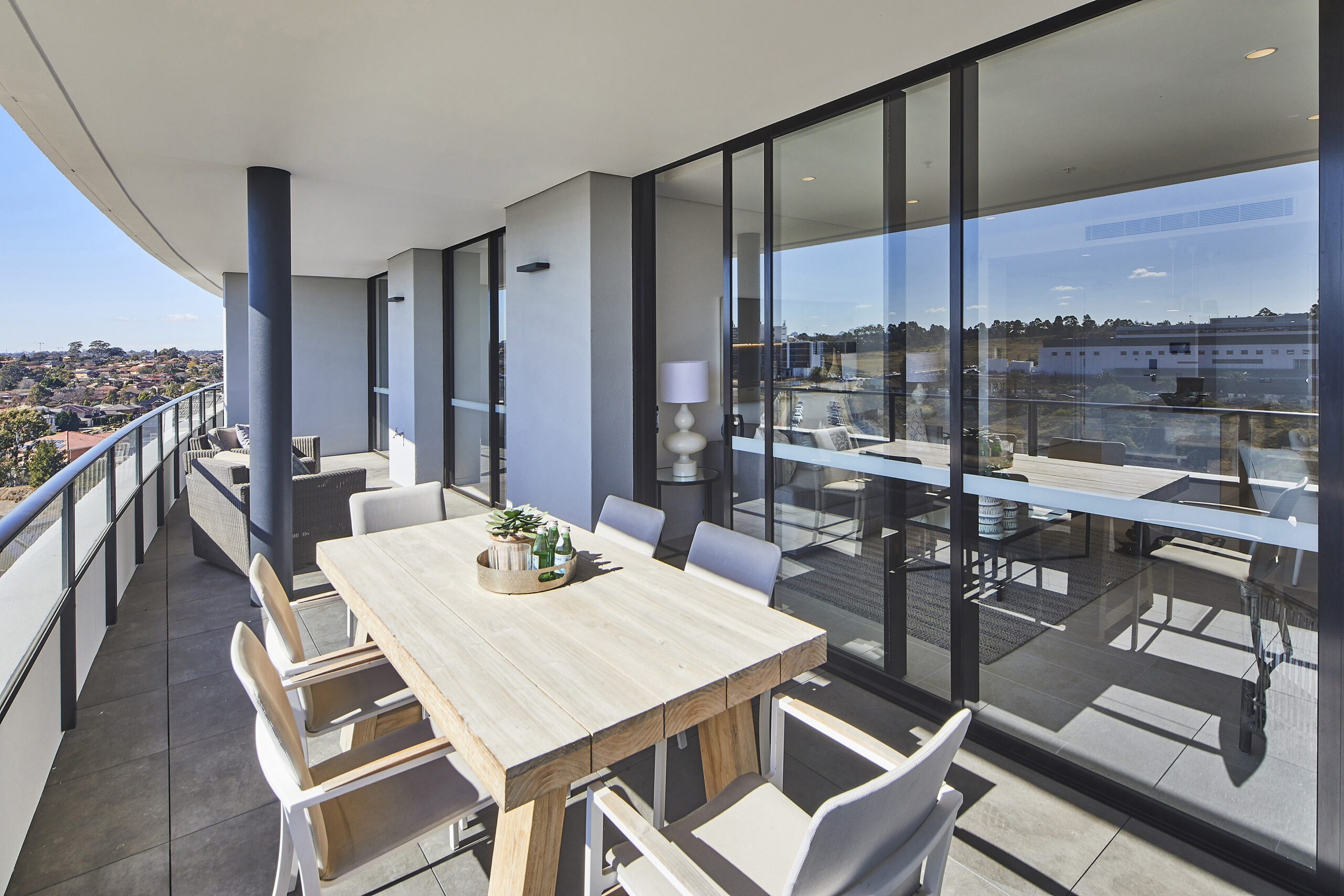

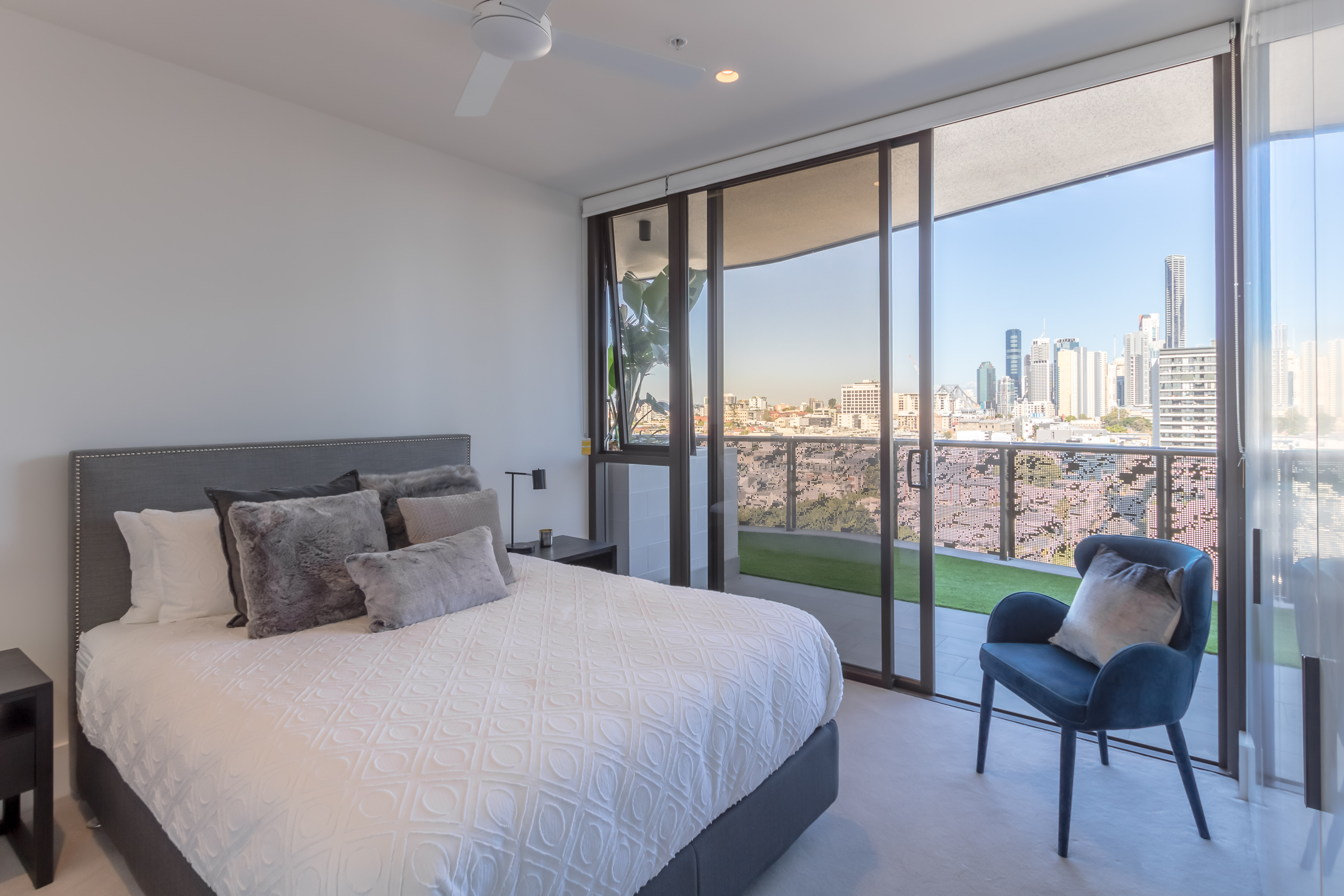

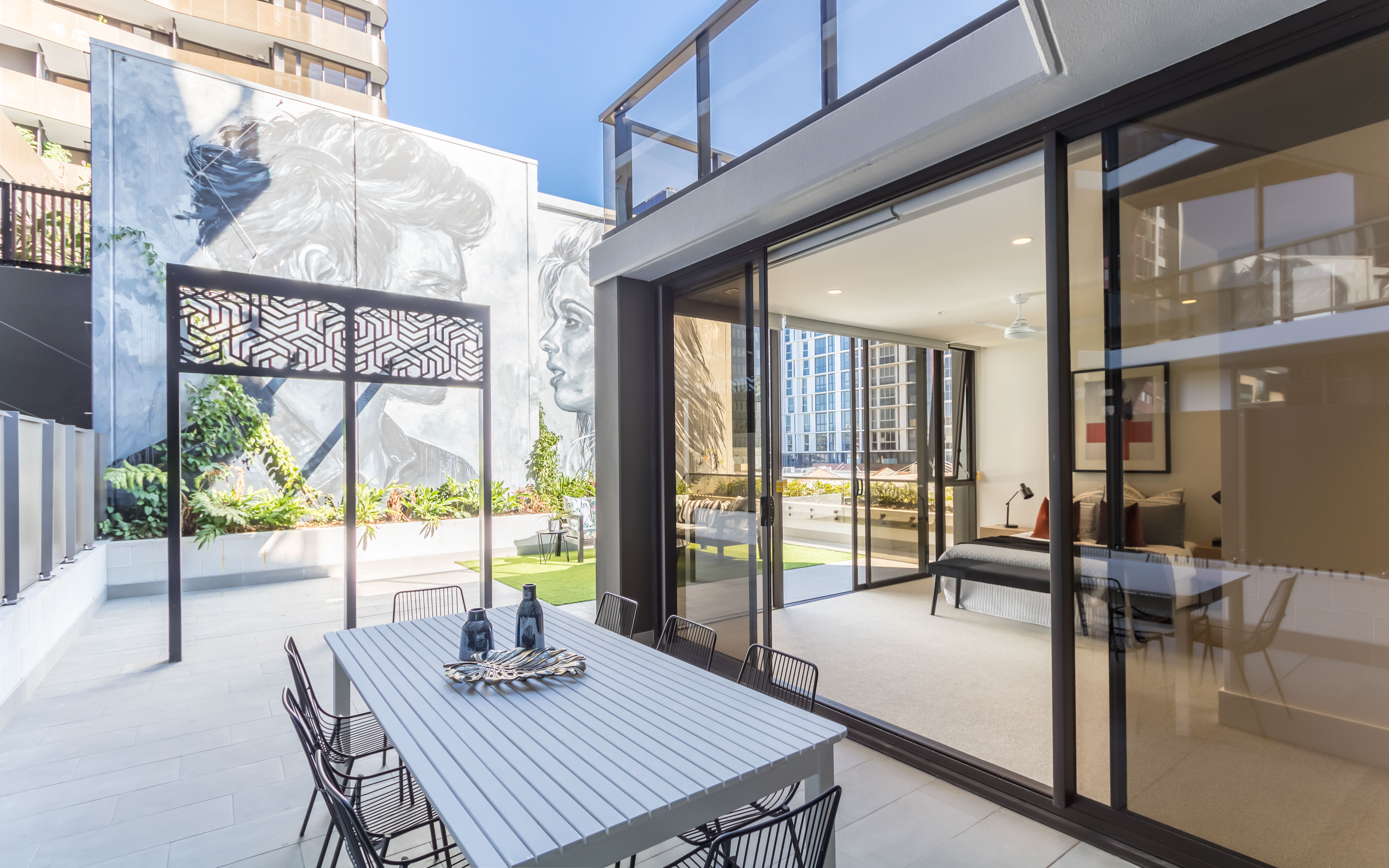

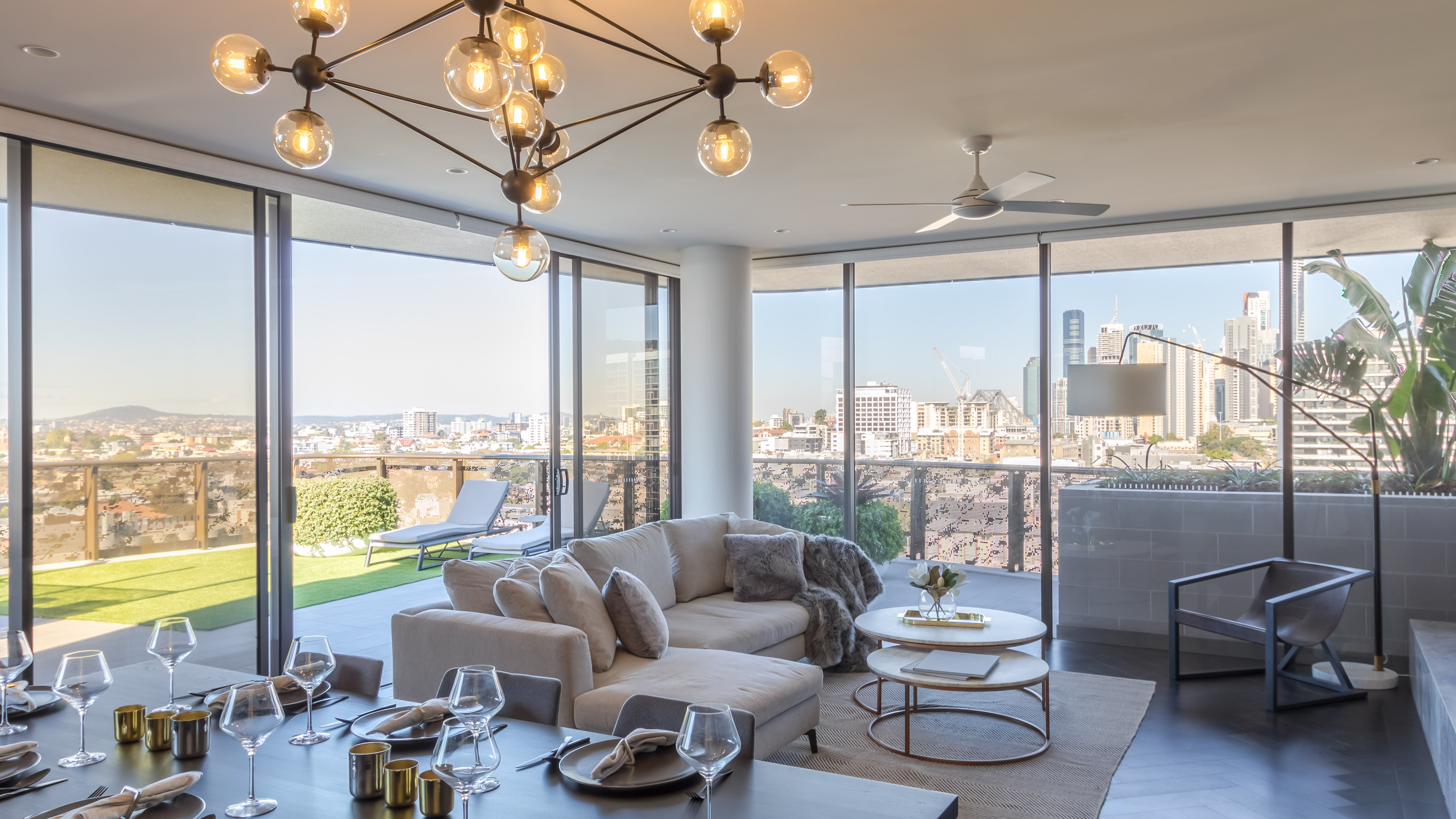

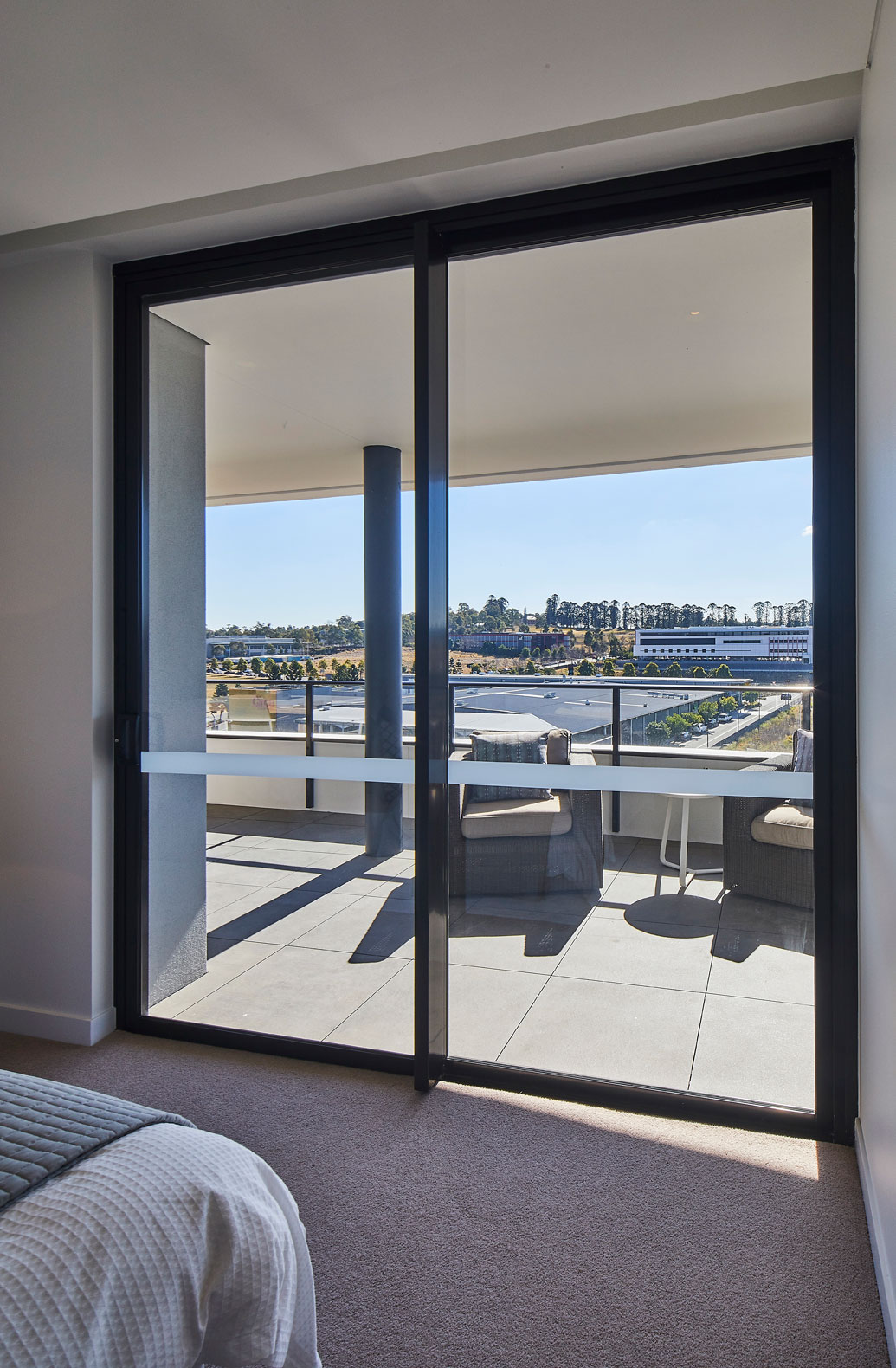

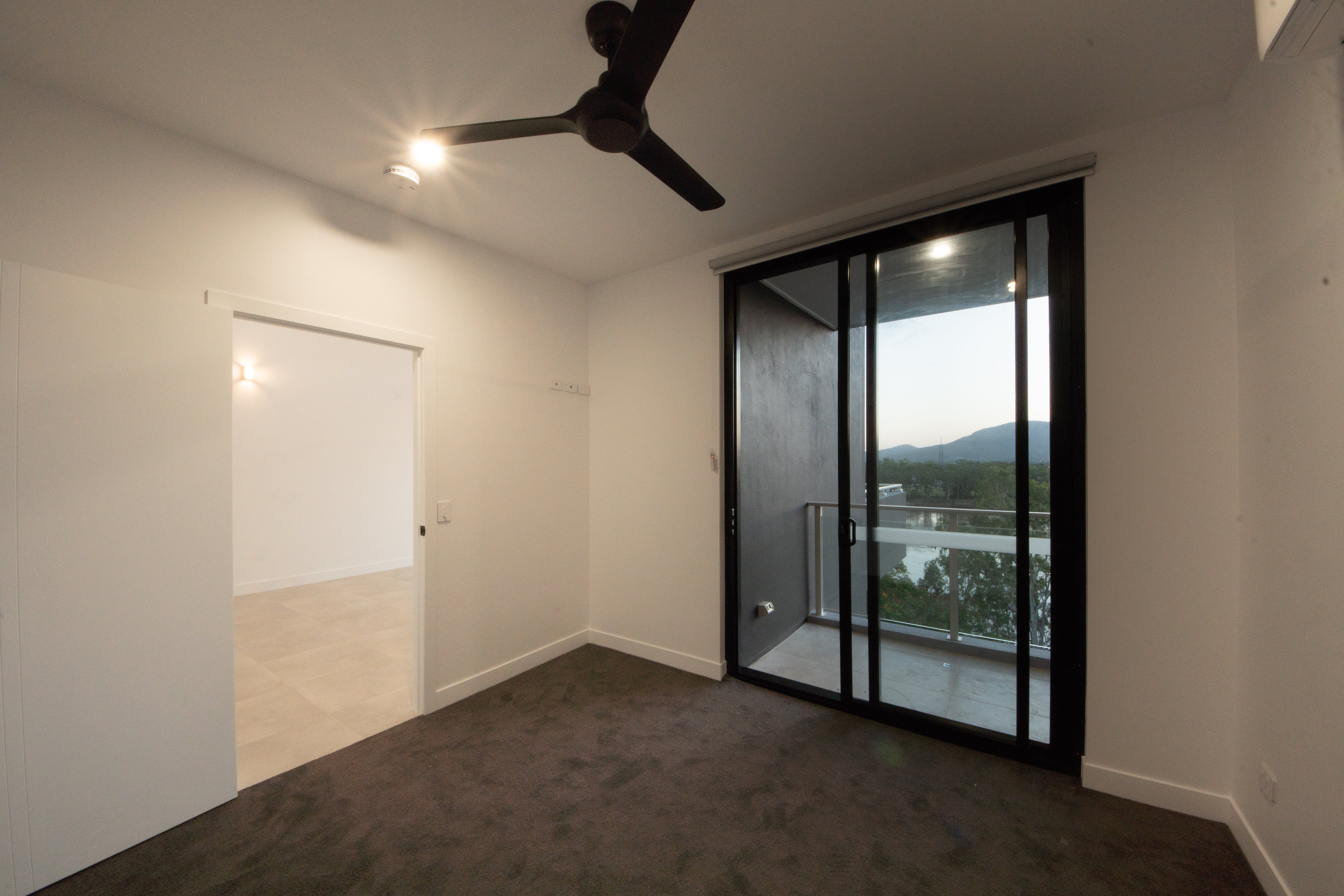

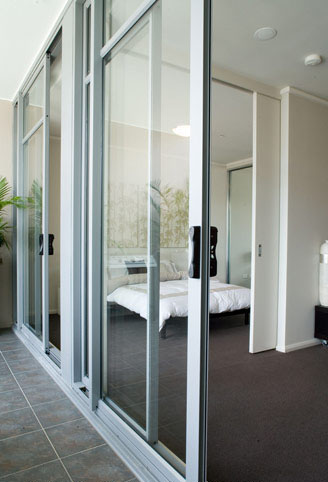

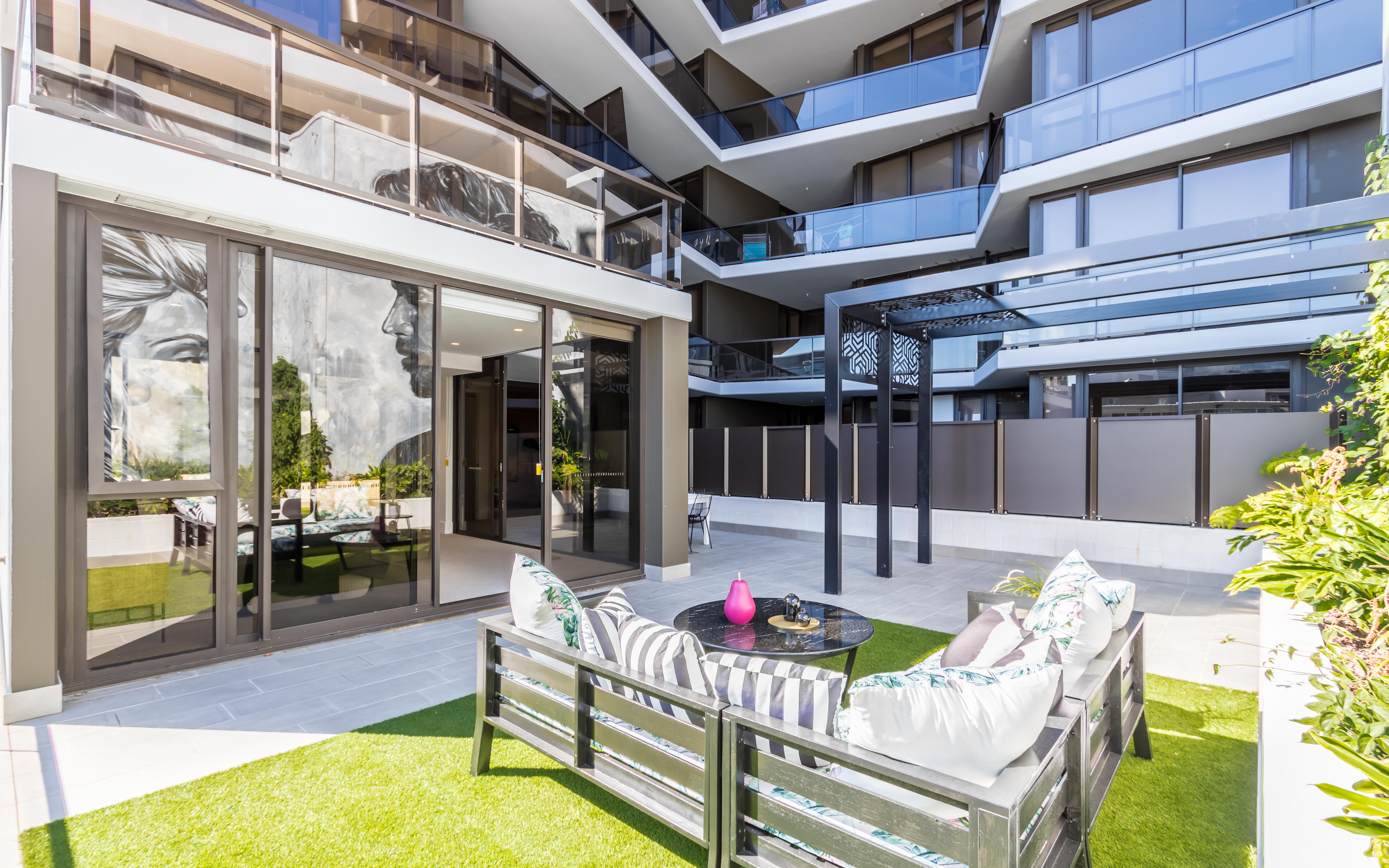

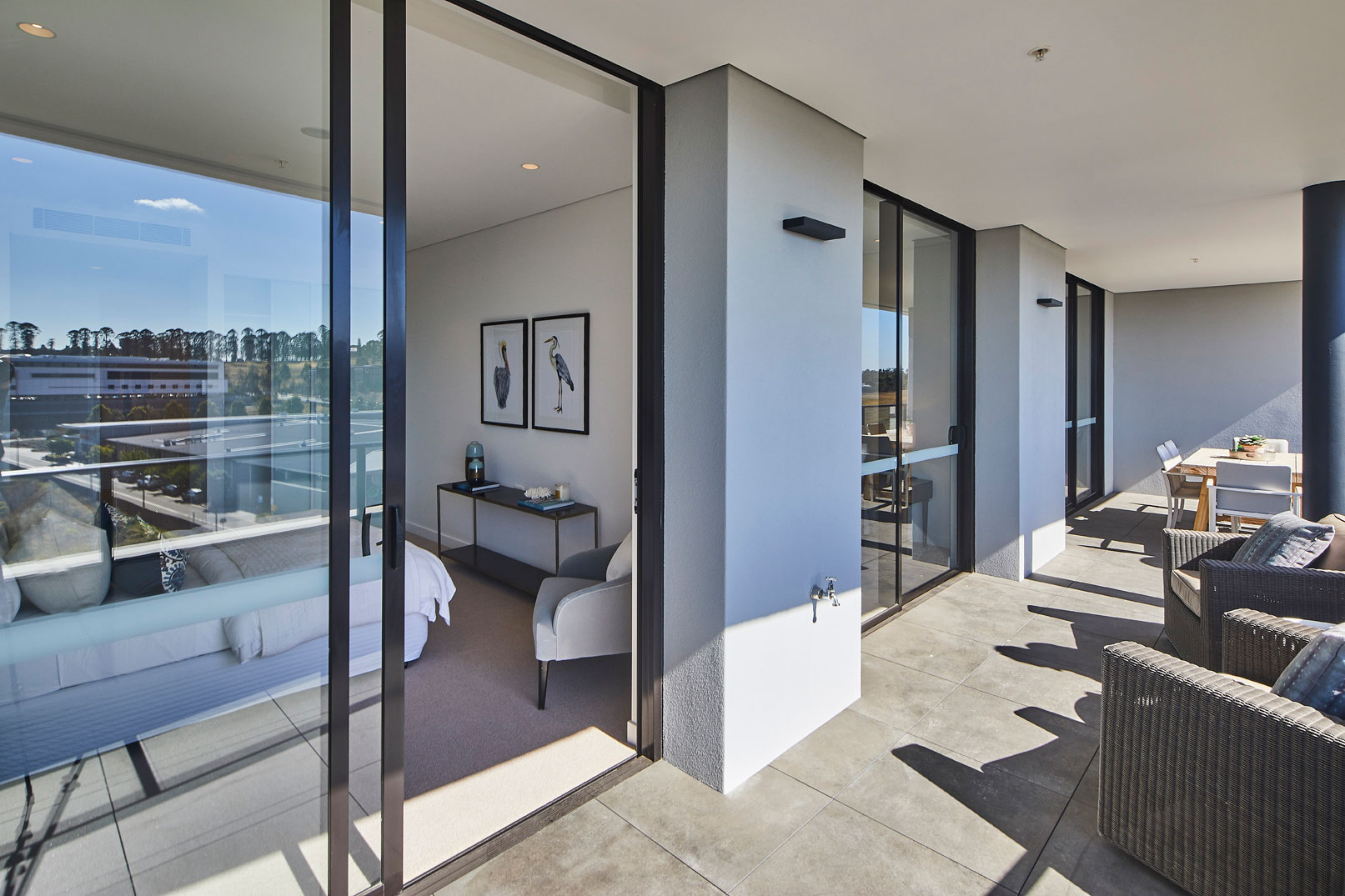

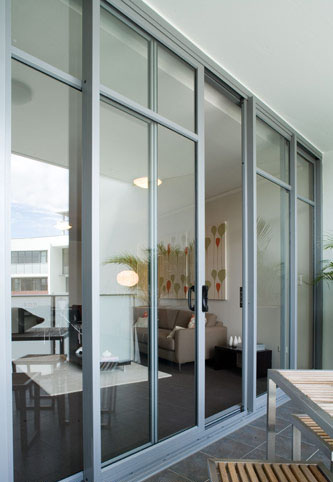

Altitude® Apartment Sliding Door
This door allows architects and designers the ability to achieve expansive openings without the need to compromise on performance or aesthetics.
Tested and Compliant Solutions
The new Altitude® Sliding Door has been specifically designed with the latest trends in architecture in mind. The door allows architects and designers the ability to achieve expansive openings without the need to compromise on performance or aesthetics.
Specifying the Alspec® Altitude® Sliding Door ensures the client receives a stylish, high performance product.
Designed by Alspec® to meet the extremes of the Australian environment, the Altitude® Apartment Sliding Door is the premier choice by architects, builders, home owners and fabricators when looking for a great sliding door.
Key Features

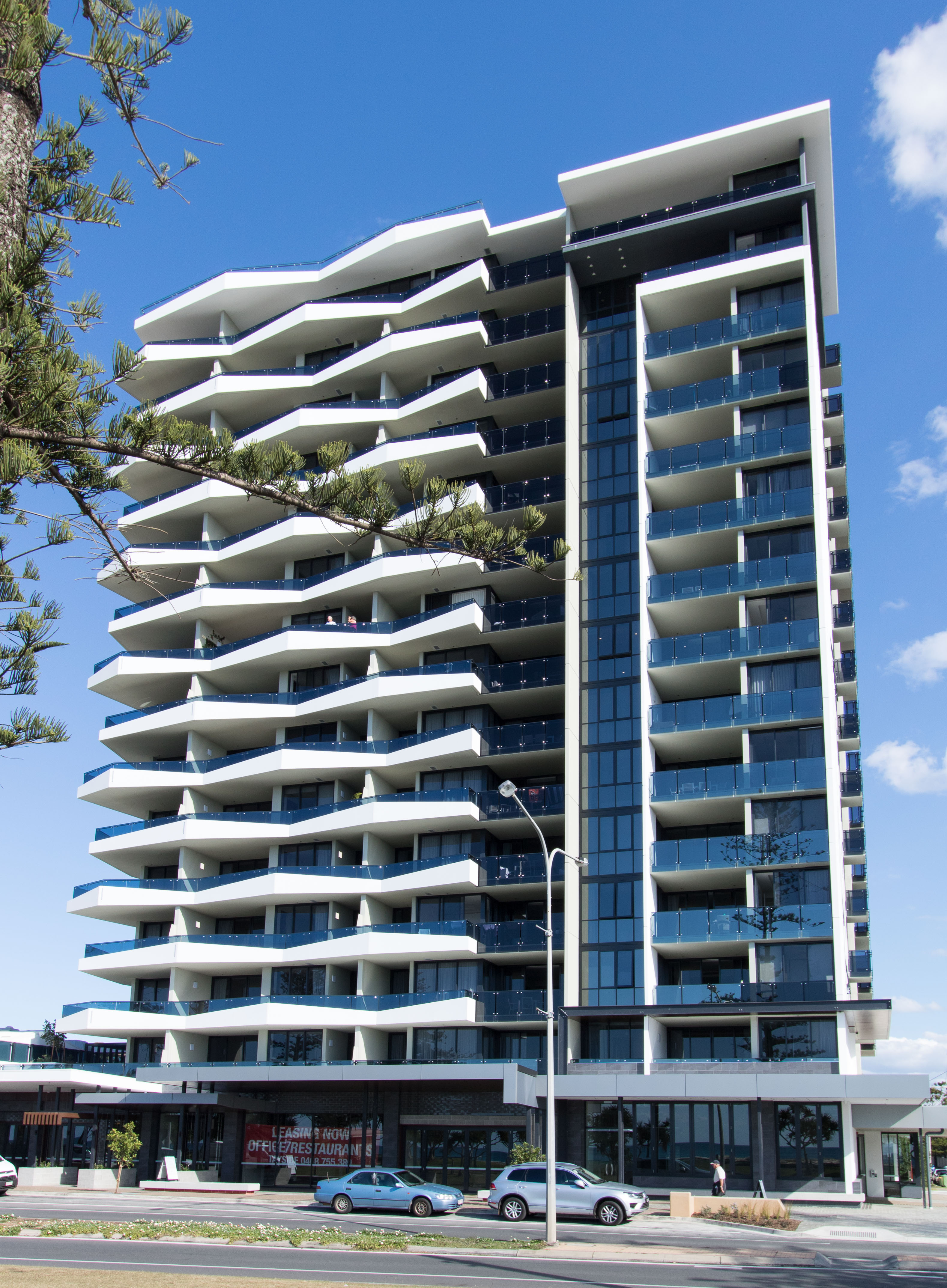

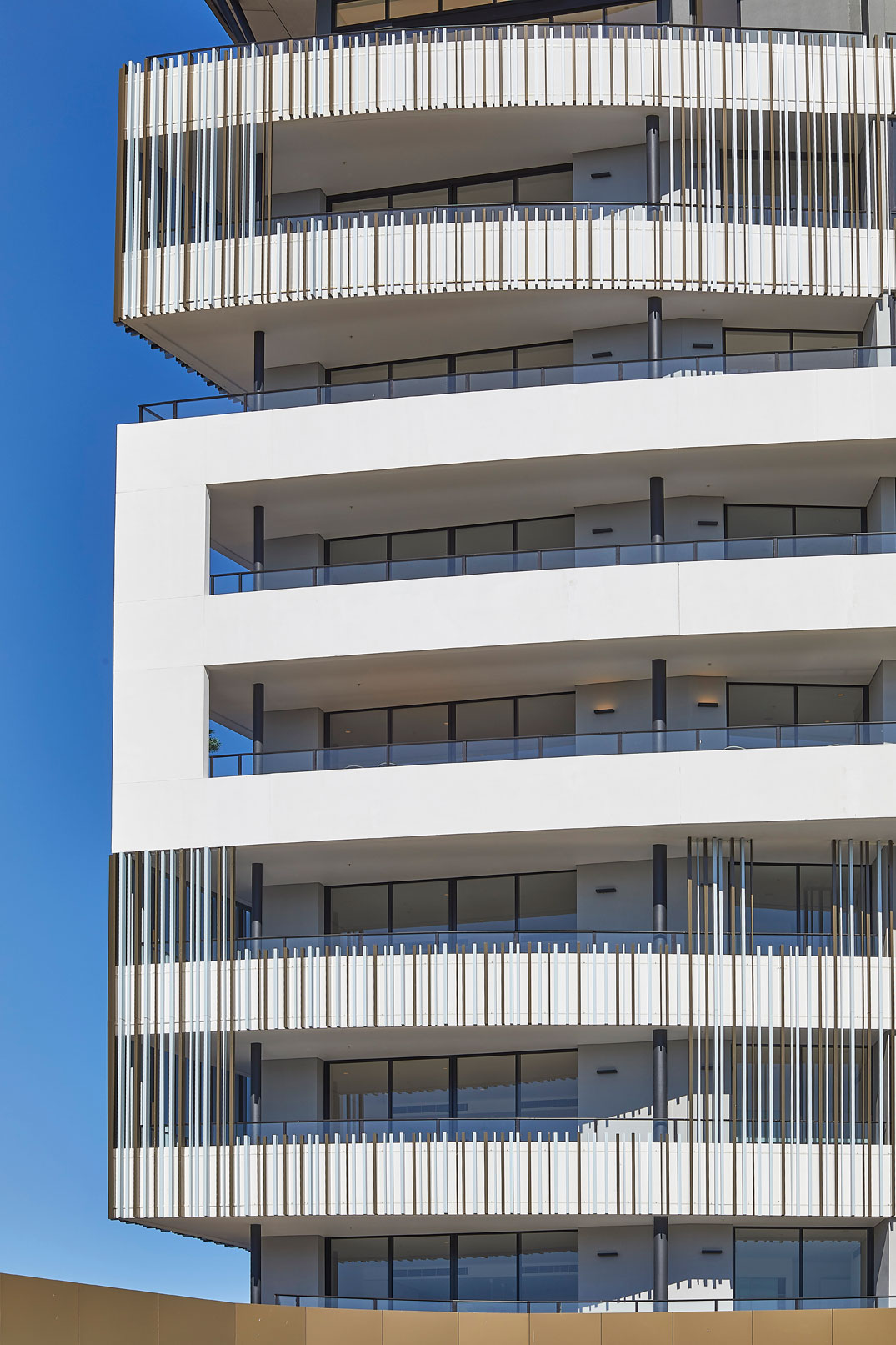

- Large sliding panels, ideal for high rise apartment and commercial applications
- Concealed drainage slots, high weather performance • Fully integrated flyscreen options available
- Sliding inside and outside panel configurations
- Proprietary hardware, specially designed to accompany this product
- Fully interfaces with 76mm, 101.6mm and 150mm systems, allows for total design flexibility
- Accepts from 4mm to 12.4mm single glazed and up to 18mm double glazing units, allowing the designer to achieve the most demanding thermal and acoustic specifications
Technical Specifications
Frame Dimensions
| Option 1 | 76 x 46mm |
| Option 2 | 101.6 x 46mm |
| Option 3 | 150 x 46mm |
Maximum Product Performance
| SLS (Pa) | 2200 |
| ULS (Pa) | 3200 |
| WATER (Pa) | 600 |
Compatible Systems
| Commercial Framing | Derwent 76mm Centre Pocket Framing |
| Commercial Framing | McArthur Evo 101.6mm Centre Pocket Framing |
| Commercial Framing | ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Single Flush Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Double Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Single Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Double Flush Glazed Framing |
Glazing Details
| Single Glazed | 4 - 12.4mm |
| Double Glazed | 18mm |
Acoustic Performance: Rw (c;ctr)
| 6.38mm Laminate | 32 (-2,-2) dB |
| 10.5mm Hush Laminate | 36 (-0,-2) dB |
| 6.38mm/6/6.38mm IGU | 34 (-1,-3) dB |
Maximum Recommended Sizes
| Height | 2700mm |
| Width | 1500mm |
| Weight | 160kg |
Thermal Performance
| Uw range SG | 4.2 - 6.0 |
| SHGC range SG | 0.30 - 0.69 |
| Uw range DG | 3.3 - 3.8 |
| SHGC range DG | 0.16 - 0.58 |
