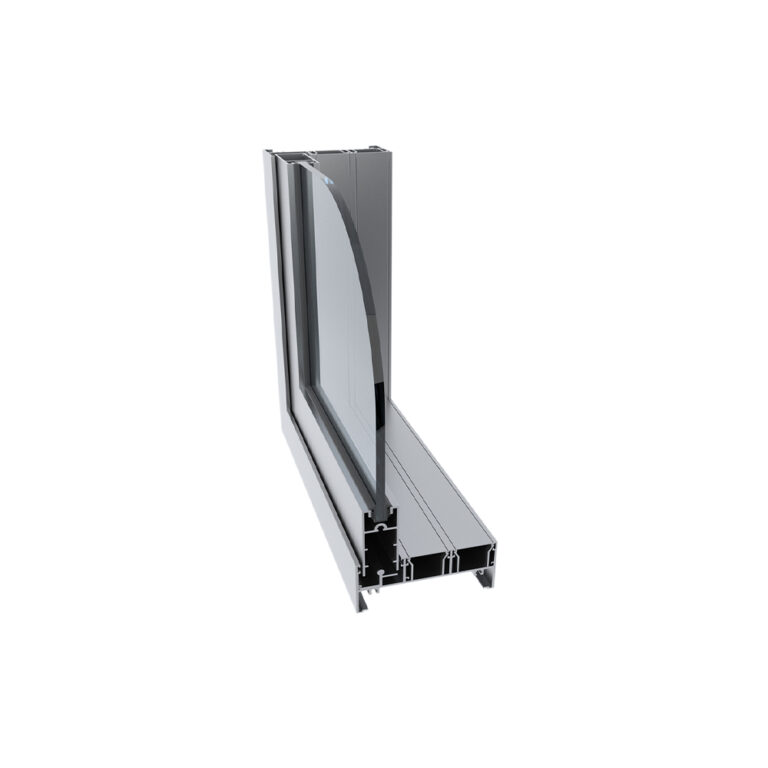

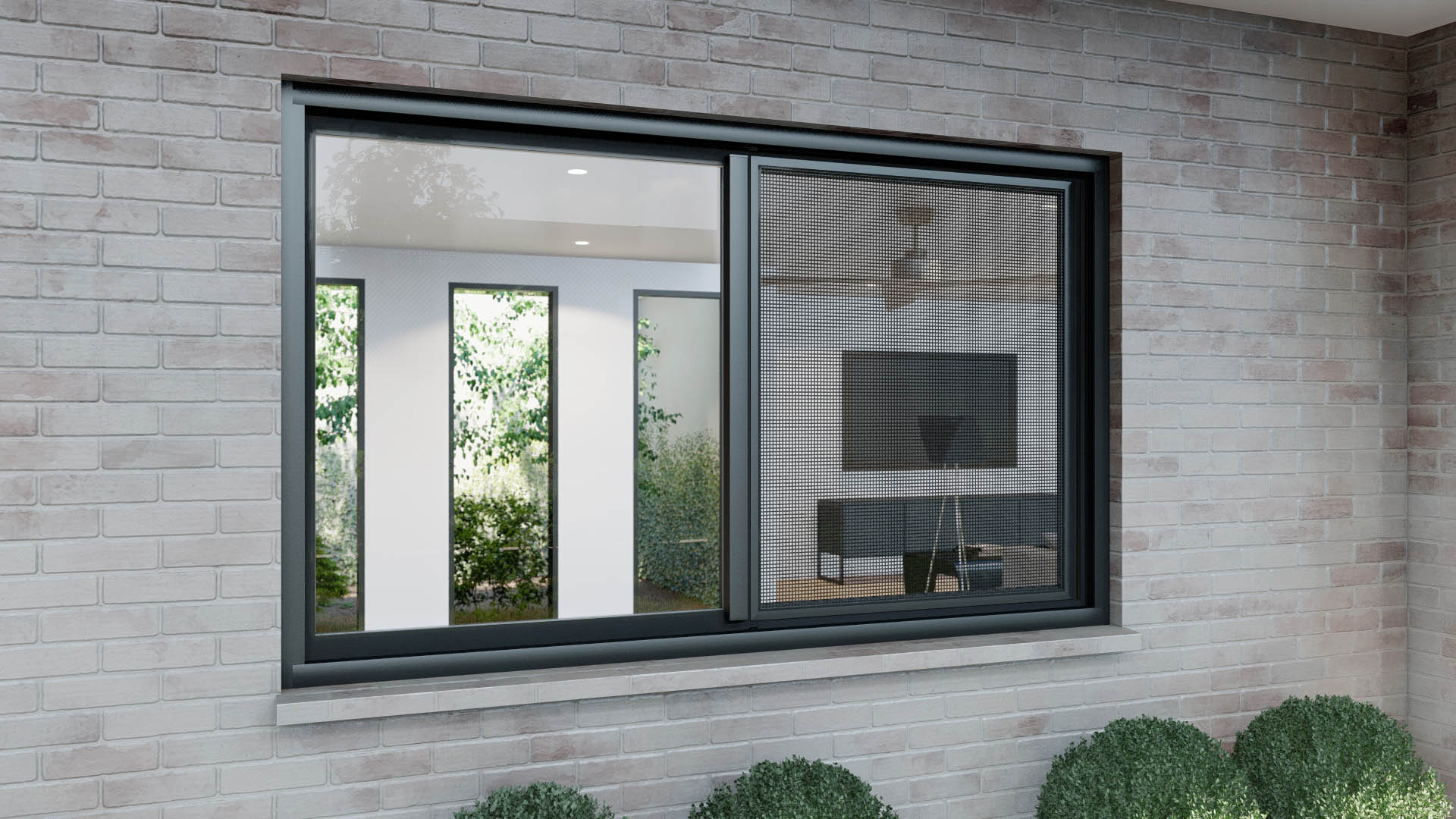

Altitude Sliding Window
The Altitude Sliding Window offers unparalleled views and wide opening to invite fresh air.
Tested and Compliant Solutions
Designed with top of the range sliding adjustable wheels which create minimal friction along an aluminium track.
Locking system is designed to be slimline within the stile.
The Altitude Sliding Window has an option to use stacking configurations to help create even wider openings with single or double glazed options available.
Can accommodate multiple of performance features such as security screen, flyscreen and low lights.
This Sliding window is modern, stylish and is available in multiple different colours.
Key Features
- Single and double glazed options.
- Concealed drainage slots, high weather performance.
- Fully integrated security screen or flyscreen options available.
- Proprietary hardware, specially designed to accompany this product.
- Flush handle and lock with stile.
- Accepts from 4mm to 12.4mm single glazed and up to 18mm double glazing units, allowing the designer to achieve the most demanding thermal and acoustic specifications.
Technical Specifications
Frame Dimensions
| Option 1 | 76 x 46mm |
| Option 2 | 101.6 x 46mm |
| Option 3 | 150 x 46mm |
Maximum Product Performance
| SLS (Pa) | 2800 |
| ULS (Pa) | 3700 |
| WATER (Pa) | 525 |
Glazing Details
| Single Glazed | 4 - 12.4mm |
| Double Glazed | 18mm |
Acoustic Performance (as Per The Altitude Sliding Door) Rw (c;ctr)
| 6.38mm Laminate | 32 (-2,-2) dB |
| 6.38mm/6/6.38mm IGU | 34 (-1,-3) dB |
Maximum Recommended Sizes
| Height | 1800mm |
| Width | 1500mm |
| Weight | 160kg |
