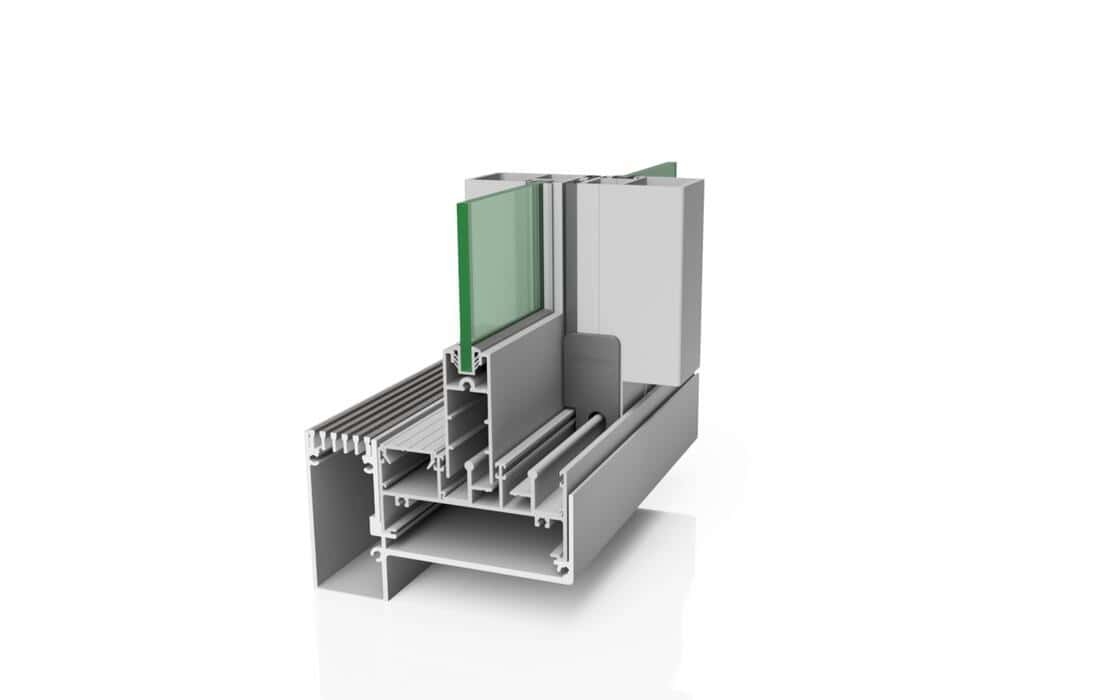

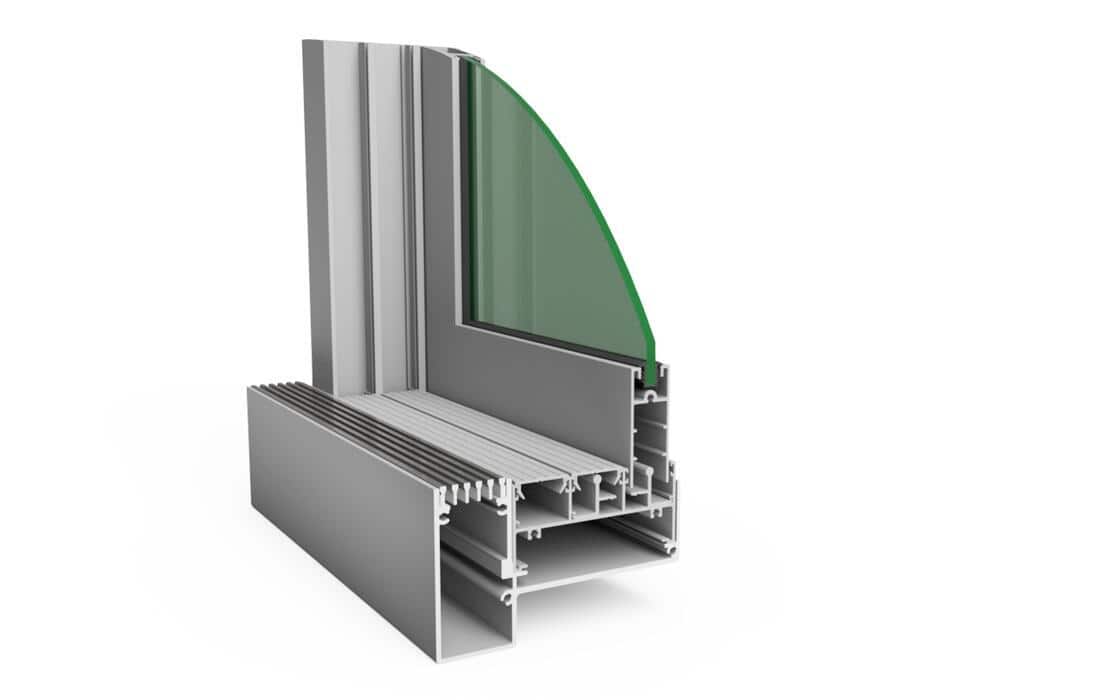

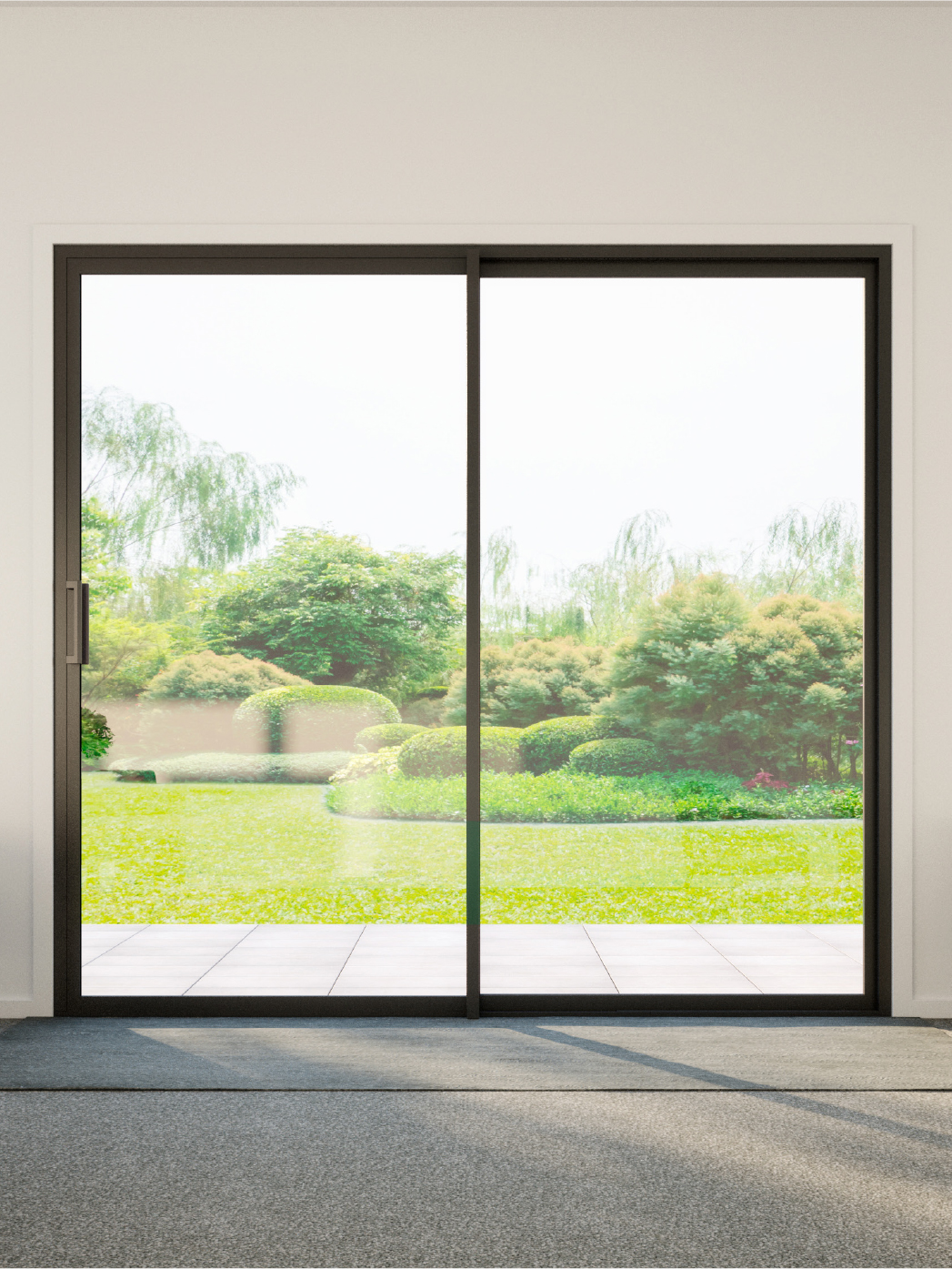

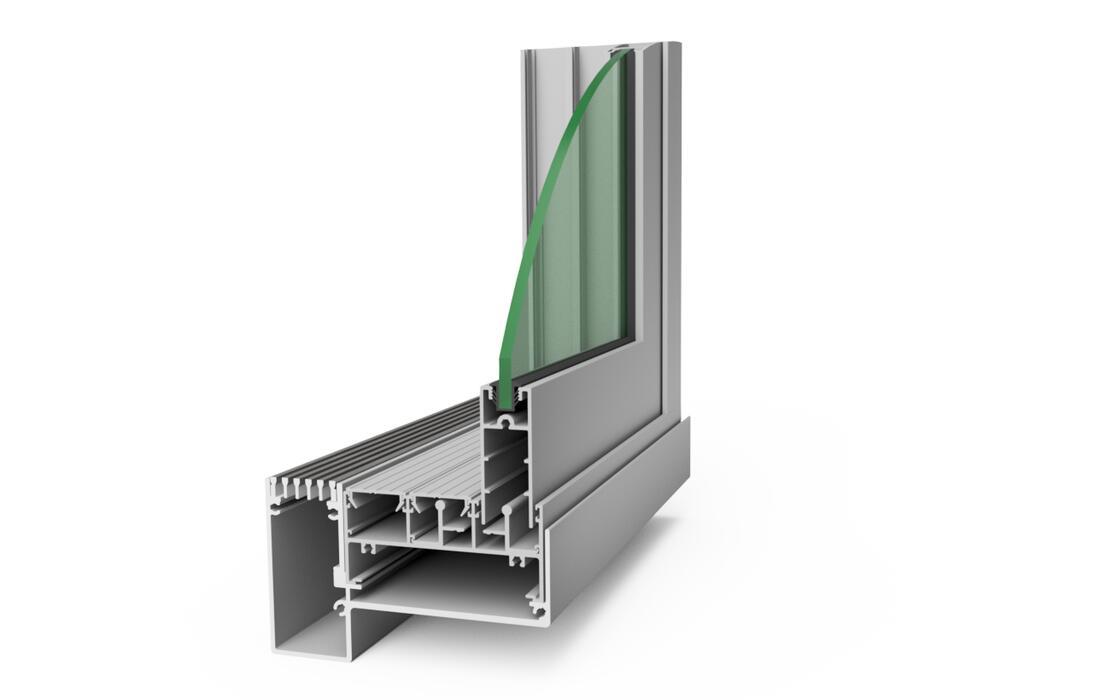

Altitude® UltraFlat Sliding Door

The door allows architects and designers the ability to achieve expansive openings without the need to compromise on performance or aesthetics.

The new Altitude® UltraFlat Sliding Door has been specifically designed for projects where a AS1428.1 compliant flush sill is required. This UltraFlat sill option is perfect for aged care facilities, hospitals, learning environments and residential projects.

The door allows architects and designers the ability to achieve expansive openings without the need to compromise on performance or aesthetics. Designed by Alspec® to meet the extremes of the Australian environment, the Altitude UltraFlat Sliding Door is the premier choice by architects, specifiers, builders, homeowners and fabricators when looking for a sliding door with a flush sill.

Key Features

  • Large sliding panels, ideal for high rise apartment and commercial applications
  • Concealed drainage slots, high weather performance
  • Internal sliding panel configurations
  • Proprietary hardware, specially designed to accompany this product
  • Fully interfaces with 76mm, 101.6mm and 150mm systems, allows for total design flexibility
  • Accepts from 4mm to 12.4mm single glazed and up to 18mm double glazing units, allowing the designer to achieve the most demanding thermal and acoustic specifications
  • AS1428.1 wheelchair compliant sill ideal for aged care living applications

Technical Specifications

Frame Dimensions

Option 1 76 x 46mm
Option 2 101.6 x 46mm
Option 3 150 x 46mm

Maximum Product Performance

SLS (Pa) 2200
ULS (Pa) 3200
WATER (Pa) 250

Compatible Systems

Commercial Framing Derwent 76mm Centre Pocket Framing
Commercial Framing McArthur Evo 101.6mm Centre Pocket Framing
Commercial Framing ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
Commercial Framing Hunter Evo 101.6mm Single Flush Glazed Framing
Commercial Framing Hunter Evo 101.6mm Double Flush Glazed Framing
Commercial Framing Hunter Evo 150mm Single Flush Glazed Framing
Commercial Framing Hunter Evo 150mm Double Flush Glazed Framing

Glazing Details

Single Glazed 4 - 12.4mm
Double Glazed 18mm

Acoustic Performance: Rw (c;ctr)

6.38mm Laminate 32 (-2,-2) dB
10.5mm Hush Laminate 36 (-0,-2) dB
6.38mm/6/6.38mm IGU 34 (-1,-3) dB

Maximum Recommended Sizes

Height 2700mm
Width 1500mm
Weight 160kg

Thermal Performance

Uw range SG 4.2 - 6.0
SHGC range SG 0.30 - 0.69
Uw range DG 3.3 - 3.8
SHGC range DG 0.16 - 0.58
