Gas Strut Servery Window
The Gas Strut Servery window from Alspec offers is a versatile Servery window that is easy to fabricate and install.
It has been designed to maximize natural airflow with minimal obstruction.
The Gas Strut Servery window from Alspec offers is a versatile Servery window that is easy to fabricate and install. It has been designed to maximize natural airflow with minimal obstruction by creating a wide opening. Suitable with sill and no sill applications while incorporating twin bolts/flush bolts for easy locking.
Key Features
- Perfect kitchen servery window providing a full 90 degree opening
- Available with a sill or no sill
- Effortless smooth opening by high performance gas struts and hinges
- Self-latching locking system without the need for holes in the frame or cut into your bench
- Maximises natural airflow
Technical Specifications

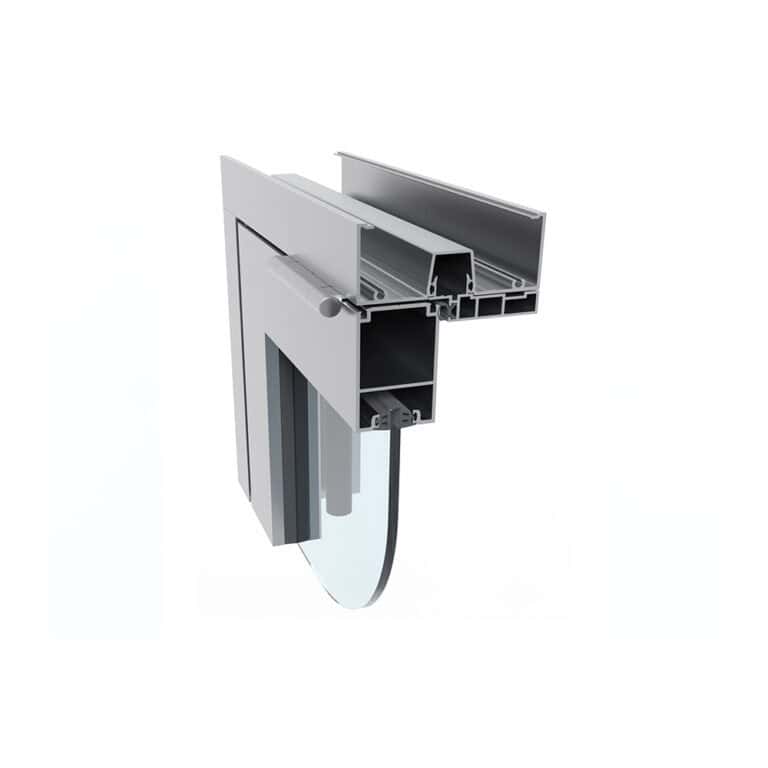

Frame Dimensions
| Option 1 | 101.6 x 44.5mm |
Maximum Product Performance
| SLS (Pa) 6mm/12mm | 764 / 959 |
| ULS (Pa) 6mm/12mm | 3306 / 3101 |
Glazing Details
| Single Glazed | 6 - 13.5mm |
| Double Glazed | 18 - 28mm |
Maximum Recommended Sizes
| Height | 1500mm |
| Width | 2000mm |
Downloads
Brochures

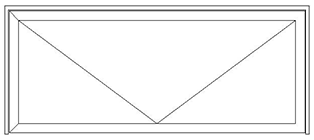

Typical Configurations

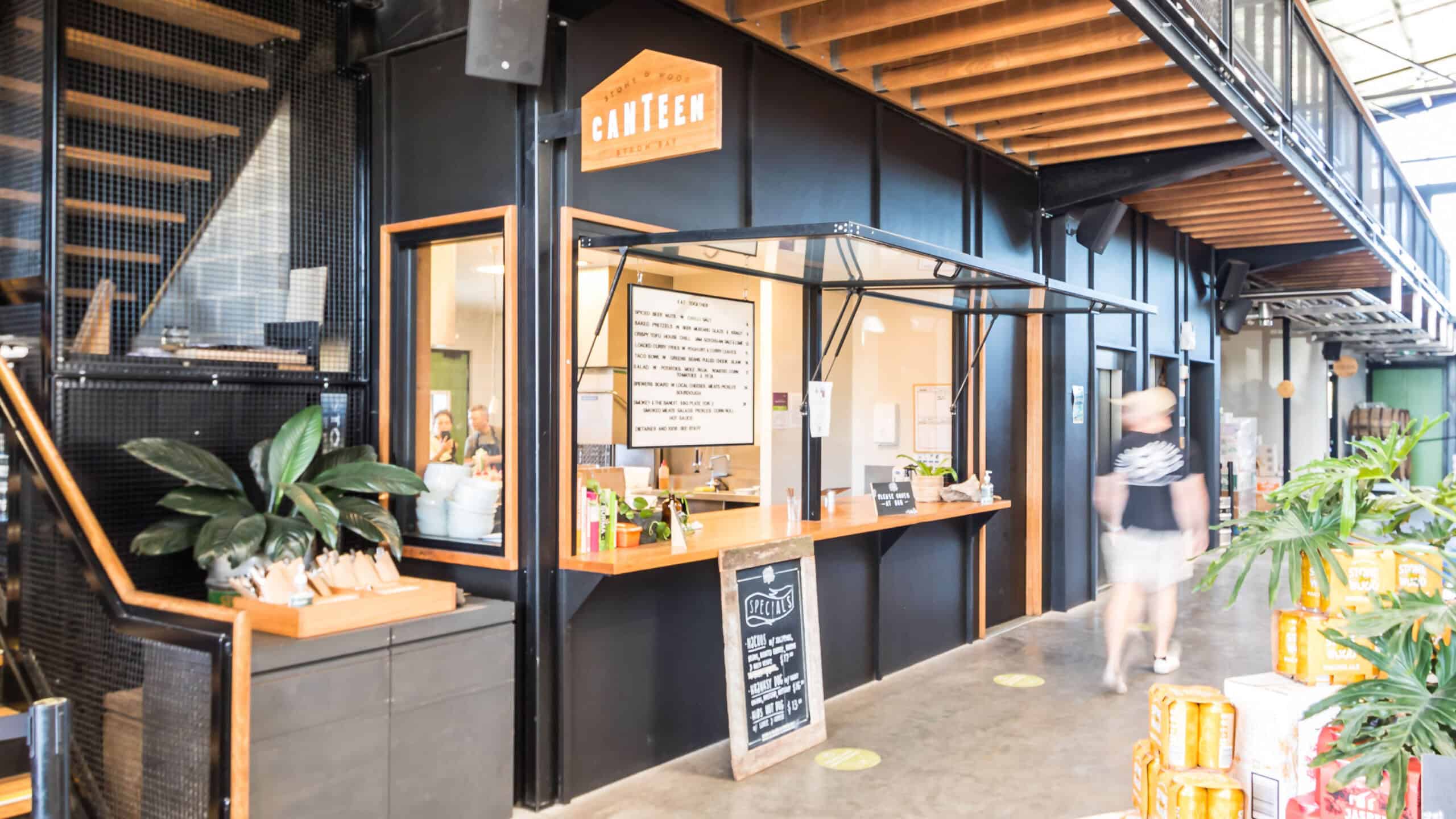

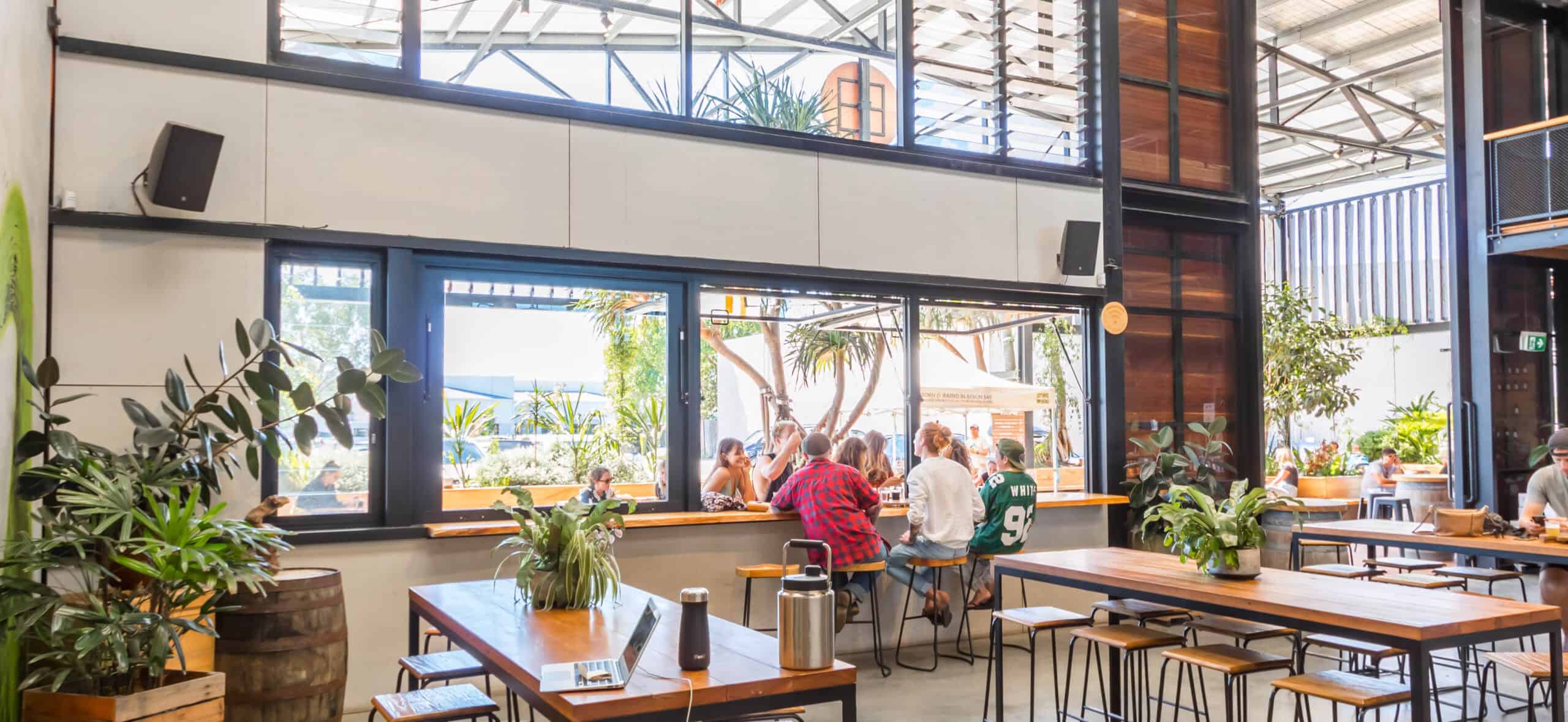

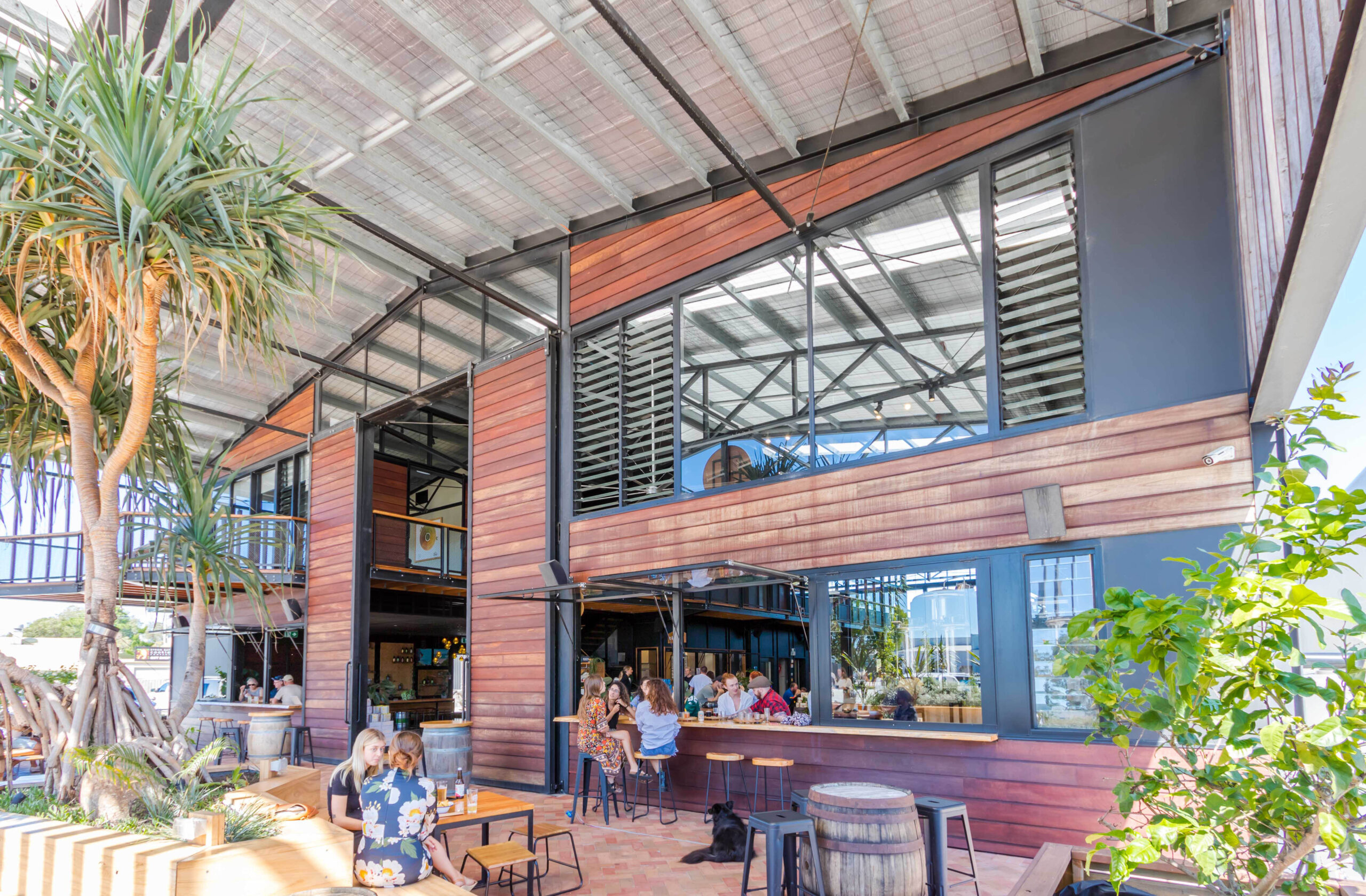

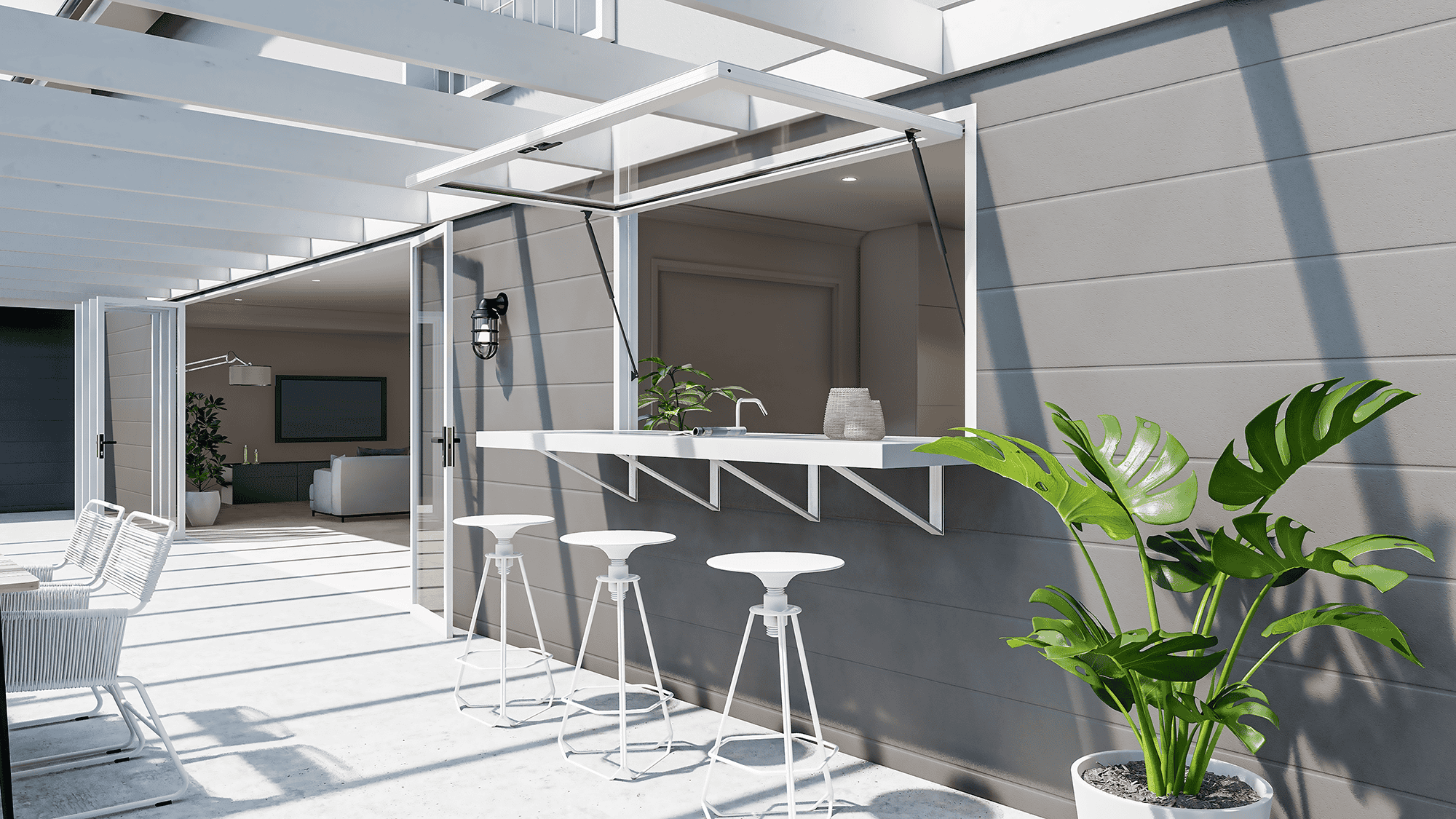

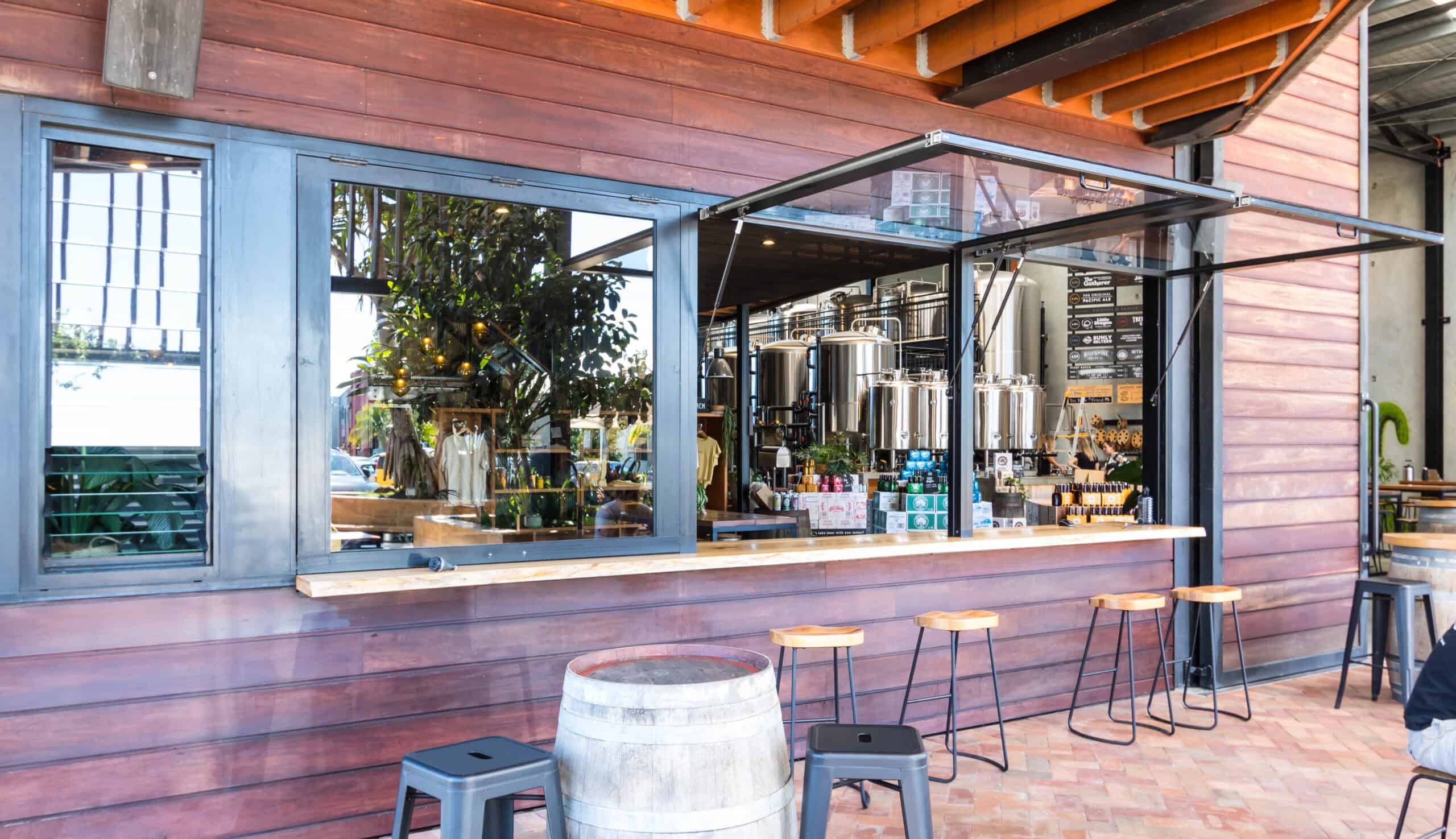

Gallery
