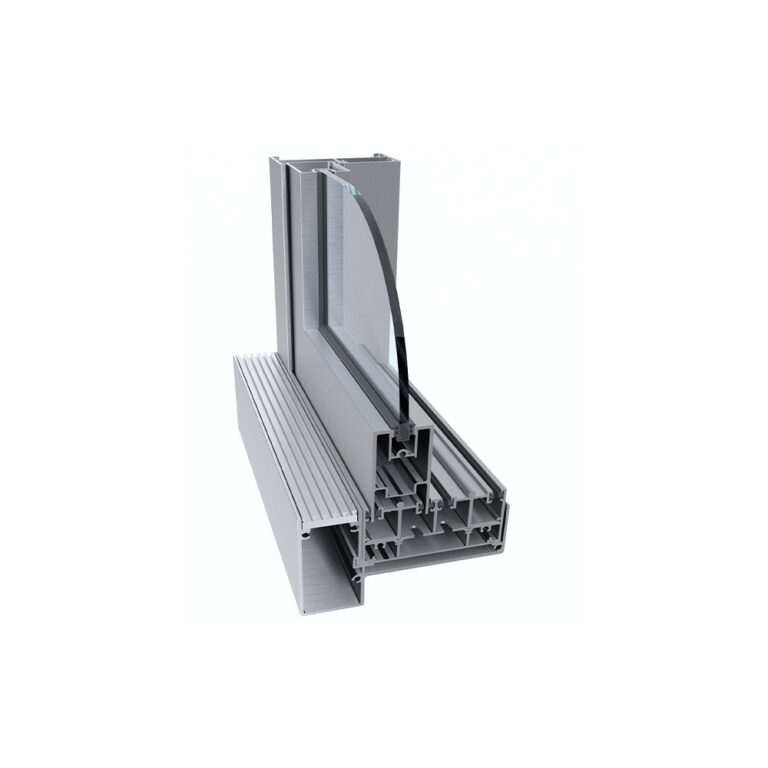

ProGlide UltraFlat™ Sliding Door

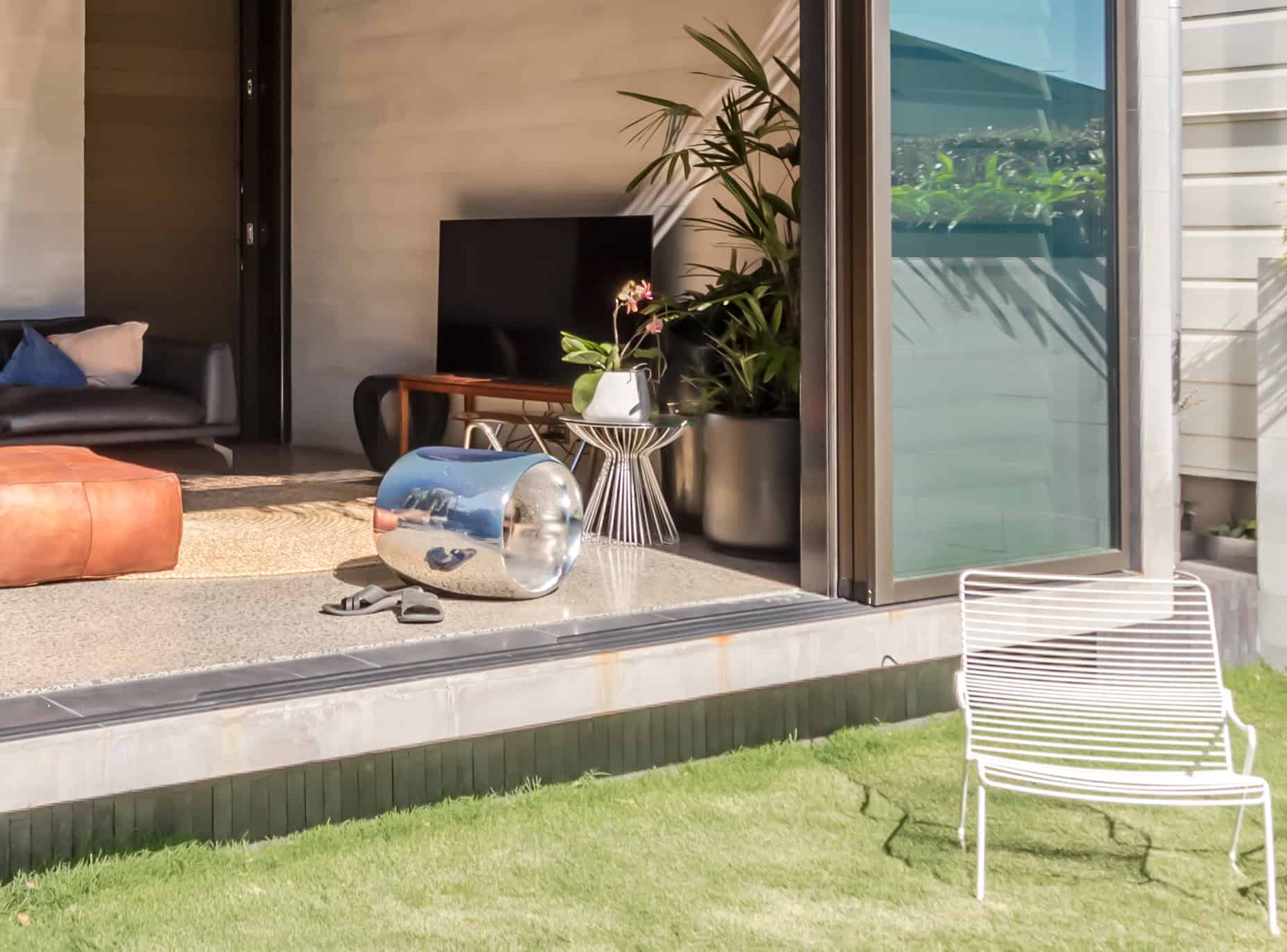

This Sliding Door achieves large expansive openings whilst offering a weather resistant wheelchair compliant sill to AS1428.1 without the need to compromise on performance or aesthetics.
Tested and Compliant Solutions
Alspec’s® High-Performance Wheelchair Accessible Sliding Door
The ProGlide UltraFlat™ Sliding Door from Alspec® allows architects and designers to achieve large expansive openings while offering a weather-resistant wheelchair-compliant sill to AS1428.1 without compromising performance or aesthetics.
Specifying Alspec’s® ProGlide UltraFlat™ ensures the client receives a solid, durable high-performance product offering a continuous accessible path of seamless transition between internal and external floor finishes.
Designed and manufactured in Australia to meet the extremes of the Australian environment, the Alspec® ProGlide UltraFlat™ is the first choice amongst architects, builders, homeowners and fabricators when performance and quality matter.
Key Features
- AS1428.1 wheelchair compliant sill ideal for aged care living applications
- 630Pa water resistant sill
- Large sliding panels, ideal for housing, apartment and commercial applications
- Inside or outside sliding panels, allowing multiple panel designs
- Allows up to 4 panels stacking in each direction
- Heavy duty aluminium profiles
- Accepts up to 13.52mm single glazed and up to 28mm double glazing units, allowing the designer to achieve the most demanding thermal and acoustic specifications
- 90 degree post free corner option
- Heavy duty rollers up to 200kg per panel
Technical Specifications
Frame Dimensions
| Option 1 | 101 x 50mm |
| Option 2 | 151.5 x 50mm |
Maximum Product Performance
| SLS (Pa) | 2200 |
| ULS (Pa) | 4600 |
| WATER (Pa) | 630 |
Compatible Systems
| Commercial Framing | ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Single Flush Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Double Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Single Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Double Flush Glazed Framing |
Glazing Details
| Single Glazed | 5 - 13.52mm |
| Double Glazed | 18 - 28mm |
Acoustic Performance
| 6.38mm Laminate | 32 (0, –2) dB |
| 10.38/12/6.38 IGU | 38 (–2, –4) dB |
Maximum Recommended Sizes
| Height | 3150mm |
| Width | 2250mm |
| Weight | 200kg per panel |
Thermal Performance
| Uw range SG | 4.3 - 6.1 |
| SHGC range SG | 0.38 - 0.66 |
| Uw range DG | 3.0 - 3.9 |
| SHGC range DG | 0.22 - 0.55 |
