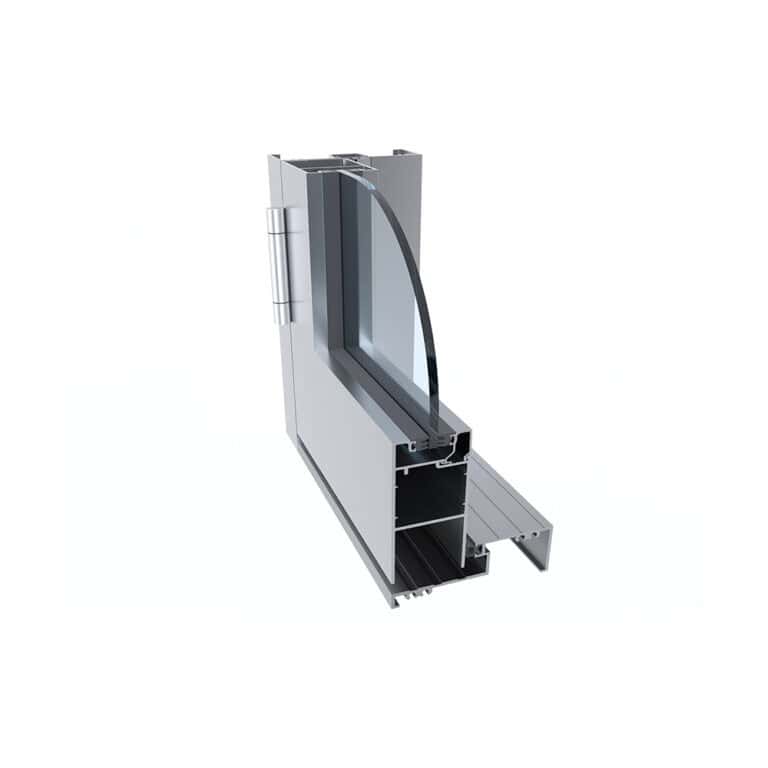

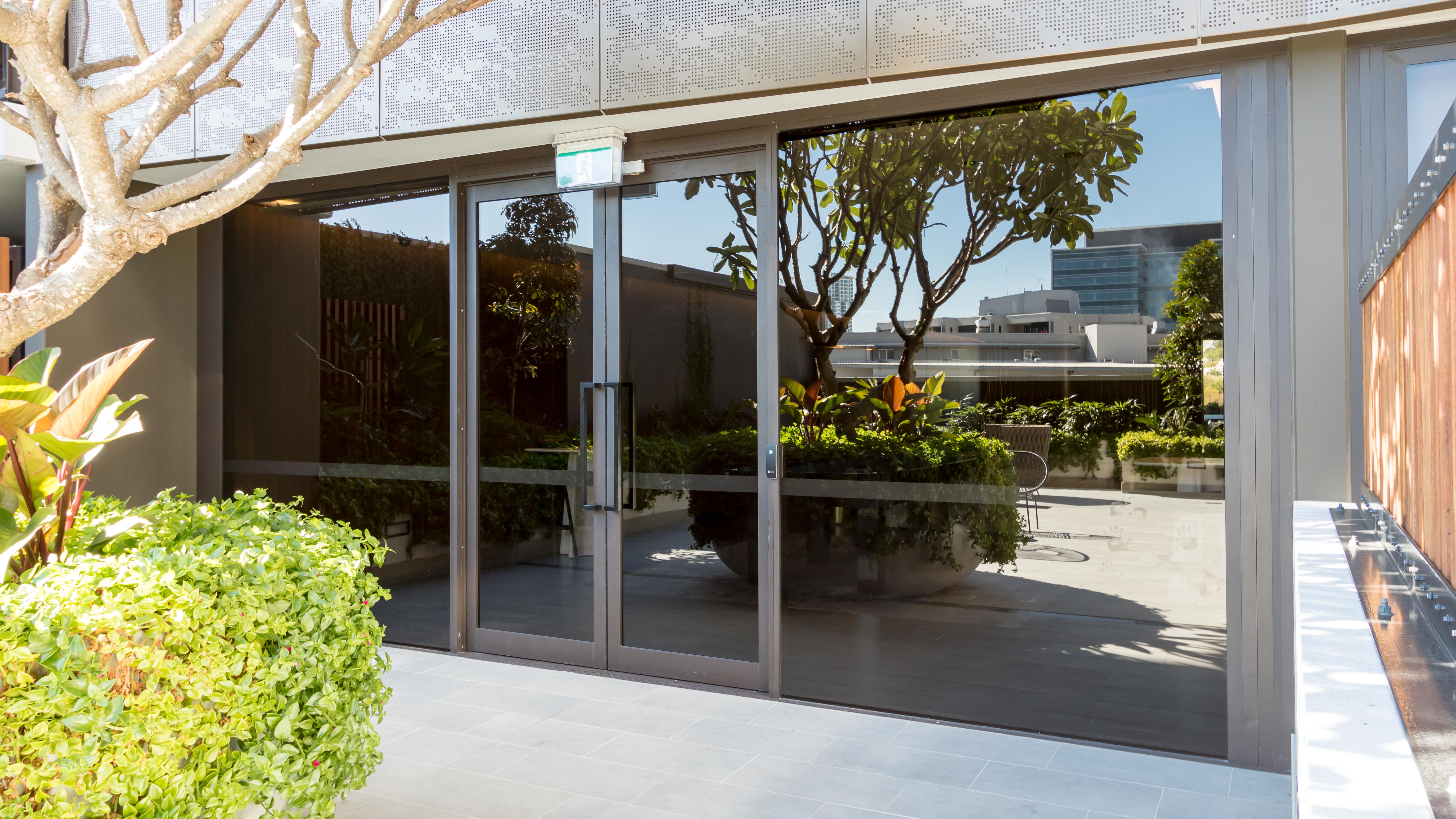

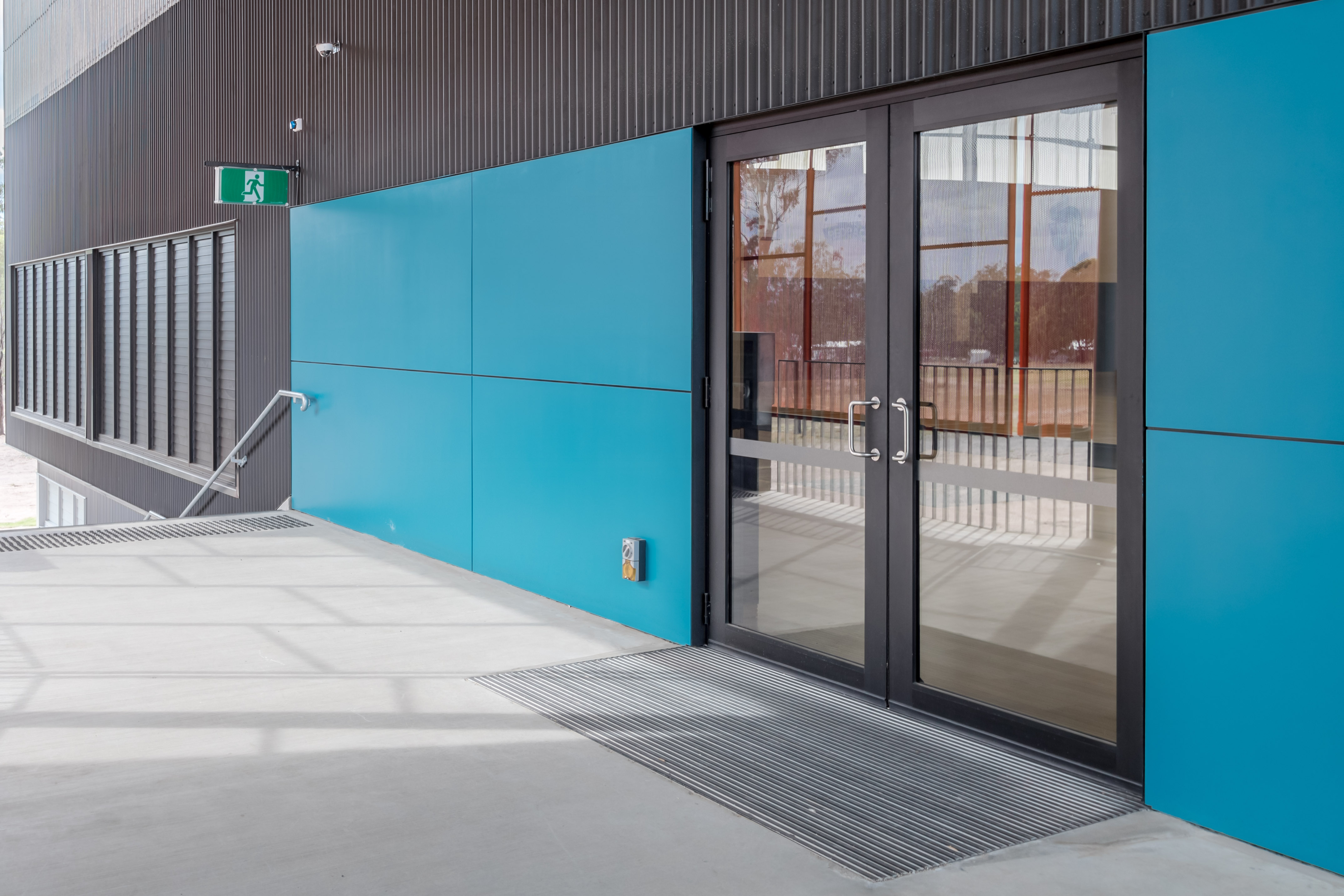

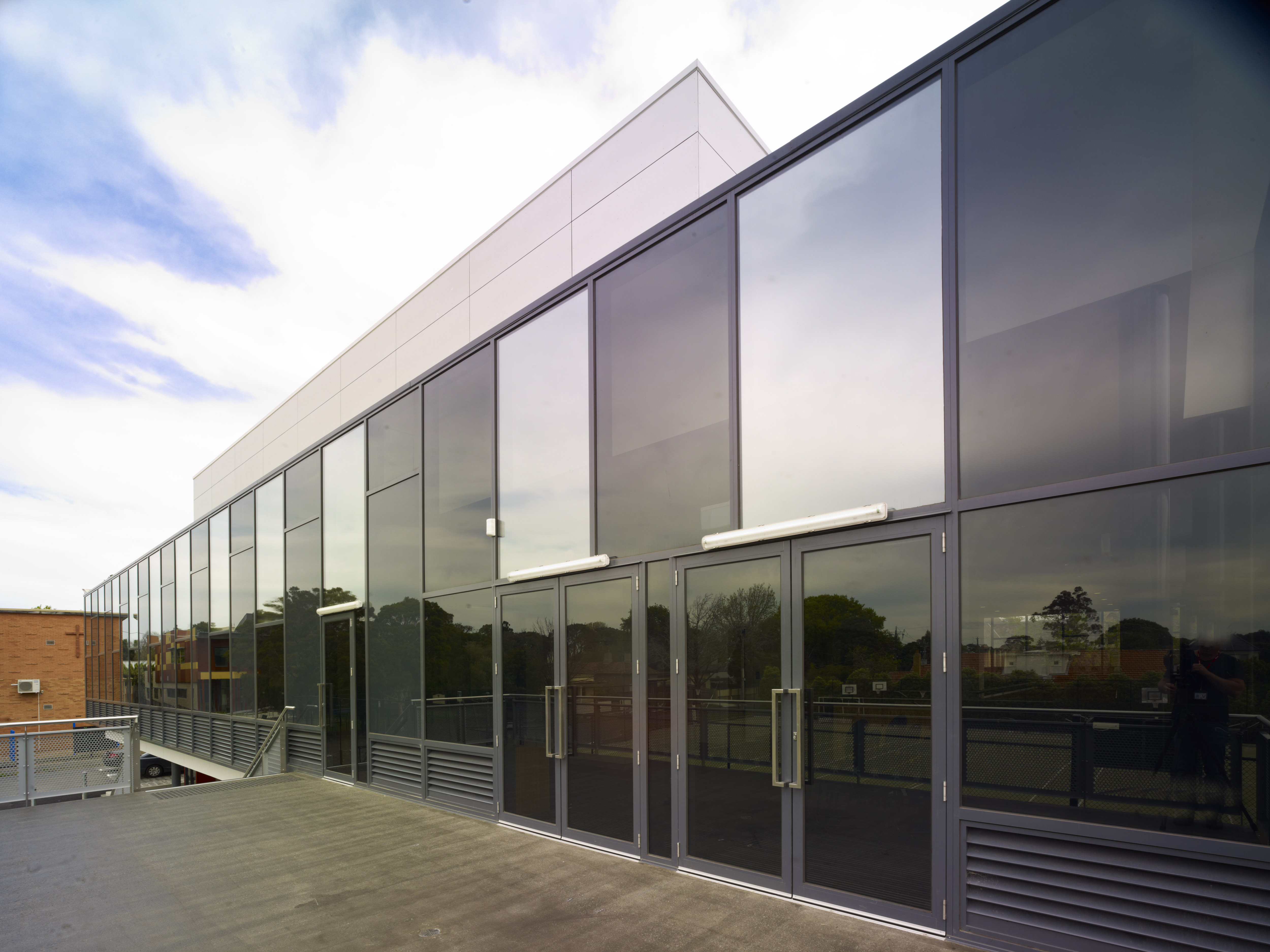

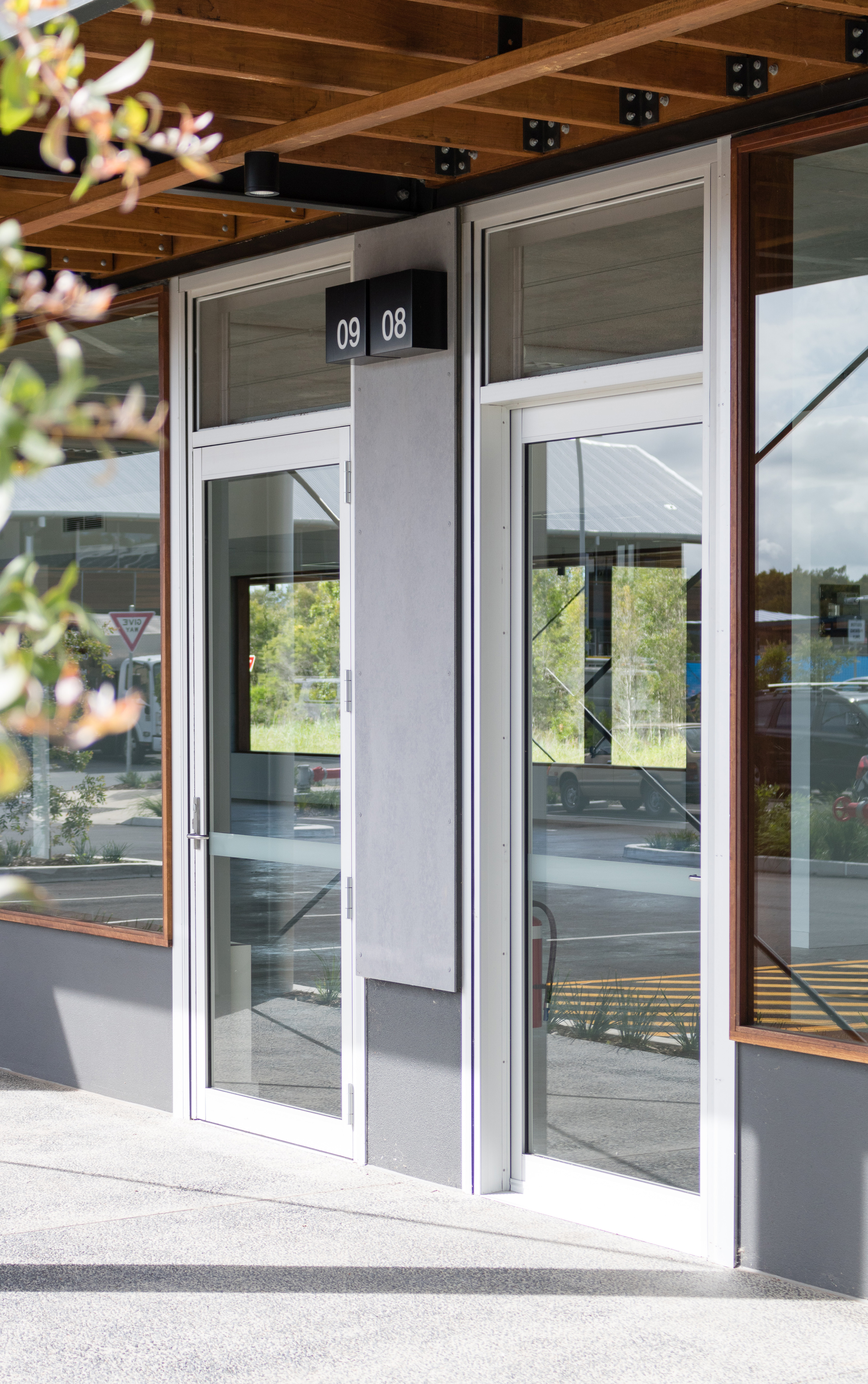

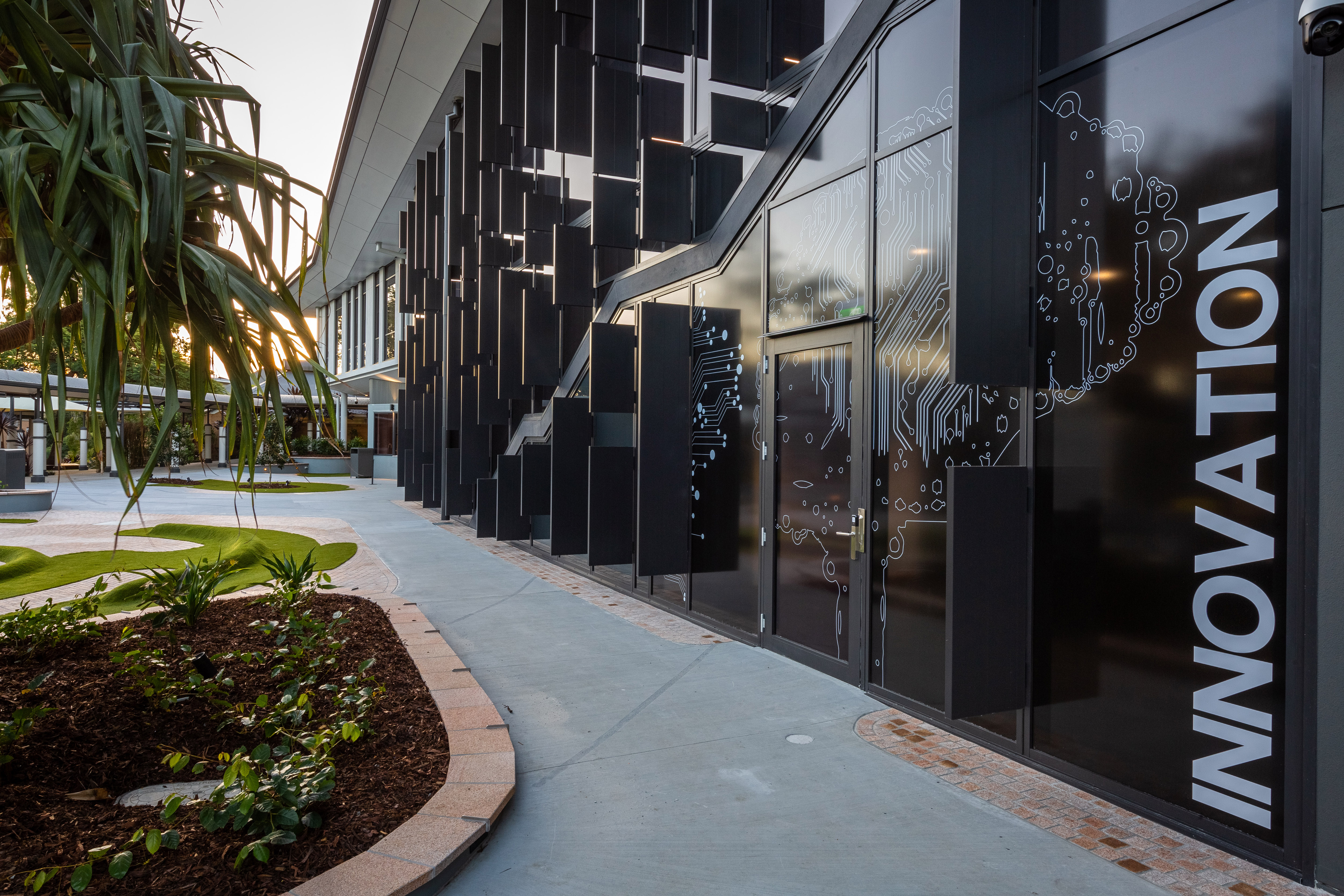

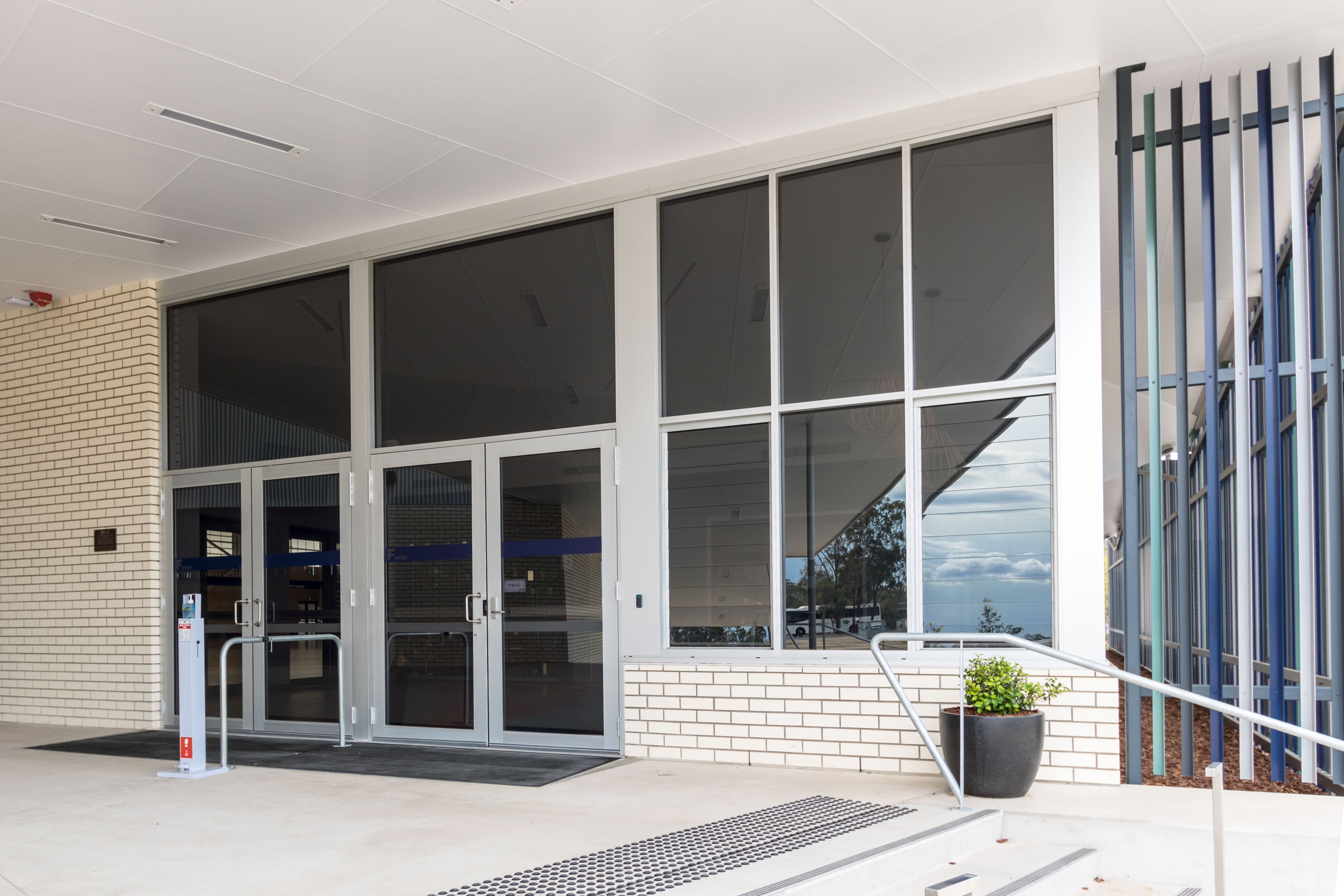

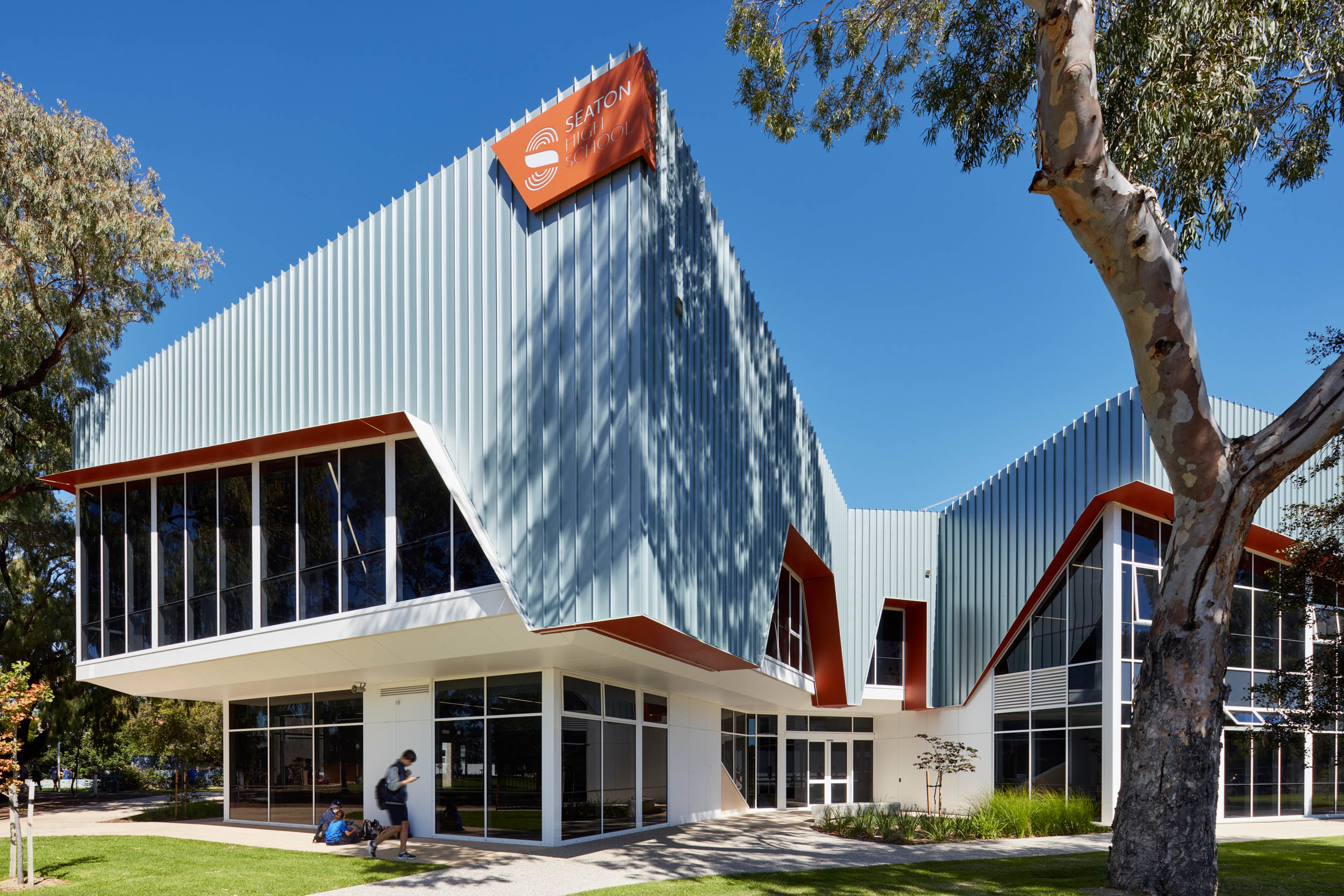

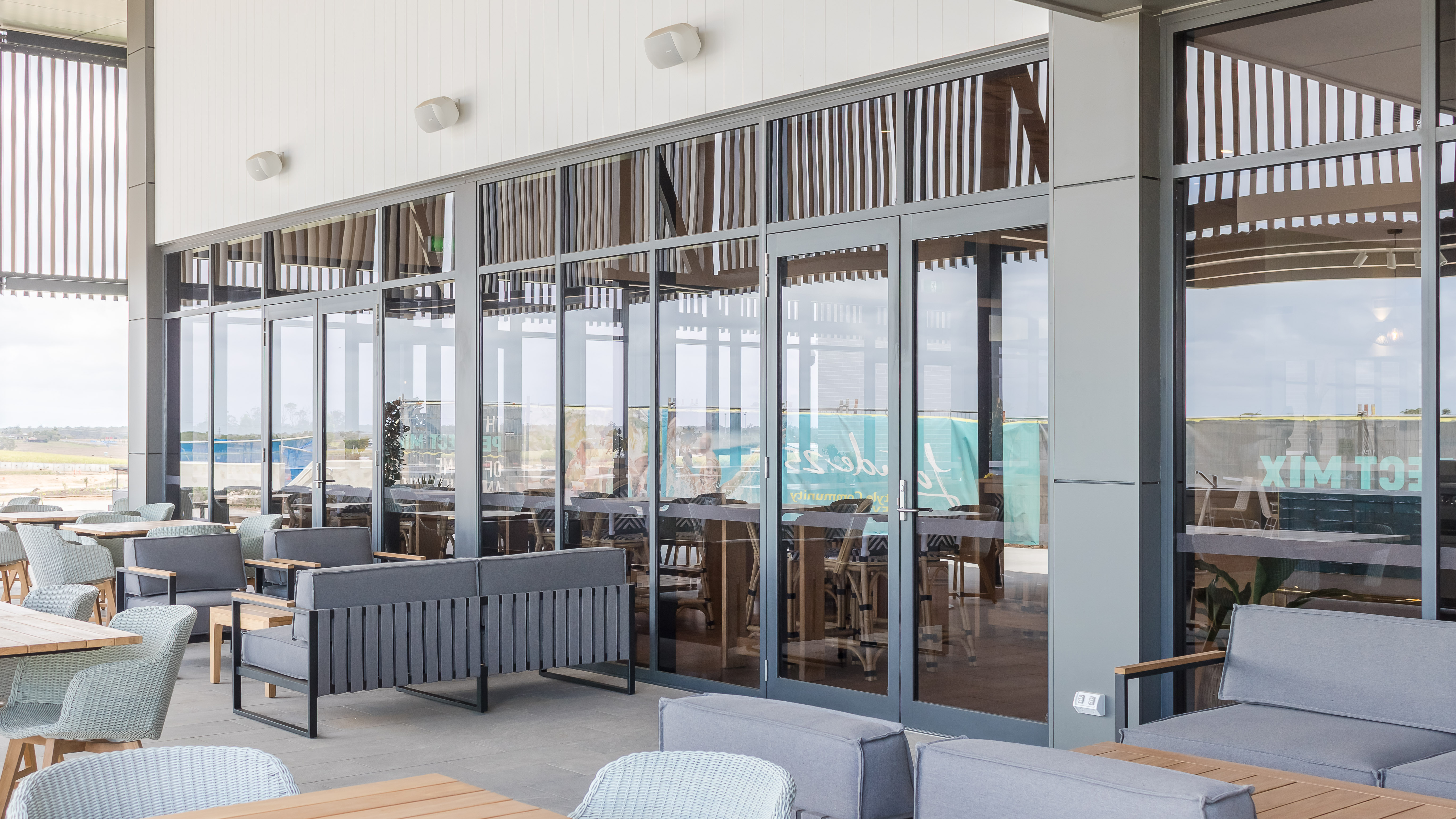

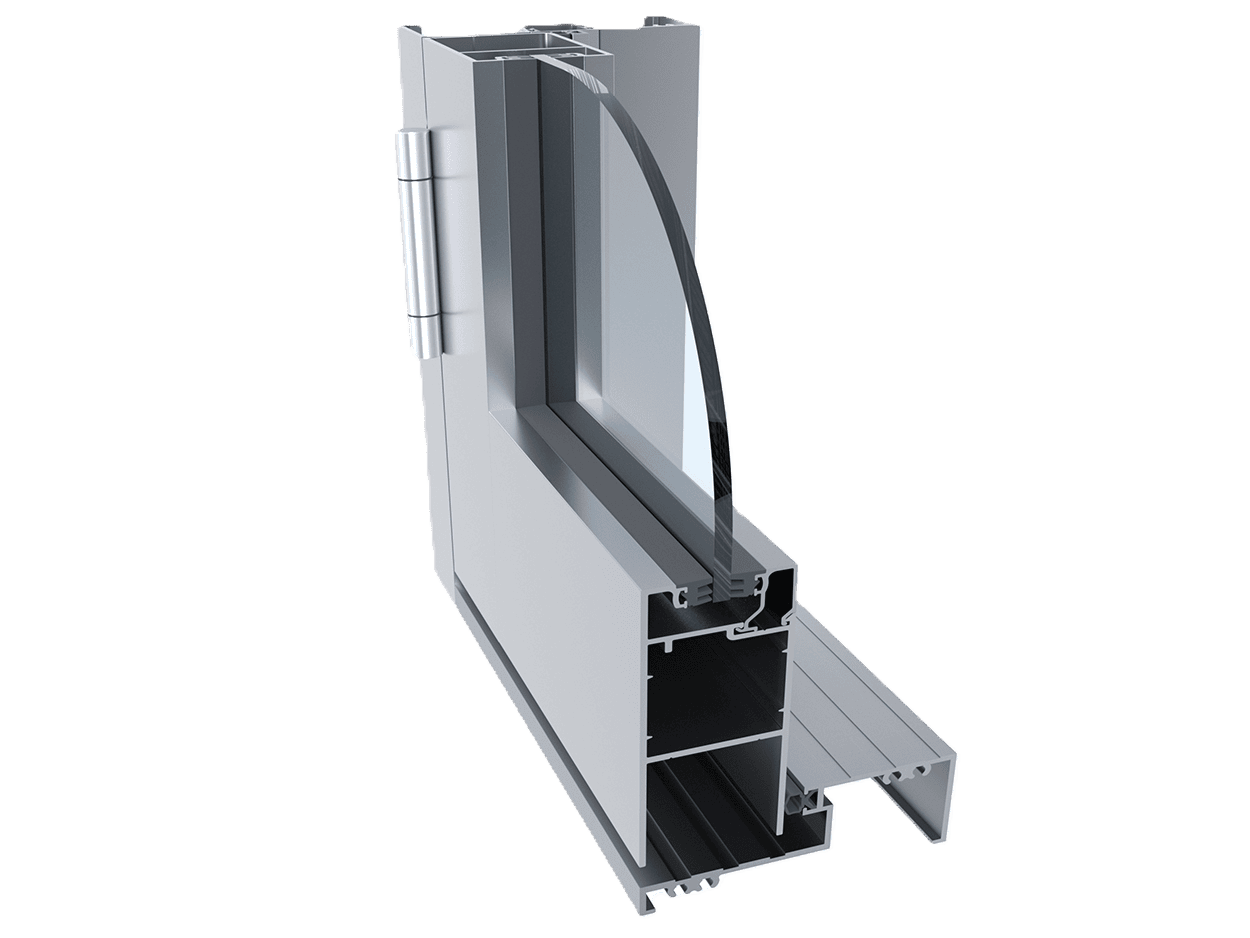

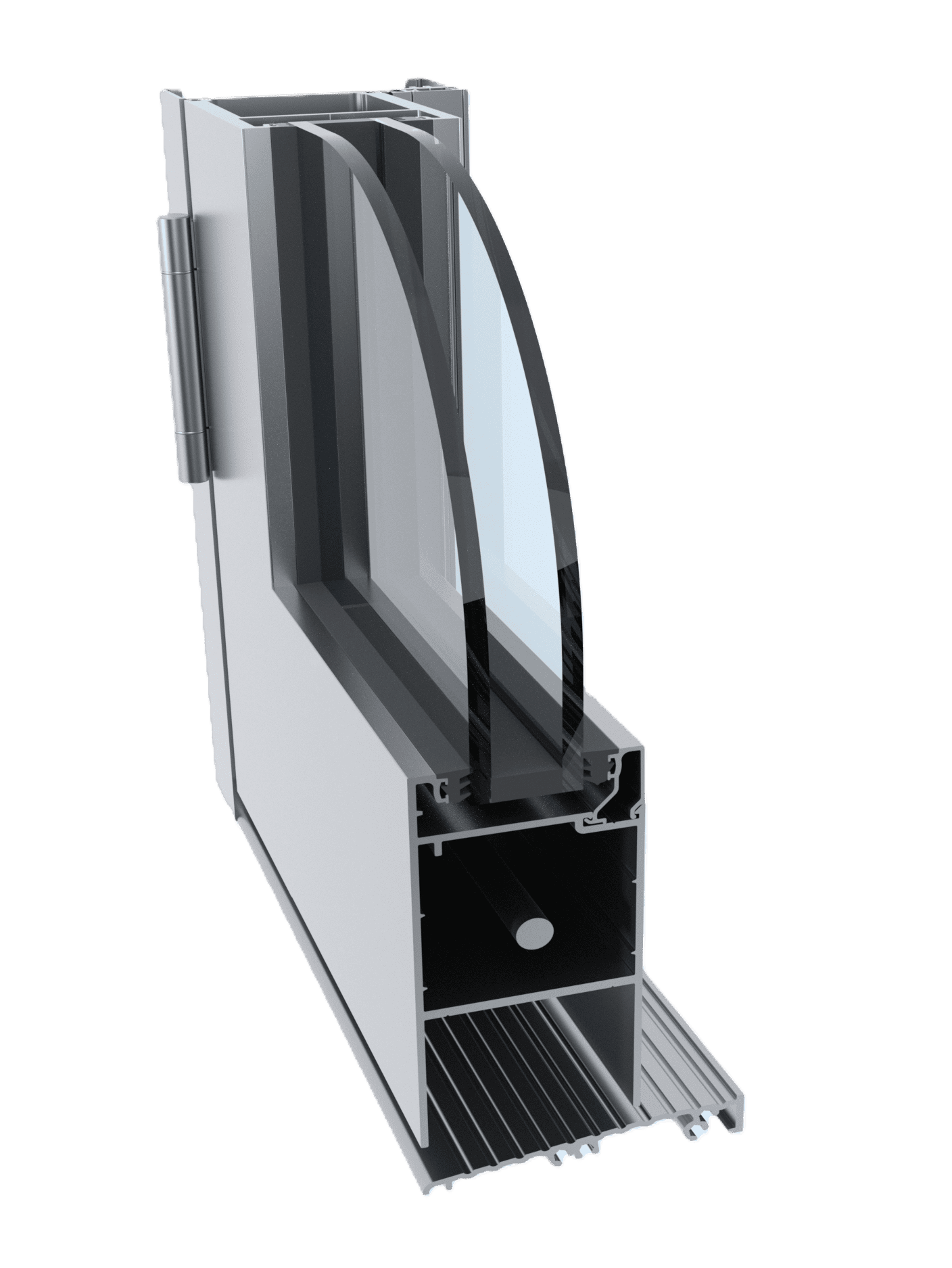

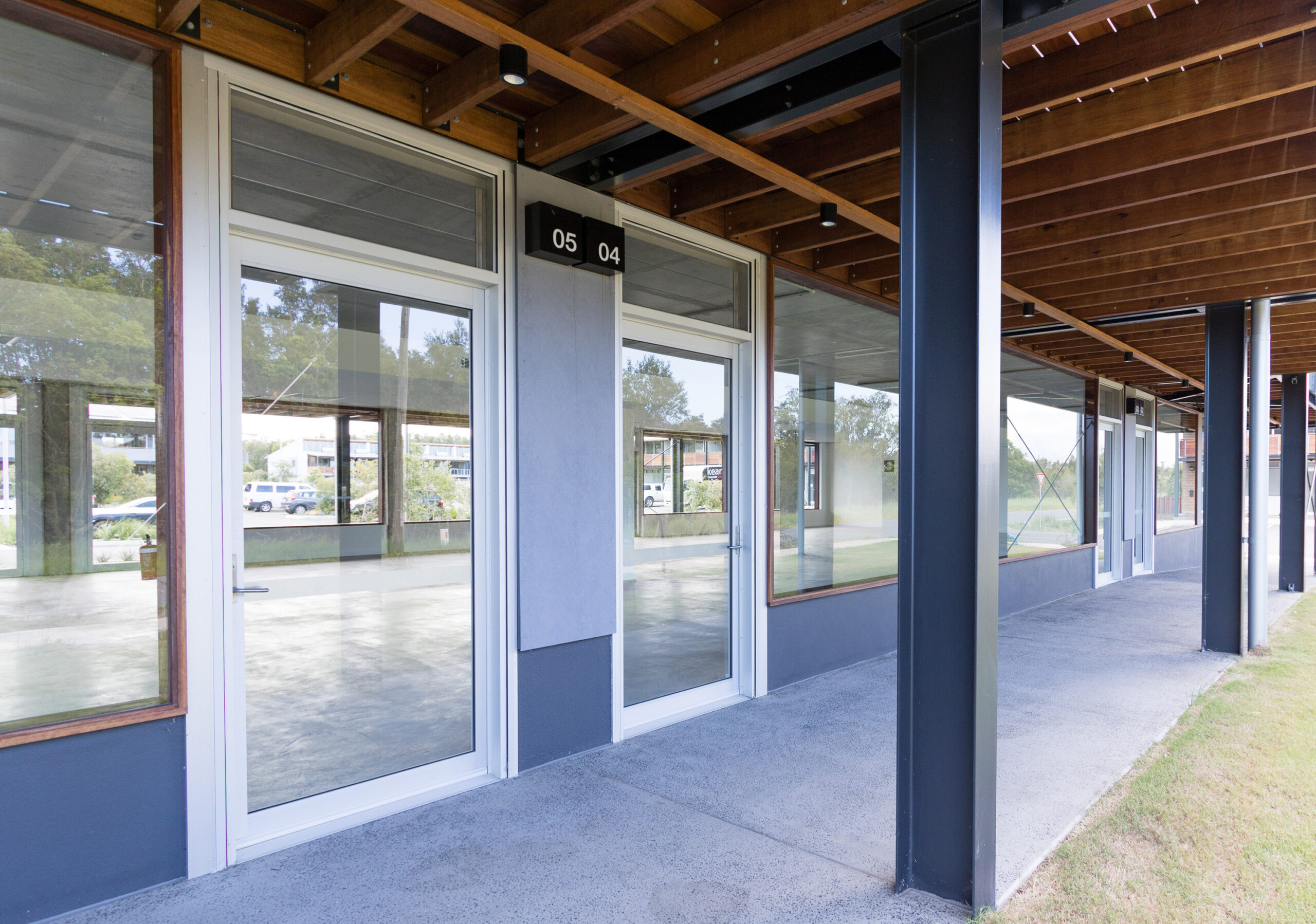

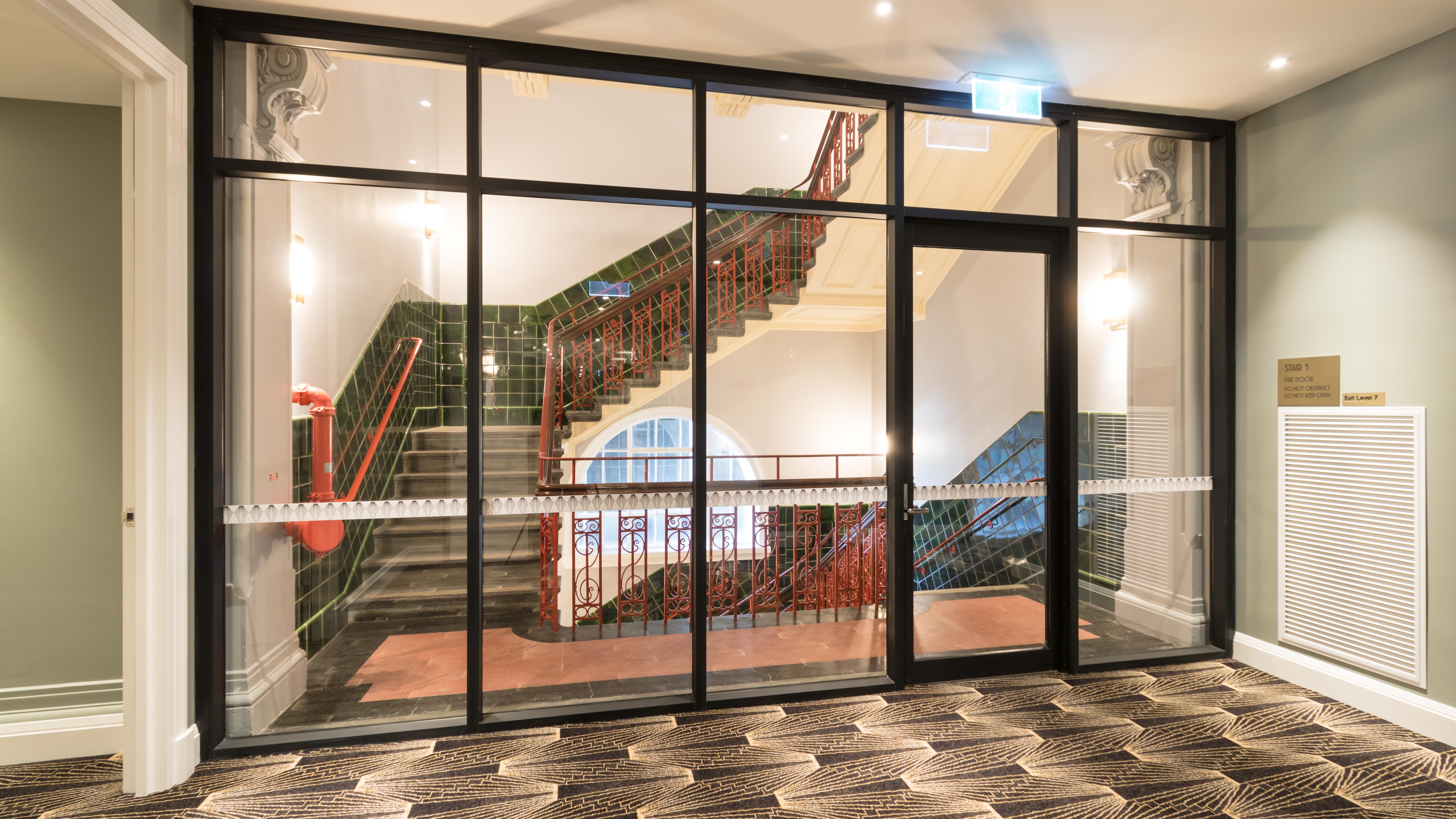

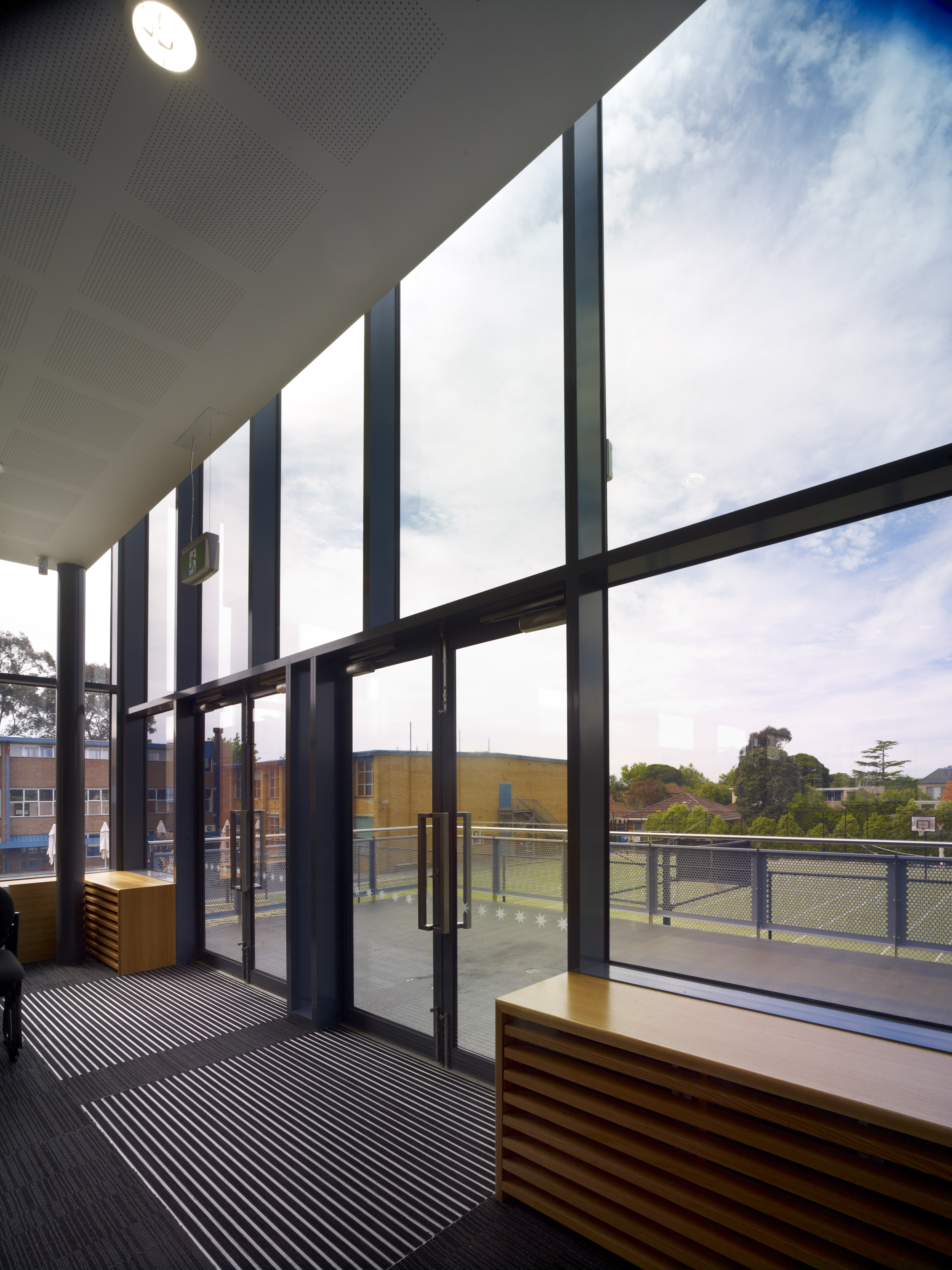

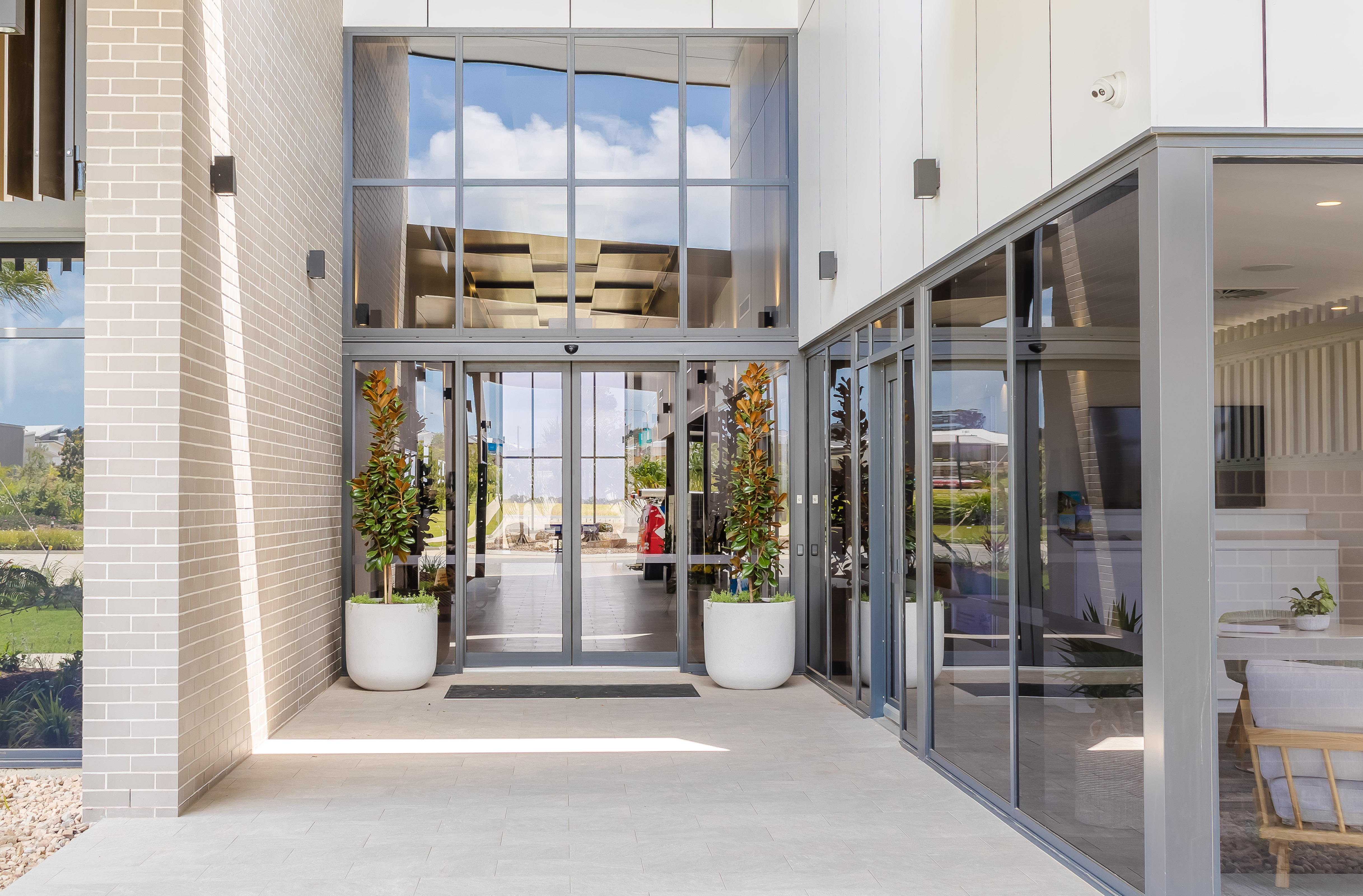

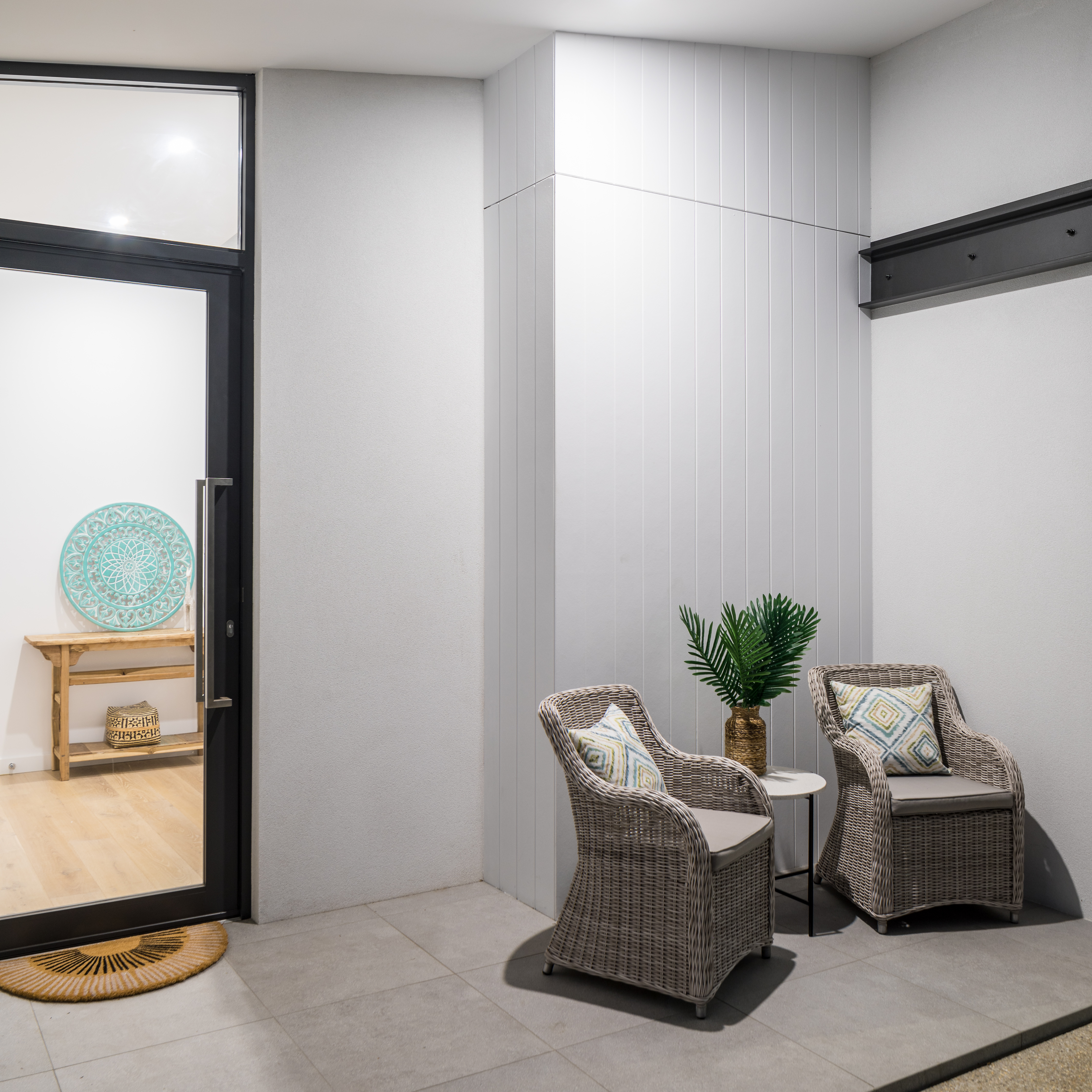

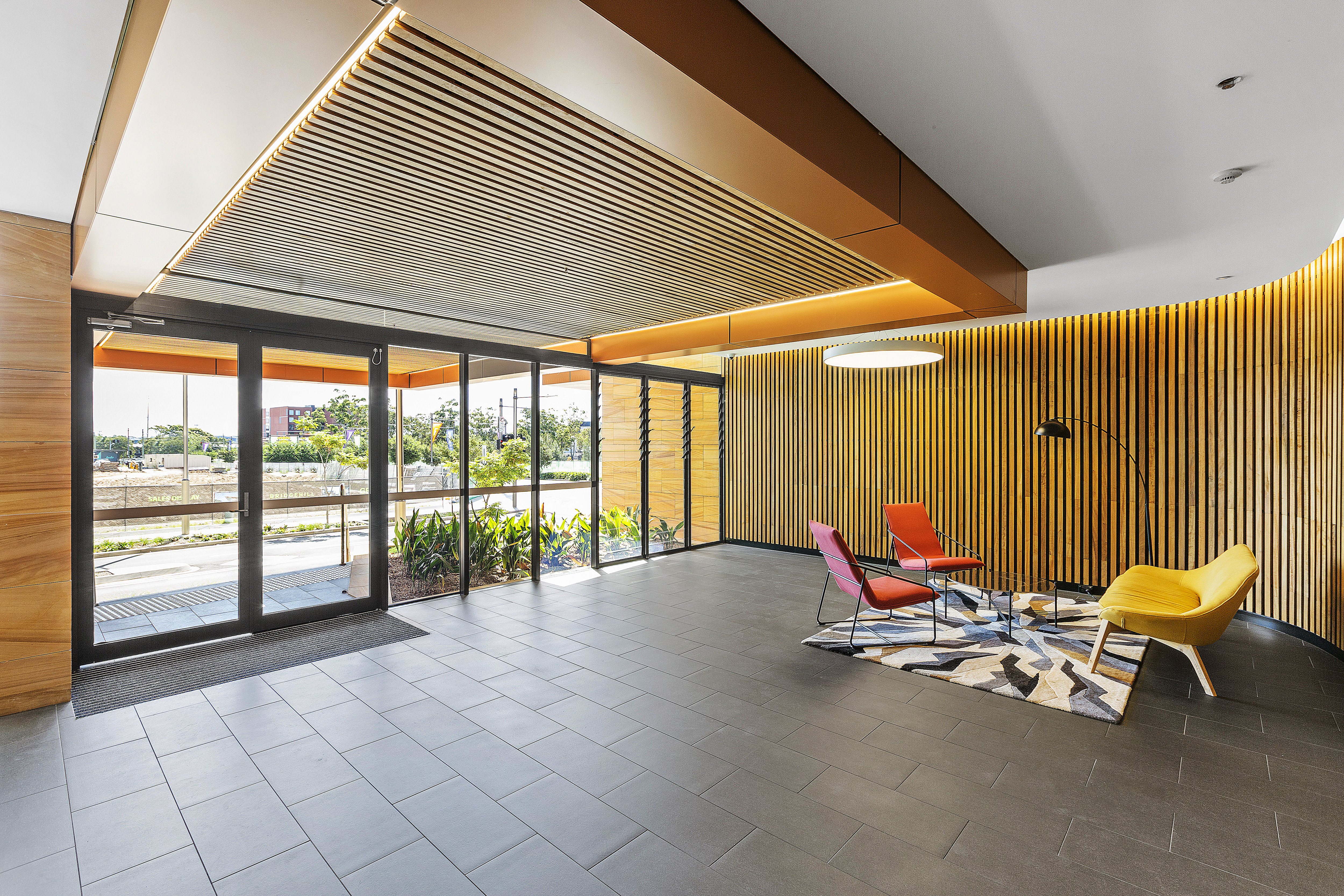

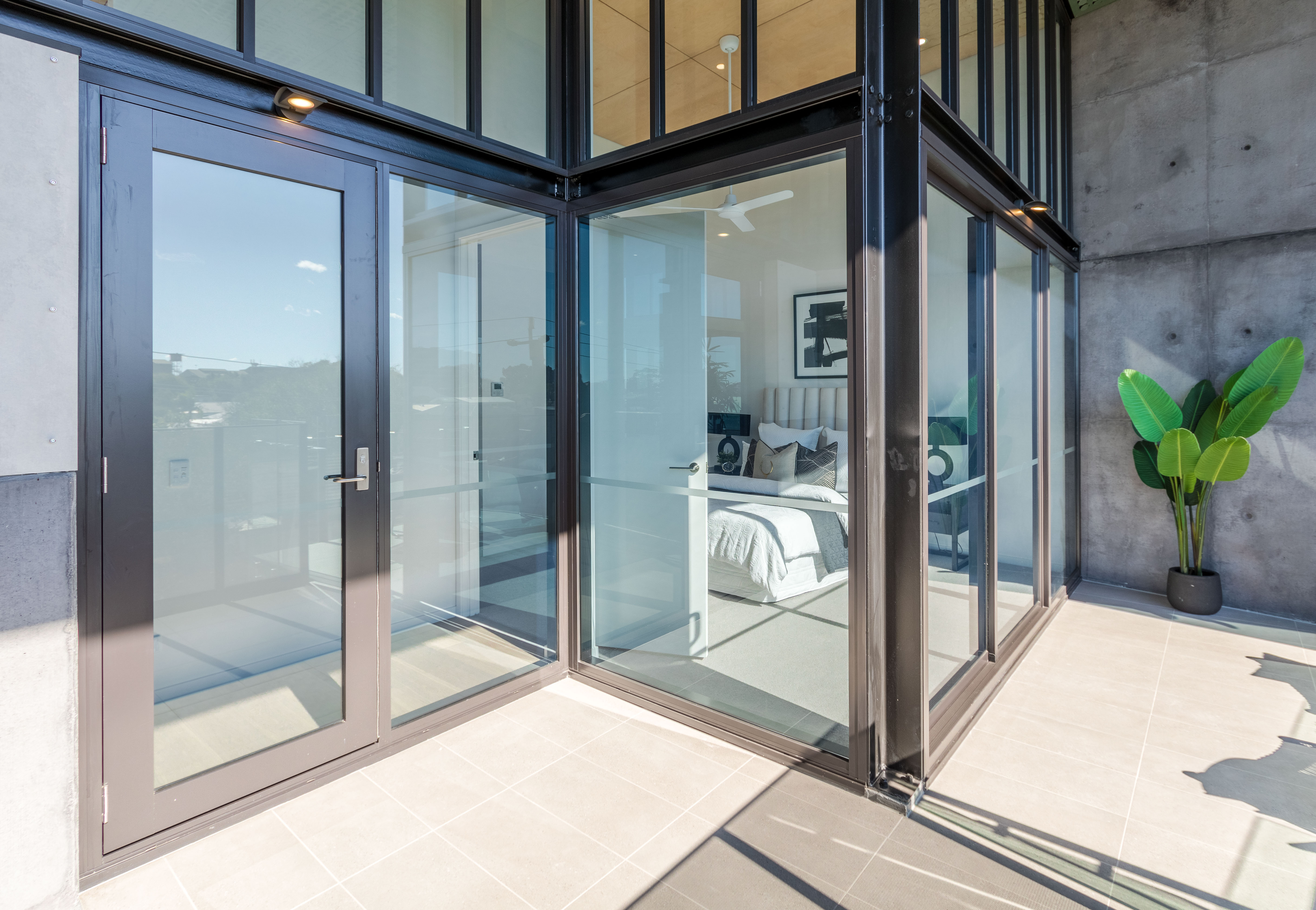

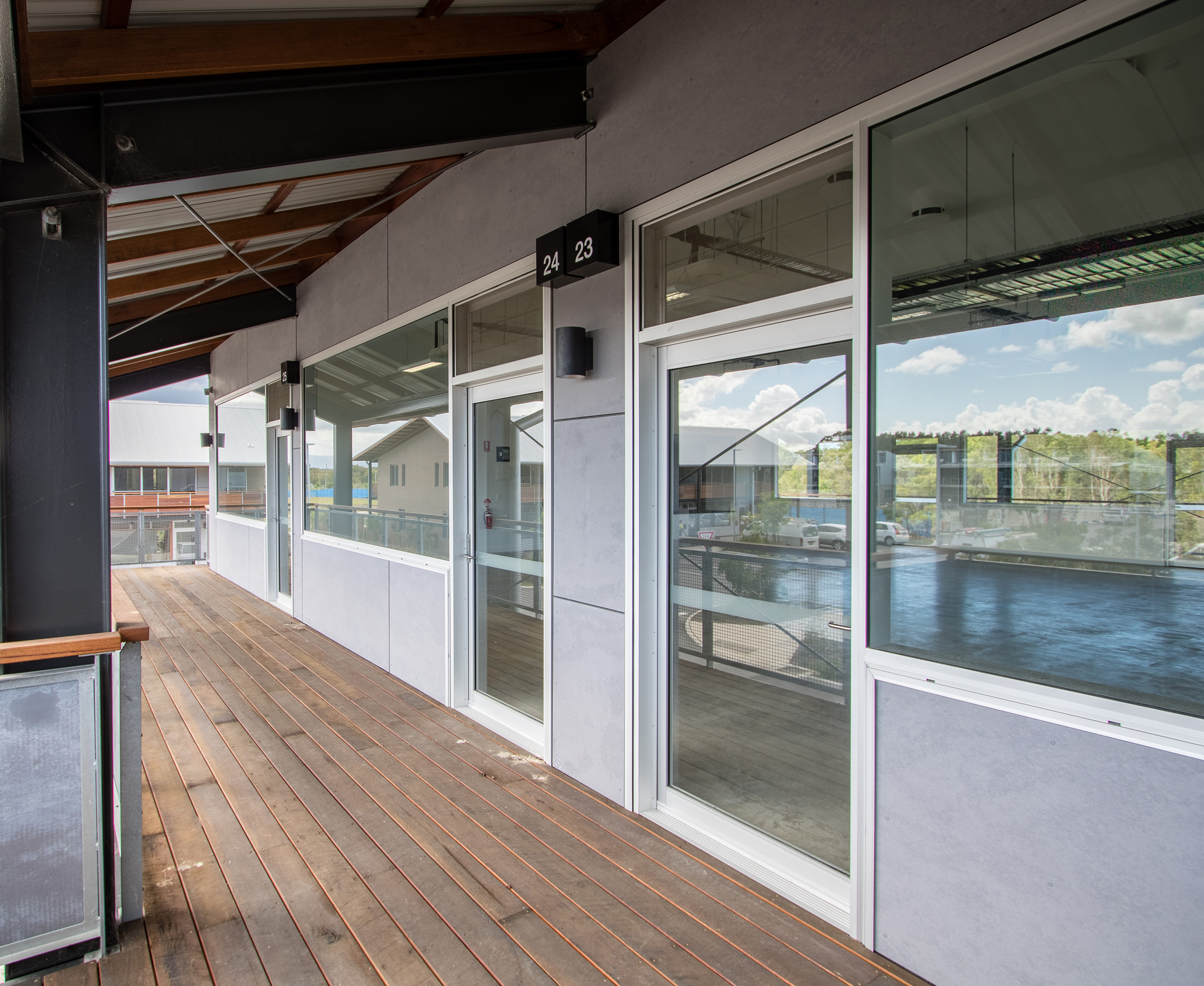

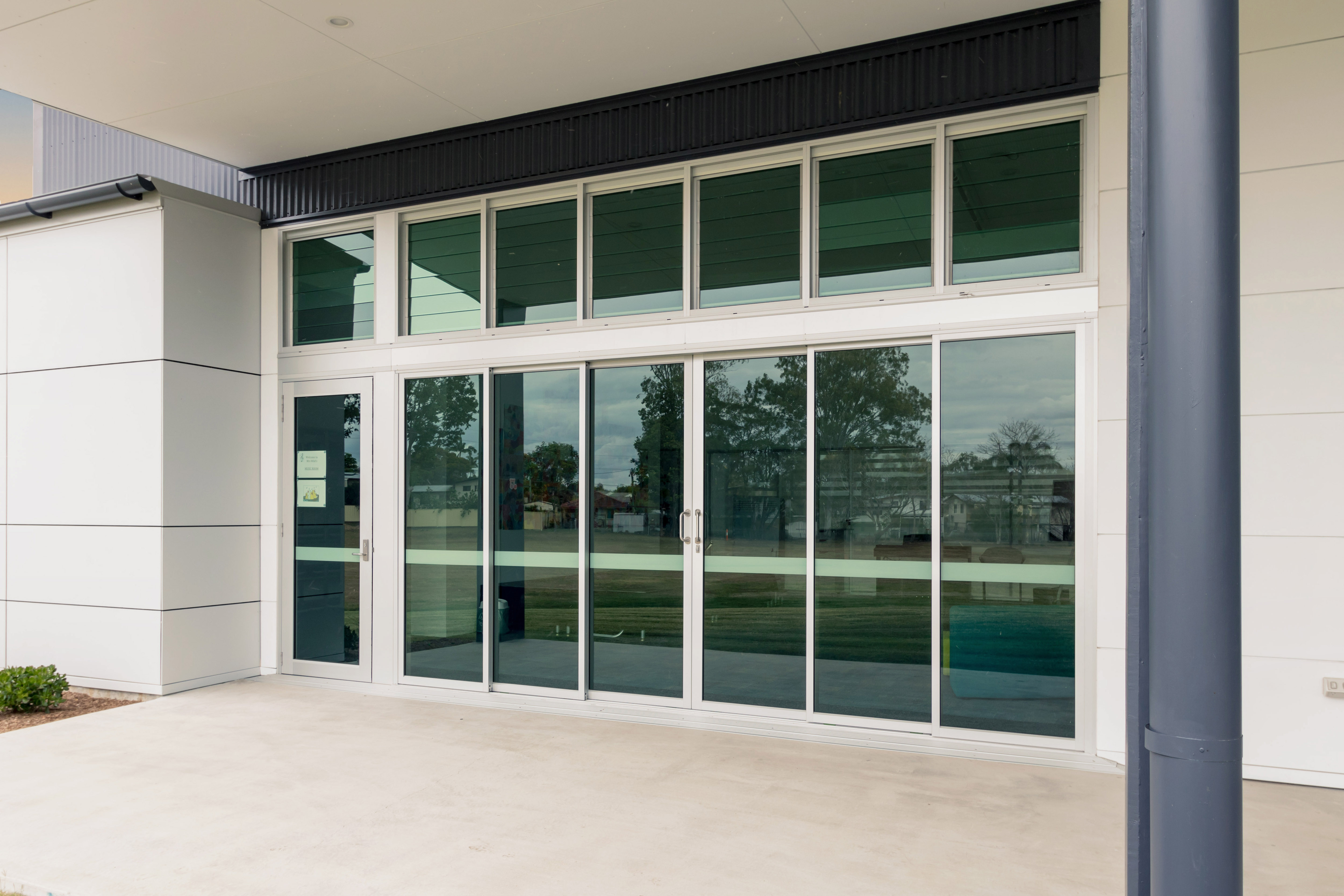

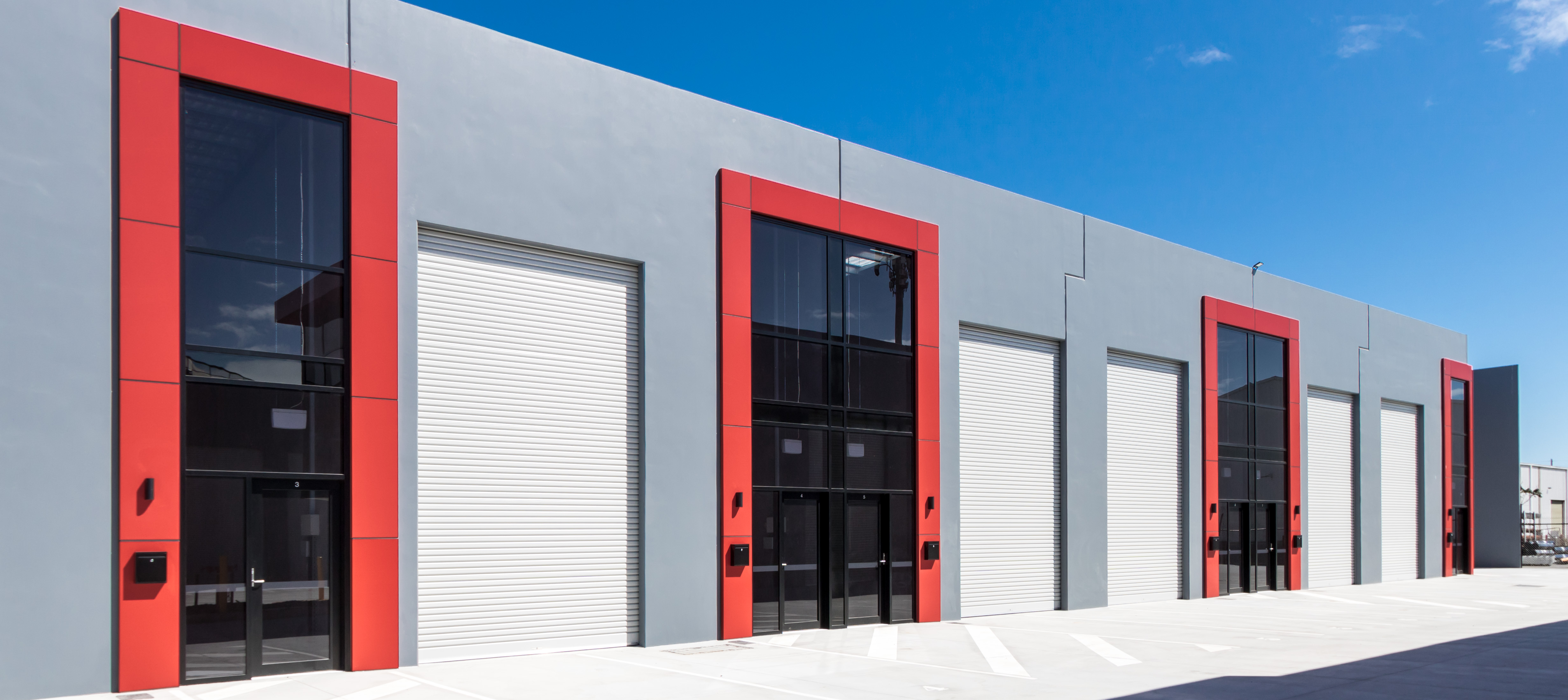

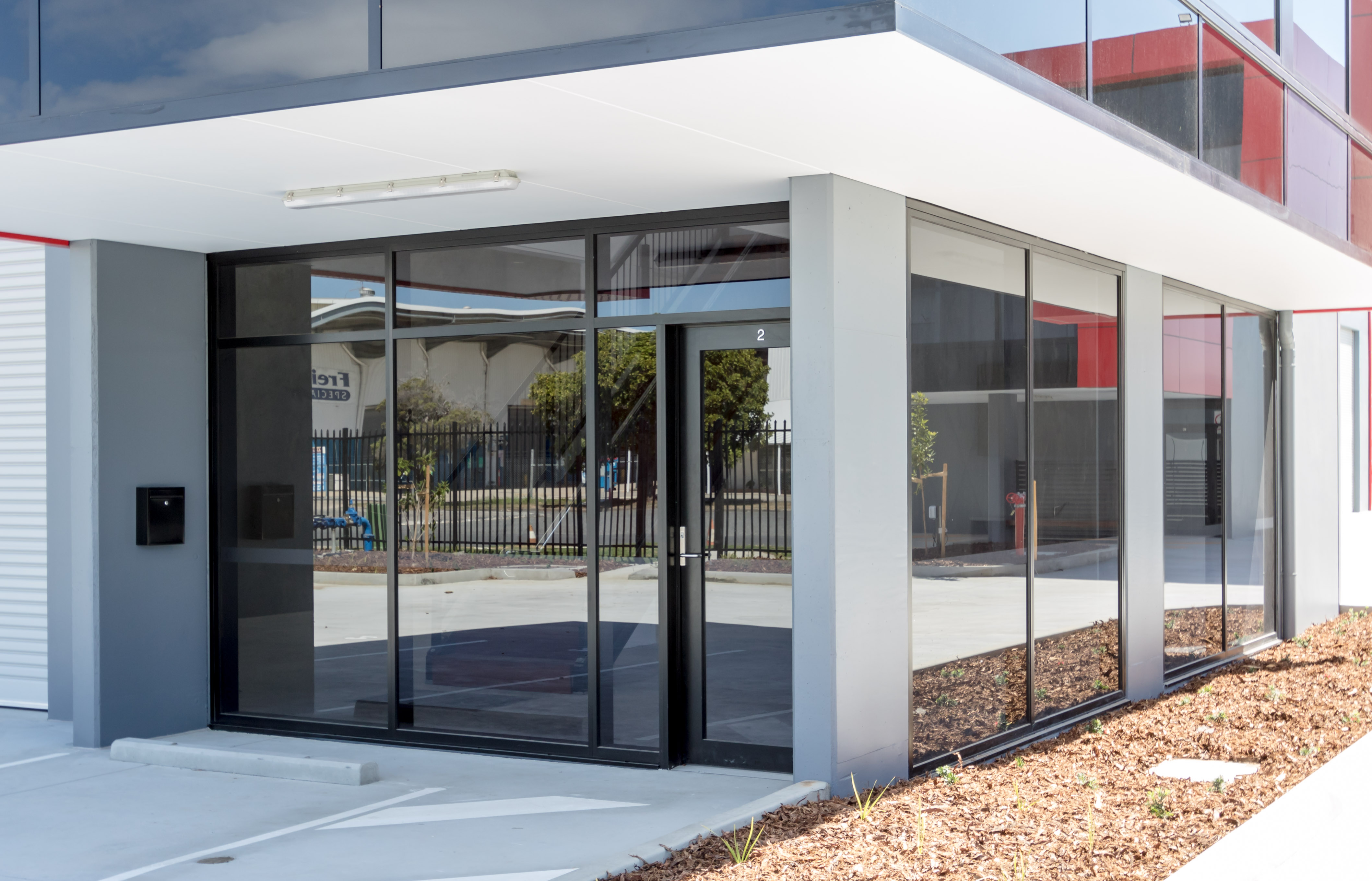

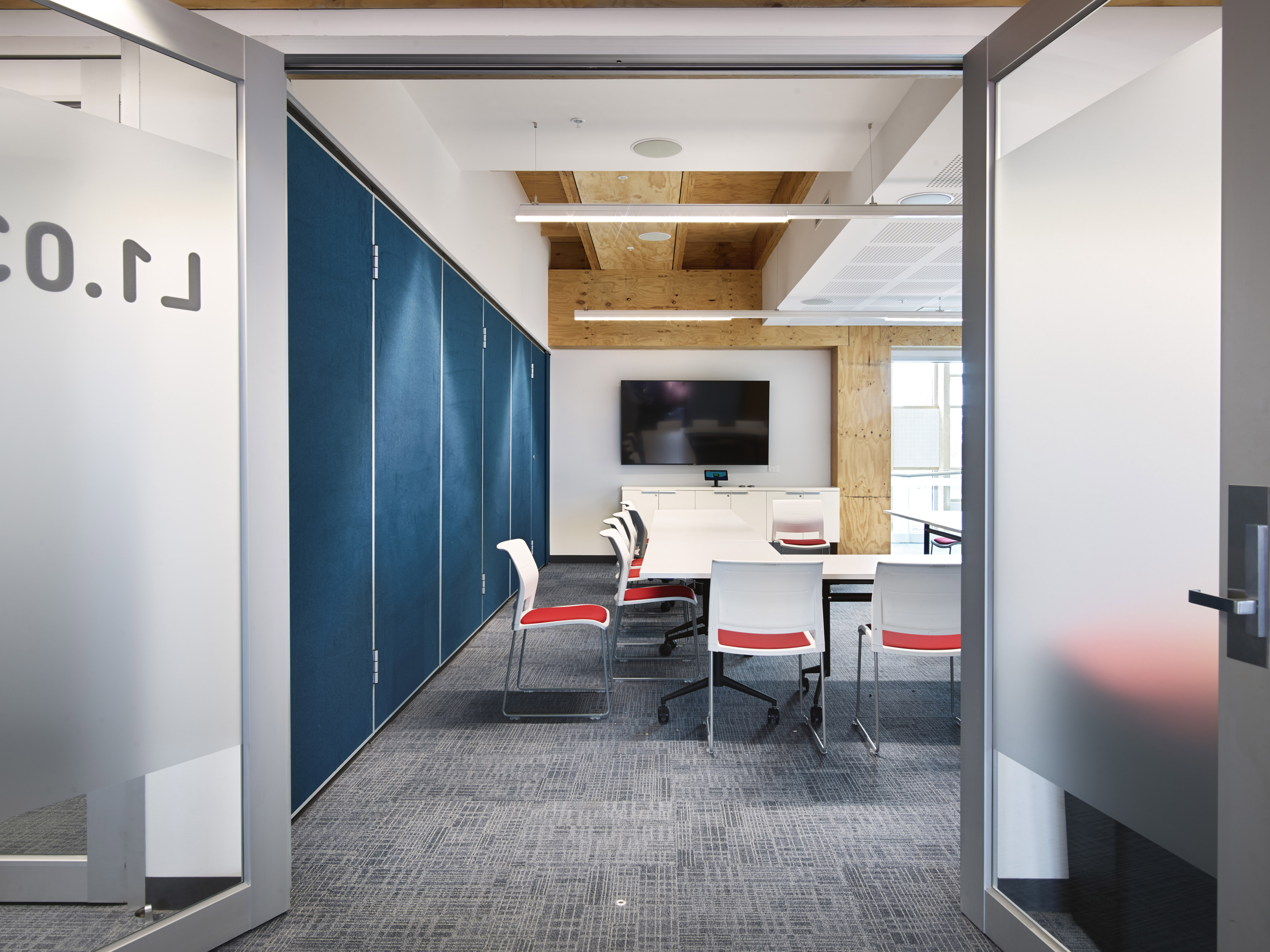

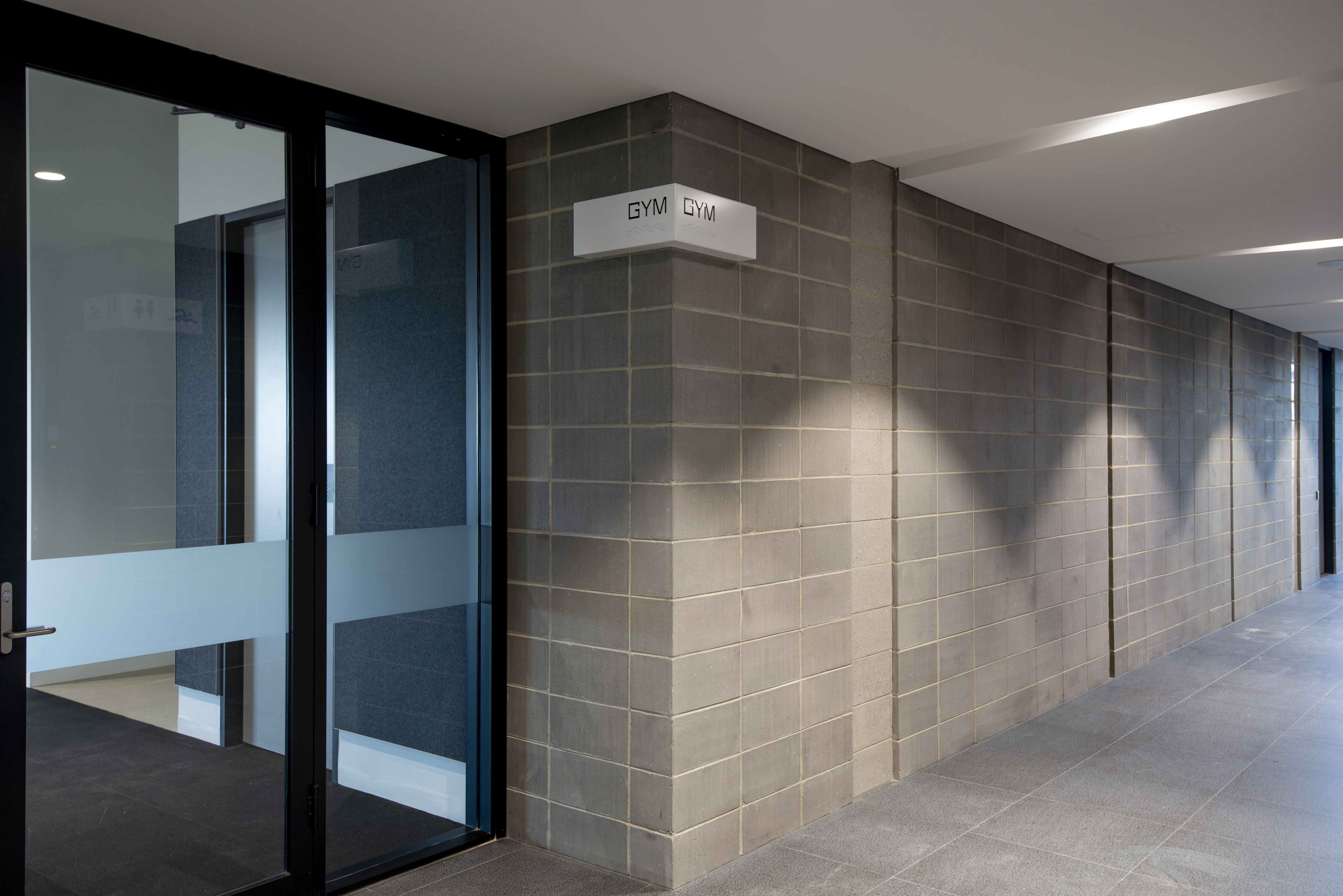

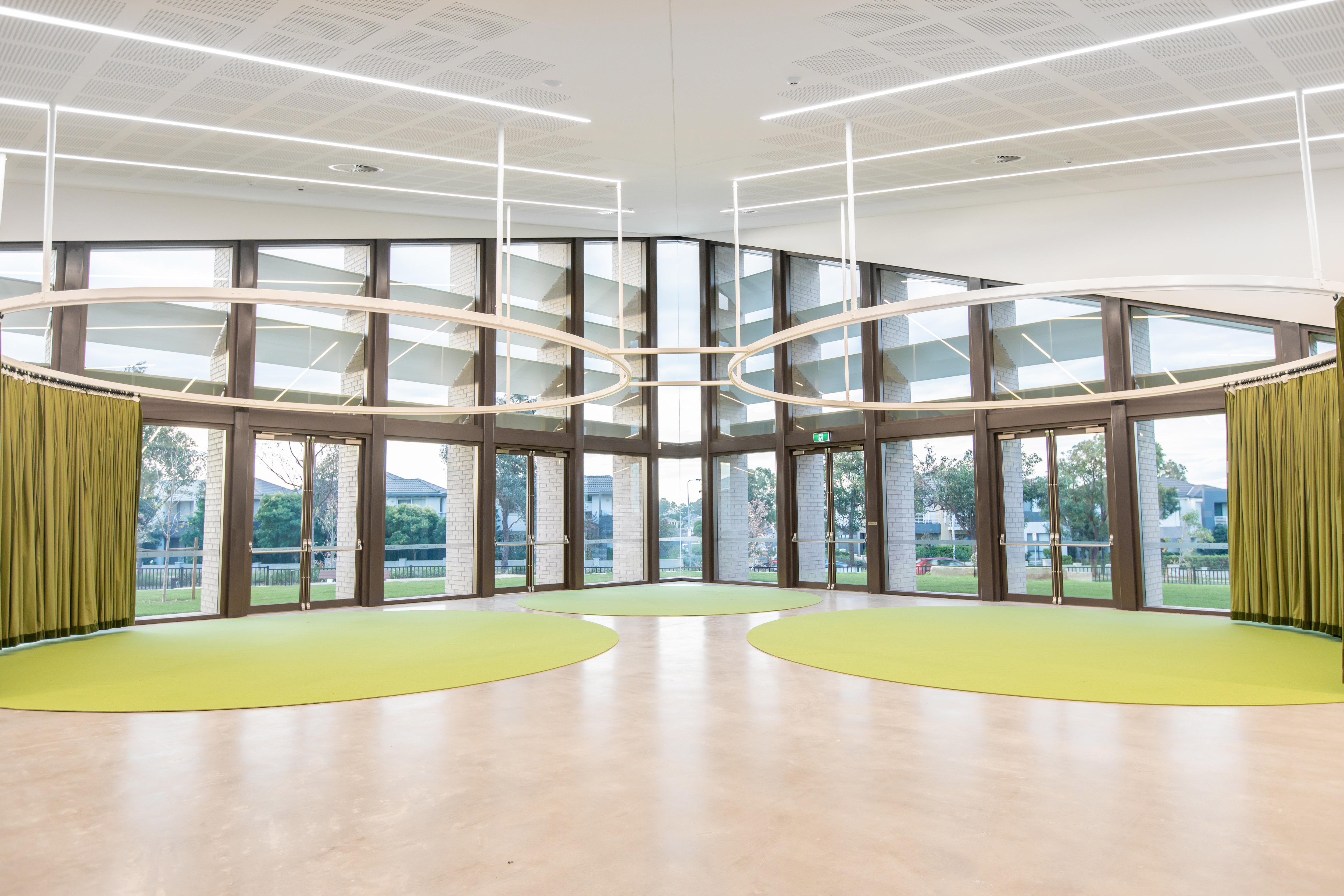

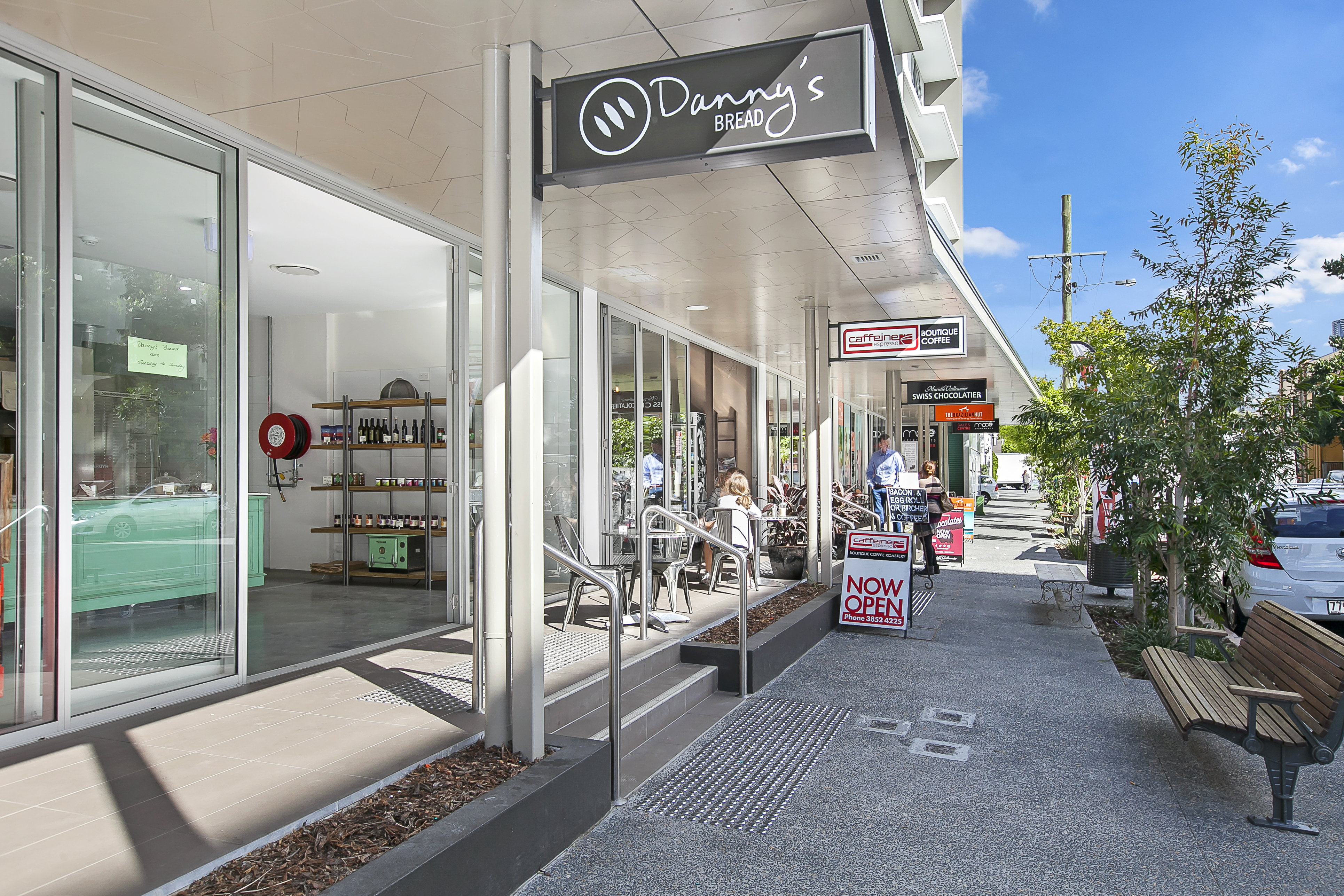

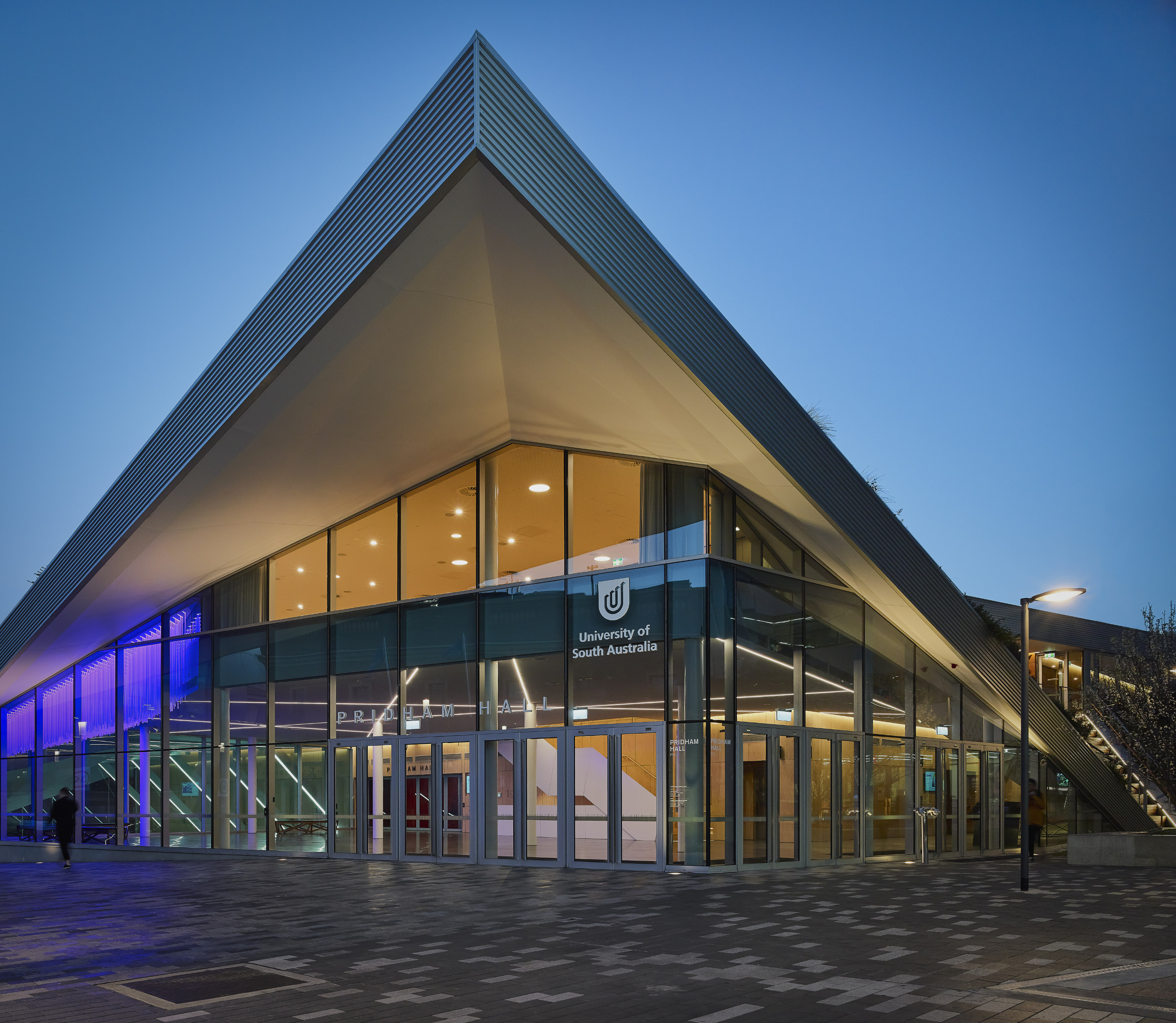

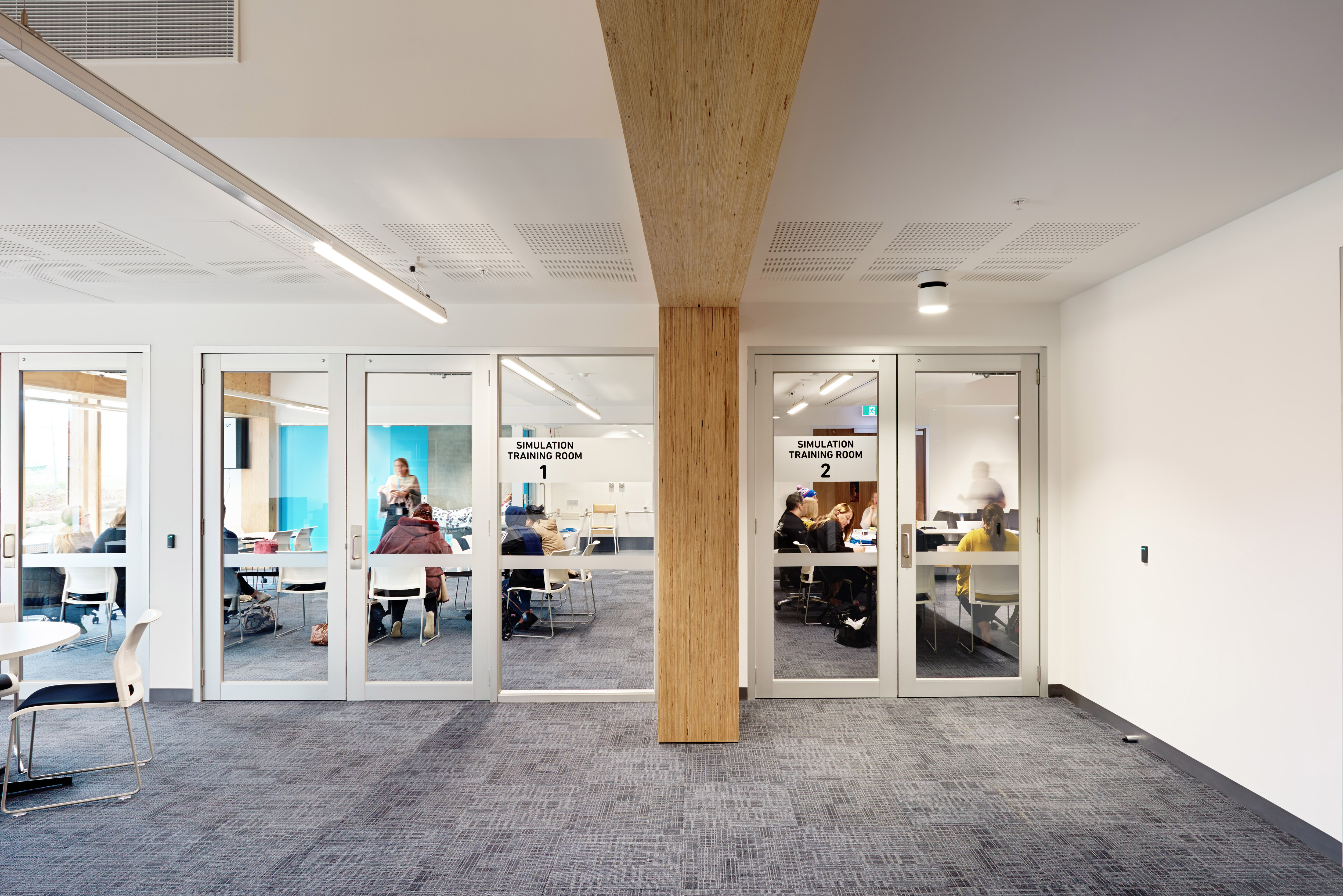

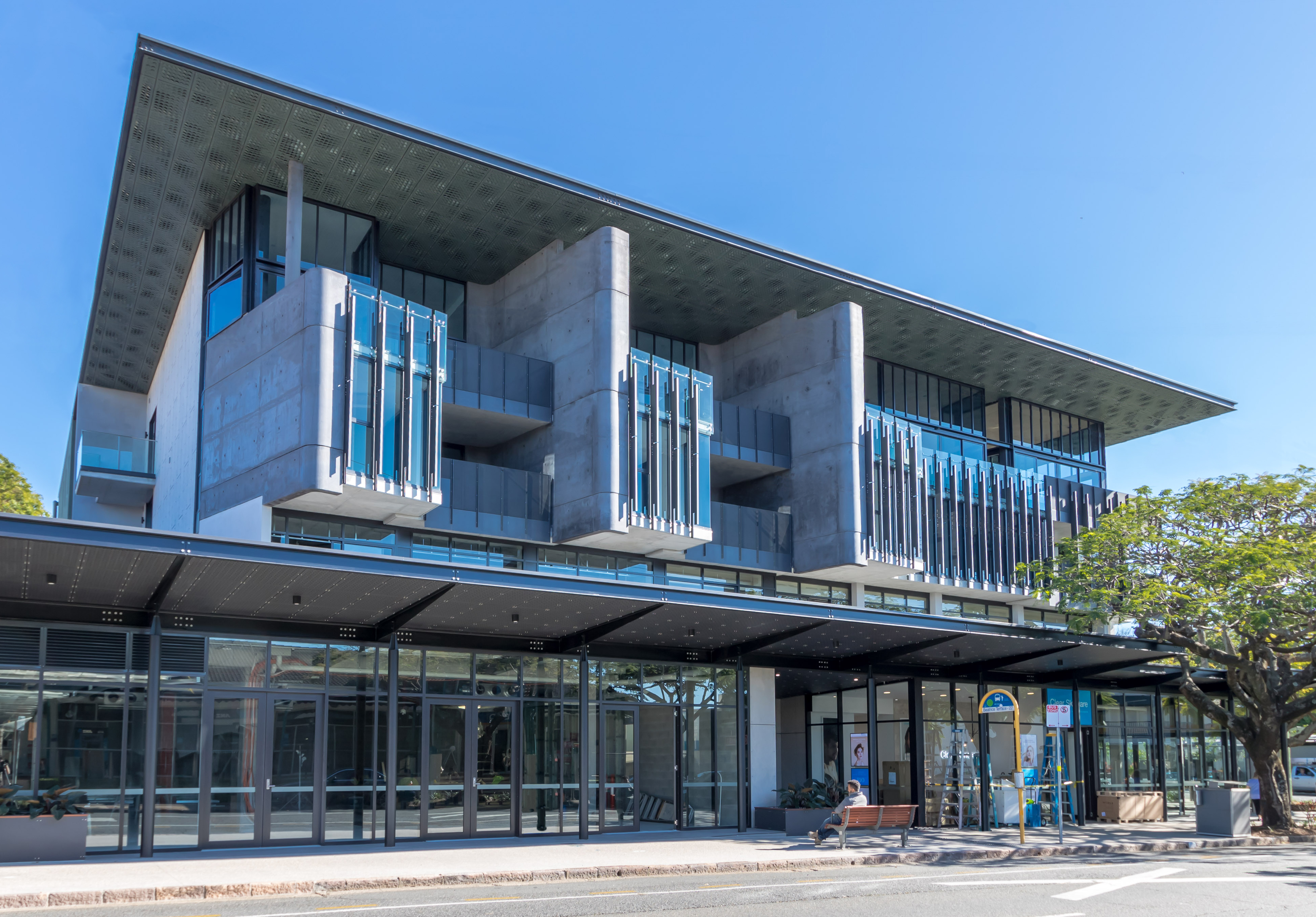

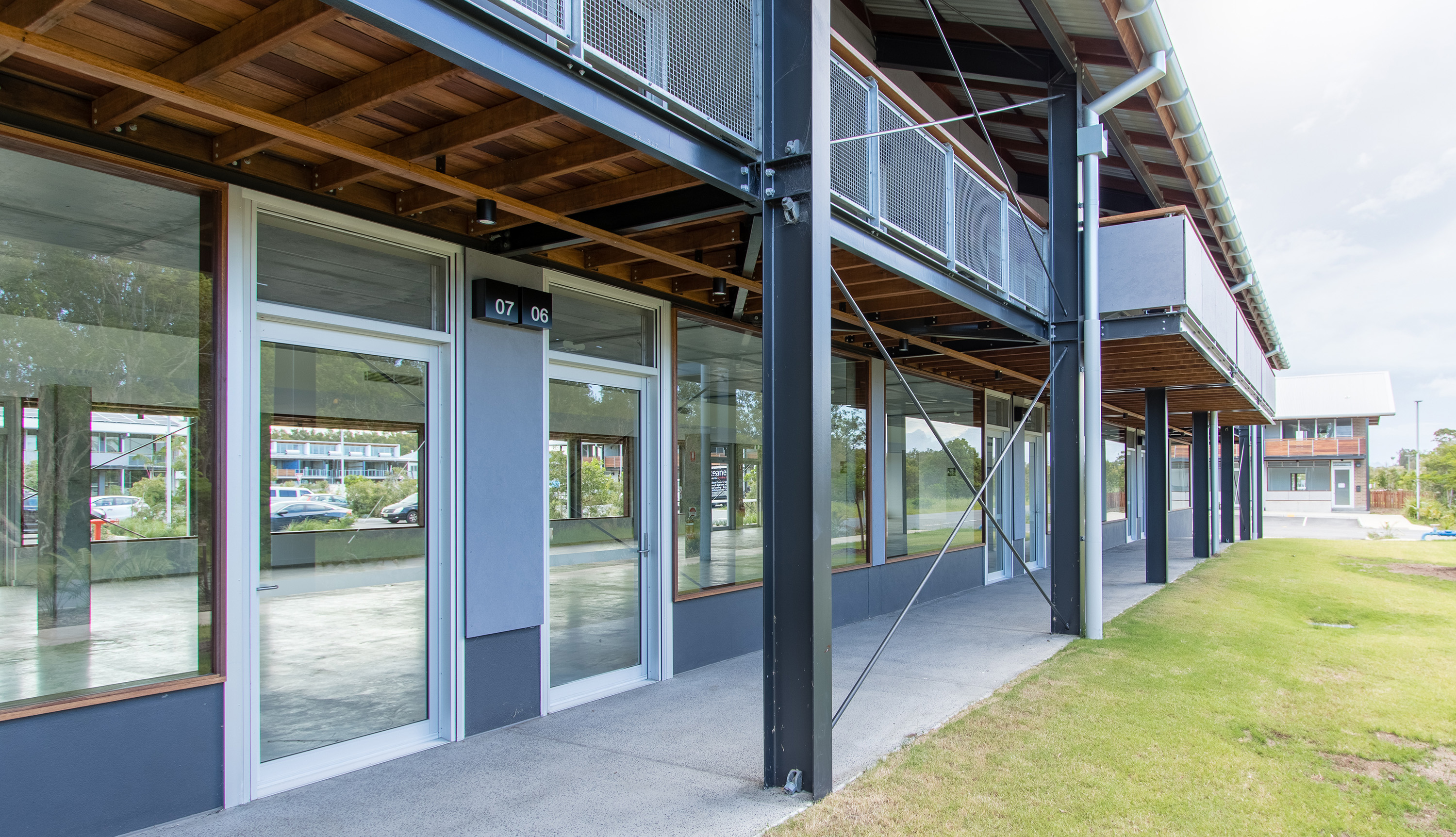

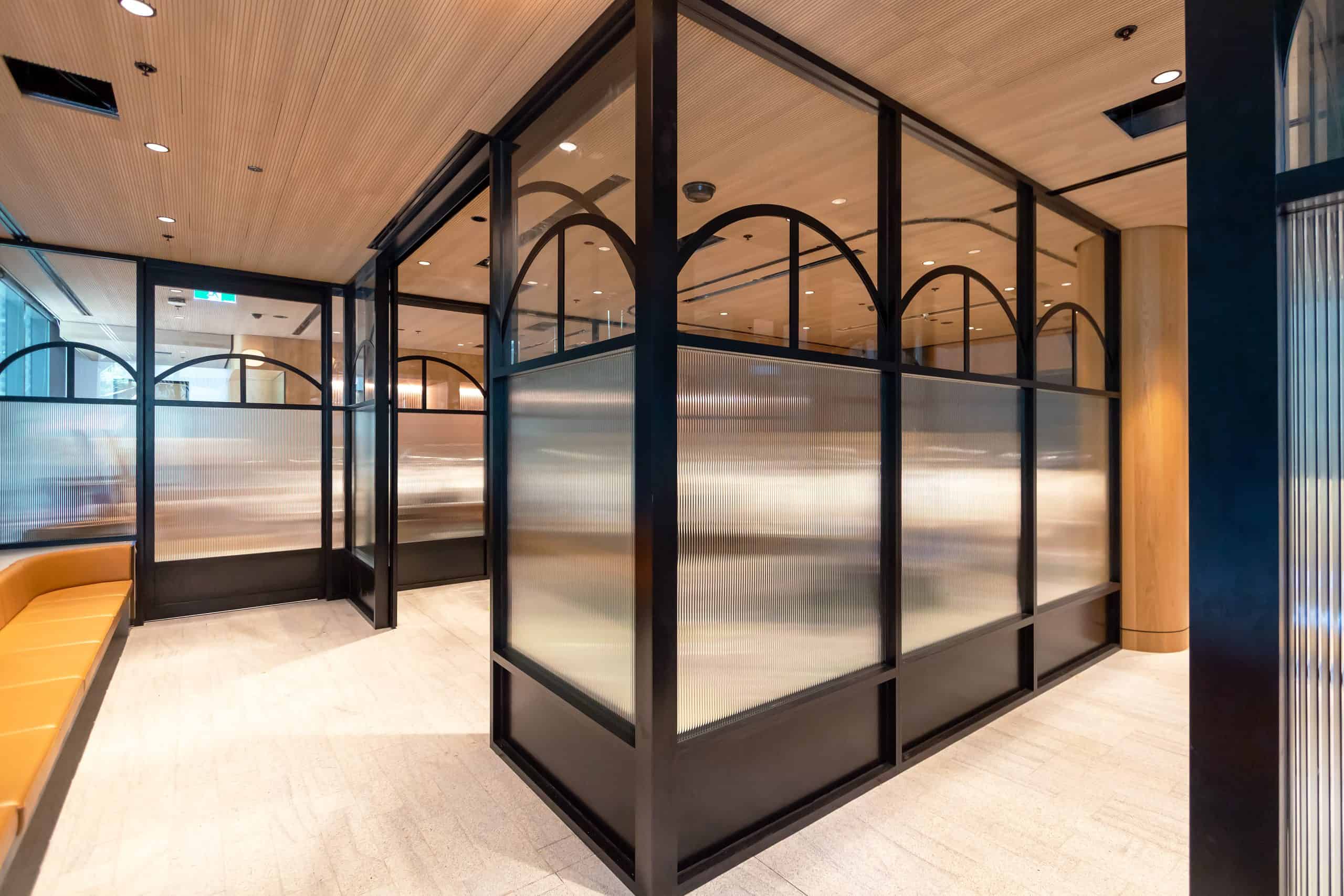

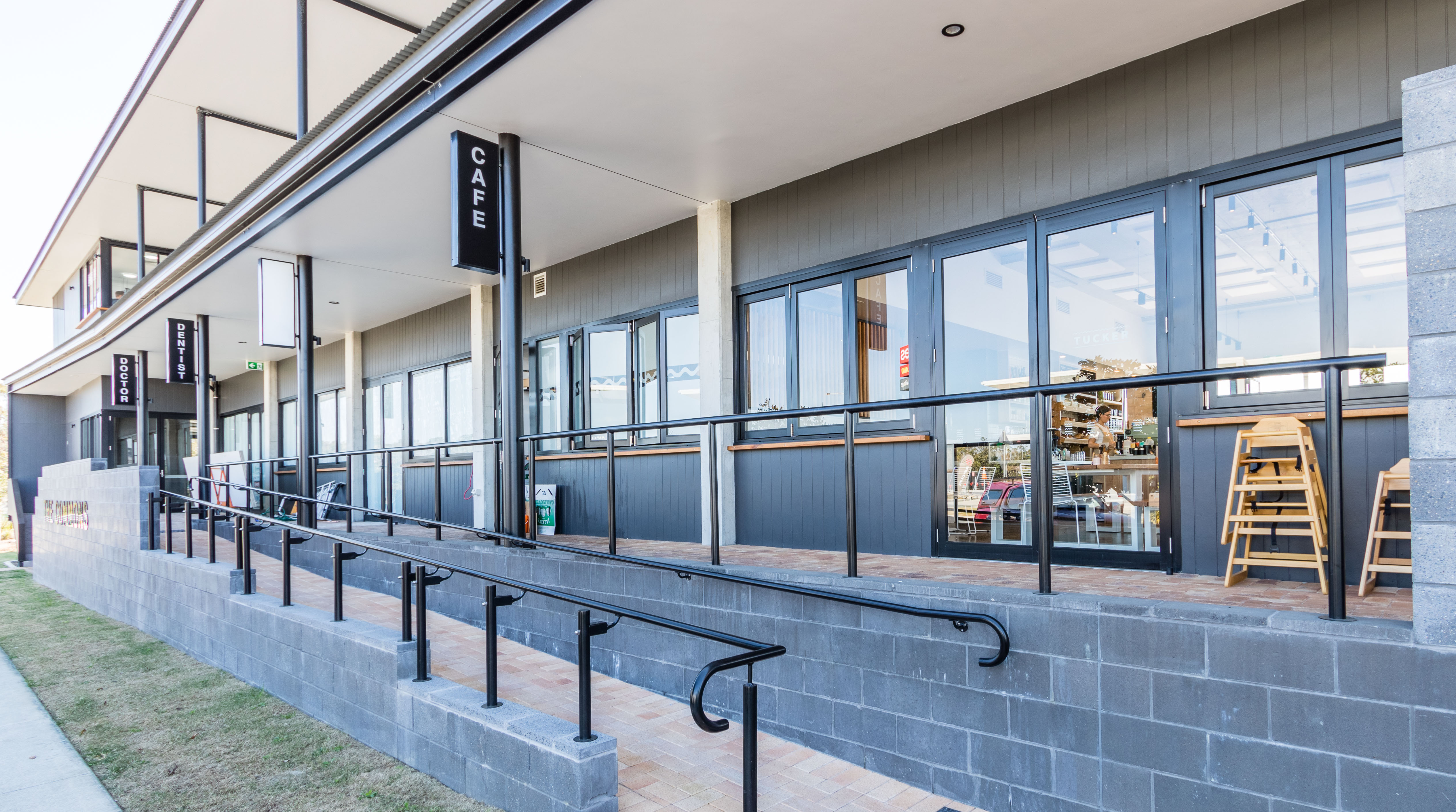

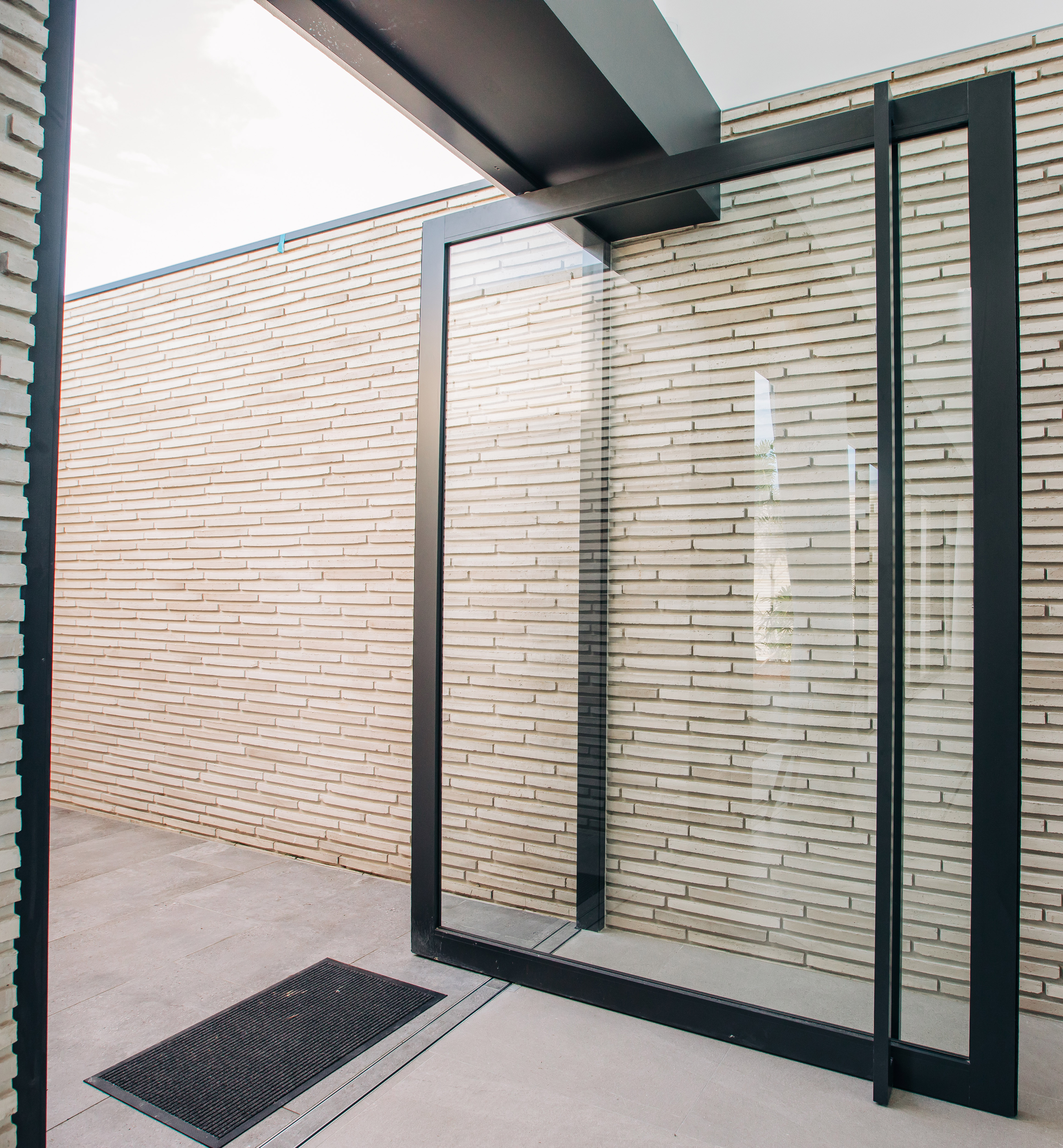

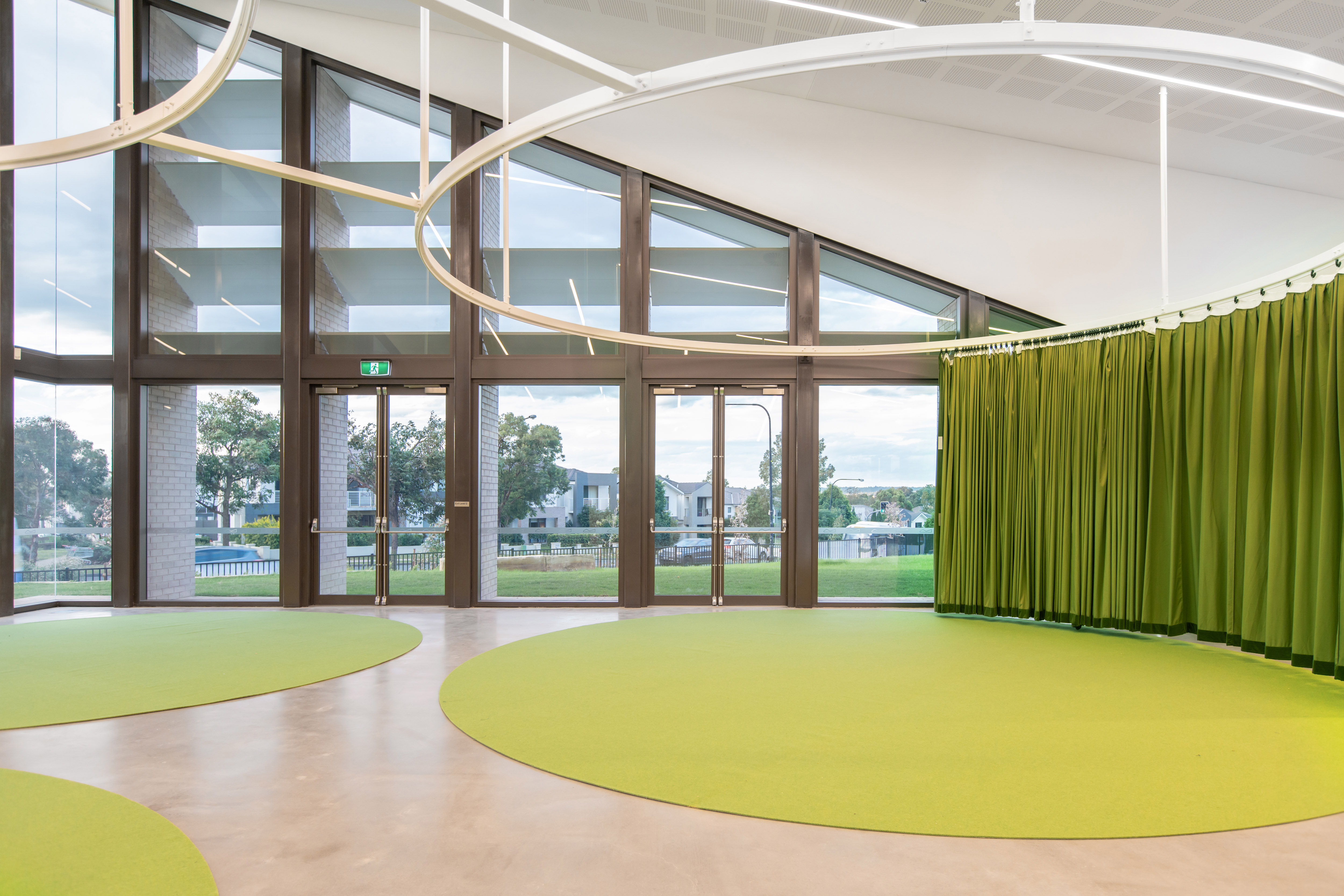

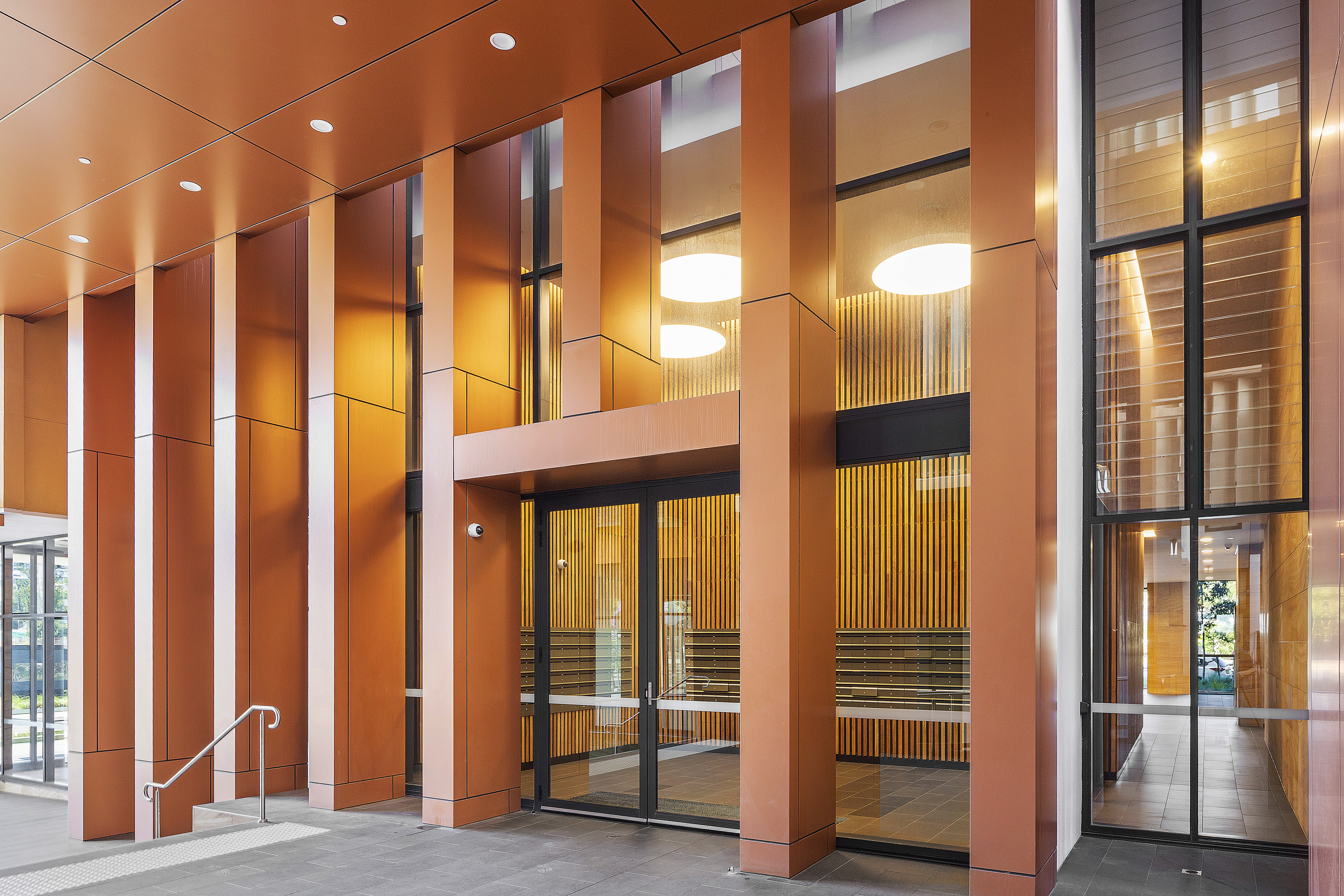

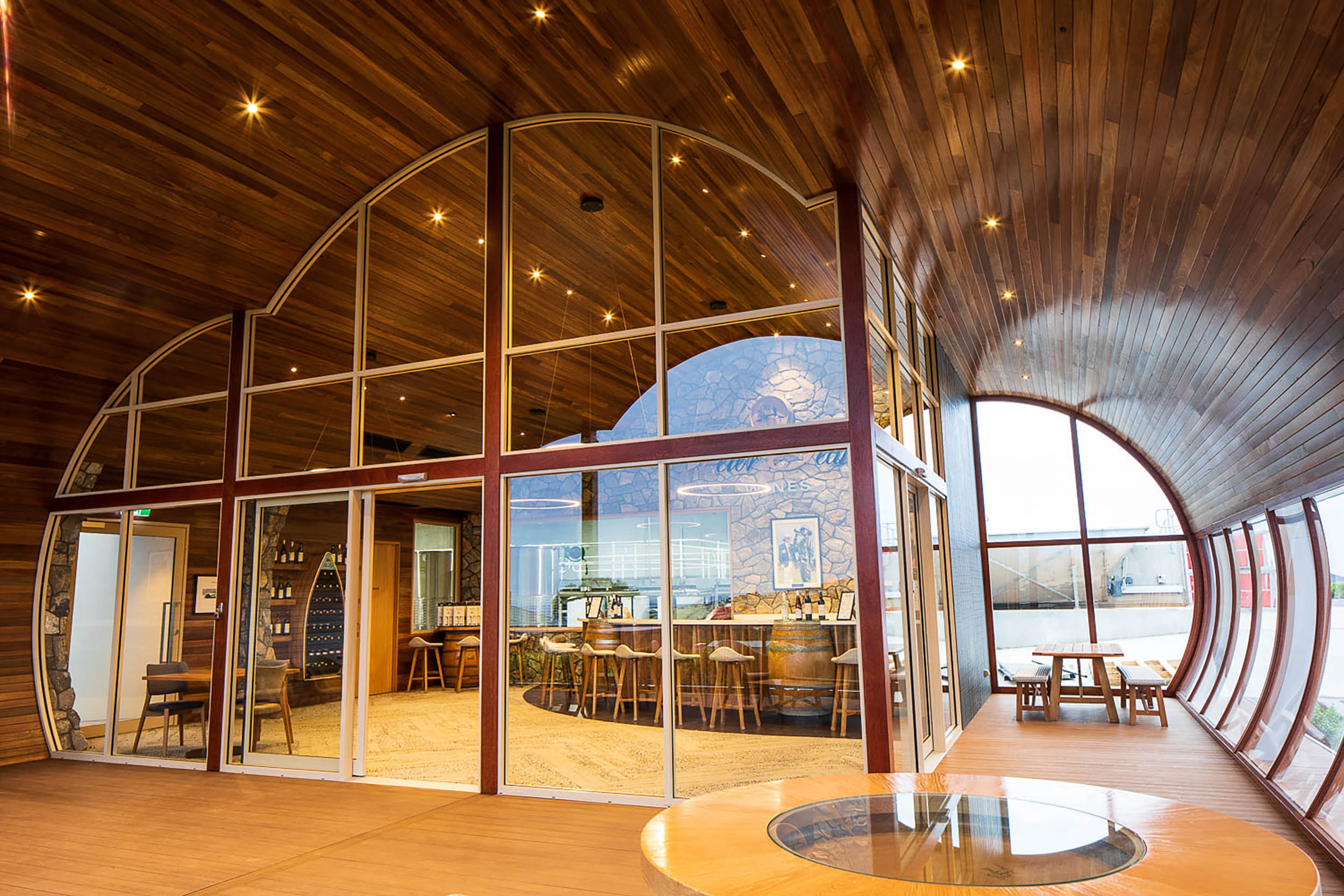

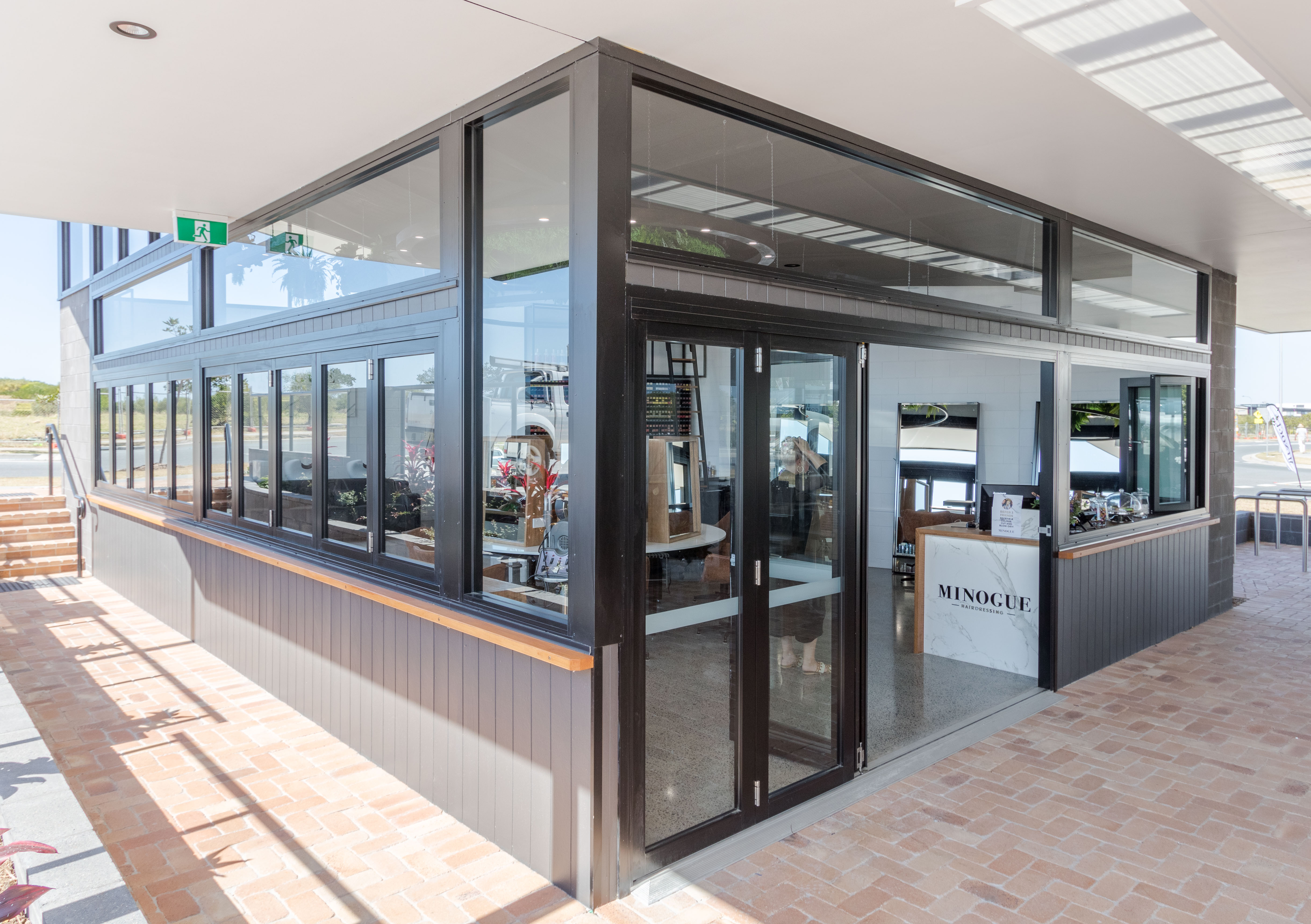

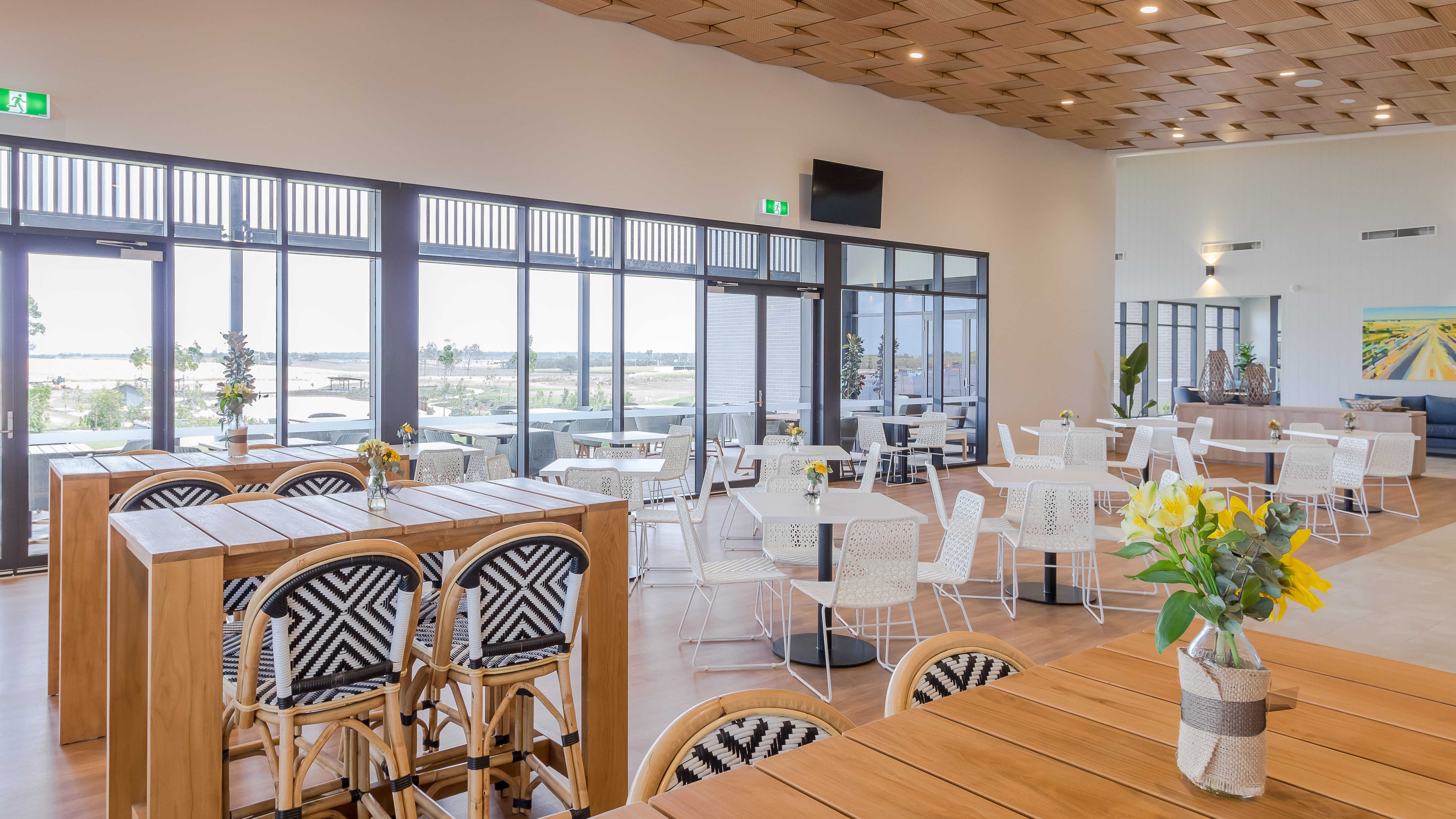

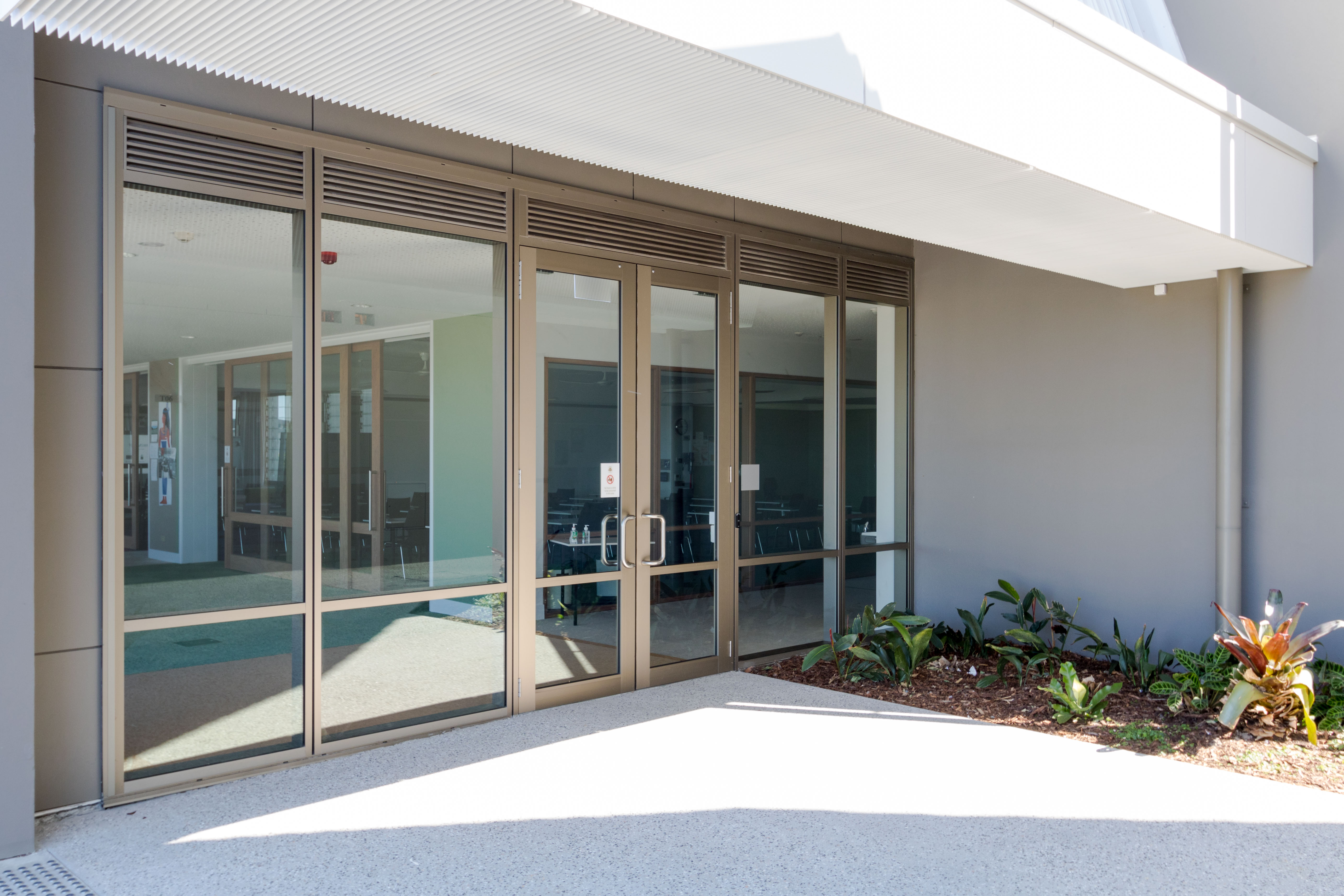

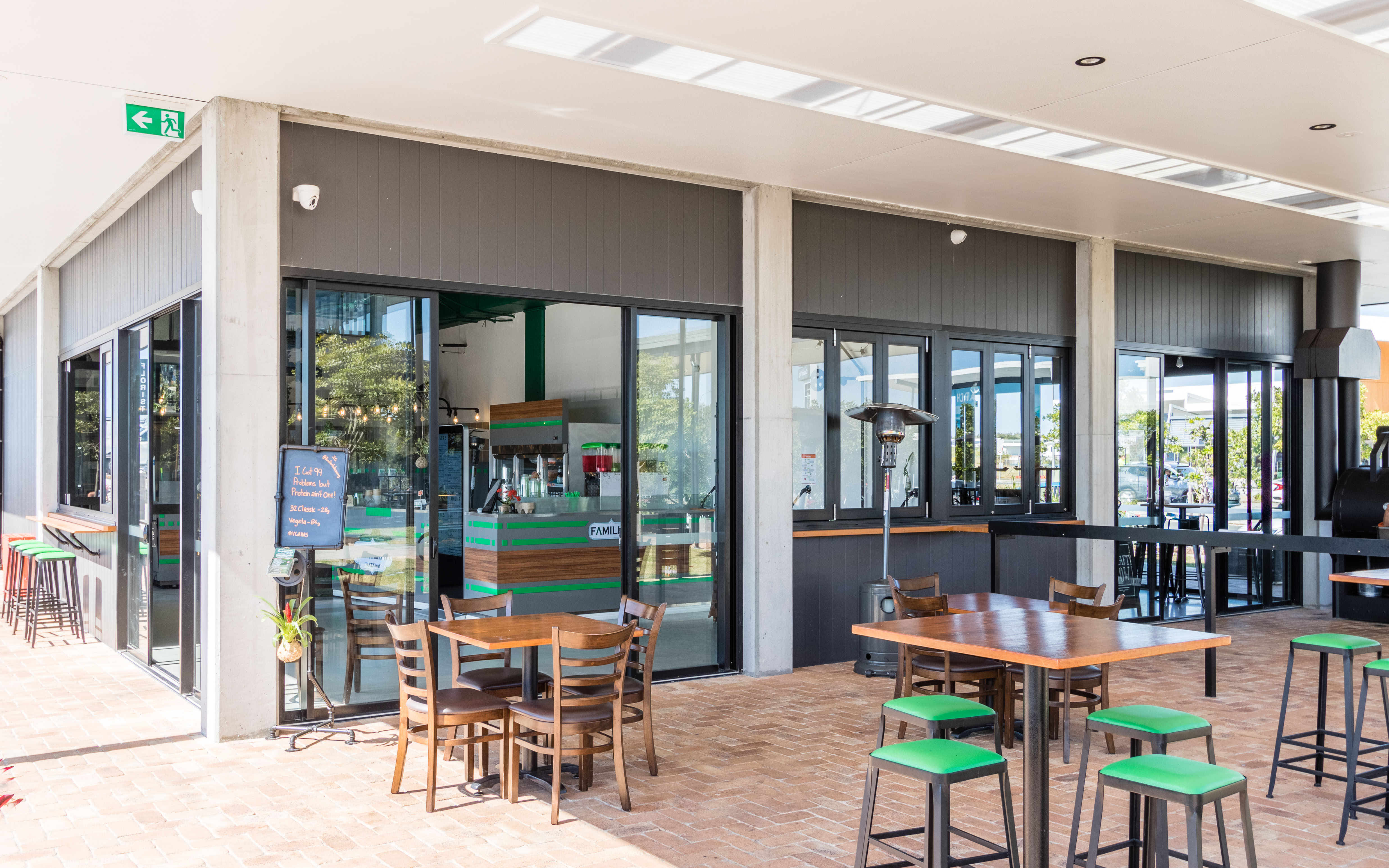

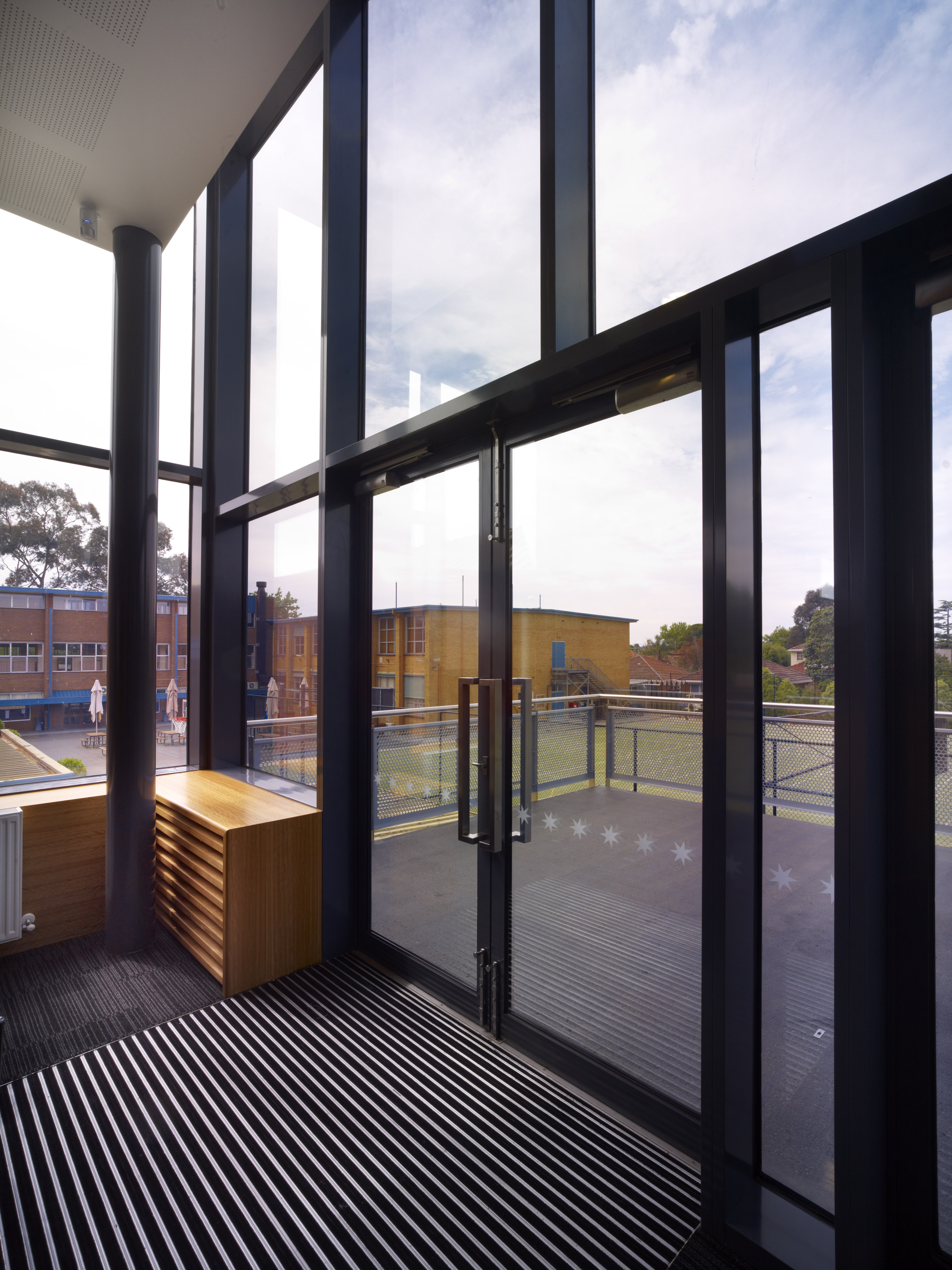

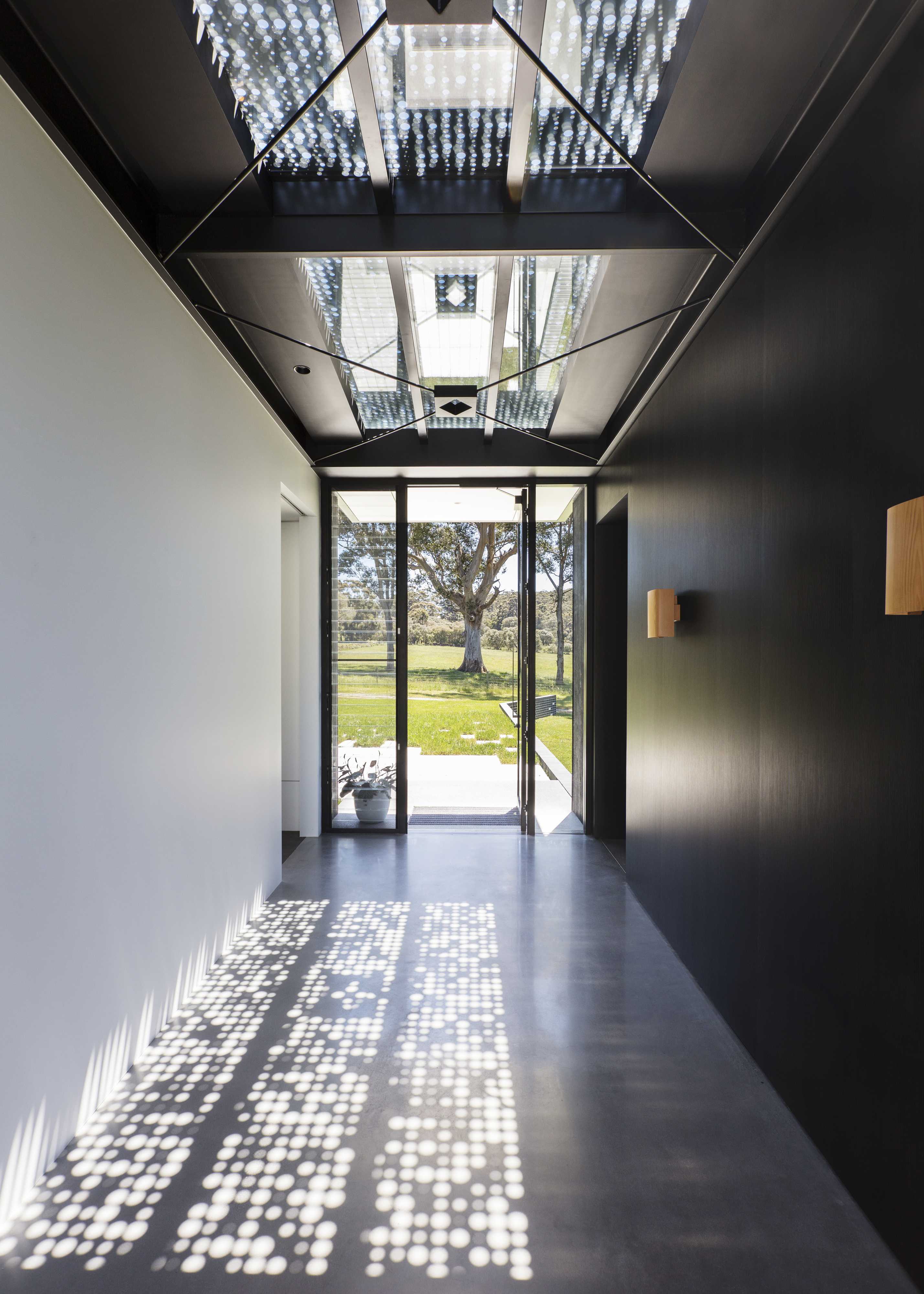

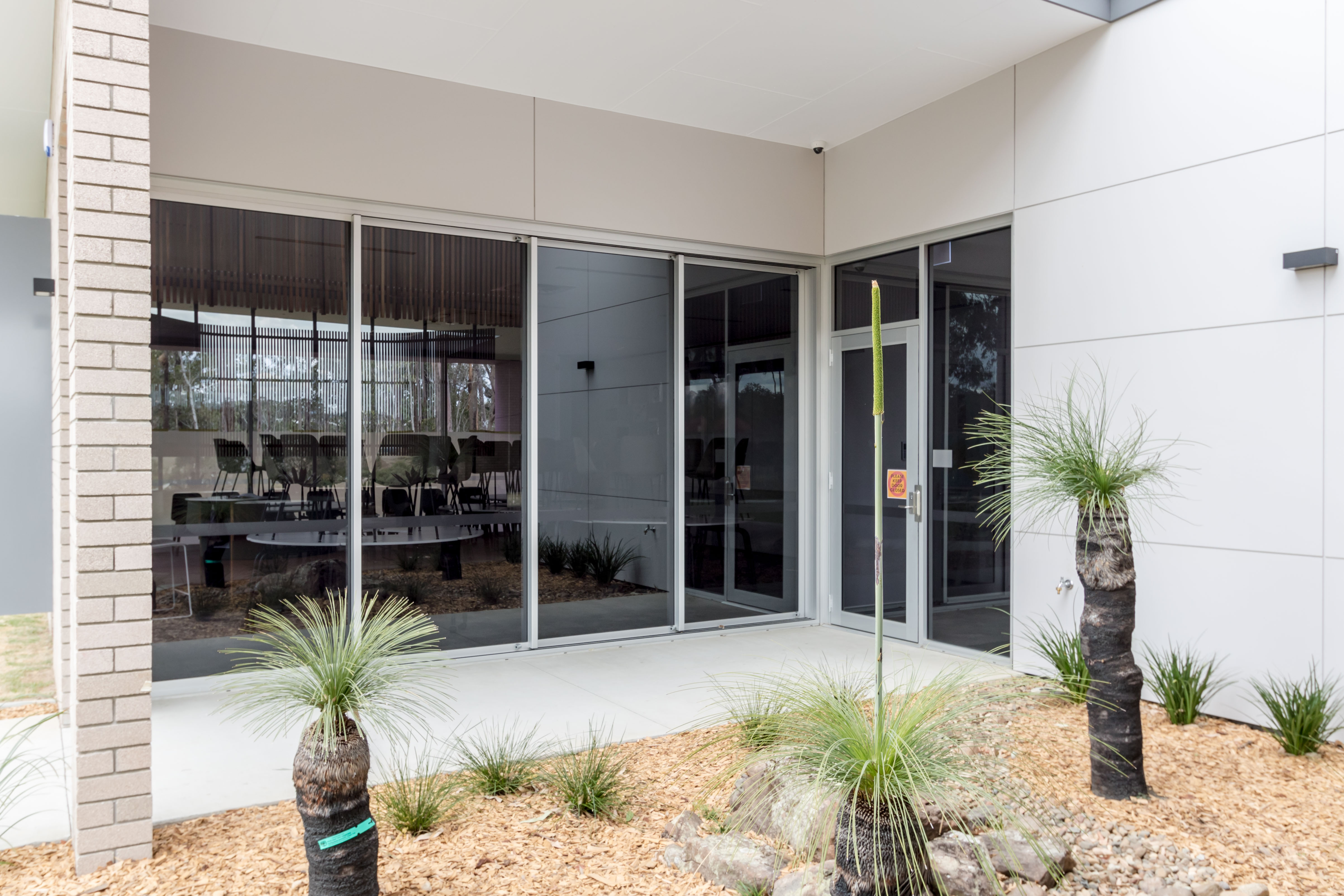

Swan Evo™ 45mm/70mm Commercial Shopfront Door

A versatile shopfront door that is easy to fabricate and install, can be used in hinged, pivoted or sliding configurations.

Tested and Compliant Solutions

The Alpsec® Swan Evo™ 45mm/70mm Commercial Door is a versatile shopfront door that is easy to fabricate and install. Suitable for a wide range of applications, the Swan Evo™ 45mm Commercial Door can be used in hinged, pivoted or sliding configurations. The Swan Evo™ 70mm Commercial Door can be used in hinged configurations. The Swan Evo™ integrates seamlessly with the Alspec® commercial framing systems.

Featuring a new and improved clamping spigot set, for superior performance and easy fitment, integrated heal and toe block and captive glazing option, the Swan Evo™ provides the ideal solution where superior operation and performance is required. Glazing could not be simpler with the colour coded wedges from standard Alspec® systems being utilised to deal with the many diverse glass options.

Key Features

  • Stronger sash through the use of custom designed clamping spigot set
  • 19mm glazing pocket accepts up to 13.5mm single glazed
  • Double glazing option accepts up to a 38mm IGU
  • Colour coded glazing wedges for ease of identification
  • Easily adapts to Alspec’s McArthur Evo and Hunter Evo framing systems

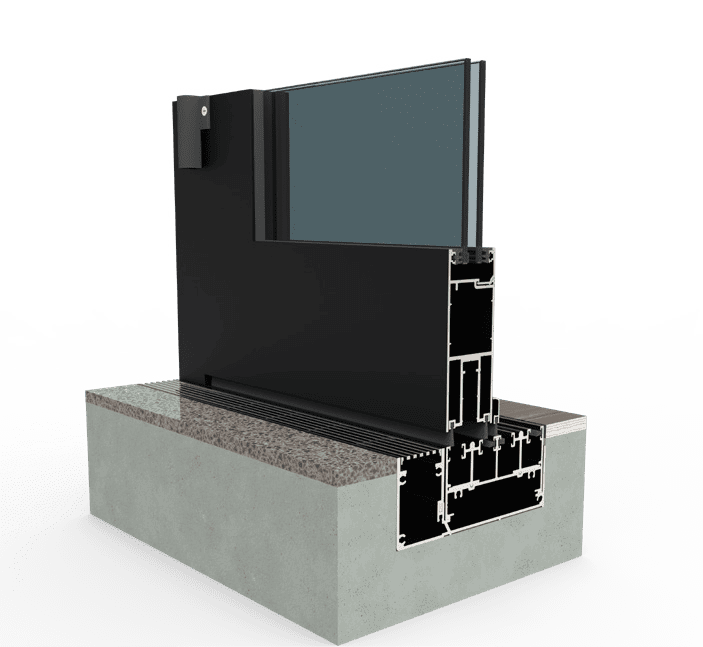

  • Range of thresholds such as disabled ramp
  • 45mm available in hinged pivoted of sliding options, 70mm available in hinged option
  • Panel heights up to 3050mm subject to project requirements and site conditions

Technical Specifications

Door Dimensions

Option 1 45 x 75mm
Option 2 45 x 80mm
Option 3 45 x 120mm
Option 4 45 x 125mm
Option 5 70 x 100mm

Maximum Recommended Sizes

Height 3200mm
Width 2400mm*
Weight 225kg*
NOTE *Varies depending on hinged, pivot or sliding door used. Check Technical Manual for further details.

Compatible Systems

Commercial Framing Derwent 76mm Centre Pocket Framing
Commercial Framing McArthur Evo 101.6mm Centre Pocket Framing
Commercial Framing ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
Commercial Framing Hunter Evo 101.6mm Single Flush Glazed Framing
Commercial Framing Hunter Evo 101.6mm Double Flush Glazed Framing
Commercial Framing Hunter Evo 150mm Single Flush Glazed Framing
Commercial Framing Hunter Evo 150mm Double Flush Glazed Framing

Thermal Performance

Uw range SG 4.2 – 6.0
SHGC range SG 0.30 – 0.69
Uw range DG 3.3 – 3.8
SHGC range DG 0.16 – 0.58

Frame Dimensions

Option 1 76 x 46mm
Option 2 101.6 x 46mm
Option 3 150 x 46mm

Acoustic Performance: Rw (c;ctr)

6.38mm Laminate - McArthur Evo 101.6mm 32 (-1,-1) dB
10.5mm Vlam Hush - McArthur Evo 101.6mm 35 (0,-2) dB
6.38mm Clear Laminate / 12mm / 6.5mm Vlam Hush - ecoFRAMEplus 101.6mm 37 (-1,-4) dB
6.38mm Clear Laminate / 12mm / 6.38mm Clear Laminate - ecoFRAMEplus 101.6mm 38 (-1,-4) dB

Glazing Details

Single Glazed 6 - 13.5mm
Double Glazed 18 - 38mm
