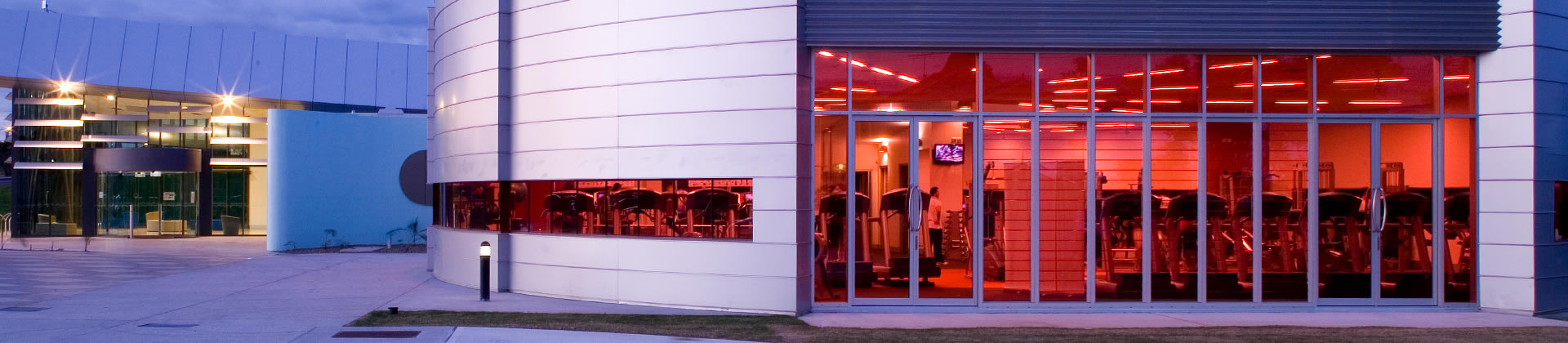

Commercial Windows & Doors // Torrens 45mm Commercial Shopfront Door

Introduction

The Torrens door from Alspec is a widely used 45mm commercial shopfront door. The door can be used in a hinged, pivoted or sliding applications.

Frame sections feature snap on beads to all sides and is suitable for a range of glass thicknesses.

Gallery

3D Revit Files

Please log in to access this information

3D ArchiCAD Files

Please log in to access this information

Please log in to access this information

Please log in to access this information

WERS Ratings

Glazing
Frame
TVW
Air Inf
Frame Dimensions
Option 1 Width 45mm
Thermal Performance
Uw range SG 4.7 - 6.2
SHGC range SG 0.36 - 0.59
Uw range DG 3.4 - 4.2
SHGC range DG 0.21 - 0.50
Glazing Details
Single Glazed 4 - 10.38mm
Double Glazed 16 - 26mm
Compatible Systems
Commercial Framing Derwent 76mm Centre Pocket Framing

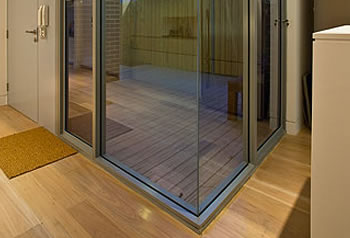

Commercial Framing McArthur Evo Centre Pocket Framing

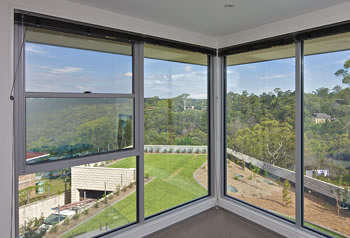

Commercial Framing ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing

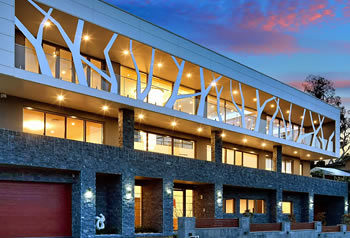

Commercial Framing Hunter Evo 101.6mm Single Flush Glazed Framing
Commercial Framing Hunter Evo 101.6mm Double Flush Glazed Framing
Commercial Framing Hunter Evo 150mm Single Flush Glazed Framing
Commercial Framing Hunter Evo 150mm Double Flush Glazed Framing

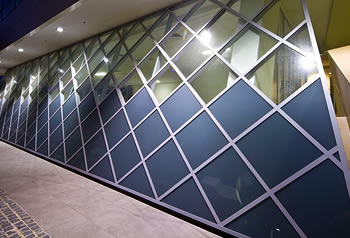

Commercial Framing Hastings 101.6mm Front Glazed Framing
Maximum Recommended Sizes
Height 2700mm (hinged)
Width 1000mm (hinged)
Weight Dependent on hardware
