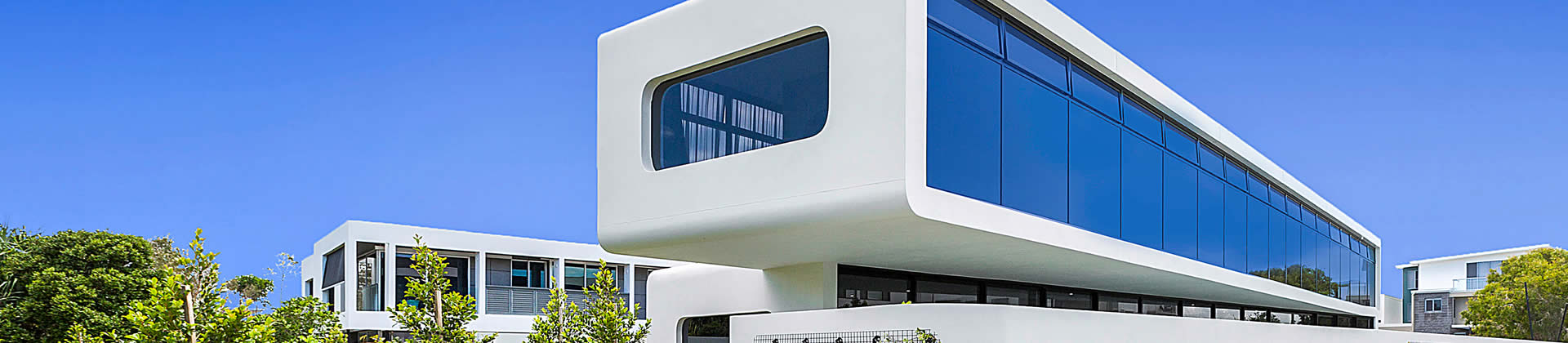

Commercial Framing // Hunter Evo 101.6mm Single Flush Glazed Framing


The Hunter Evo 101.6mm Single Flush Glazed Framing is the most versatile and flexible of the Alspec® Commercial Framing Systems. Available in a frame depth of 101.6mm x 50mm, it is ideal for shopfronts.

With it's straight cuts and flush glazing the Hunter Evo not only looks good, but is easy to fabricate and easy to install. Suitable for a range of single glazed glass thickness options to address the most demanding energy requirements. With self draining sub sills it also solves water leakage problems. The system can be internally or externally glazed along with incorporating the flexibility and appeal of gently curved or faceted frame installations. The Hunter Evo also provides a seamless interface with Alspec's® extensive product offer.


3D Revit Files

Please log in to access this information

Please log in to access this information

Please log in to access this information

WERS Ratings

Frame Dimensions
Option 1 101.6 x 50mm
Maximum Product Performance
SLS (Pa) 3500
ULS (Pa) 8900
WATER (Pa) 1200
Cyclonic Performance
Glass Type 12.4 mm Gen II
m/sec 38
Glass Type 14.08mm Ultra Forza
m/sec 38
Glazing Details
Glass Position FRONT
Single Glazed 4 - 14mm
Acoustic Performance: Rw (c;ctr)
6.38mm Laminate 33 (-1,-3) dB
Compatible Systems
Windows & Doors Torrens
Windows & Doors Swan Evo
Windows & Doors 35mm Awning
Windows & Doors 50mm Awning
Windows & Doors ProTilt Awning
Windows & Doors ProGlide
Windows & Doors Altitude
Maximum Recommended Sizes
Height 4200mm
Width 2400mm
Thermal Performance
Uw range SG 4.2 - 6.5
SHGC range SG 0.24 - 0.73

Tested and Compliant Solutions
