Hawkesbury® Top Hung Commercial Sliding Door
Unrivaled design flexibility with the freedom to achieve large expansive openings whilst also offering a weather resistant and wheelchair compliant sill.
Tested and Compliant Solutions
Large Expansive Openings, Weather Resistant and Wheelchair Compliant Sill

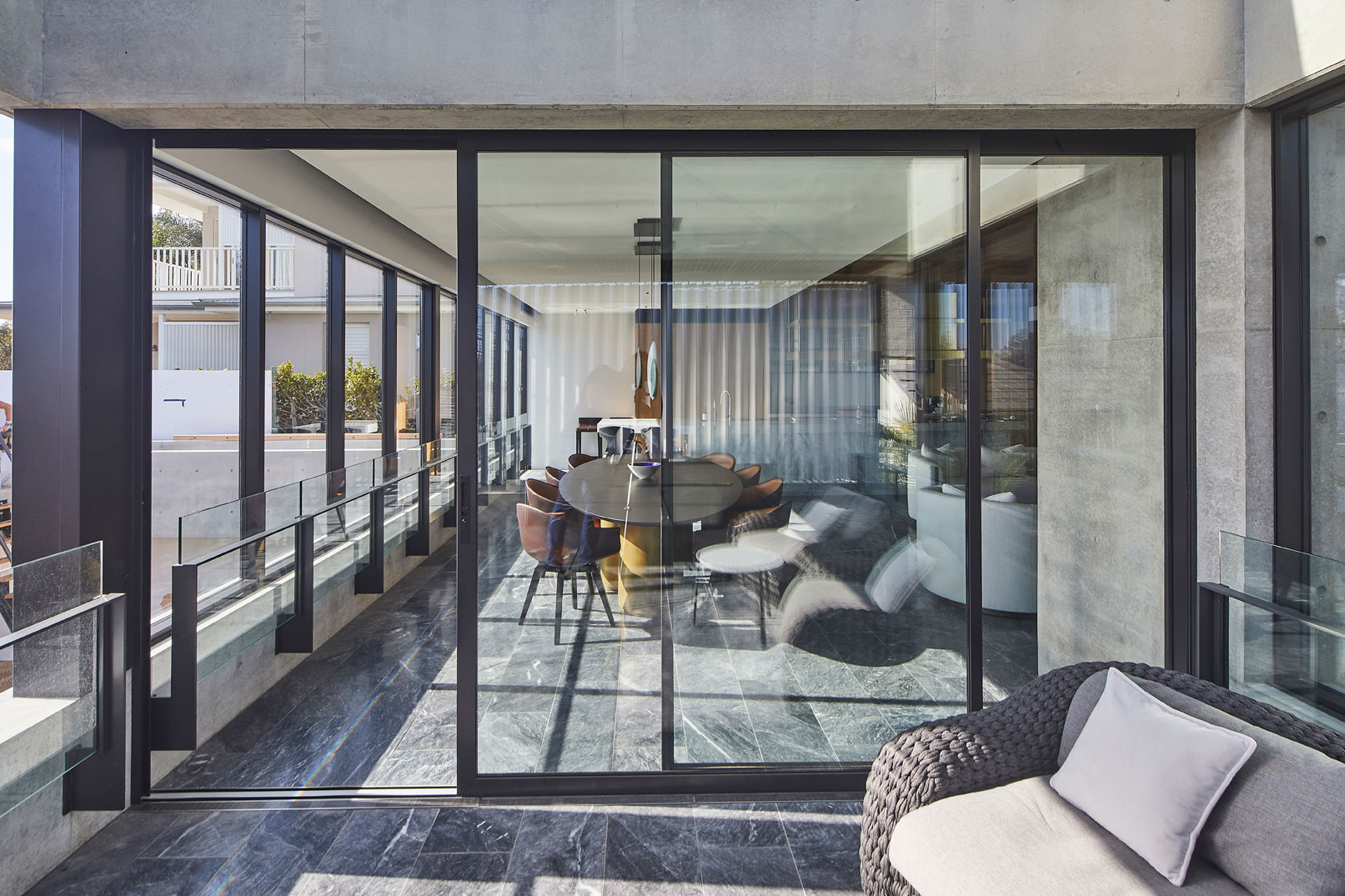

The Hawkesbury Top Hung Sliding Door from Alspec offers architects and designers unrivaled design flexibility with the freedom to achieve large expansive openings whilst also offering a weather resistant and wheelchair compliant sill.
Specifying Alspec’s Hawkesbury Top Hung Sliding Door ensures the client receives a solid, durable high-performance product offering a continuous accessible path of seamless transition between internal and external floor finishes that is capable of large panel sizes up to 3000mm in height and 2500mm in width. Multi-stack configurations are available using high quality E3 hardware by Centor.
Designed and manufactured in Australia to meet the extremes of the Australian environment, the Alspec Hawkesbury Top Hung Sliding Door is the first choice amongst architects, builders, home owners and fabricators when performance and quality matter.
Key Features

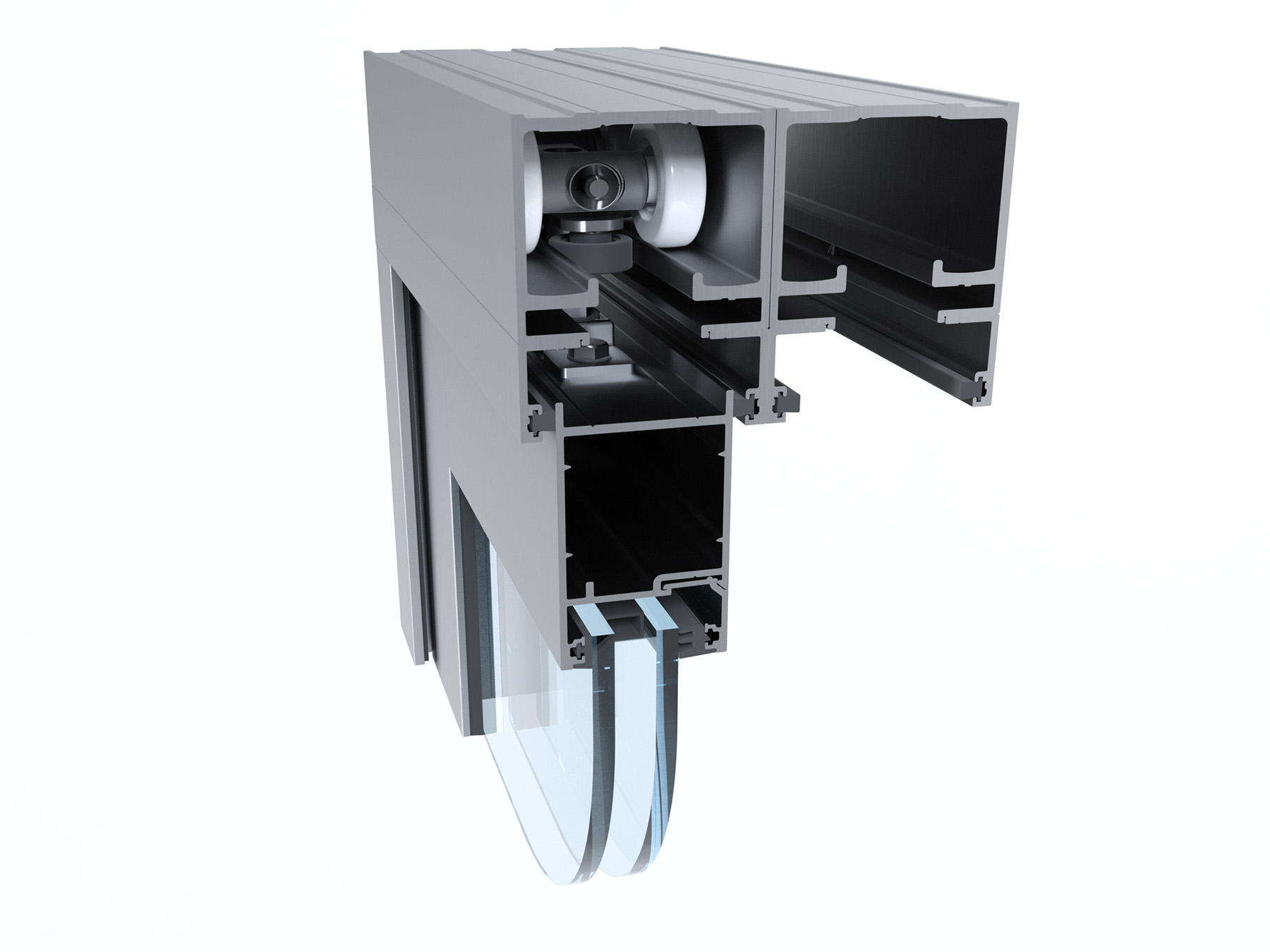

- Powered by exclusive hardware from Centor Architectural, the Hawkesbury Sliding Door features top-rolling hardware for smooth, trouble-free operation.
- AS1428.1 wheelchair compliant sill.
- Double glazing option accepts up to a 28mm IGU.

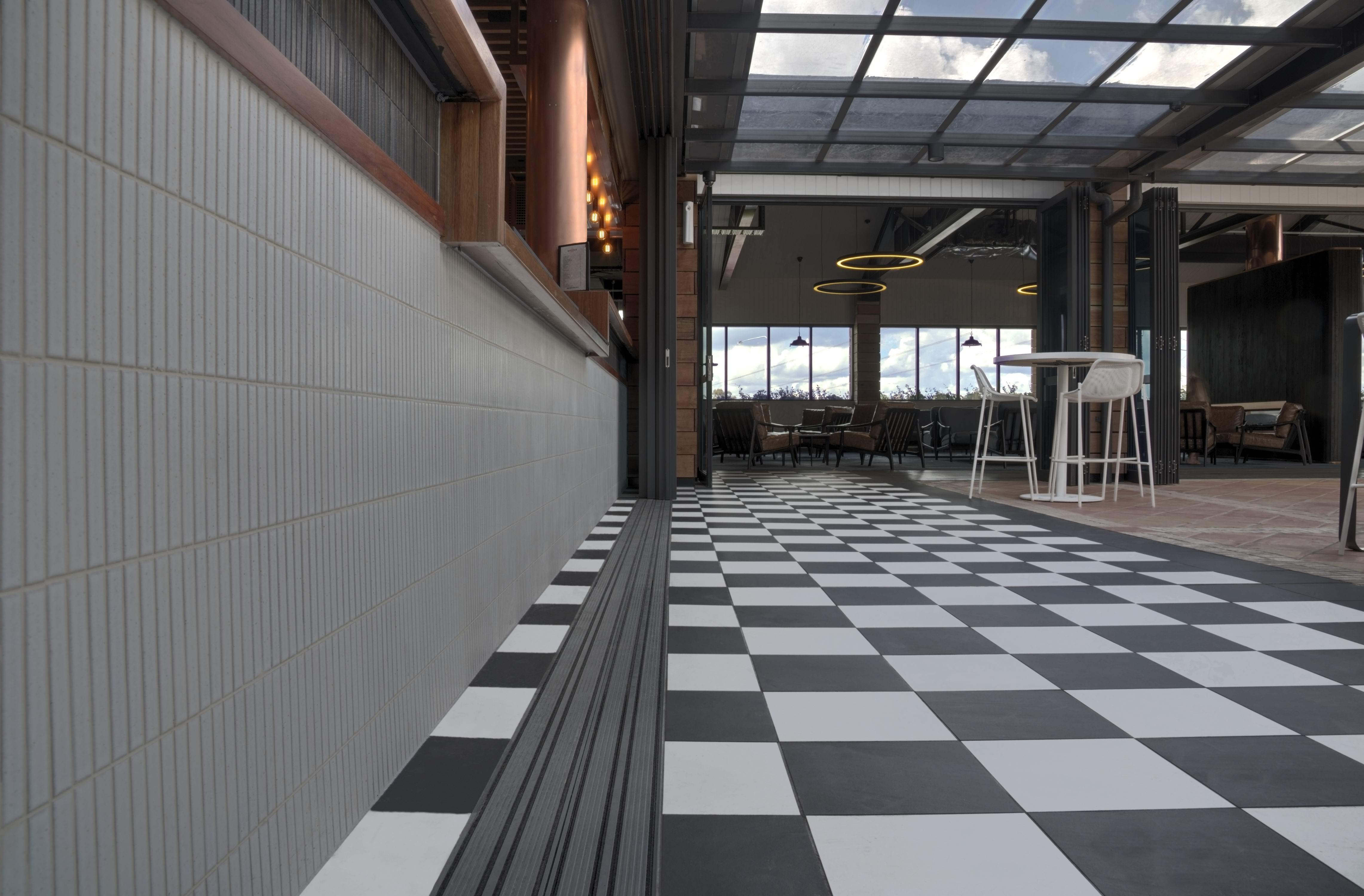

- Tile insert threshold option.
- Large sliding panels, ideal for residential and commercial applications.

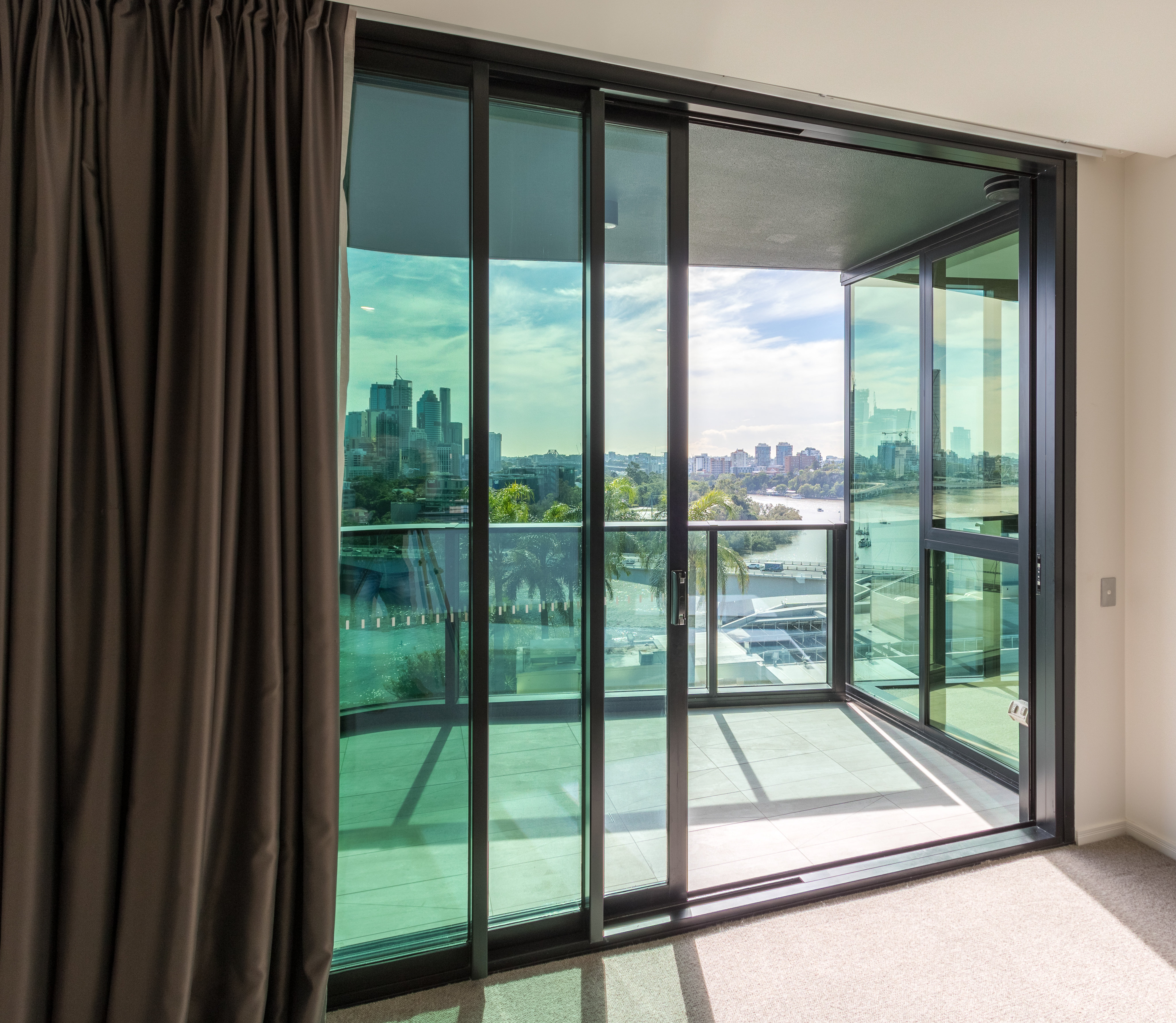

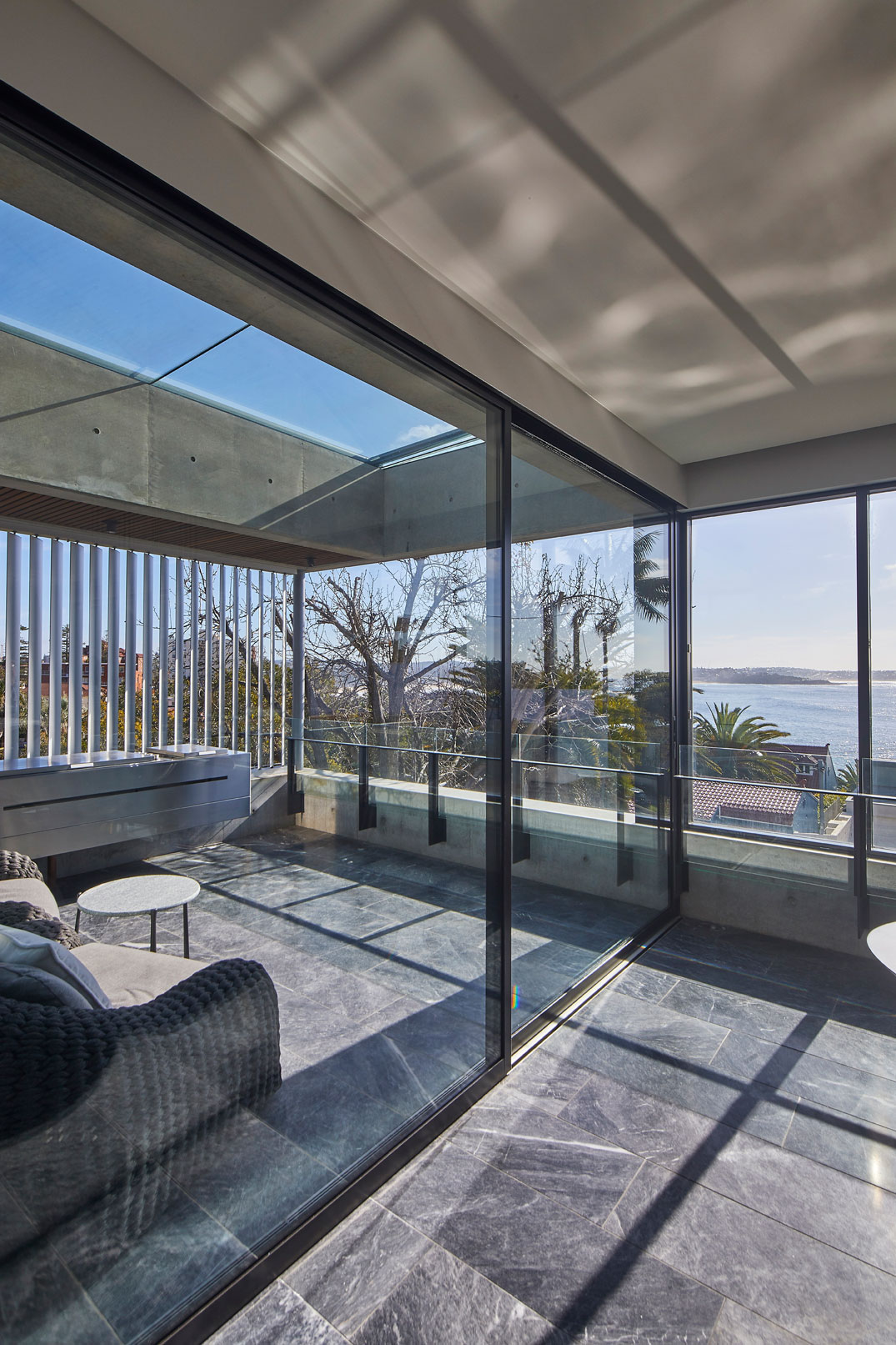

- 90 degree post free corner option.
- Heavy duty rollers up to 300kg per panel.
Technical Specifications

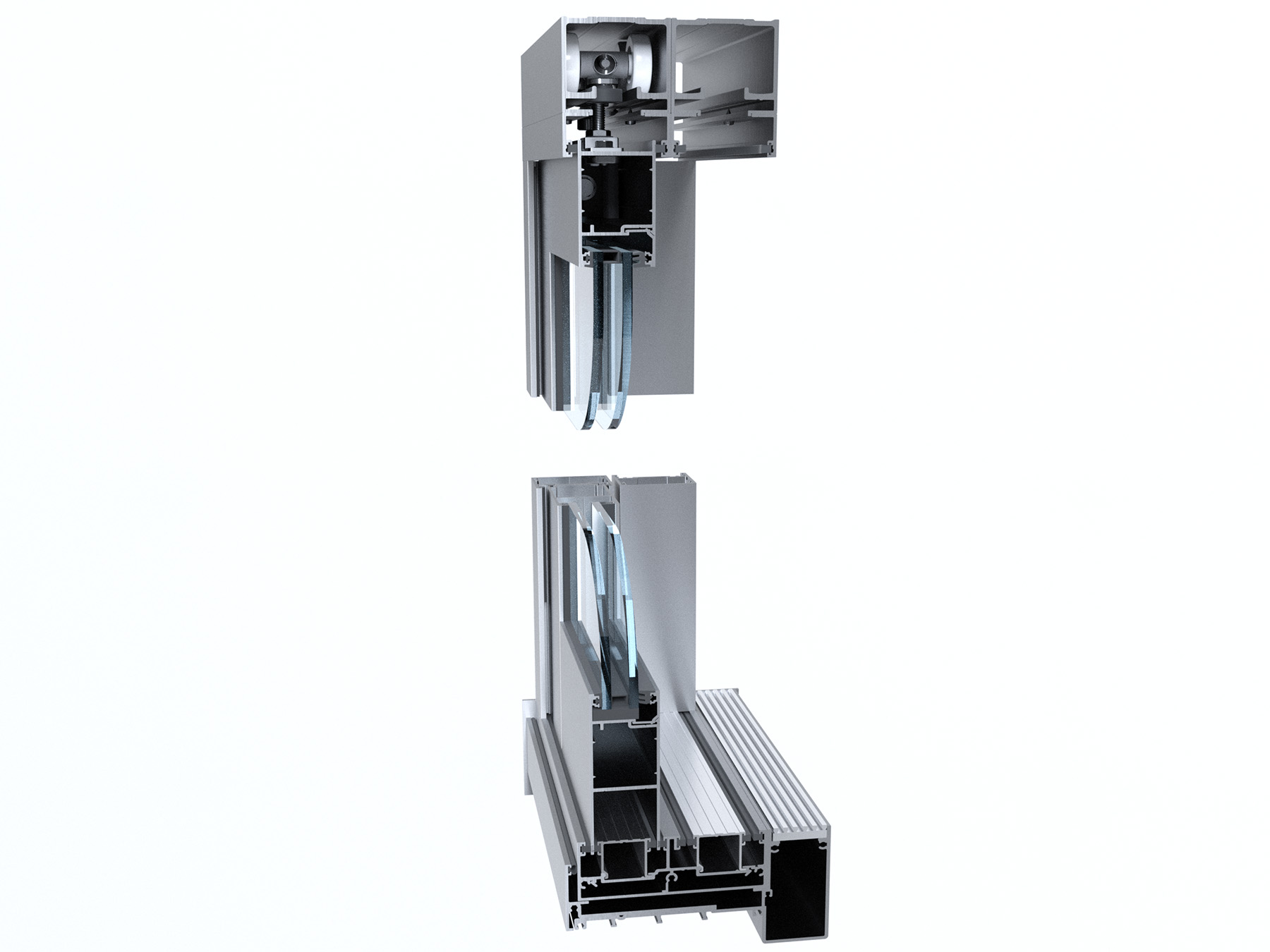

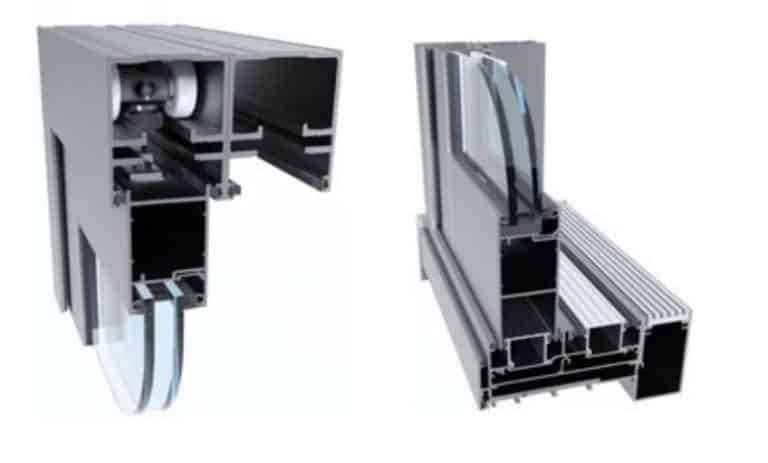

Frame Dimensions
| 2 Track | 124 x 45mm |
| 3 Track | 186 x 45mm |
Maximum Product Performance
| SLS (Pa) | 1400 |
| ULS (Pa) | 2700 |
| WATER (Pa) | 200 |
Glazing Details
| Single Glazed | 6 - 13.5mm |
| Double Glazed | 18 - 28mm |
Acoustic Performance: Rw (c;ctr)
| 6.38mm Laminate | 29 (0,-1) dB |
| 6.38mm/12/6.5mm | 32 (-1,-2) dB |
Maximum Recommended Sizes
| Height | 3000mm |
| Sash Width | 2500mm |
| Weight | 300kg per panel |
Thermal Performance
| Uw range SG | 4.5 - 6.2 |
| SHGC range SG | 0.26 - 0.59 |
| Uw range DG | 3.2 - 4.0 |
| SHGC range DG | 0.25 - 0.52 |
