ecoWALL 225

The ecoWALL® 225 Flush Glazed Framing is arguably Alspec’s® greatest engineering achievement, eliminating the requirement of unsightly and often very expensive steel frames to support the system.

Tested and Compliant Solutions

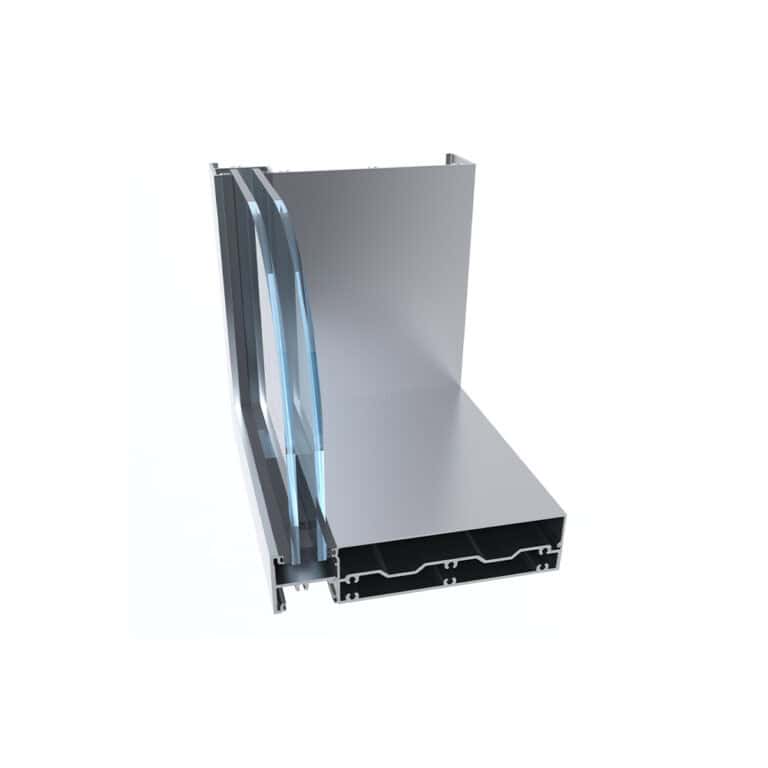

The ecoWALL® 225 Flush Glazed Framing is arguably Alspec’s® greatest engineering achievement. With 225mm x 60mm profiles it is not only proportionally correct but also boasts the structural integrity of it’s 250mm alternatives available in the market. Add this to the fact that with ecoWALL® 225 you can single or double glazed unlike any of the competitors.

In many cases using ecoWALL® 225 can eliminate the requirement of unsightly and often very expensive steel frames to support the system.(this is determined subject to structural engineer’s detail and project specific design criteria).

With reinforced subheads, mullion anti buckling technology, and self draining sub-sills to solve water leakage the ecoWALL® 225 is the complete structural system ideal for your next commercial foyer, auto showroom or high end residential project.

Key Features

  • Sharp unbroken lines
  • 4 – 14mm single glazing and up to 28mm double glazing options

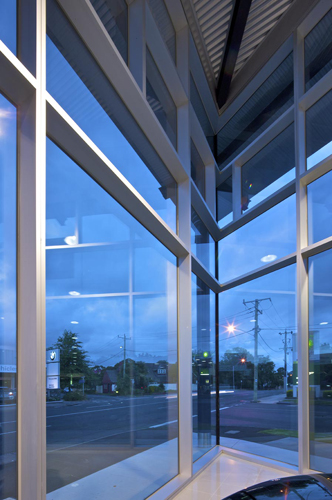

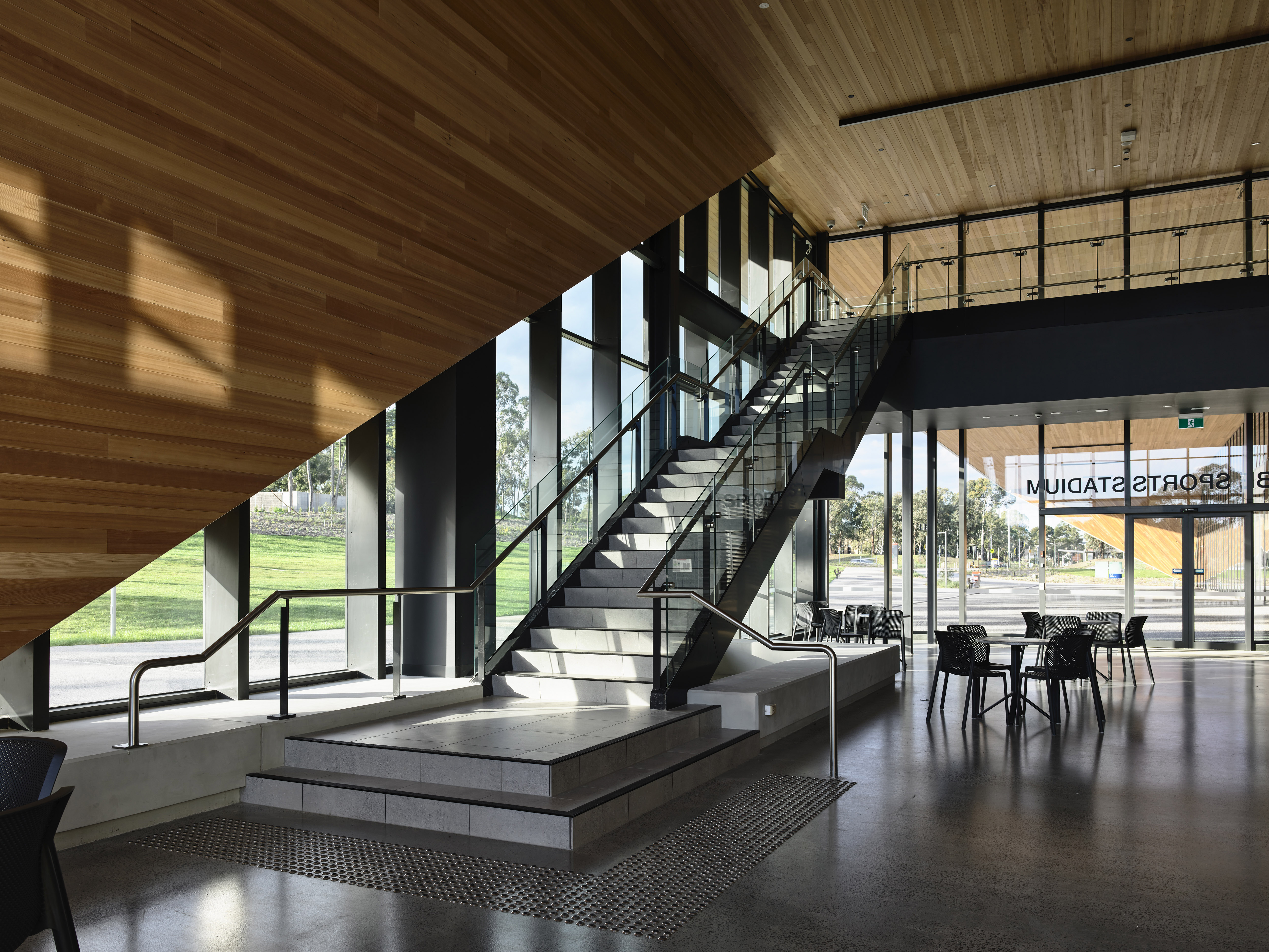

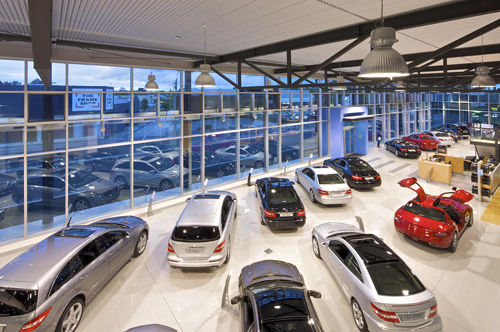

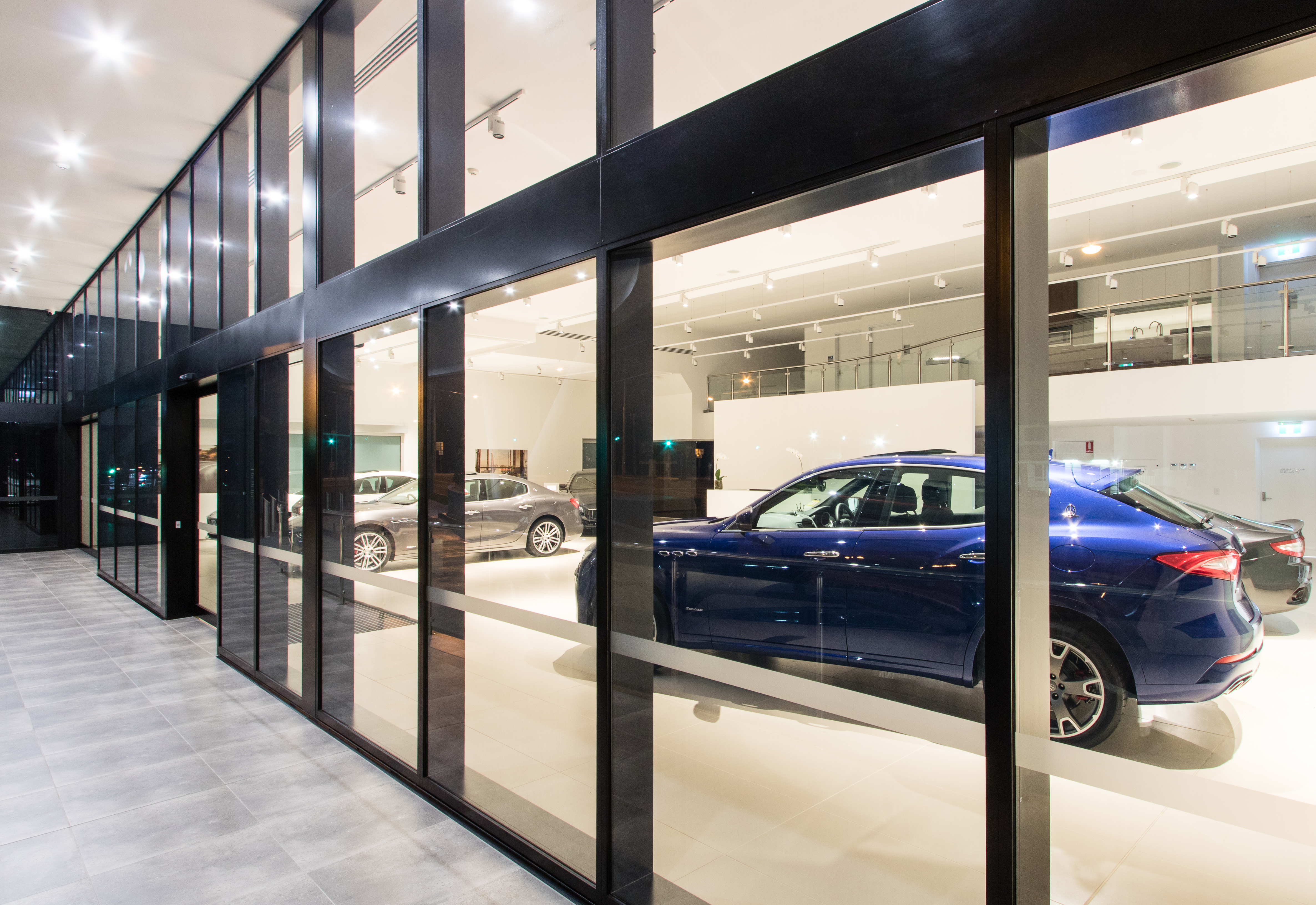

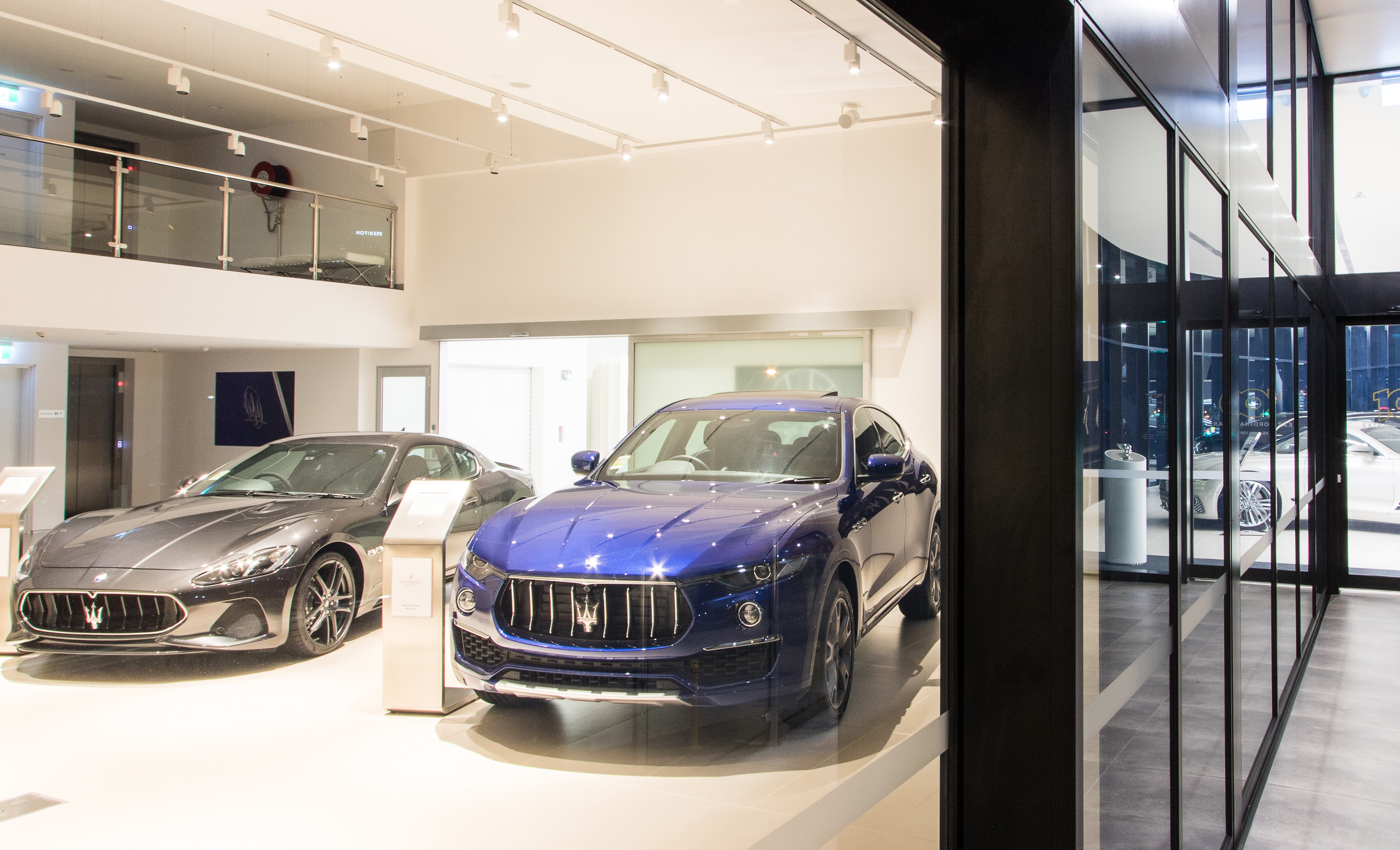

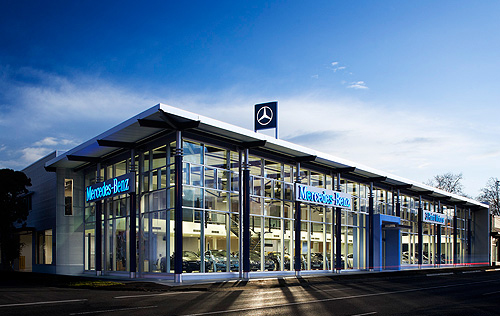

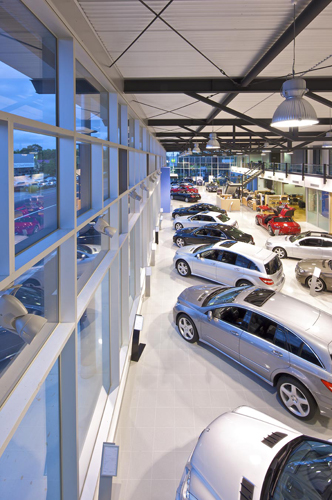

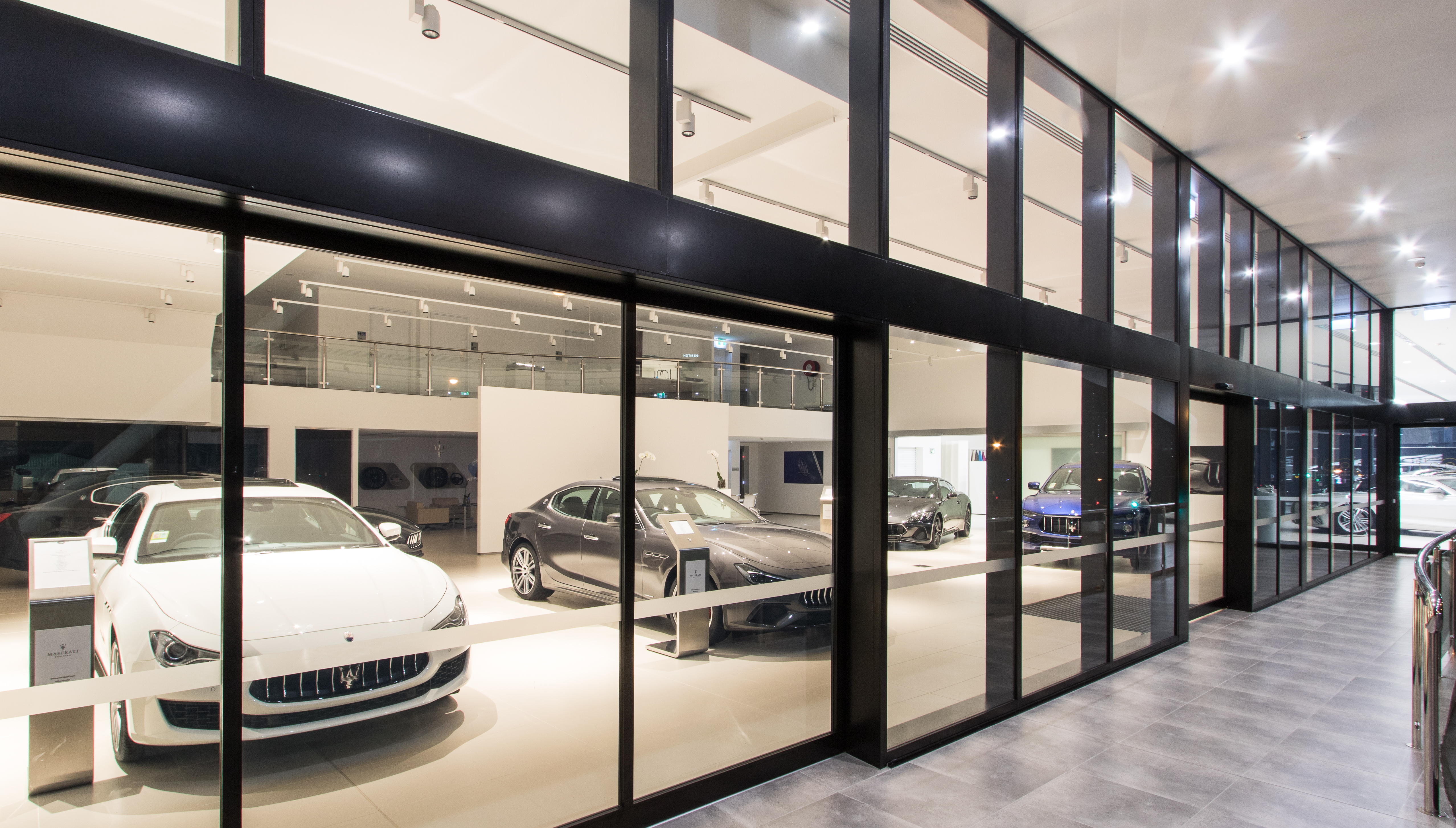

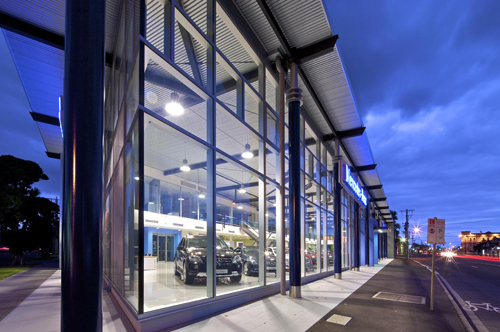

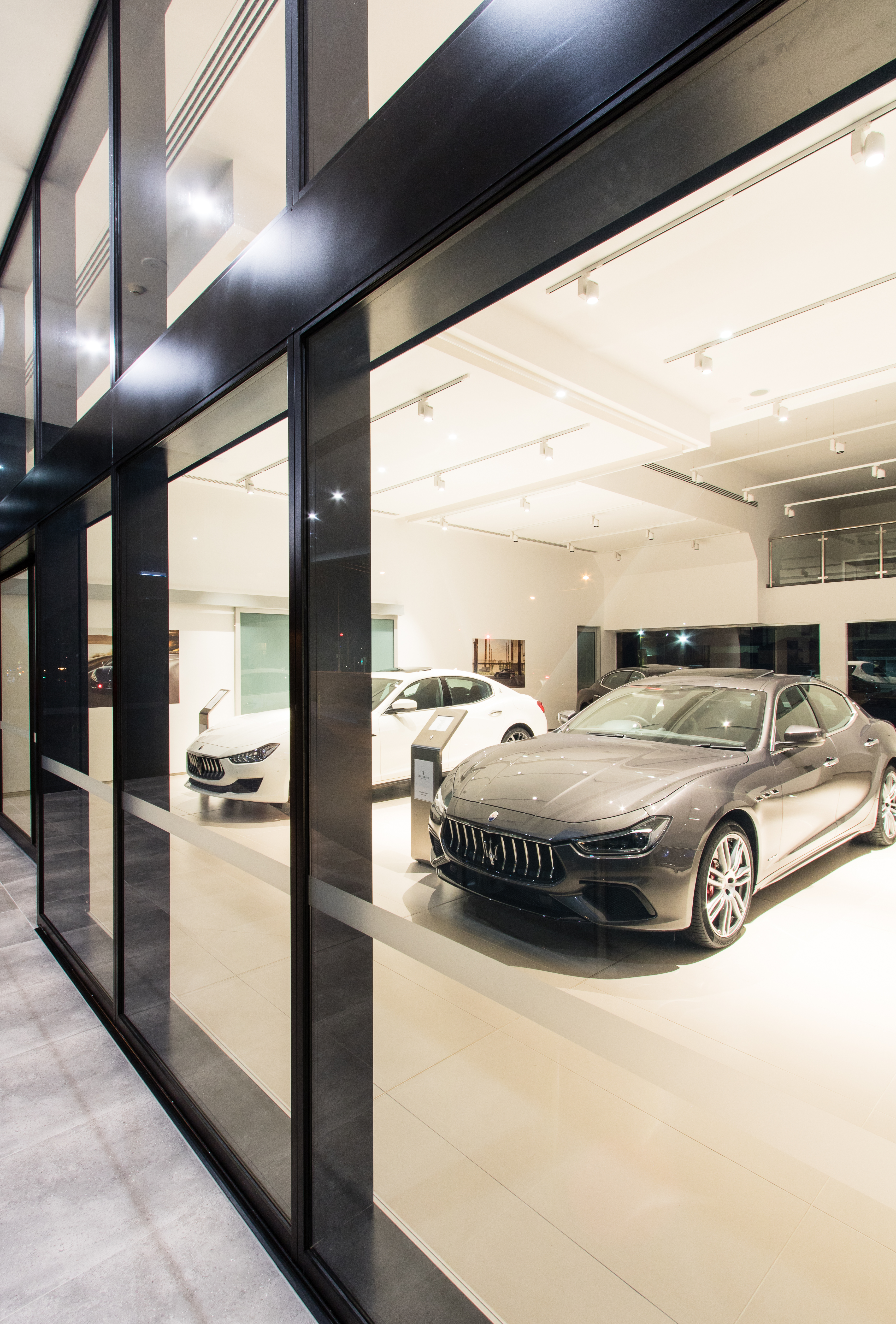

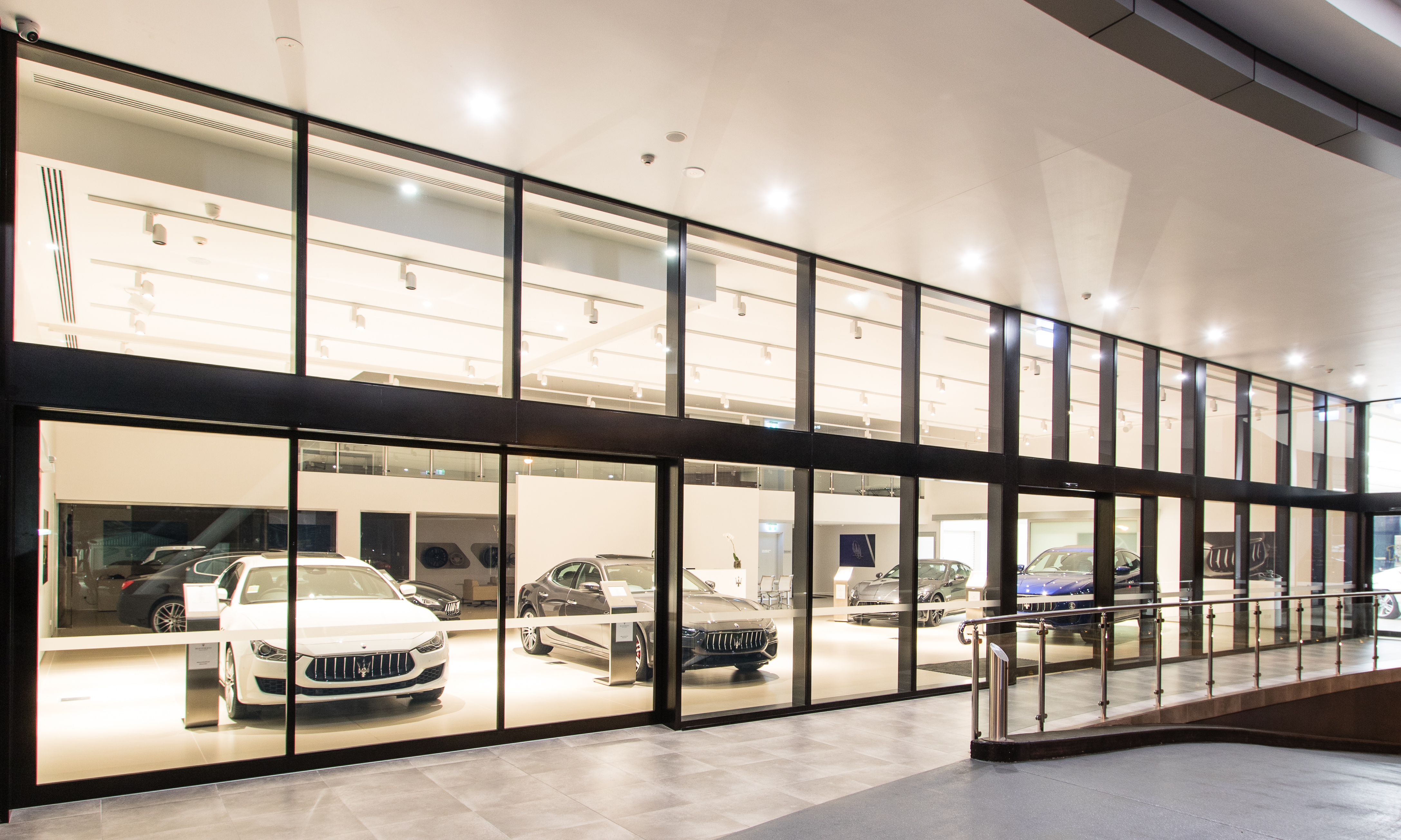

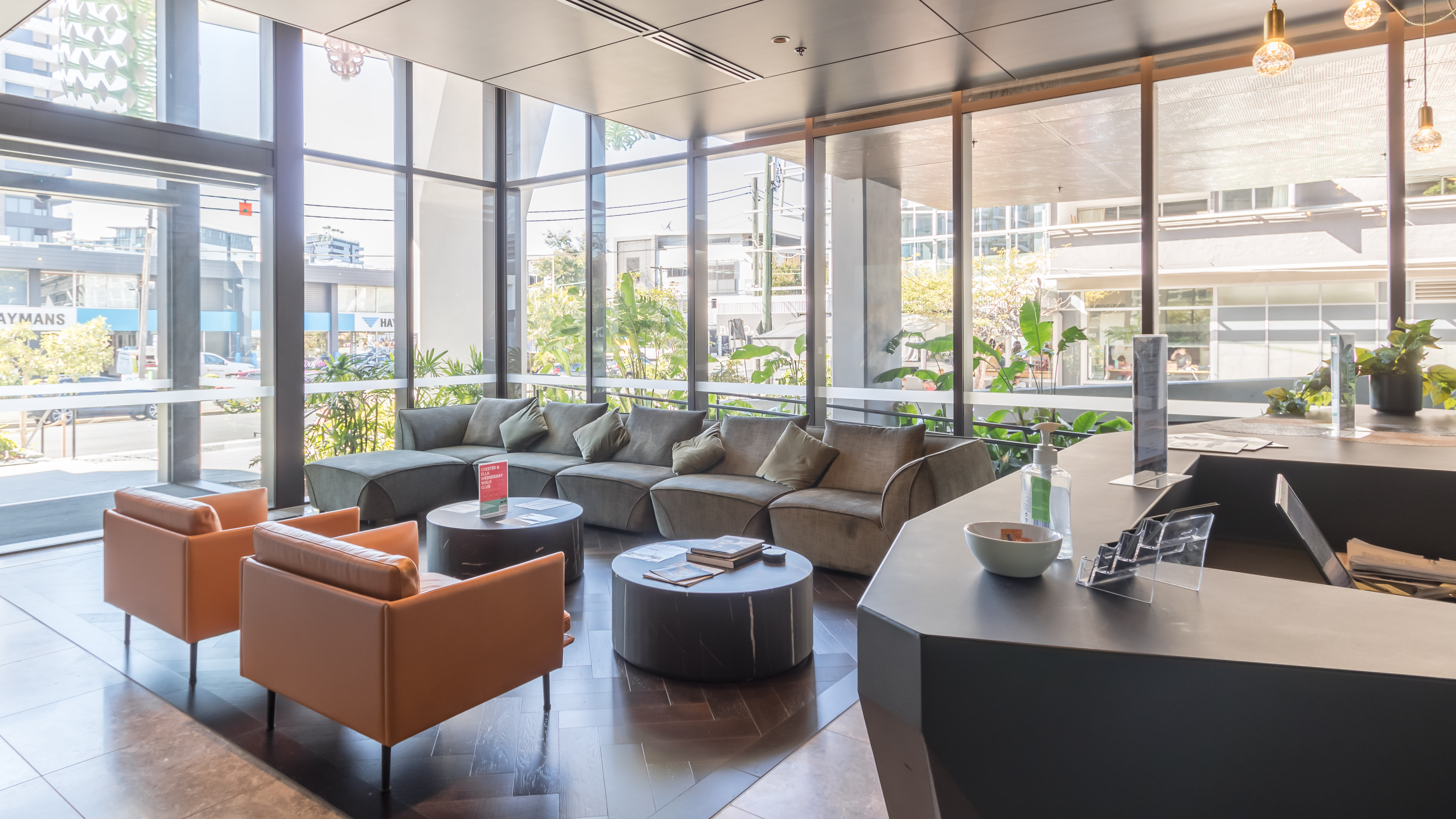

  • Ideally suited for automotive showrooms, two storey foyers, atriums or similar applications
  • Secure glazing using fully captive backing gaskets to outside of frame
  • Superior weathering performance
  • Colour coded glazing wedges for ease of identification allowing for multiple glass types

Technical Specifications

Frame Dimensions

Option 1 225 x 60mm

Maximum Product Performance

SLS (Pa) 5000
ULS (Pa) 7000
WATER (Pa) 1500

Compatible Systems

Windows & Doors Swan Evo™ 45mm/70mm Commercial Shopfront Door
Windows & Doors Torrens 45mm Commercial Shopfront Door

Glazing Details

Glass Position Front
Single Glazed 4 - 14mm
Double Glazed 20 - 28mm

Maximum Recommended Sizes

Height 6300mm
Width 2700mm

Acoustic Performance: Rw (c;ctr)

6.38mm/10mm/8.38mm IGU 37 (-1,-4) dB

Thermal Performance

Uw range SG 5.0 - 6.9
SHGC range SG 0.24 - 0.73
Uw range DG 3.5 - 4.3
SHGC range DG 0.16 - 0.63

Downloads

Tech Manual

Log in to view all files

Customer Technical Memos

Log in to view all files

Wall Charts

Log in to view all files

CAD Drawings

Log in to view all files

3D Revit

Log in to view all files

Typical Configurations

WERS Ratings

Window ID Glazing Frame Uw SHGCw Tvw Air Inf
