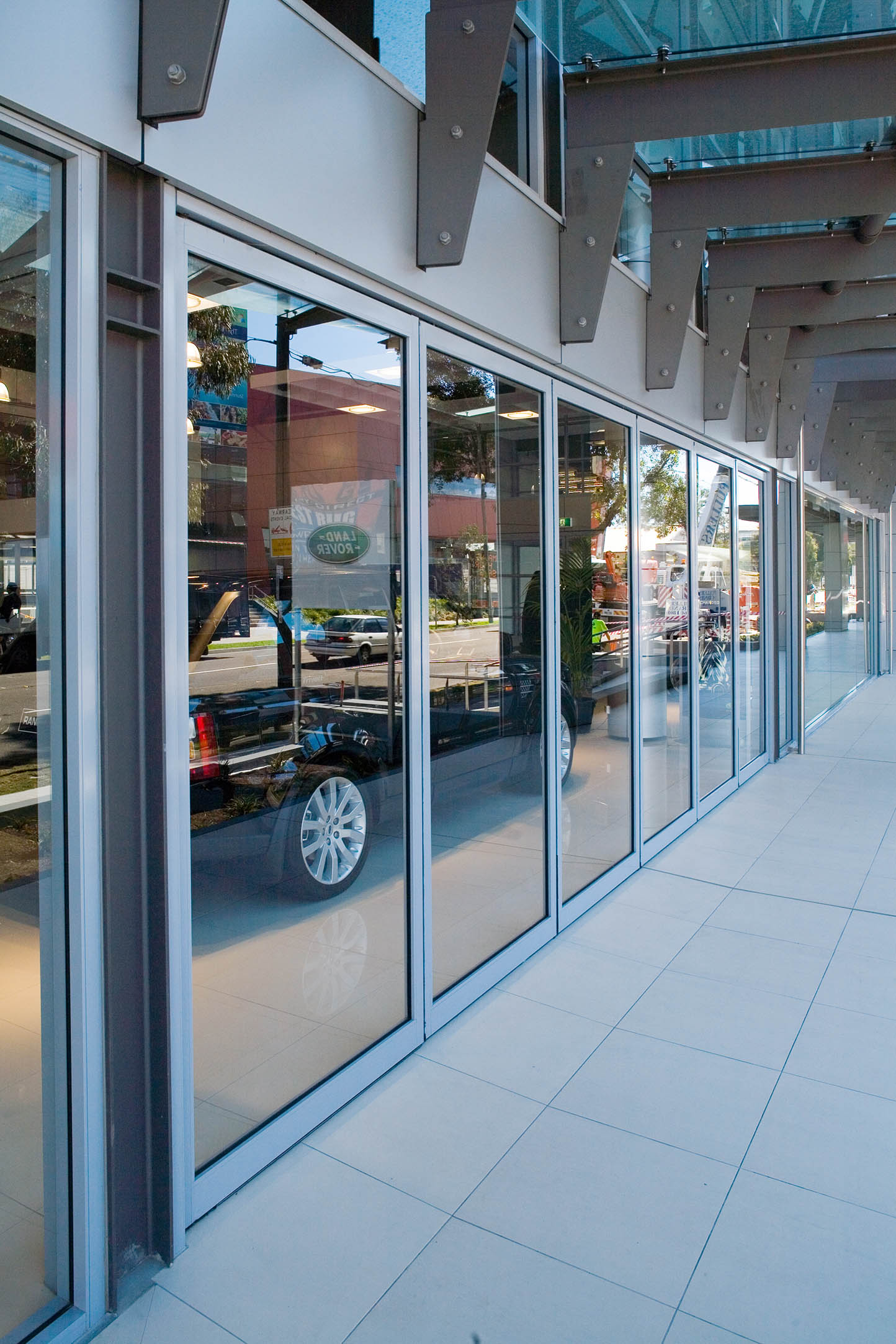

Torrens 45mm Commercial Shopfront Door
This 45mm commercial shopfront door can be used in hinged, pivoted or sliding applications.

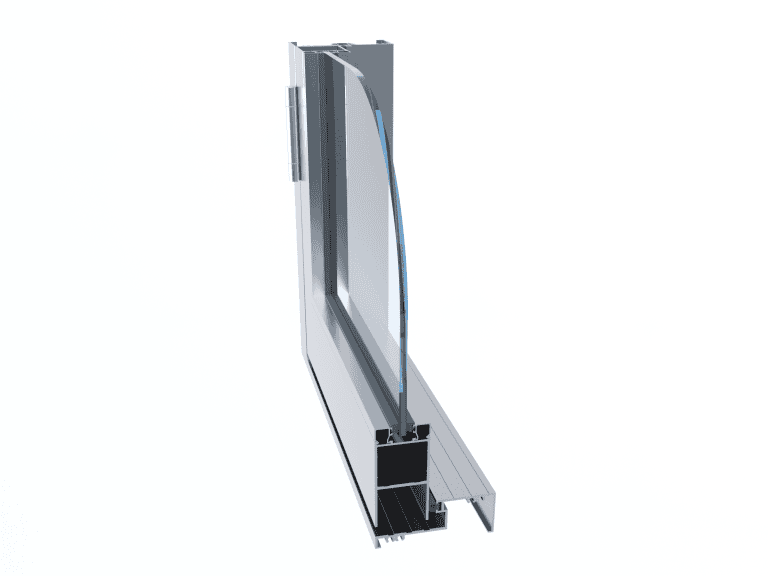

The Torrens door from Alspec is a widely used 45mm commercial shopfront door. The door can be used in a hinged, pivoted or sliding applications.
Frame sections feature snap on beads to all sides and is suitable for a range of glass thicknesses.
Key Features
- The opening method may be either hinged, pivoted or sliding
- 4mm to 10.38mm single glazed and up to 26mm double glazed options
- Utilises spigots and bolts for frame joints
- A range of midrail sections and bead widths are available from 45mm up to 200mm
- A full range of accessories and hardware including locks, hinges, door closers and handles are available
- A range of wide stile options
Technical Specifications
Frame Dimensions
| Option 1 | Width 45mm |
Compatible Systems
| Commercial Framing | Derwent 76mm Centre Pocket Framing |
| Commercial Framing | McArthur Evo 101.6mm Centre Pocket Framing |
| Commercial Framing | ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Single Flush Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Double Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Single Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Double Flush Glazed Framing |
| Commercial Framing | Hastings 101.6mm Front Glazed Framing |
Thermal Performance
| Uw range SG | 4.7 - 6.2 |
| SHGC range SG | 0.36 - 0.59 |
| Uw range DG | 3.4 - 4.2 |
| SHGC range DG | 0.21 - 0.50 |
Glazing Details
| Single Glazed | 4 - 10.38mm |
| Double Glazed | 16 - 26mm |
Maximum Recommended Sizes
| Height | 2700mm (hinged) |
| Width | 1000mm (hinged) |
| Weight | Dependent on hardware |
