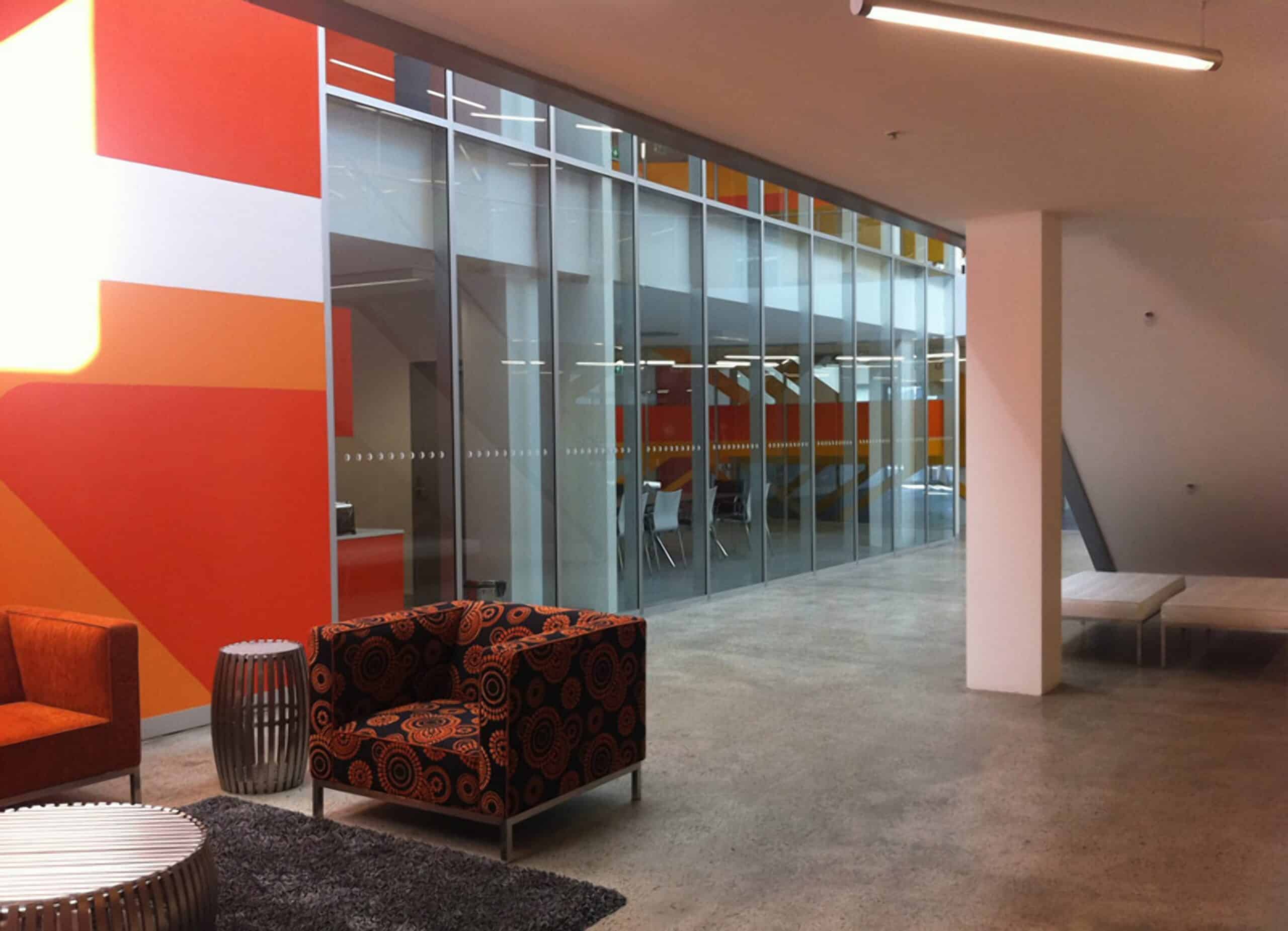

Opal 64mm/76mm/92mm Stud Partitioning Suite

Created in response to market demand for a more contemporary framing system which meets today’s design requirements, this system offers more strength where required.

The Opal suite has been produced in response to market demand for a more contemporary framing system which meets today’s design requirements. By being skilfully engineered this system offers more strength where required whilst ensuring installers are still competitive at the contract stage. The 64mm, 76mm and 92mm framing cleverly utilise the current McArthur 101.6mm centre pocket framing bead to eliminate the need for additional adaptors and wedges for installation of doors.

Technical Specifications

Frame Dimensions

Option 1 101.6 x 42mm
Option 2 116.5 x 42mm
Option 3 132 x 42mm

Compatible Systems

Commercial Framing Skirting Profiles

Glazing Details

Glass Position Centre
Single Glazed 4 - 10.38mm

Maximum Recommended Sizes

Height 2700mm
Width 2400mm

Downloads

Tech Manual

Log in to view all files

Customer Technical Memos

Log in to view all files

Wall Charts

Log in to view all files

CAD Drawings

Log in to view all files

Typical Configurations
