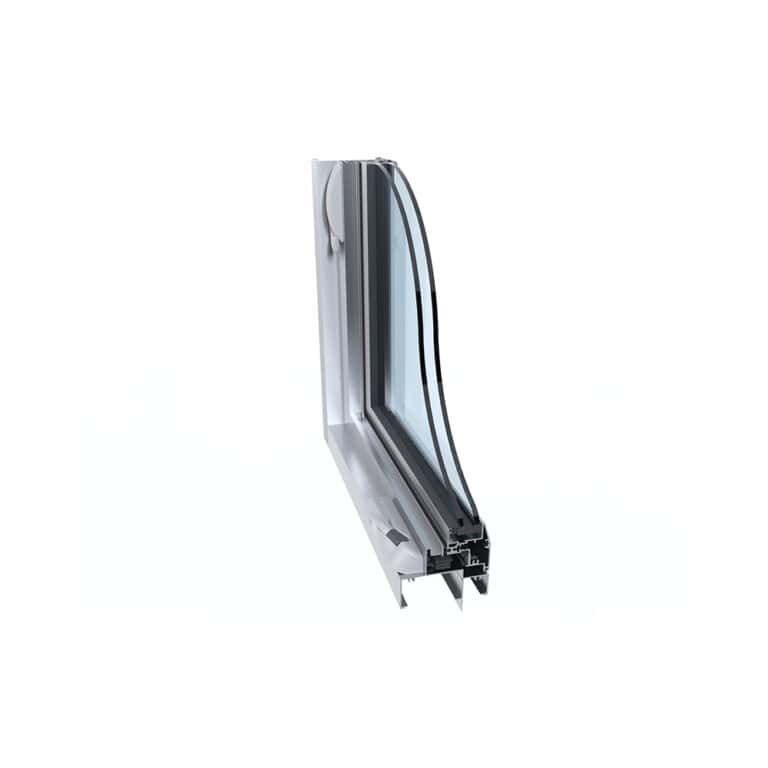

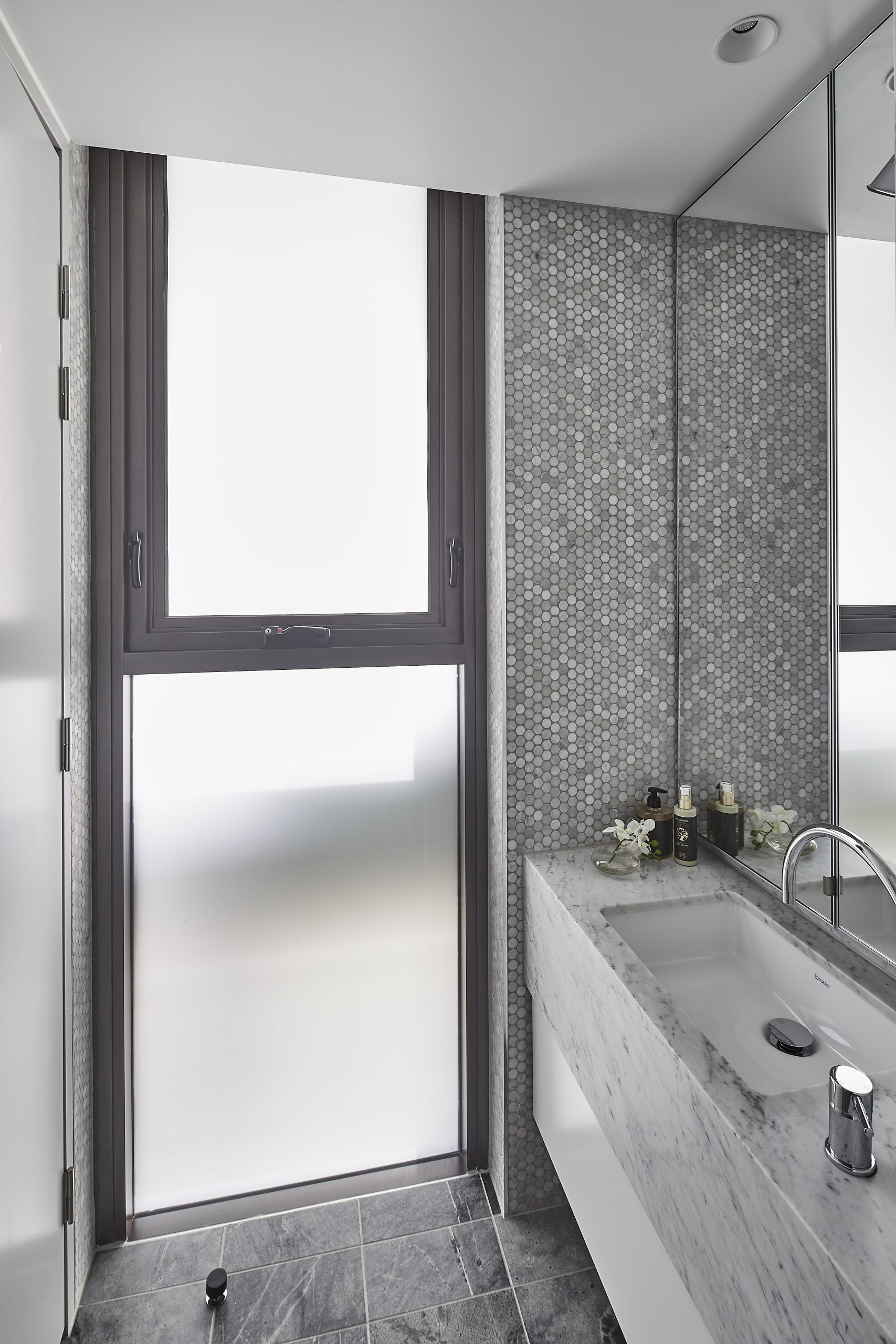

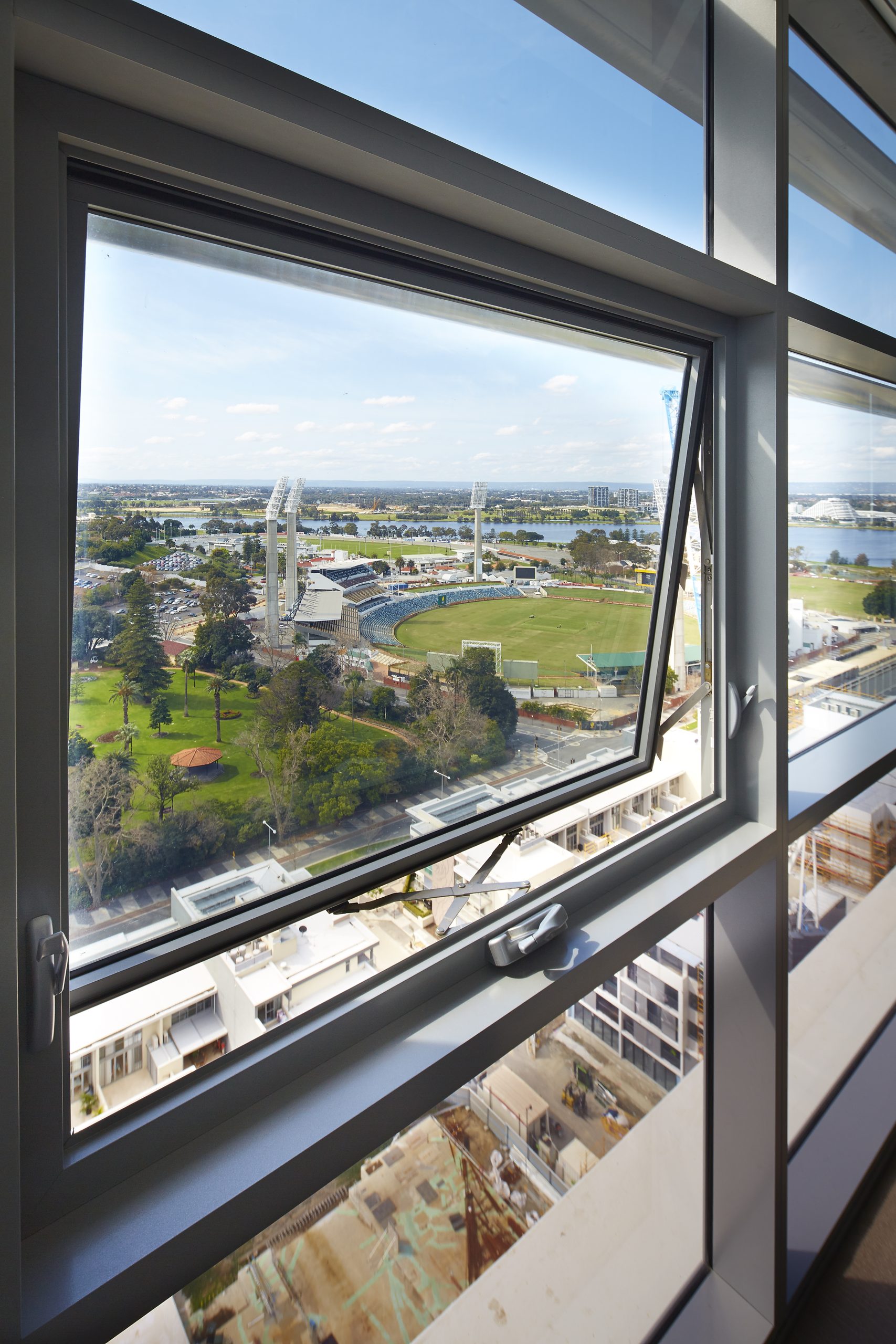

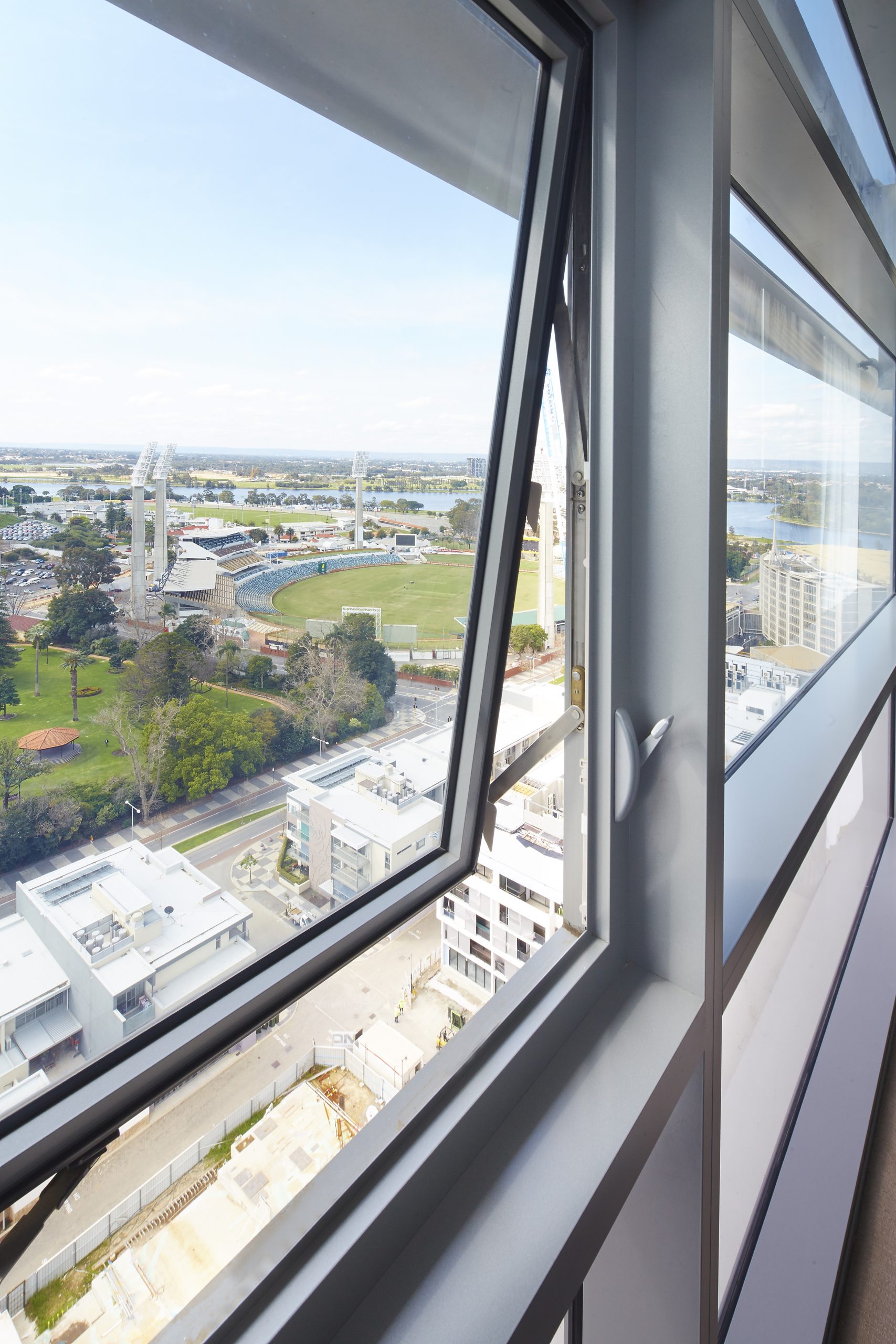

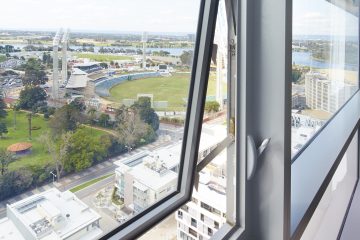

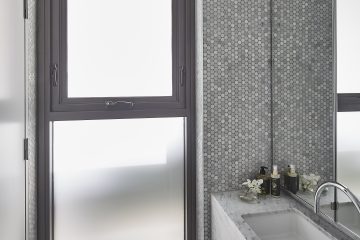

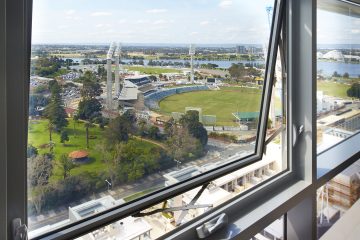

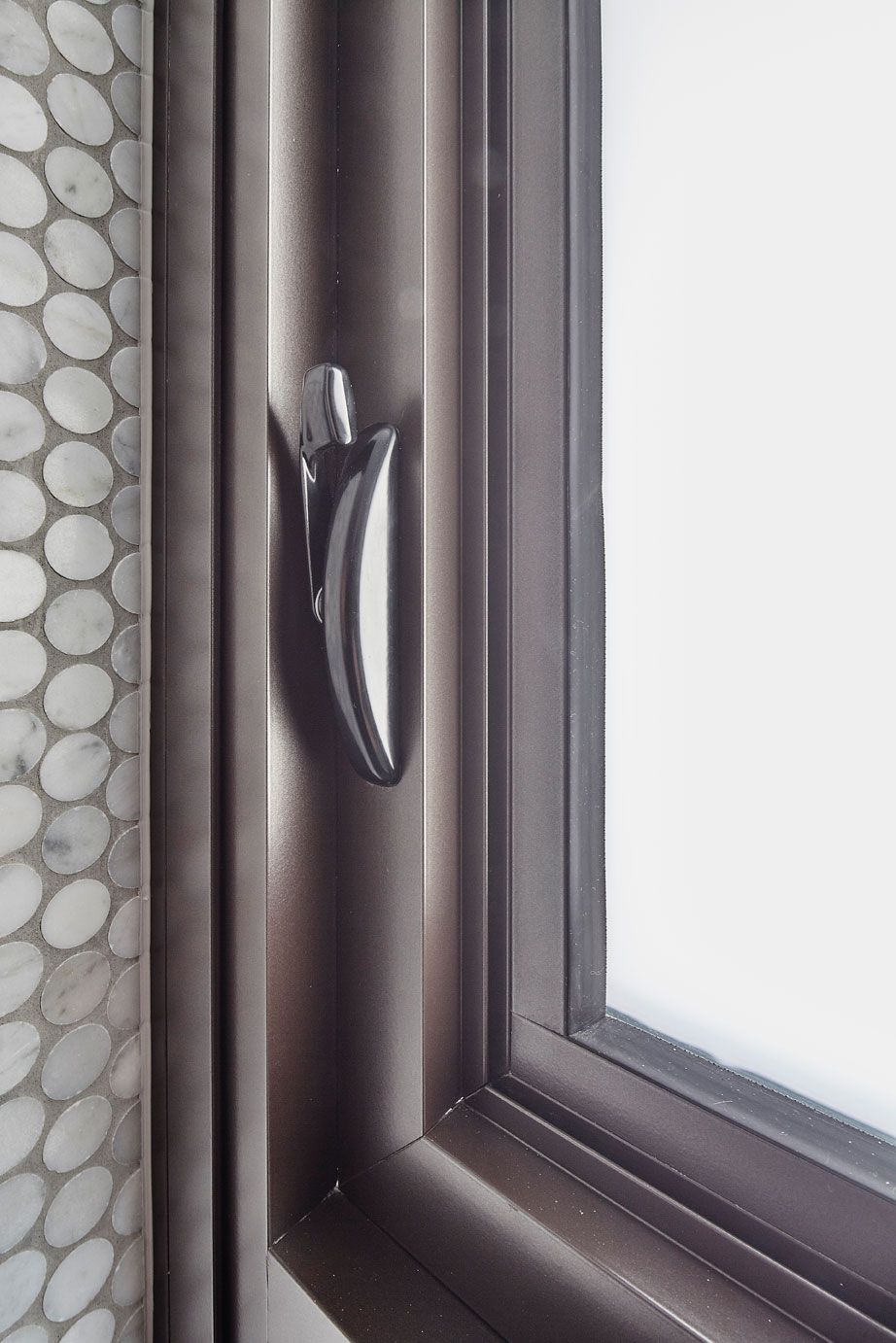

ProTilt® High Performance Awning/Casement Window
ProTilt® High Performance Awning and Casement Windows are ideally suited for suburban housing, multi-unit residential, hotels and commercial applications.
Tested and Compliant Solutions
Alspec’s ProTilt High Performance Awning and Casement Windows are ideally suited for suburban housing, multi-unit residential, hotels and commercial applications.
Featuring overlapping internal and external seals, the ProTilt Awning and Casement Window is the preferred choice where superior weather performance is required.
A range of glass thickness options from 4mm to 28mm allows the system to be configured for excellent thermal and acoustic performance.
The system can be used with a range of available stays while also offering multi-point locking options and a proprietary operator. The ProTilt seamlessly interfaces with Alspec’s McArthur Evo and Hunter Evo Commercial Framing Systems.
Key Features
- Concealed multi-point locking
- Superior weather performance
- Excellent thermal and acoustic performance
- Accepts up to 16mm single glazed and up to 28mm double glazing units, allowing the designer to achieve the most demanding thermal and acoustic specifications
Technical Specifications
Maximum Recommended Sizes - Awning
| Without Multi-Point Locks |
Max height: 1500mm Min height: 400mm Max width: 1200mm Min width: 500mm Max weight: 80kg |
| With Multi-Point Locks |
Max height: 2000mm Min height: 900mm Max width: 1500mm Min width: 500mm Max weight: 130kg |
Maximum Product Performance
| SLS (Pa) | 3500 |
| ULS (Pa) | 8900 |
| WATER (Pa) | 1000 |
Compatible Systems
| Commercial Framing | McArthur Evo 101.6mm Centre Pocket Framing |
| Commercial Framing | ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Single Flush Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Double Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Single Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Double Flush Glazed Framing |
Cyclonic Performance
| Glass Type | 12.4mm Gen II |
| m/sec | 38 |
Maximum Recommended Sizes - Casement
| Dual Arm With Multi-Point Locks |
Max height: 2100mm Min height: 900mm Max width: 1000mm Min width: 500mm Max weight: 49kg |
| Single Arm With Multi-Point Locks |
Max height: 1800mm Min height: 900mm Max width: 700mm Min width: 350mm Max weight: 25kg |
Acoustic Performance: Rw (c;ctr)
| 6.38mm Laminate | 33 (-1,-2) dB |
| 6.38mm | 12 | 6.38 IGU | 36 (-1, -3) dB |
Glazing Details
| Single Glazed | 4 - 16mm |
| Double Glazed | 24 - 28mm |
Thermal Performance
| Uw range SG | 5.4 - 6.4 |
| SHGC range SG | 0.27 - 0.49 |
| Uw range DG | 3.9 - 4.7 |
| SHGC range DG | 0.21 - 0.45 |
