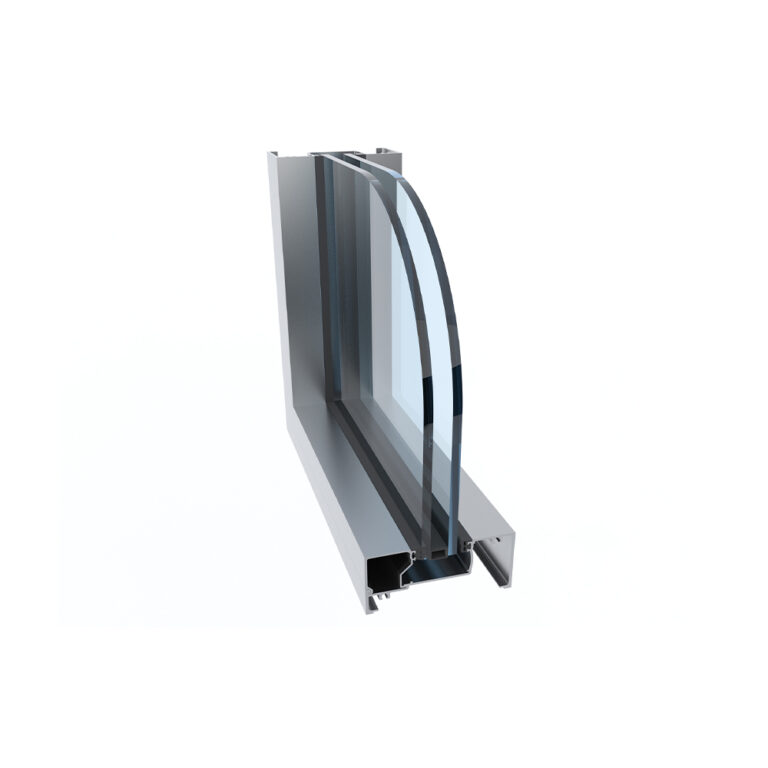

ecoFRAMEplus 150mm Centre Pocket Double Glazed Framing
When energy efficiency is paramount, the versatility allows countless specifications to be achieved, from standard shopfront applications to the most challenging structural and energy requirements.
Tested and Compliant Solutions
The ecoFRAMEplus® is the ideal system principally when energy efficiency is paramount. Its versatility allows countless specifications to be achieved, from standard shopfront applications, through to the most challenging structural and energy requirements.

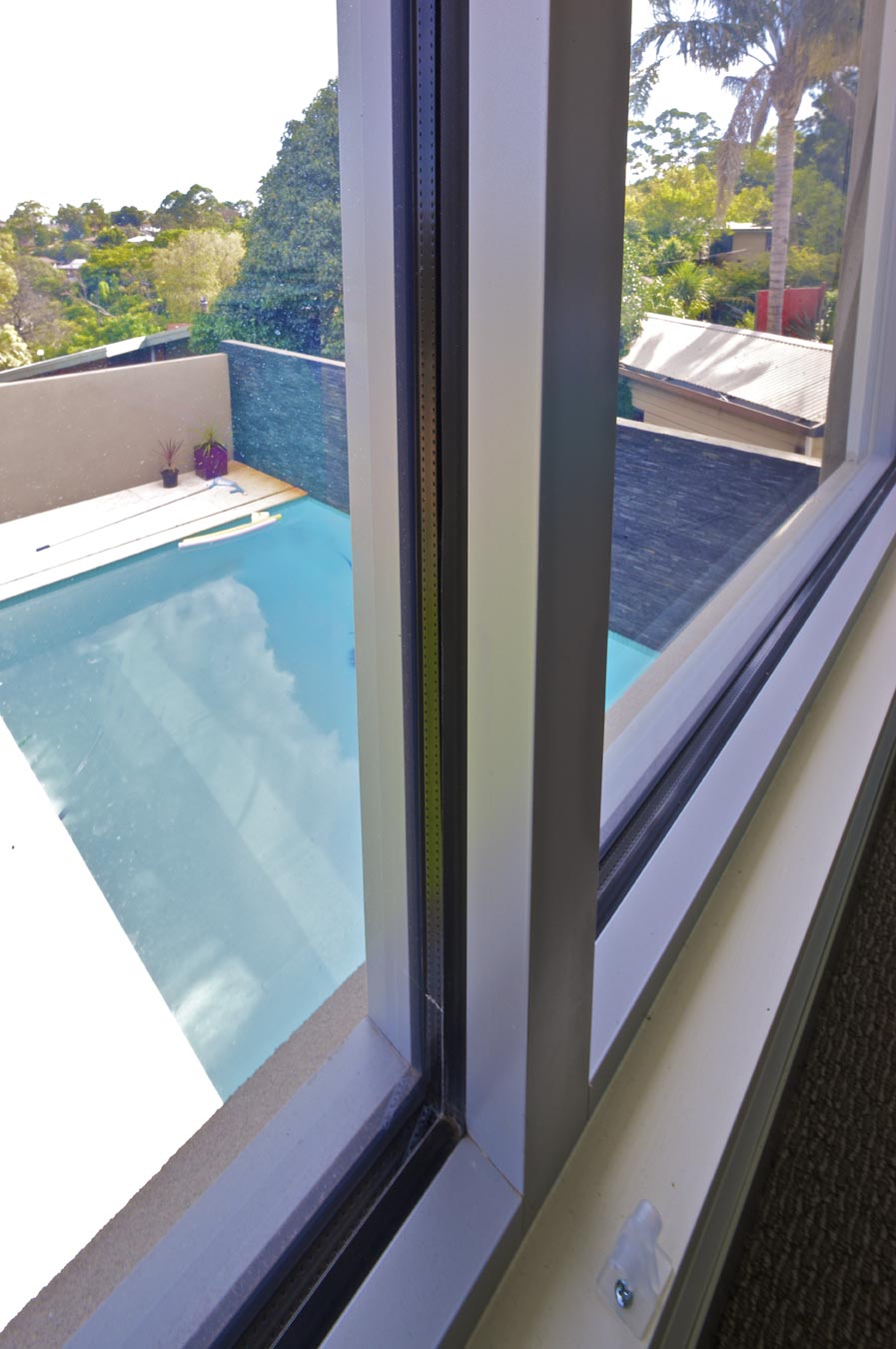

With a frame depth of 150mm x 50mm, ecoFRAMEplus® allows a frame to transform from double to single glazed with ease. Glazing could not be simpler with the colour coded wedges to deal with the many diverse glass options.
With the use of heavy duty mullions the ecoFRAMEplus® 150mm can allow heights to reach and surpass 4.0m depending upon wind loading conditions. Sub sills are recommended for optimum weathering with all ecoFRAMEplus® systems.
Key Features
- Sharp unbroken lines
- 4mm – 14mm single glazed and up to 28mm double glazed options
- Robust frame
- Secure glazing using fully captive backing gaskets to outside of window frame
- Excellent weathering performance
- Colour coded glazing wedges for ease of identification
- Easily adapts to Alspec’s awnings and hinged doors
Technical Specifications
Frame Dimensions
| Option 1 | 150 x 50mm |
Glazing Details
| Glass Position | Centre |
| Single Glazed | 4 - 14mm |
| Double Glazed | 16 - 28mm |
Maximum Recommended Sizes
| Height | 4800mm |
| Width | 2400mm |
Maximum Product Performance
| SLS (Pa) | 2500 |
| ULS (Pa) | 4000 |
| WATER (Pa) | 1200 |
Acoustic Performance: Rw (c;ctr)
| 6.38mm Laminate | 32 (-1,-2) dB |
| 6.38mm/12mm/6.38mm IGU (Max Glass) | 36 (-1,-5) dB |
Thermal Performance
| Uw range DG | 3.1 - 3.7 |
| SHGC range DG | 0.15 - 0.64 |
