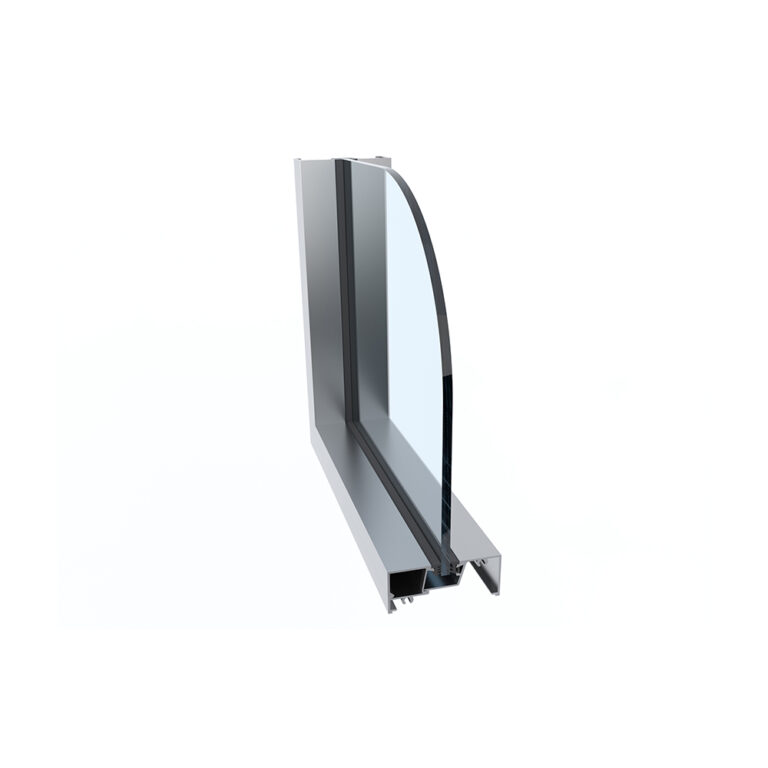

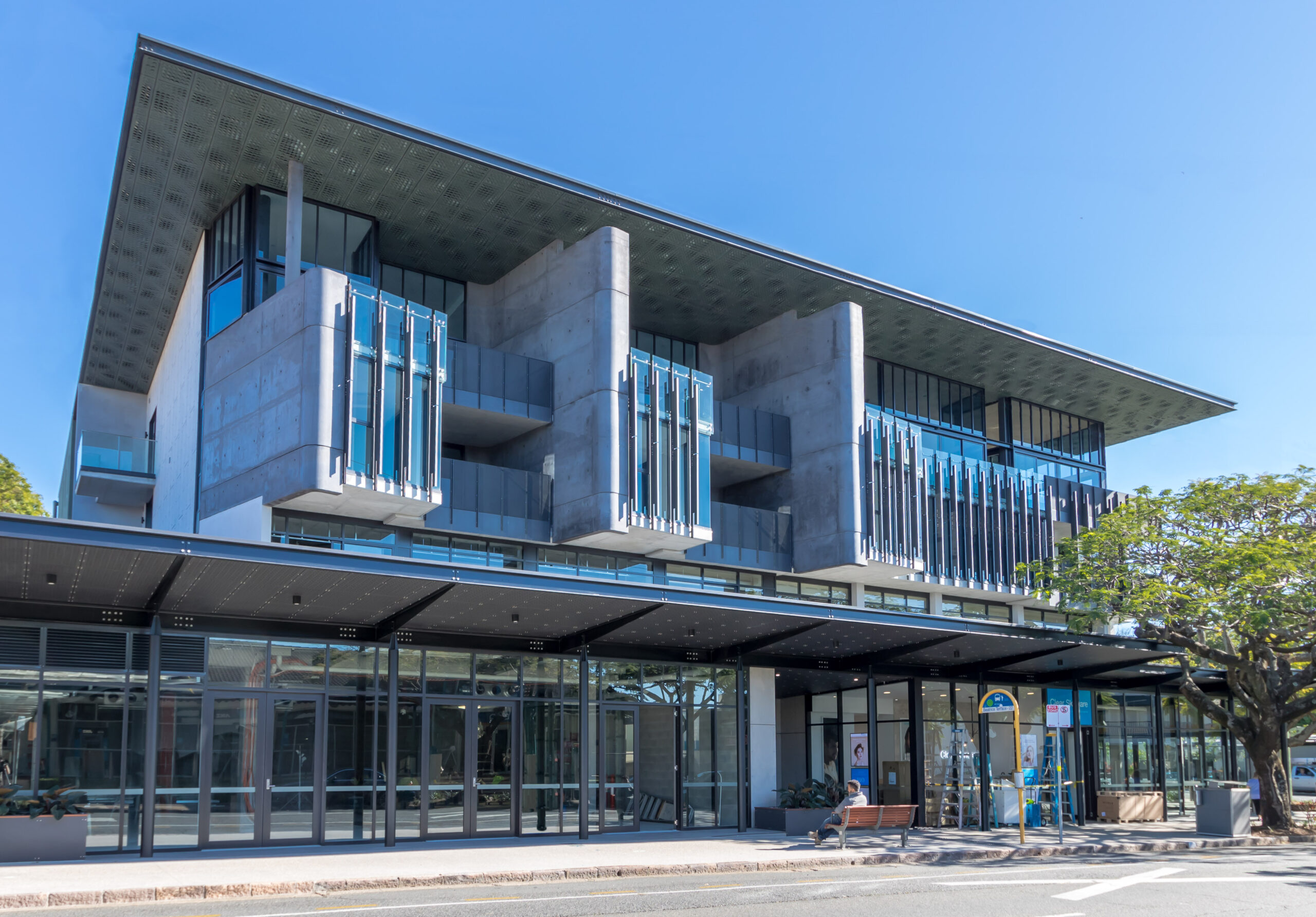

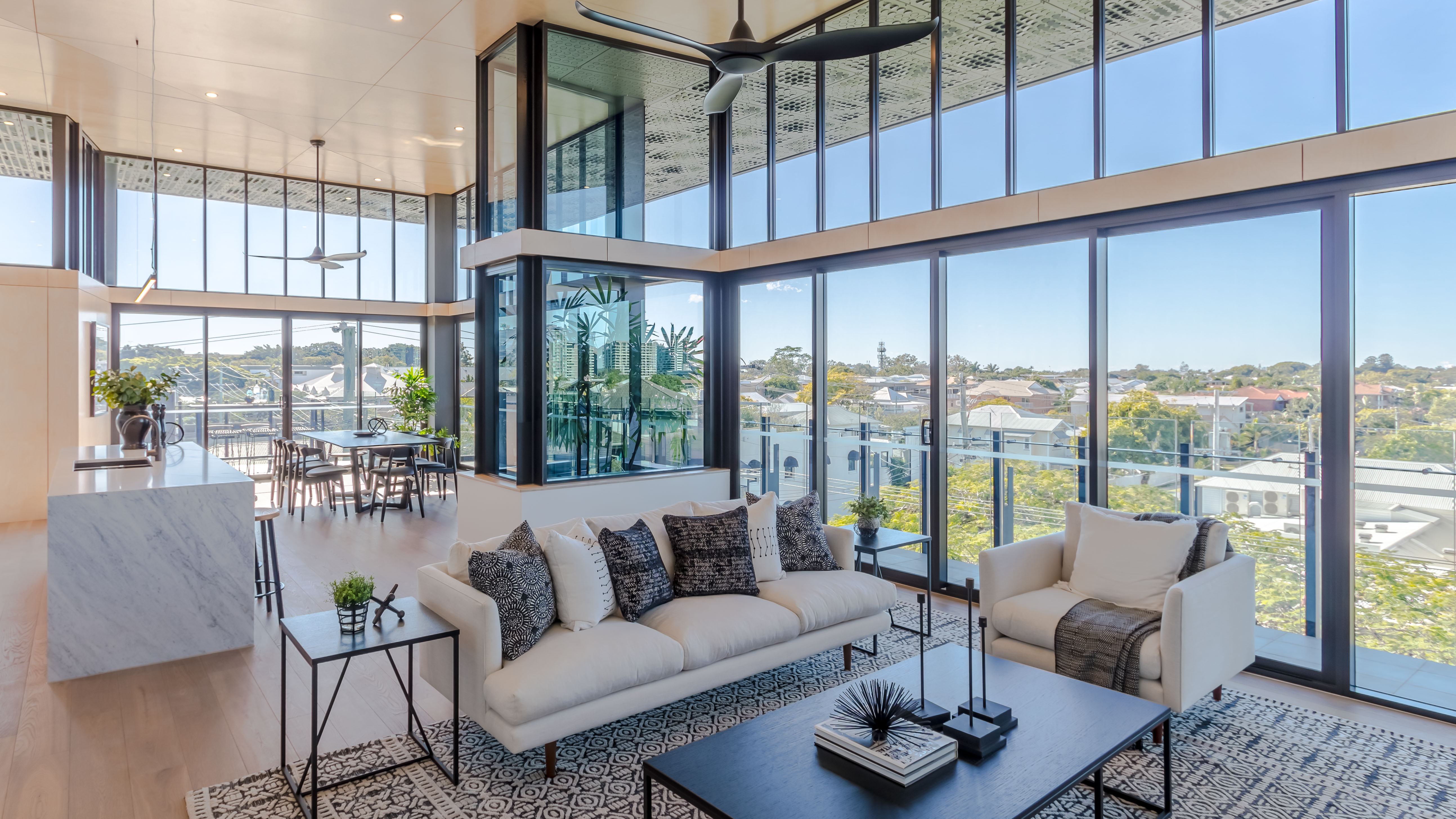

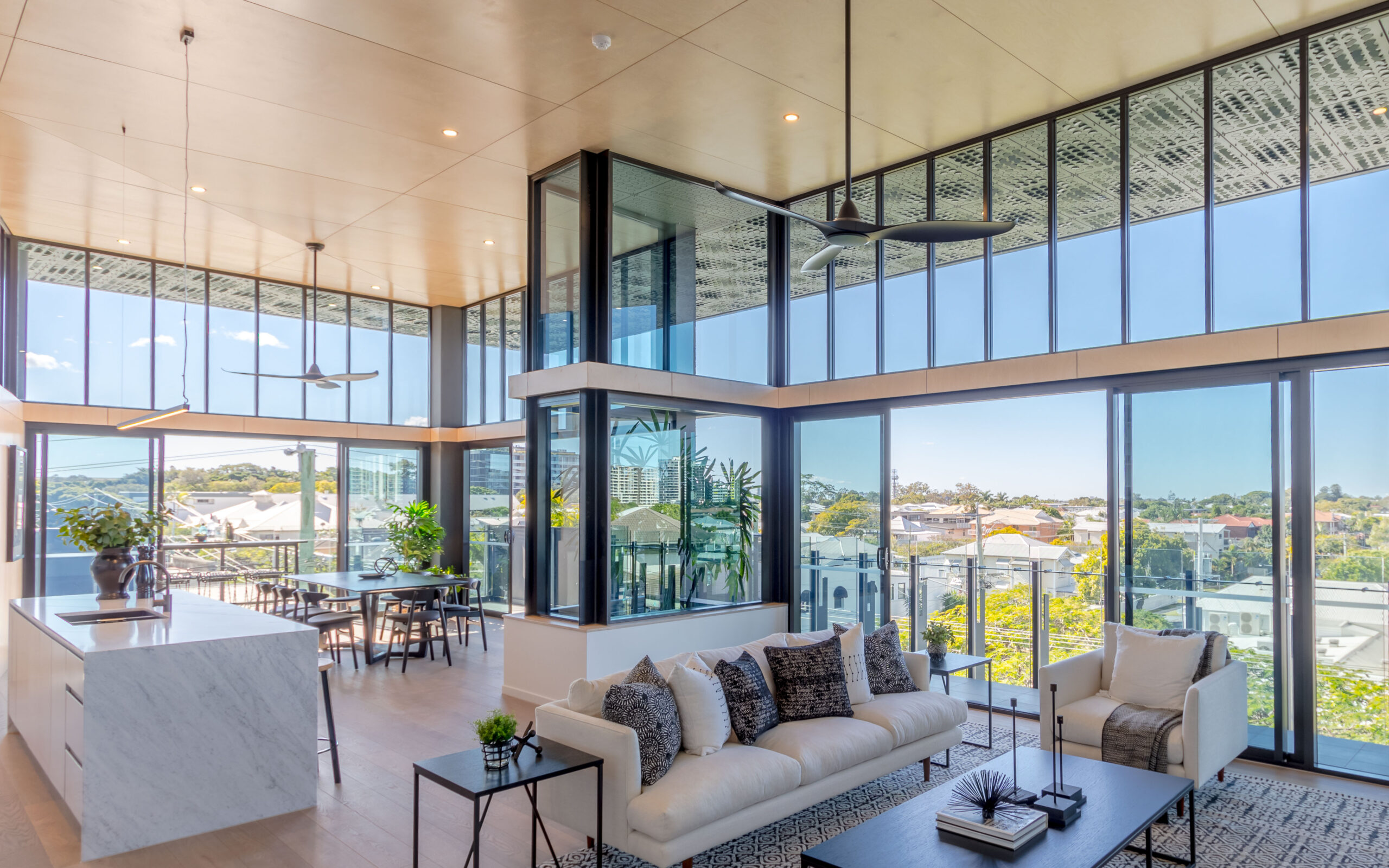

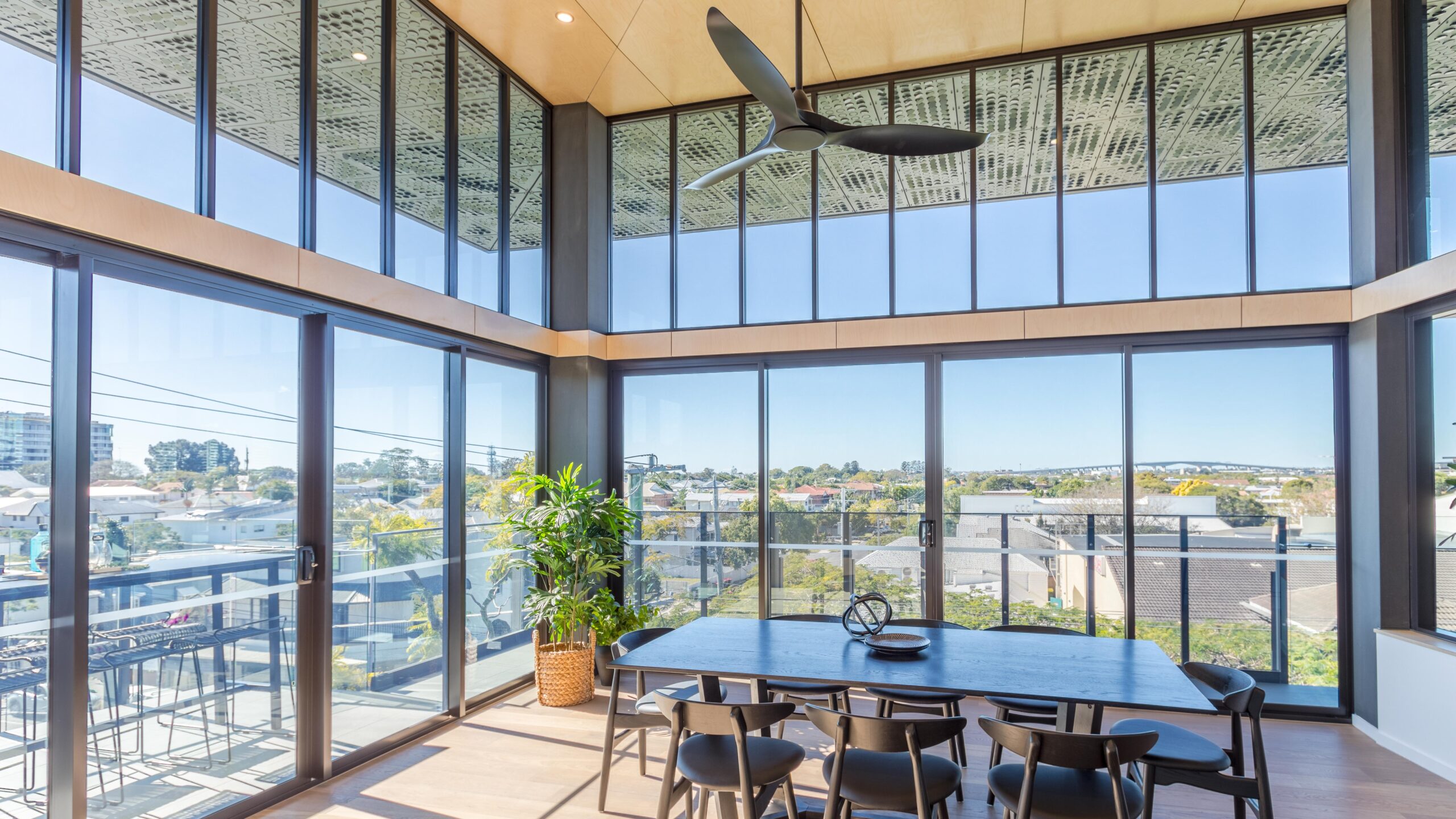

Derwent 76mm Centre Pocket Framing

Suitable for residential entrance ways, arcades, glass partitions and offices, the Derwent is the lightest and most slim line of the multi-purpose Alspec® Architectural Suites.

Tested and Compliant Solutions

The Derwent 76mm x35mm Centre Pocket Framing is an ideal economical fixed glazing suite for both internal and external locations. Suitable for residential entrance ways, arcades, glass partitions and offices, the Derwent is the lightest and most slim line of the multi-purpose Alspec Architectural Suites.

With its straight cuts and pocket glazing the Derwent not only looks good, but is easy to fabricate and easy to install. Suitable for a range of glass thicknesses it has self draining sub sills that solve water leakage problems. The Derwent also provides a seamless interface with Alspec’s extensive product offer.

Key Features

  • Sharp unbroken lines
  • Slimline frame
  • 4mm up to 10.38mm glazing options
  • Centre pocket framing, reducing the number of beads required thus improving fabrication and installation time
  • Various adaptors to easily accept awning, double hung, sliding windows, louvres and Alspec’s hinged doors

Technical Specifications

Frame Dimensions

Option 1 76 x 35mm

Compatible Systems

Windows & Doors Swan Evo™ 45mm/70mm Commercial Shopfront Door
Windows & Doors Torrens 45mm Commercial Shopfront Door
Windows & Doors Awning and Casement Windows
Windows & Doors View-Max® Commercial Sliding Window

Maximum Product Performance

SLS (Pa) 3500
ULS (Pa) 3500
WATER (Pa) 600

Glazing Details

Glass Position Centre
Single Glazed 4 - 10.38mm

Thermal Performance

Uw range SG 4.0 - 5.9
SHGC range SG 0.34 - 0.77

Maximum Recommended Sizes

Height 2400mm
Width 2000mm

Downloads

Tech Manual

Log in to view all files

Customer Technical Memos

Log in to view all files

Wall Charts

Log in to view all files

CAD Drawings

Log in to view all files

3D Revit

Log in to view all files

Typical Configurations

WERS Ratings

Window ID Glazing Frame Uw SHGCw Tvw Air Inf
