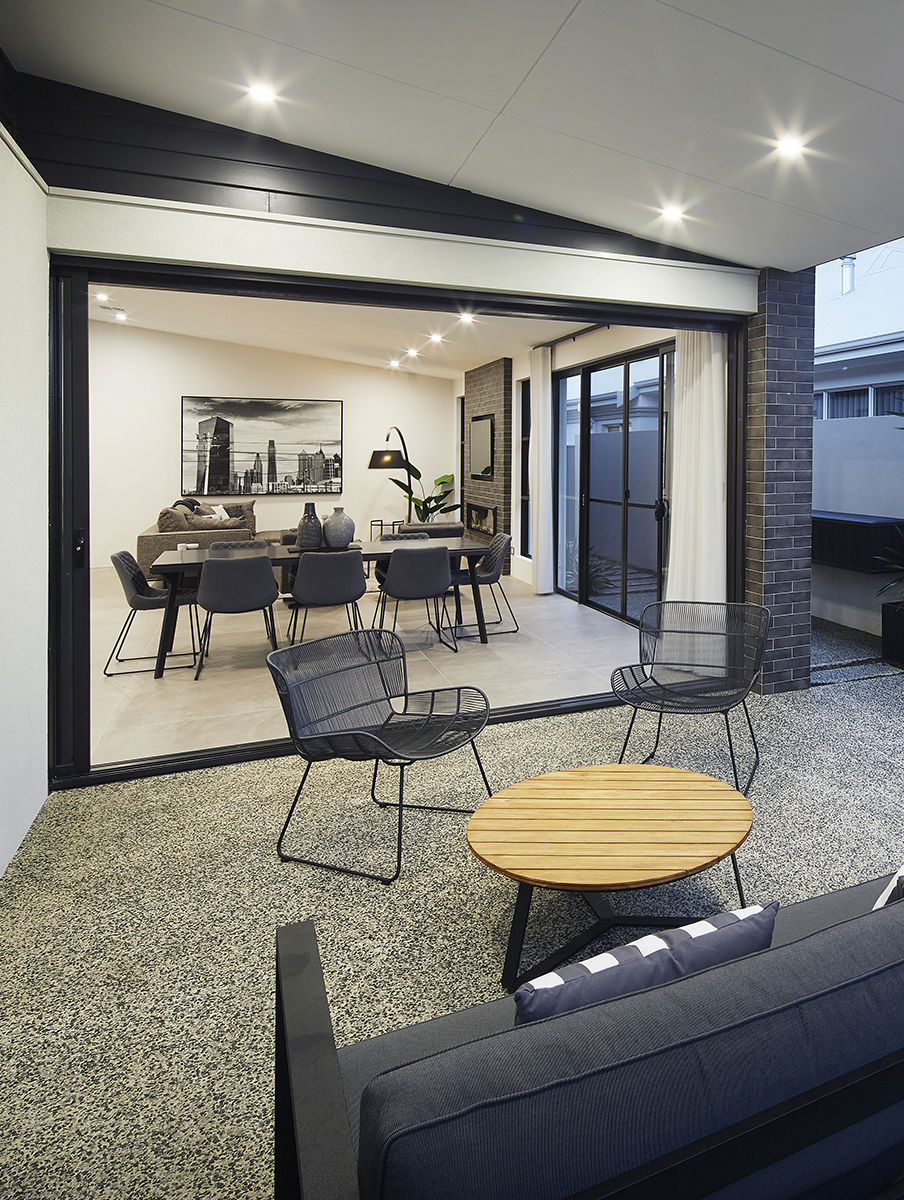

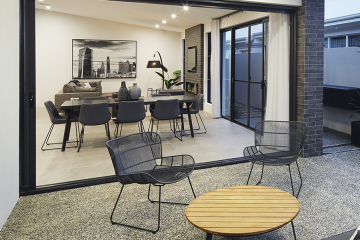

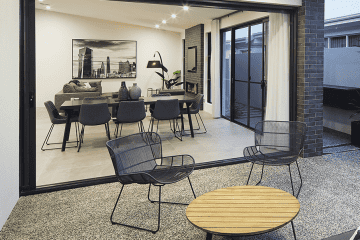

Comfort Thermally Broken Sliding Door

Boost your home’s comfort and energy efficiency whilst making the most of your views and entertaining.



Tested and Compliant Solutions





Key Features

  • A complete range of threshold and jamb in-fills as well as end caps to conceal all cavities. This not only provides a superior quality, commercial grade finish but also minimises places for insects, dirt and grit to gather
  • An internally concealed weather flap also reduces air and water infiltration and minimises insect intrusion through the drain holes
  • There is also a range of attractive interlock options to meet a wide variety of wind load requirements up to the most demanding cyclonic conditions

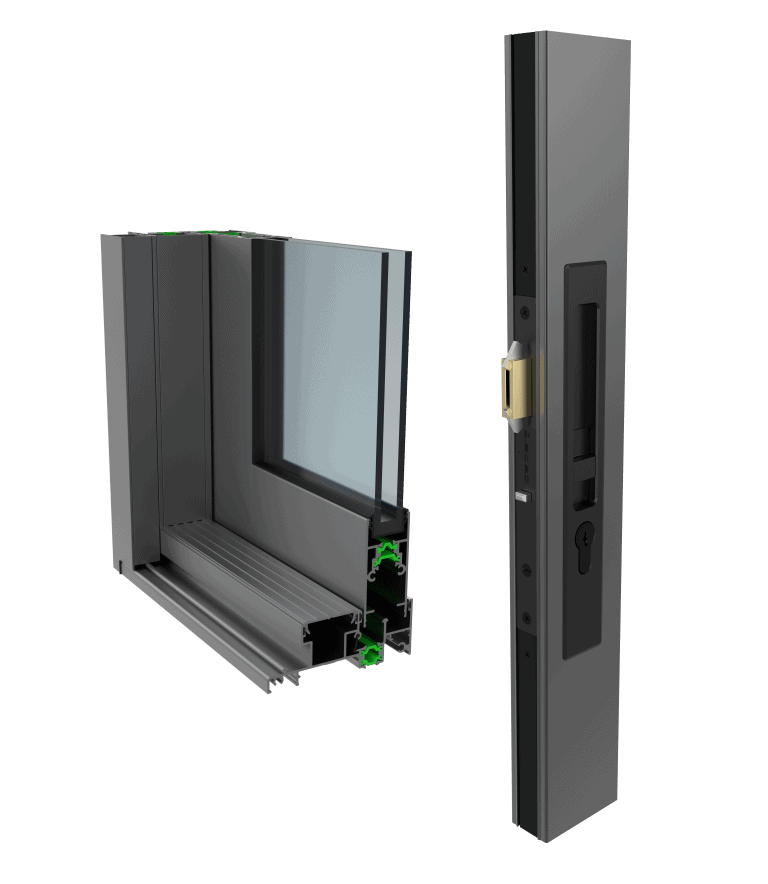

  • Utilises a strong ‘Double Strut’ thermal break construction for maximum strength in the sash
  • Excellent UW values 2.1 – 3.1
  • Integrated screening options available
  • Sash features internal and external weather seals for maximum performance
  • Thermal insulation strip to minimise the transfer of heat and cold
  • Features Alspec hardware: Triser Sliding Door Mortice lock



Technical Specifications

Frame Dimensions

Option 1 110 x 40mm
Option 2 176 x 40mm

Glazing Details

Double Glazed 20 – 24mm

Maximum Recommended Sizes

Sash Height 2700mm
Sash Width 1500mm
Weight 300kg

Maximum Product Performance

SLS (Pa) 1200 Pa
ULS (Pa) 2000 Pa
Water (Pa) 300 Pa

Thermal Performance

Uw range DG 2.1 – 3.1 W/m2-K
SHGC range DG 0.18 – 0.61

Downloads

Tech Manual

Log in to view all files

Wall Charts

Log in to view all files

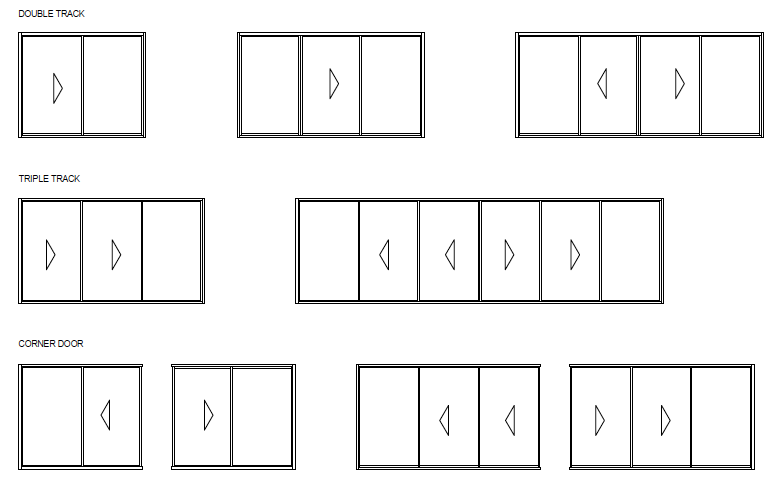

Typical Configurations

WERS Ratings

Window ID Glazing Frame Uw SHGCw Tvw Air Inf

Energy Efficiency
