Ventus Louvre
Ventus Louvres create passive airflow, minimising requirements for air-conditioning or heating. The Ventus Louvre galleries have been tested to exceed the requirements stated in the NCC for Fall Prevention and Blade Retention. Ventus louvres were designed in Australia to withstand the harshest of conditions and ideas for openings in high applications such as multi-stories and balcony enclosures.

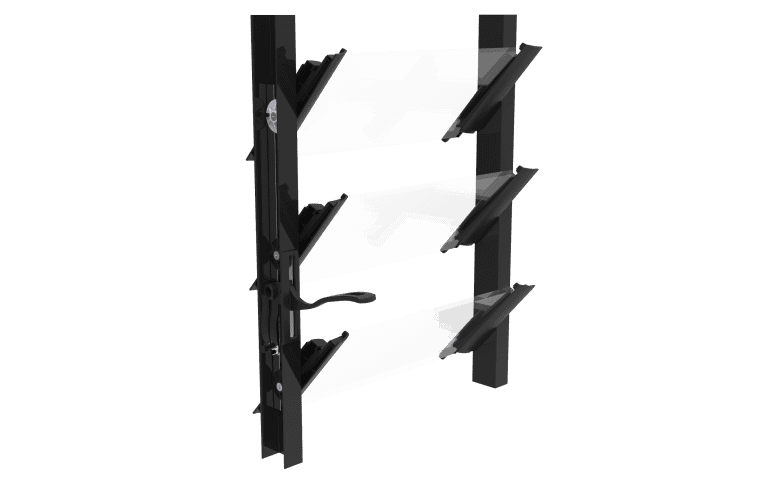

Available in two blade width options:
- 102mm: Available in 3-31 blades high
- 152mm: Available in 2-21 blades high
Key Features
- Maximise natural ventilation with a 100% opening capacity
- Screen compatibility
- Automation options
- A wide variety of configurations is available
- Fall prevention when restrictor cams are applied
- Blade retention
- Compatible with Carinya and Alspec commercial framing systems
- AS4420 and AS2047 compliant
- BAL-40 compliant
Brochures

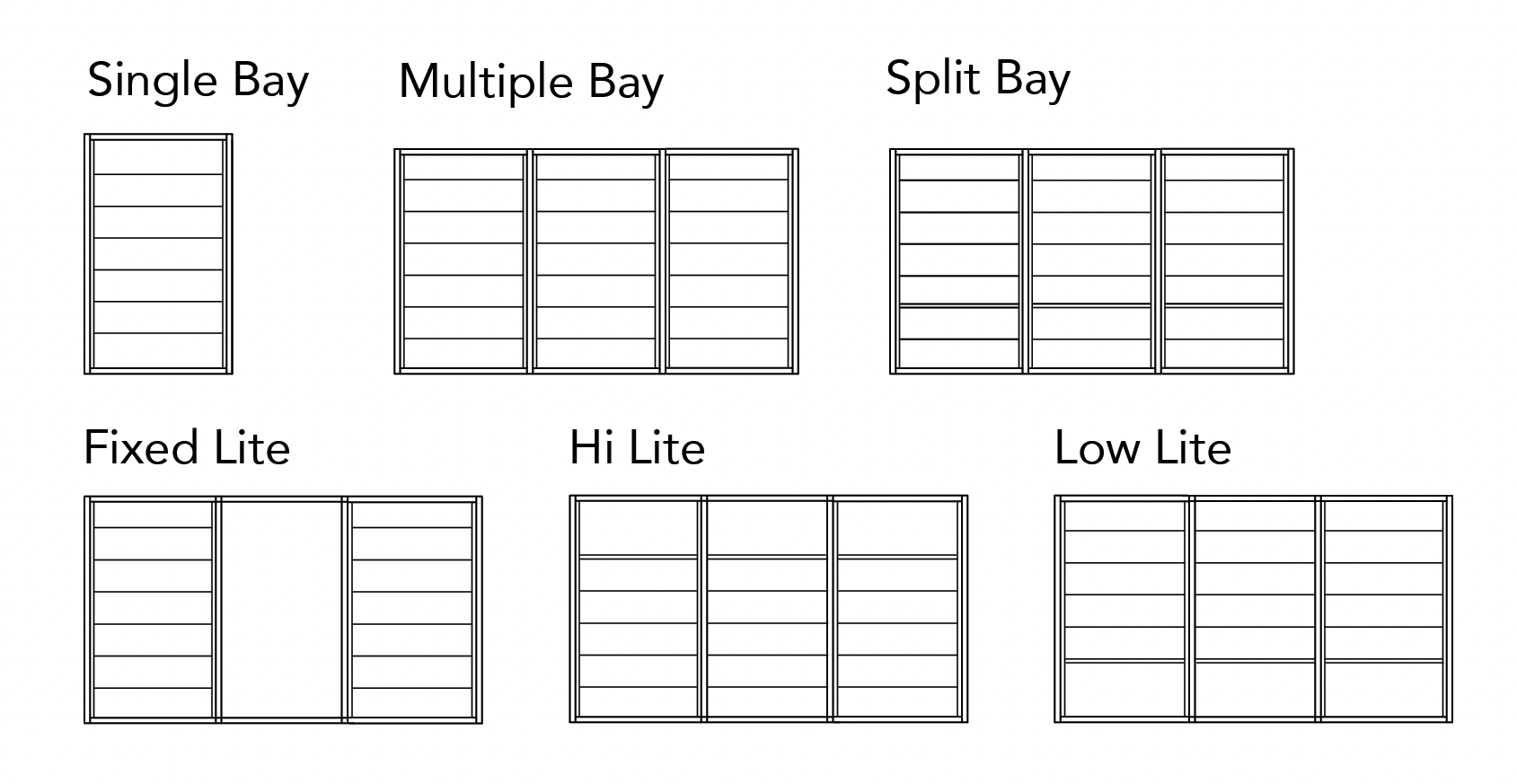

Typical Configurations

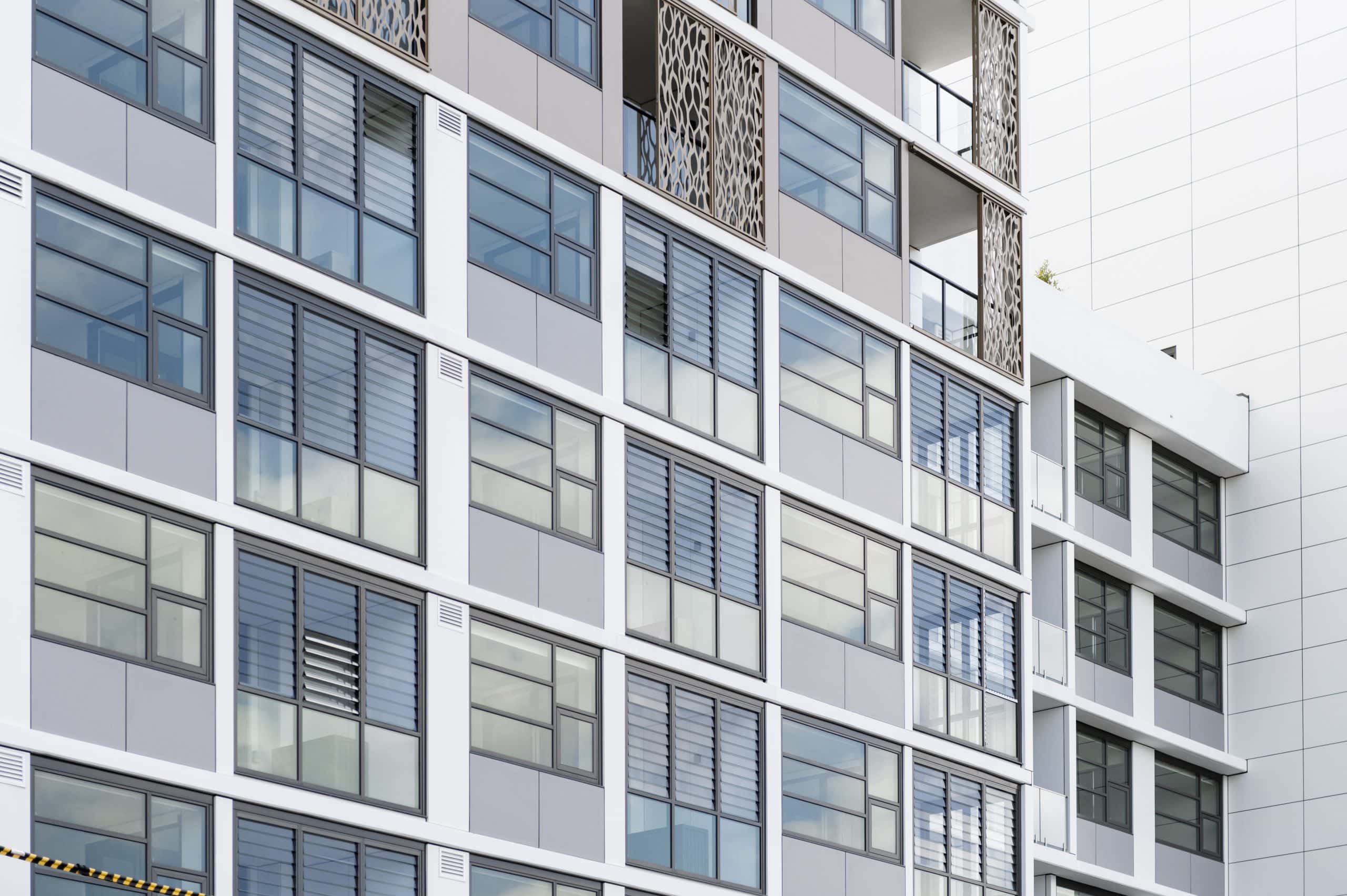

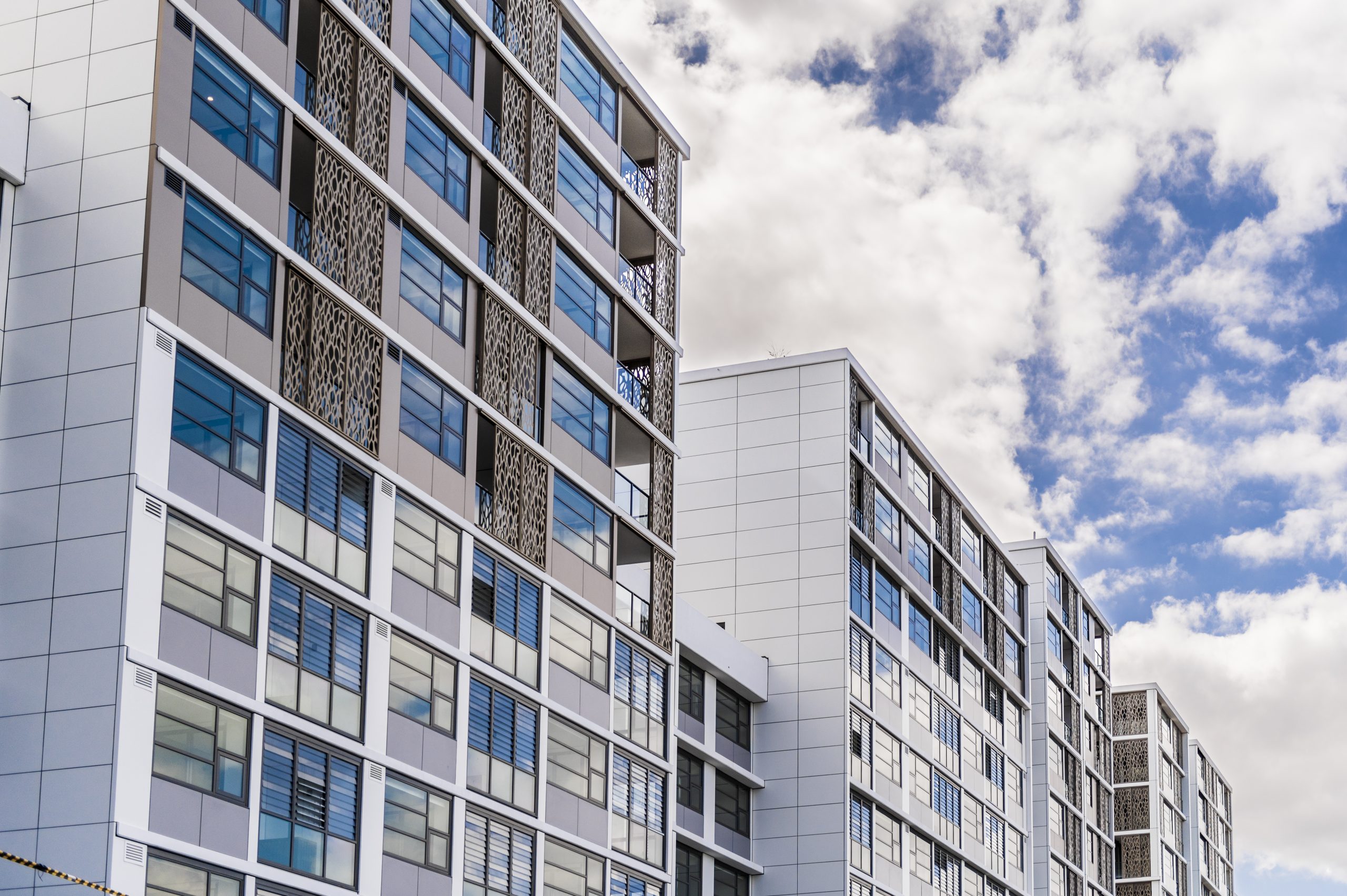

Gallery
