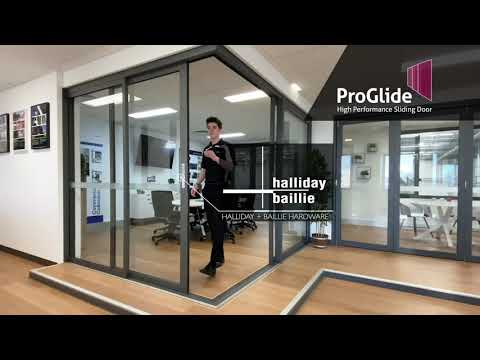

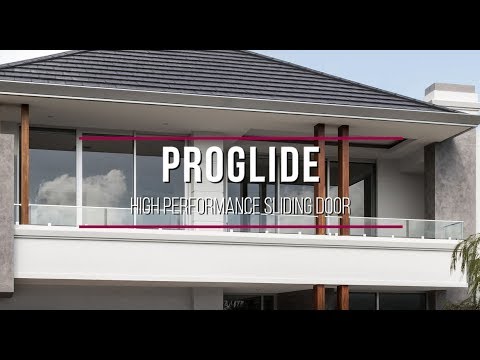

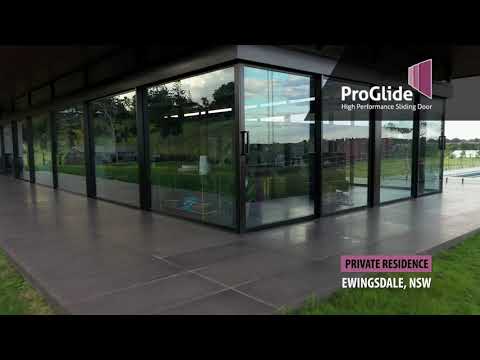

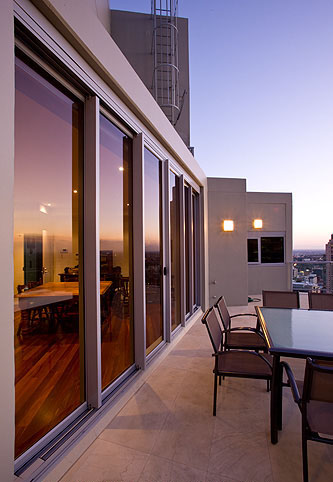

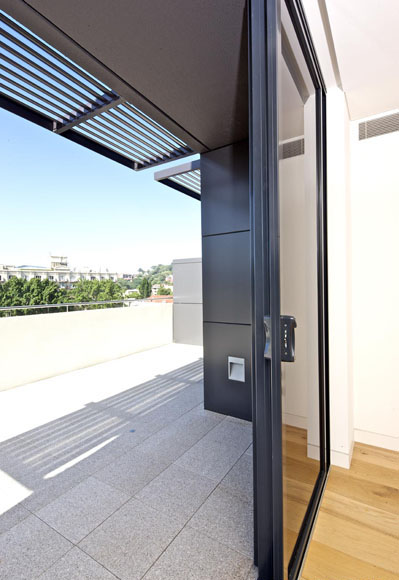

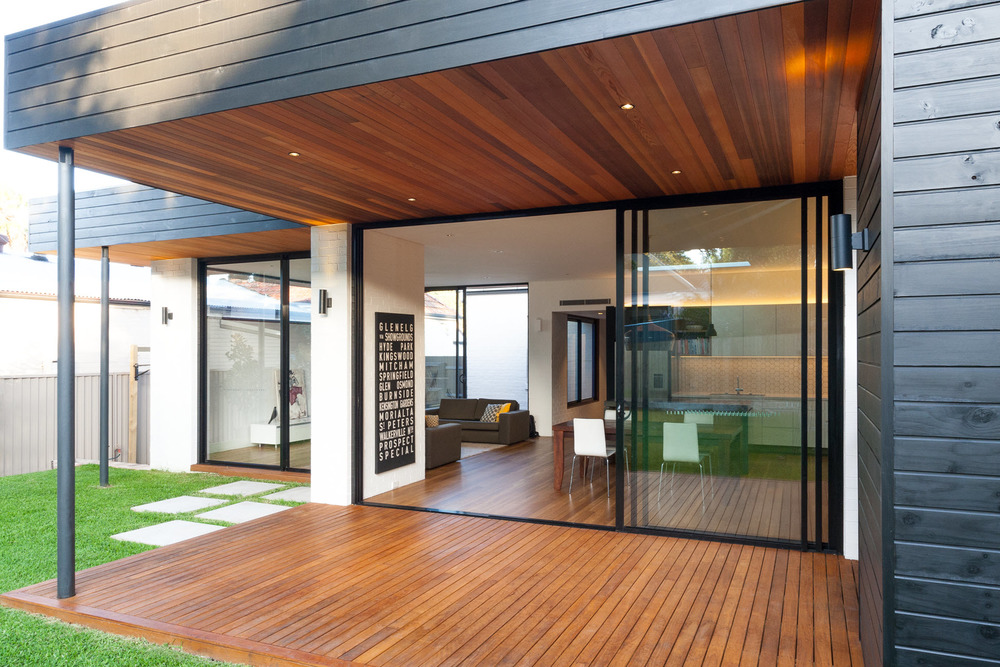

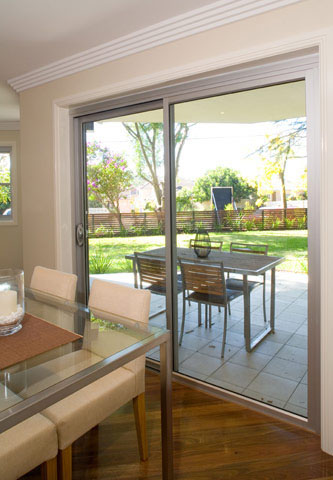

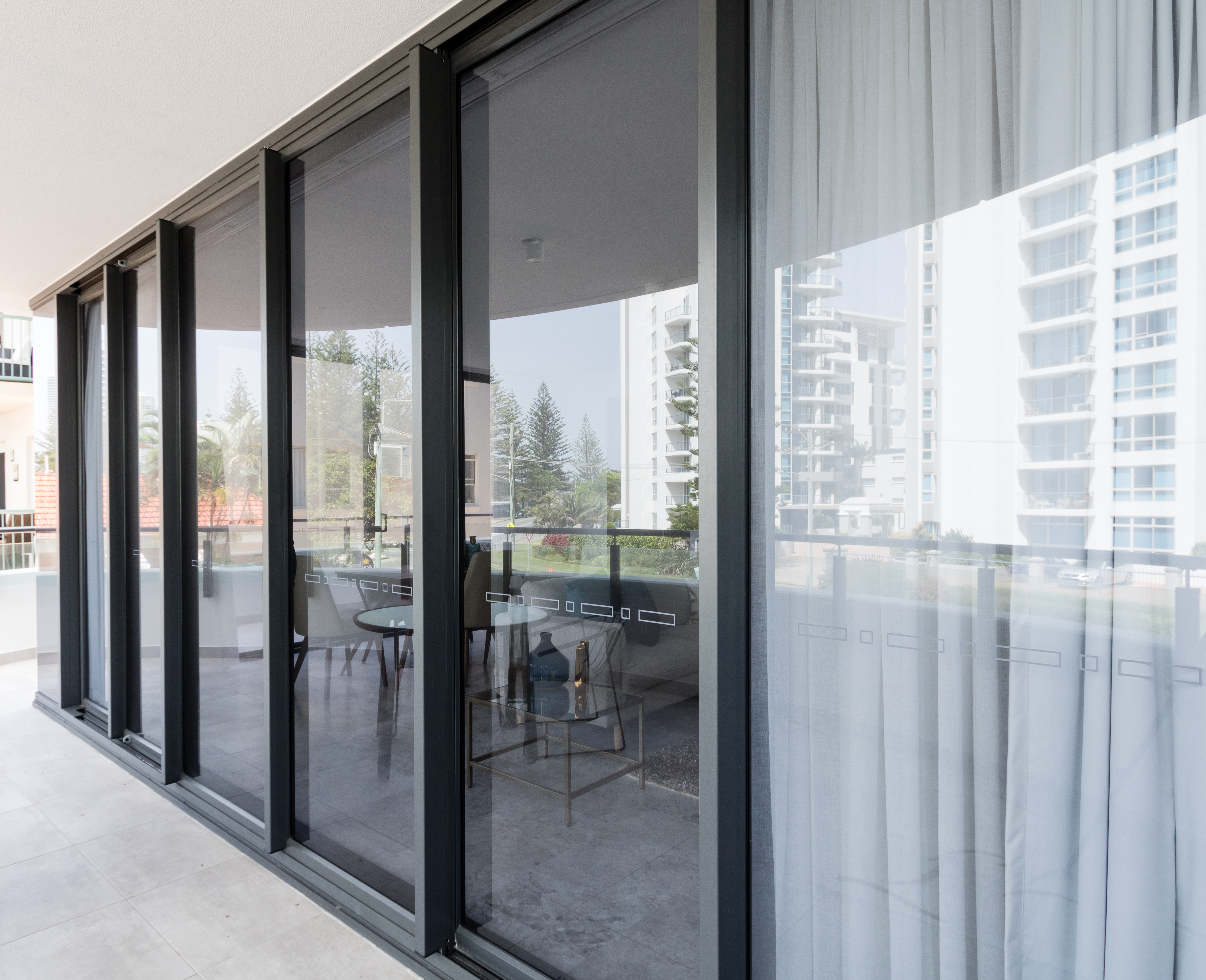

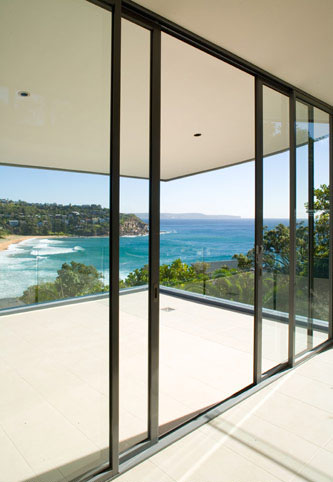

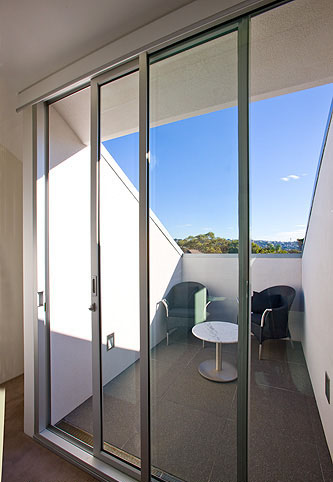

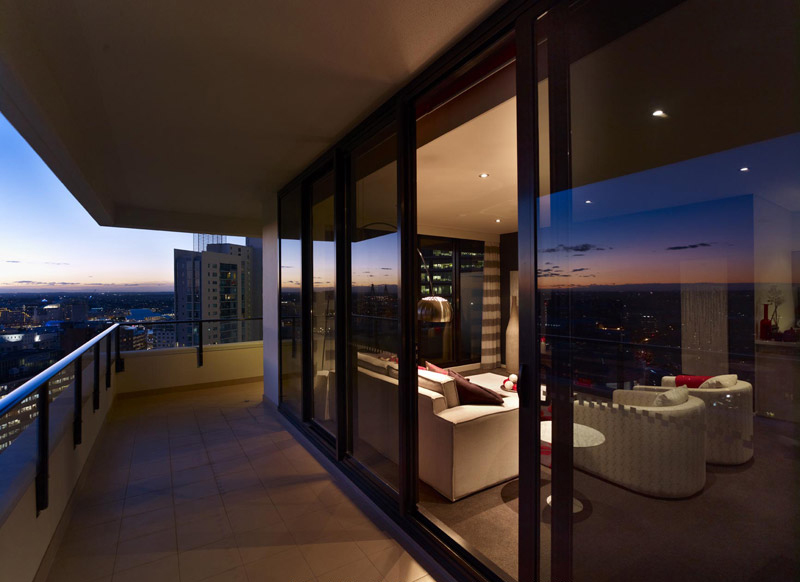

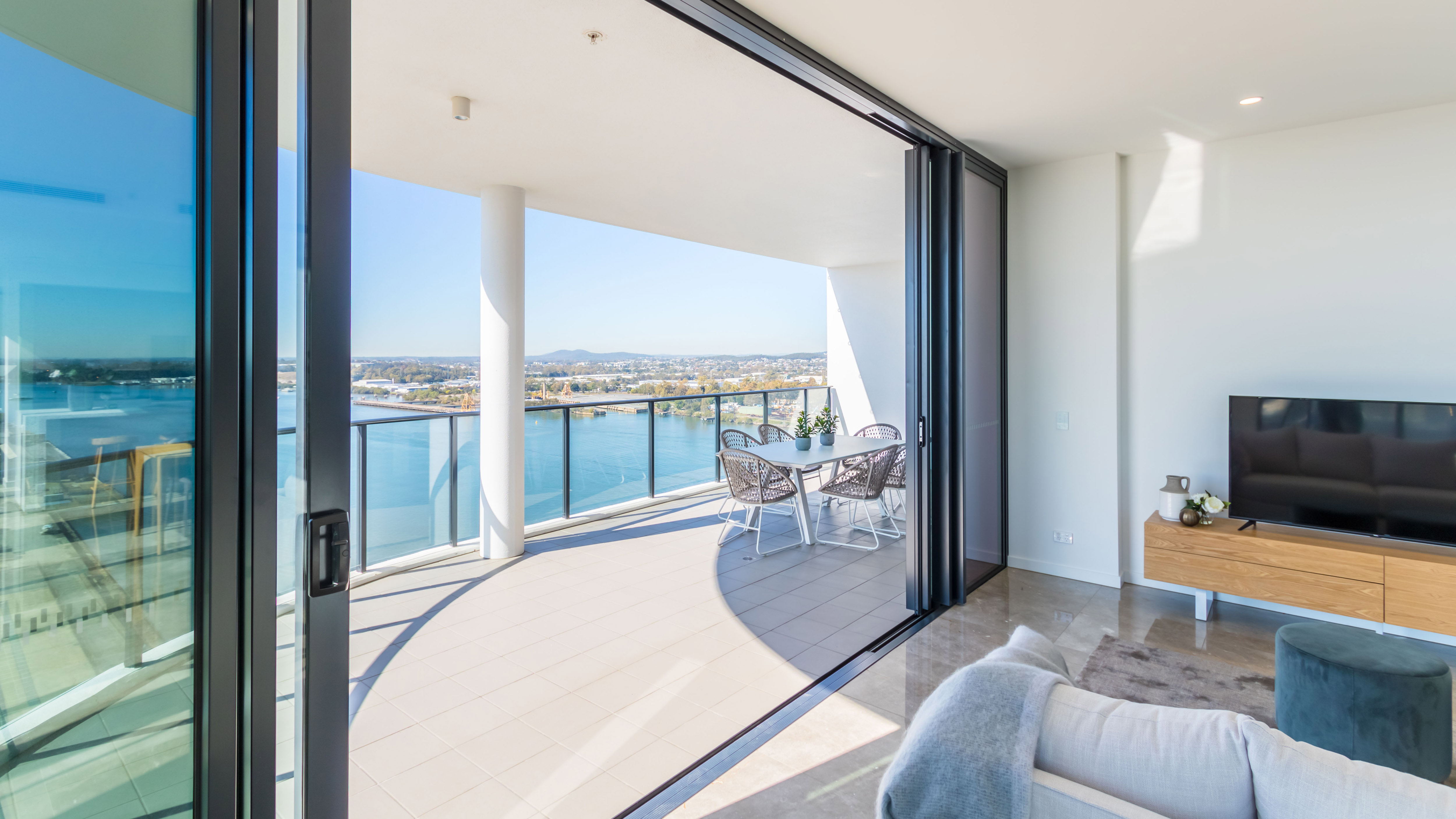

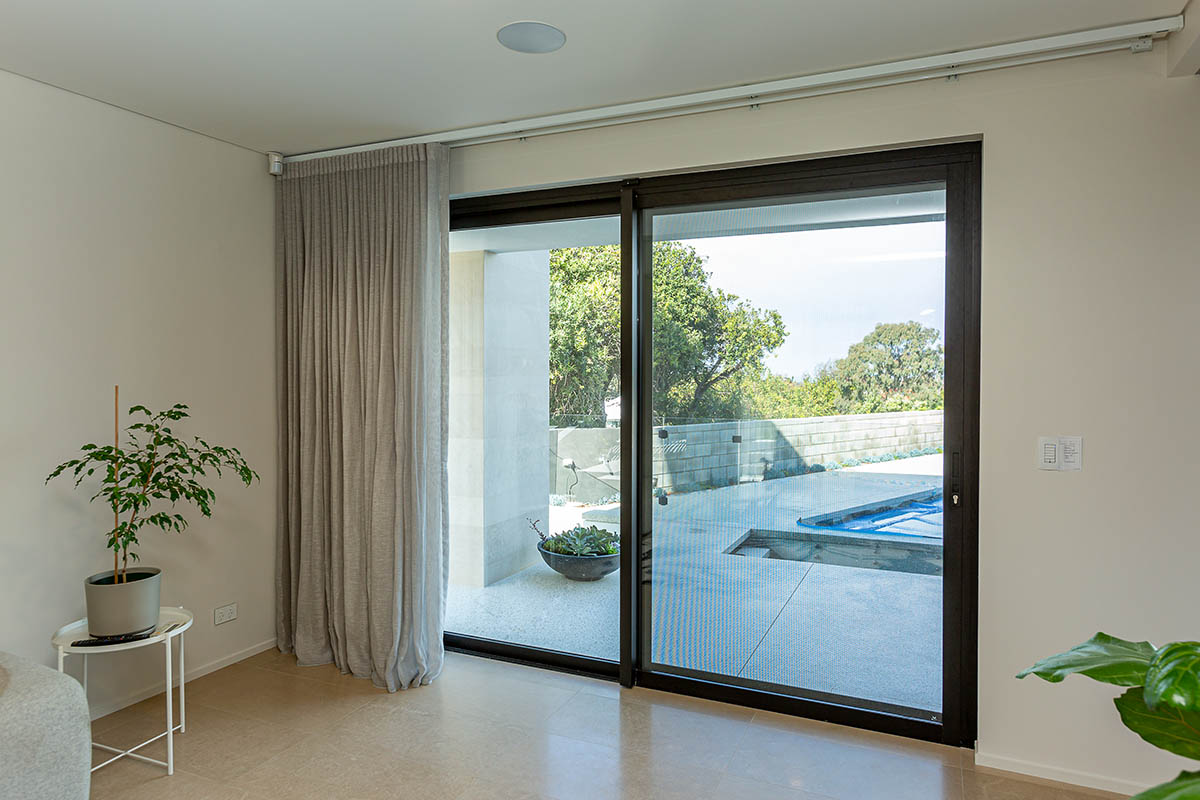

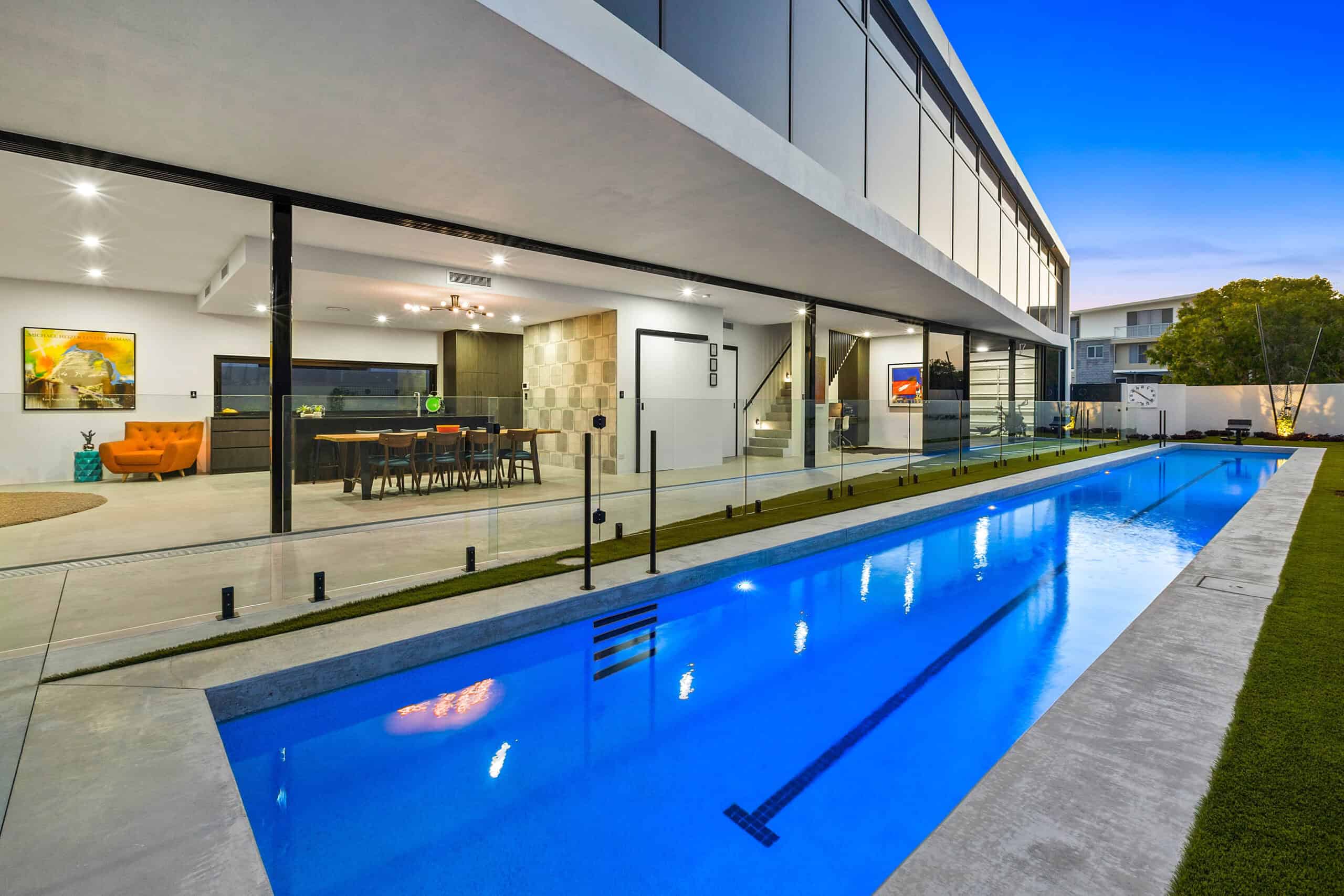

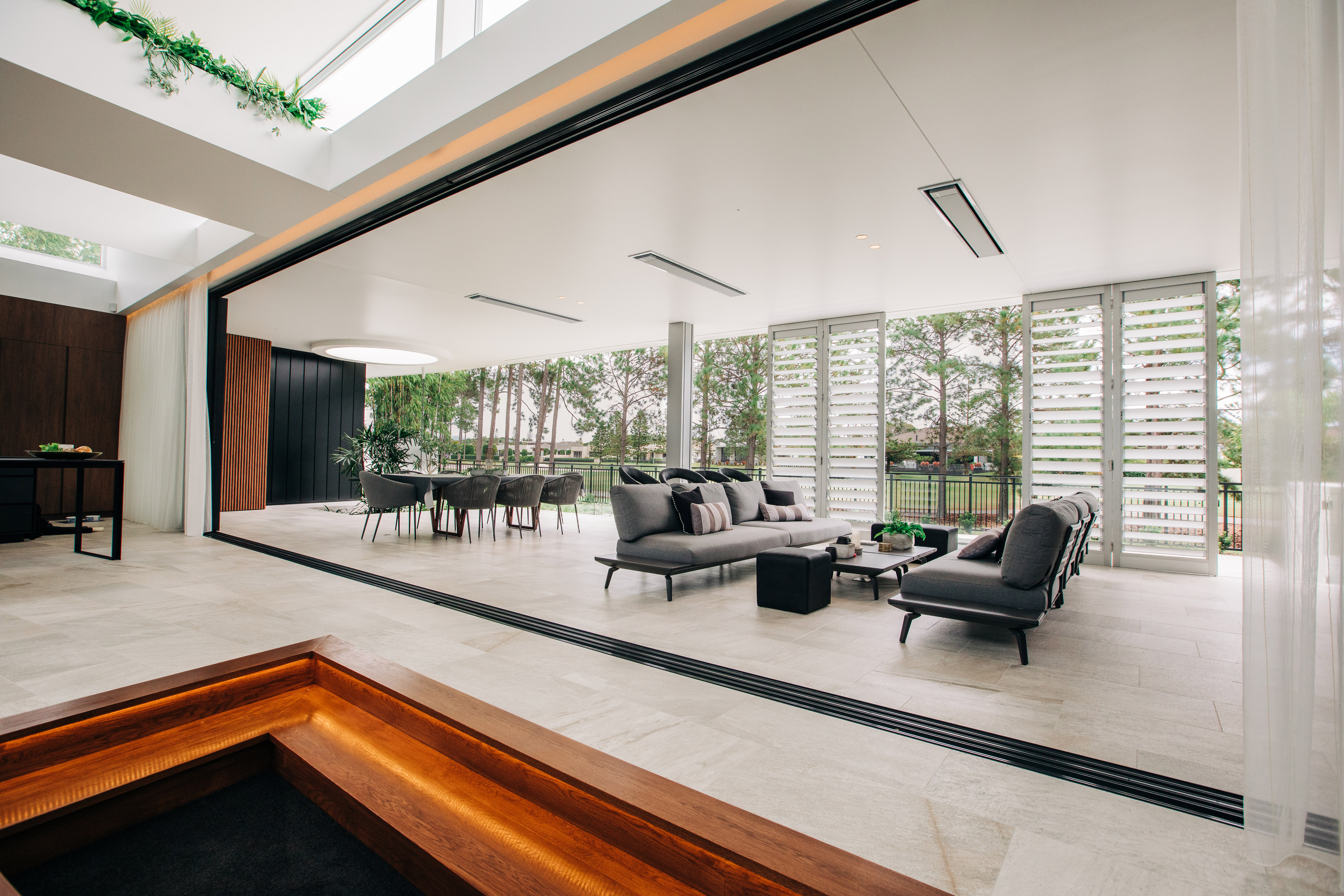

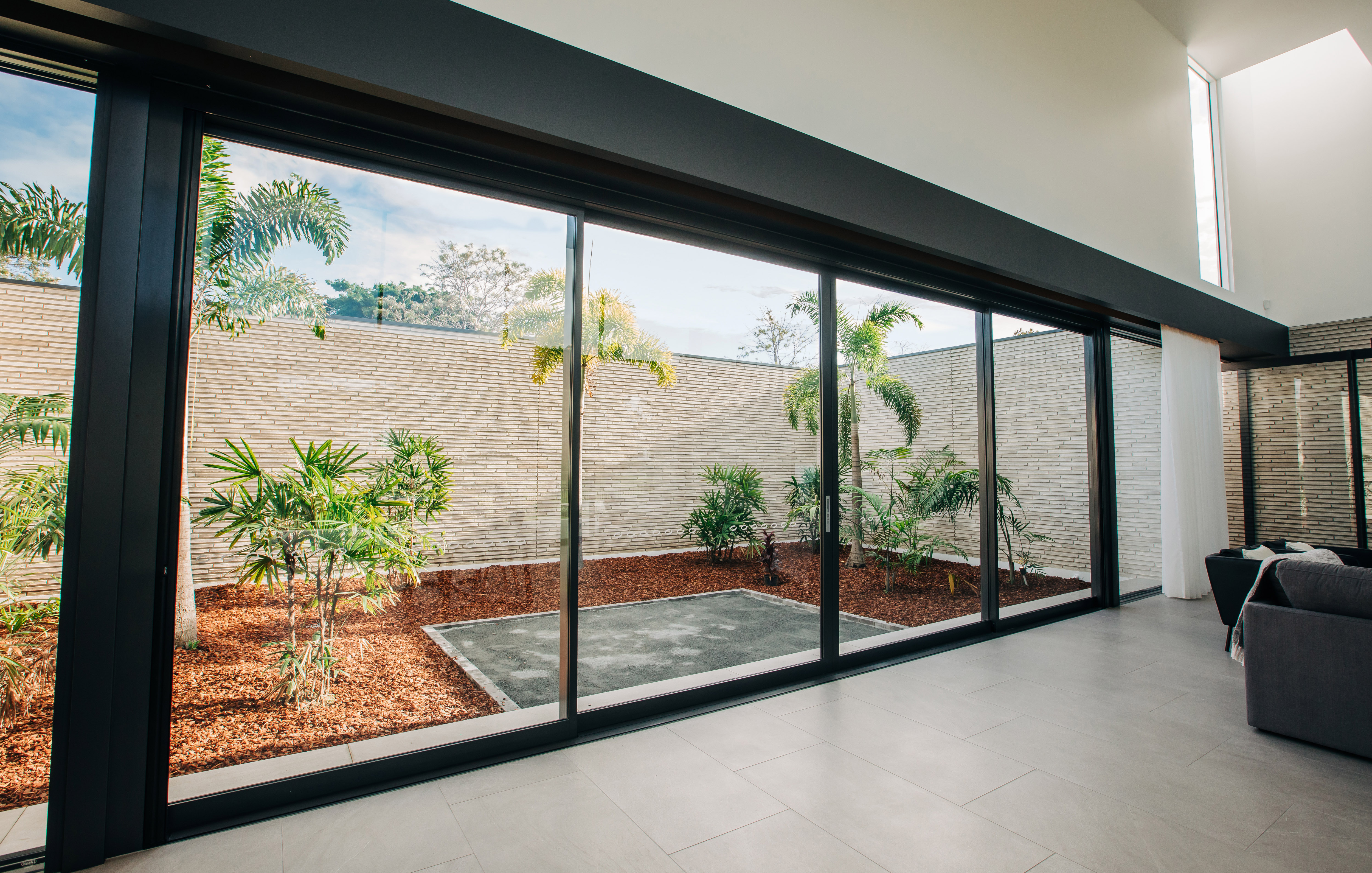

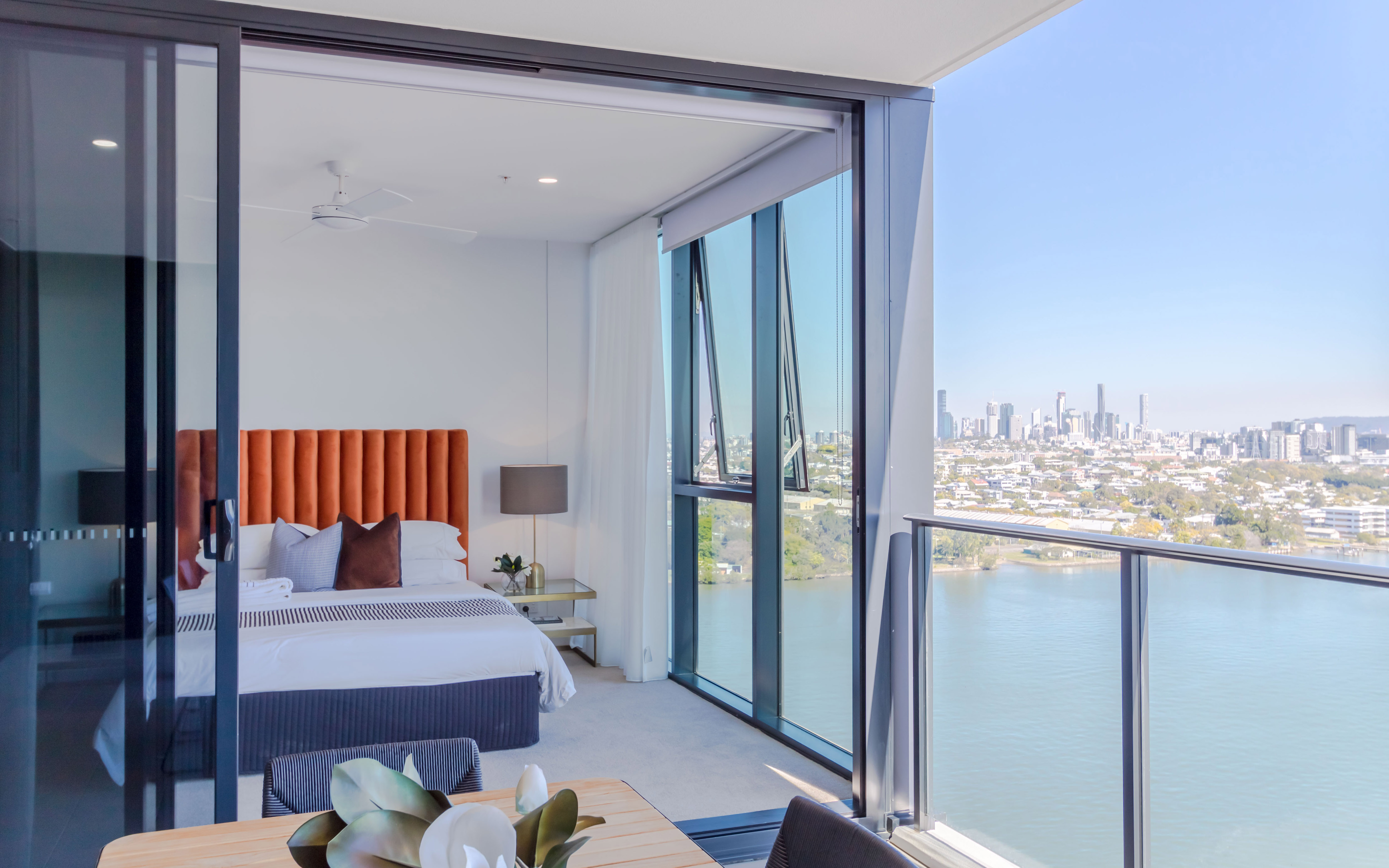

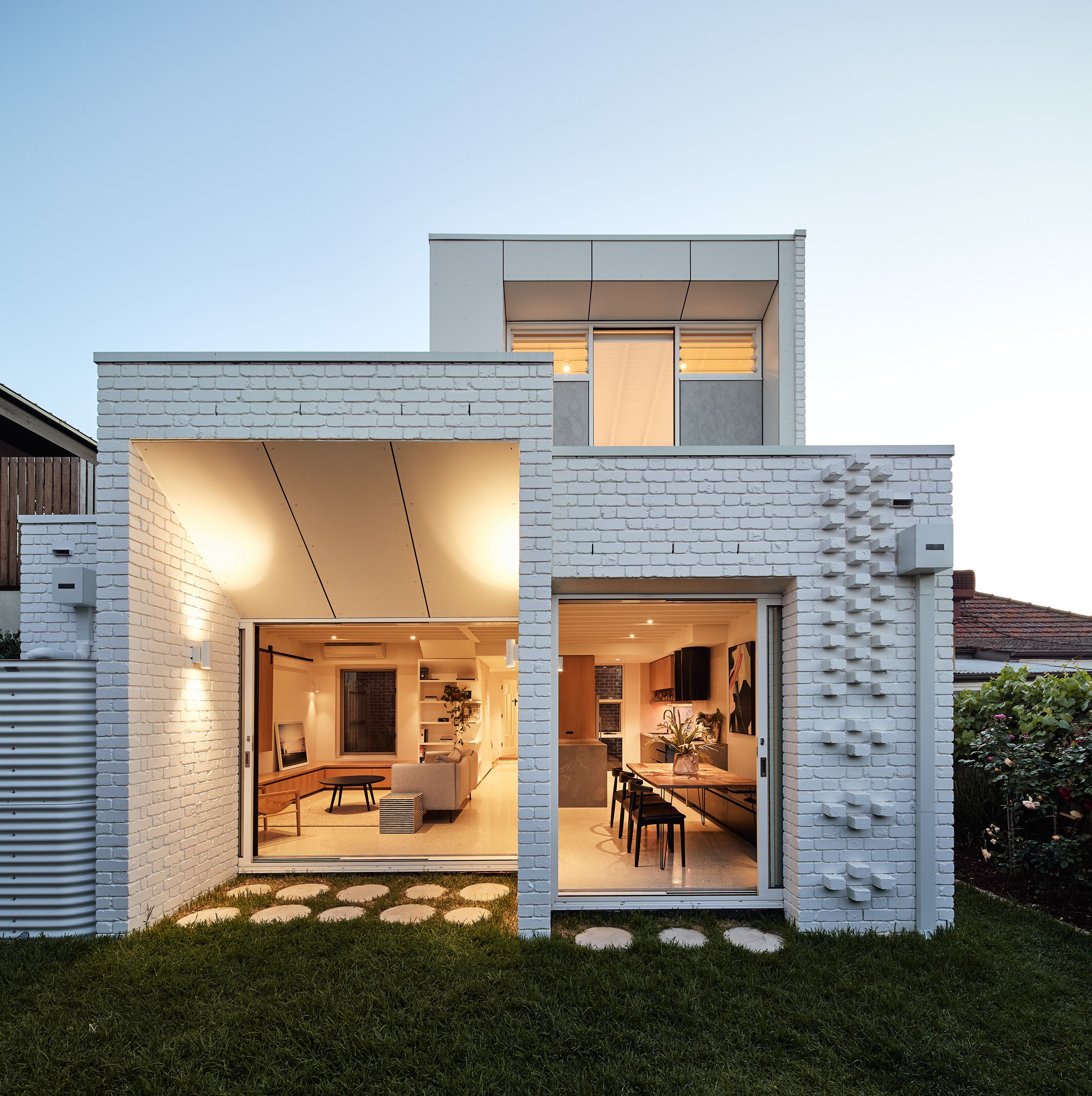

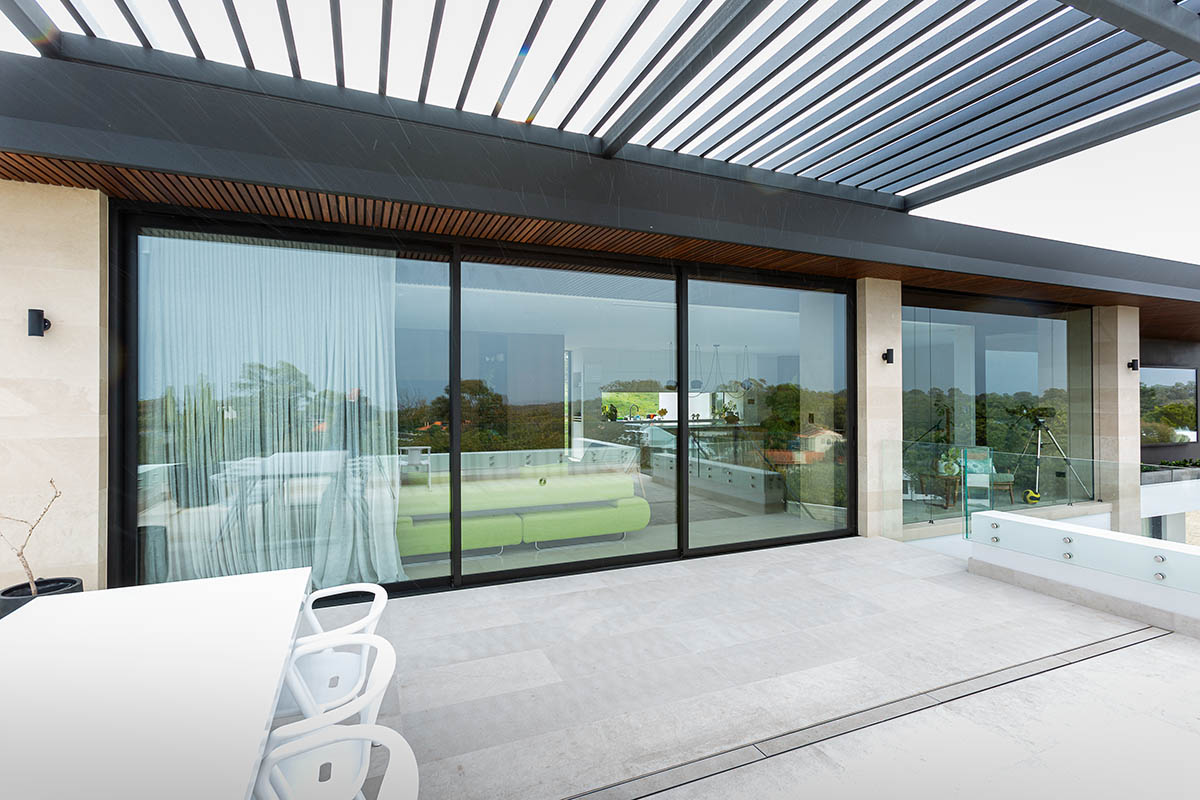

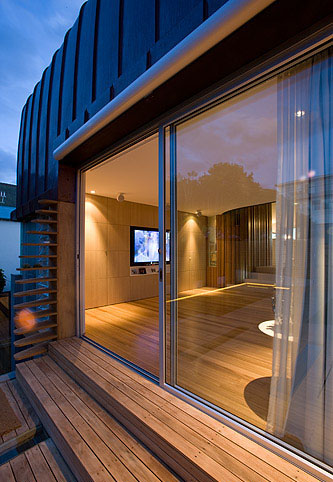

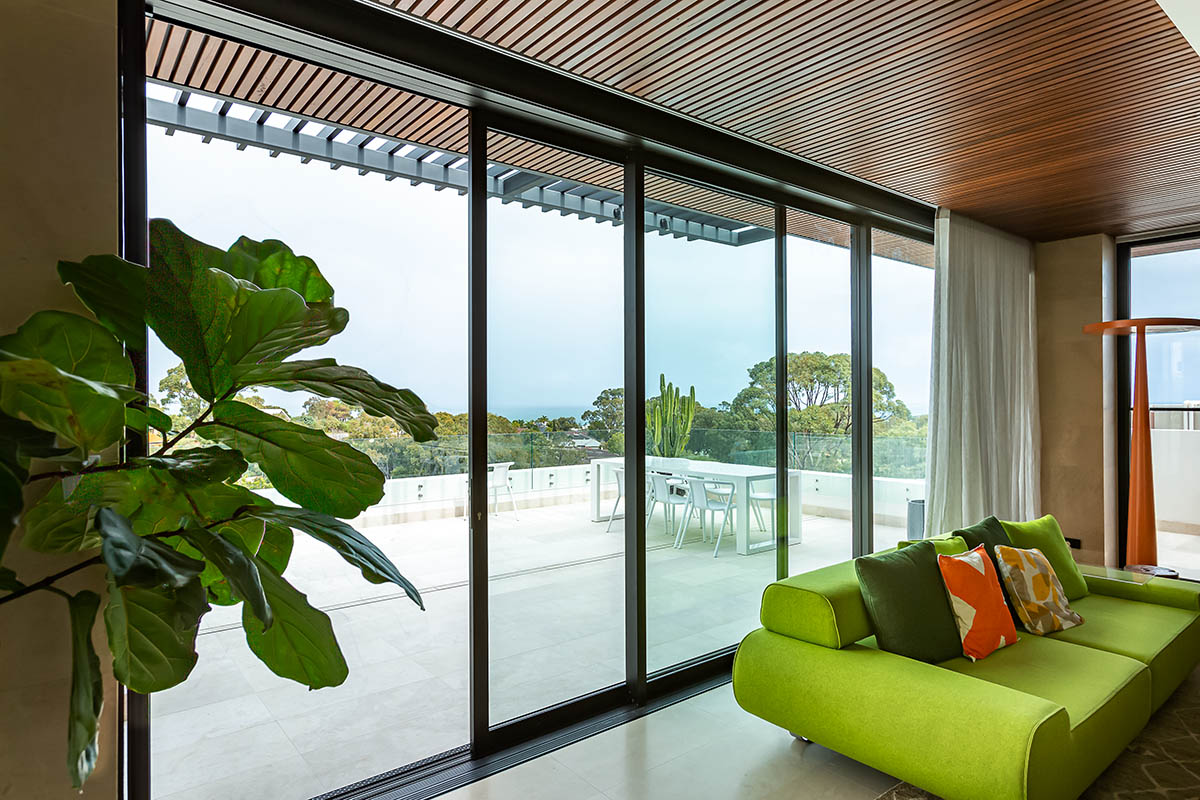

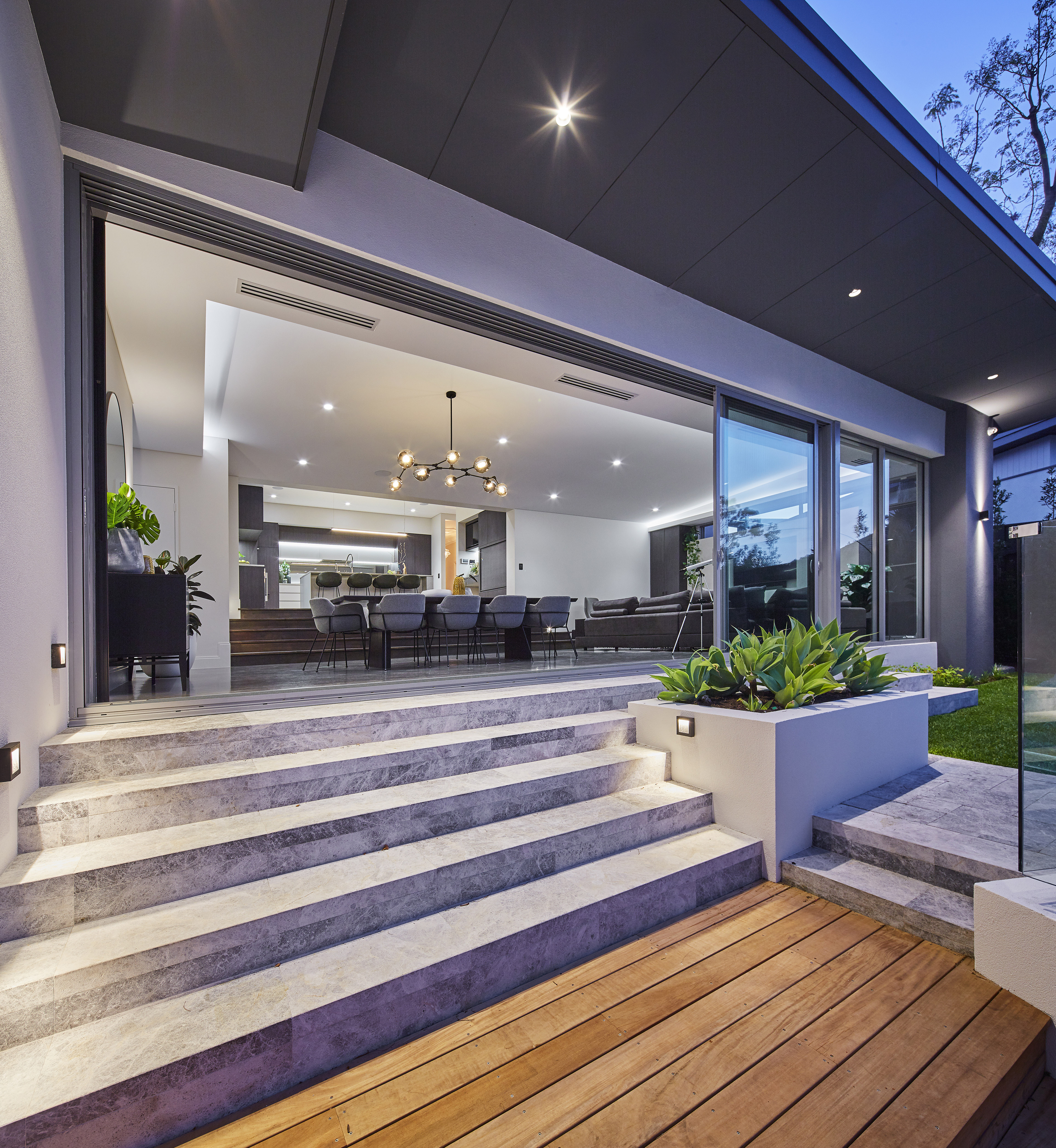

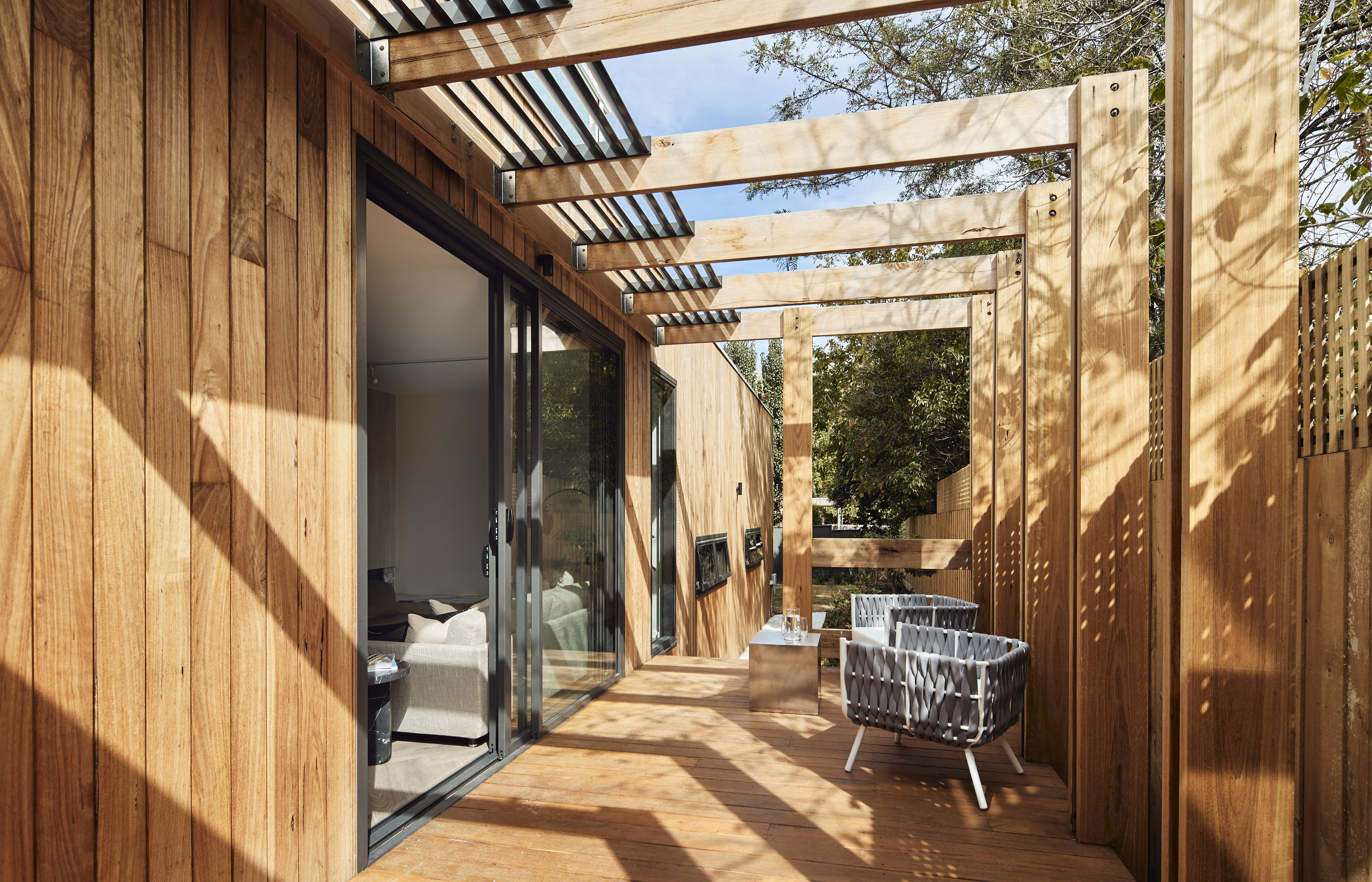

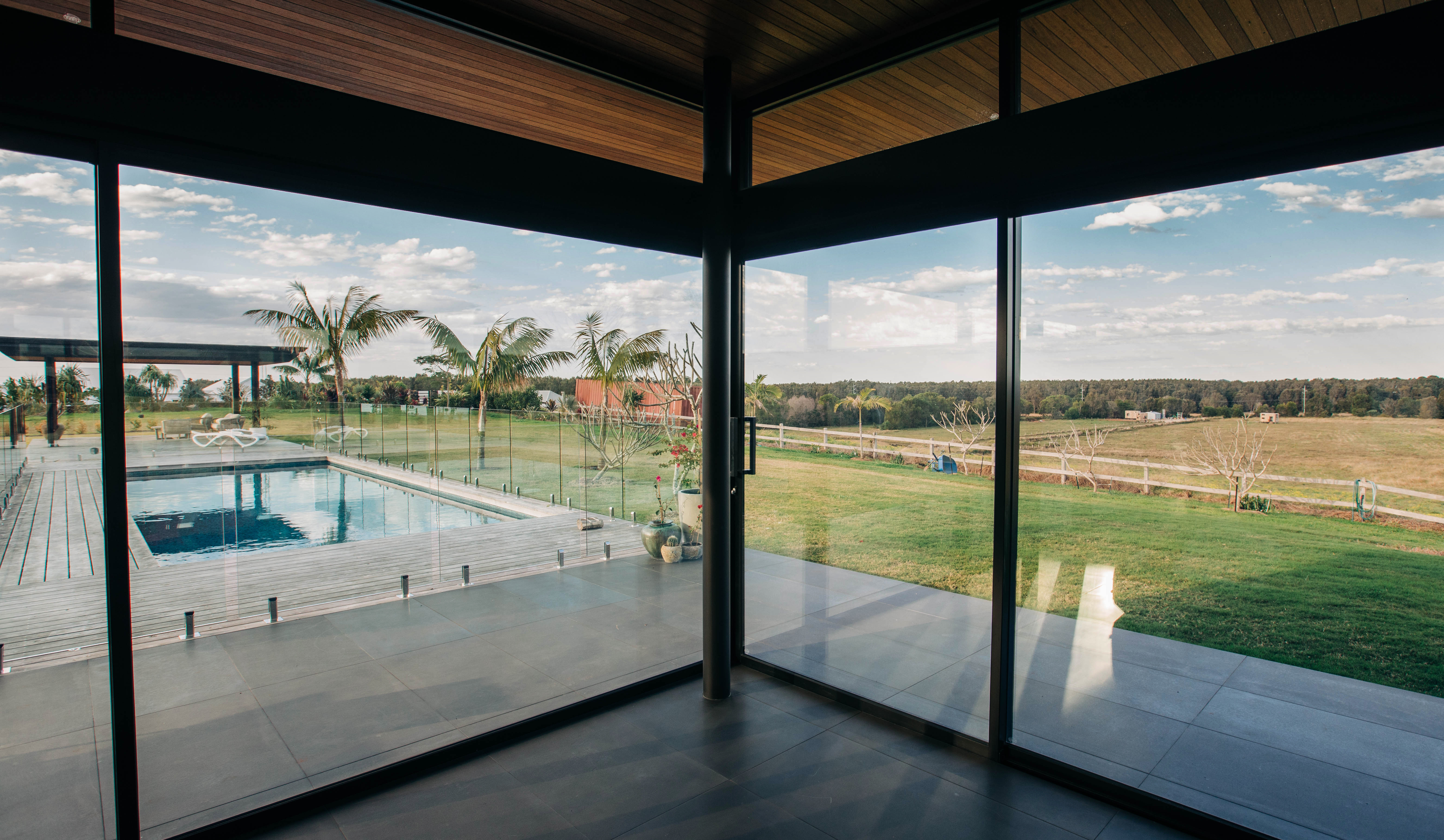

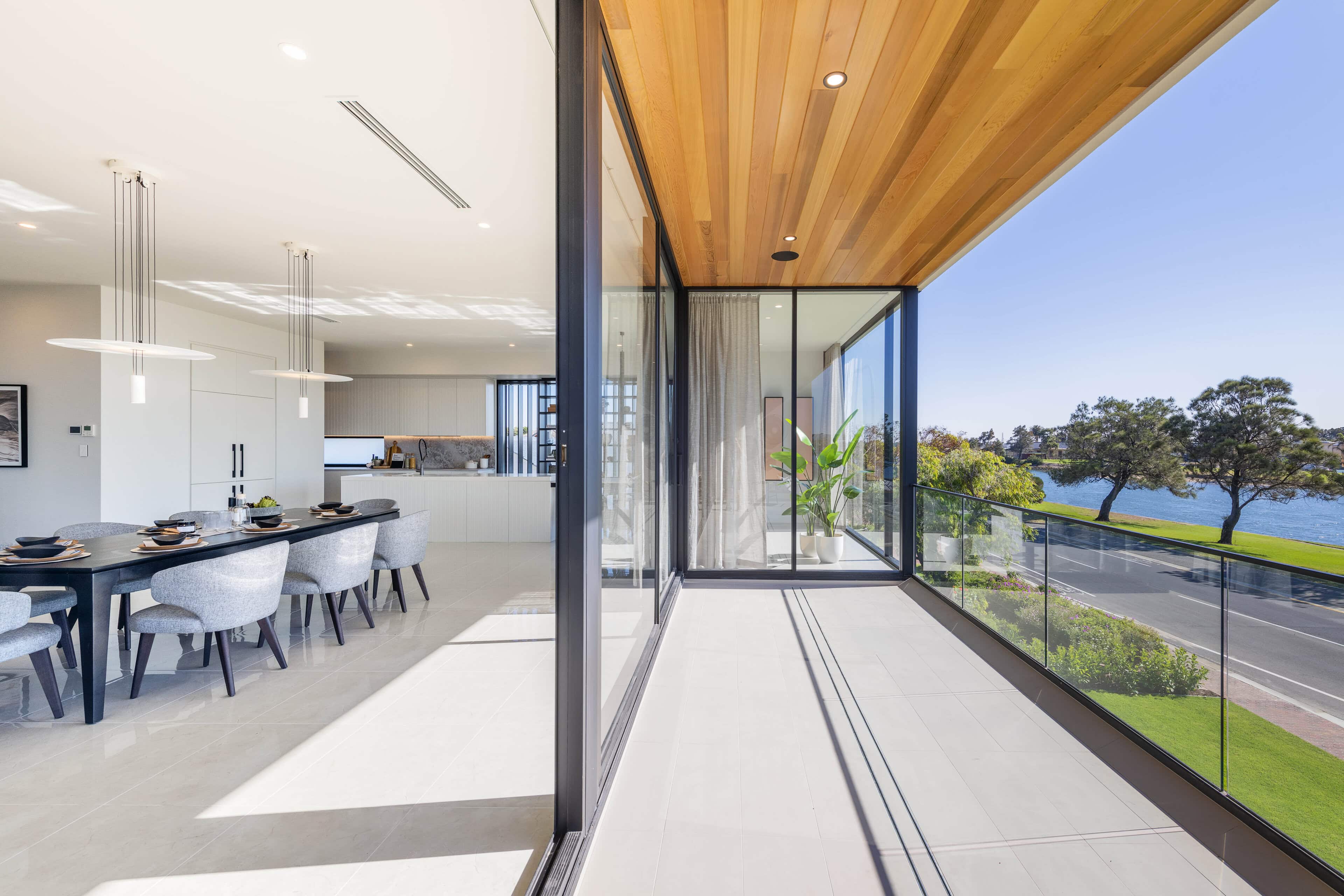

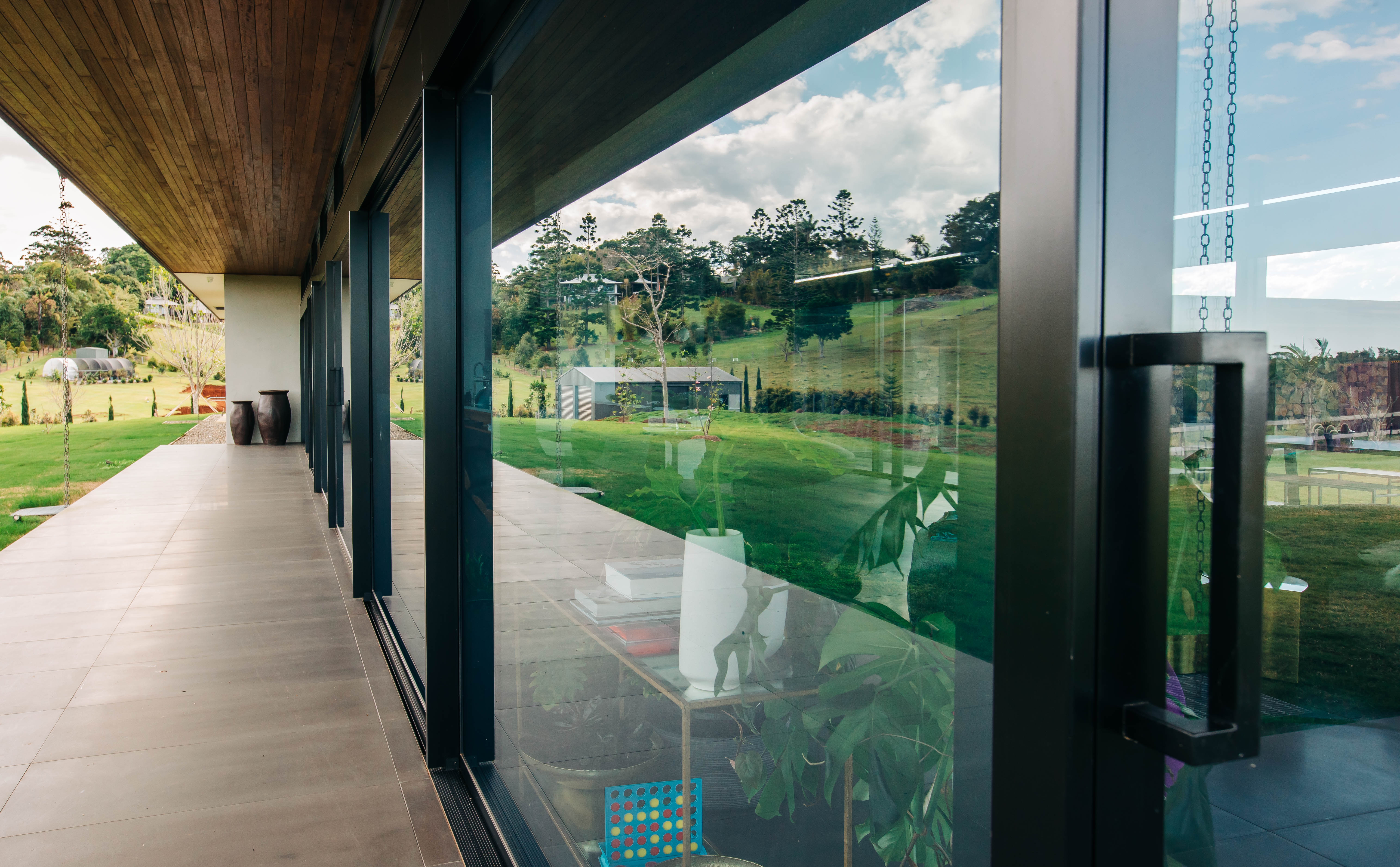

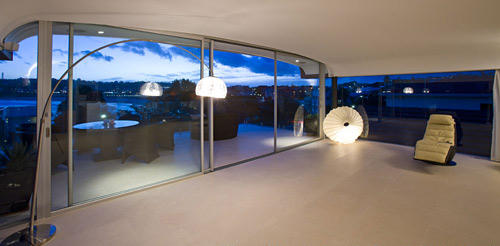

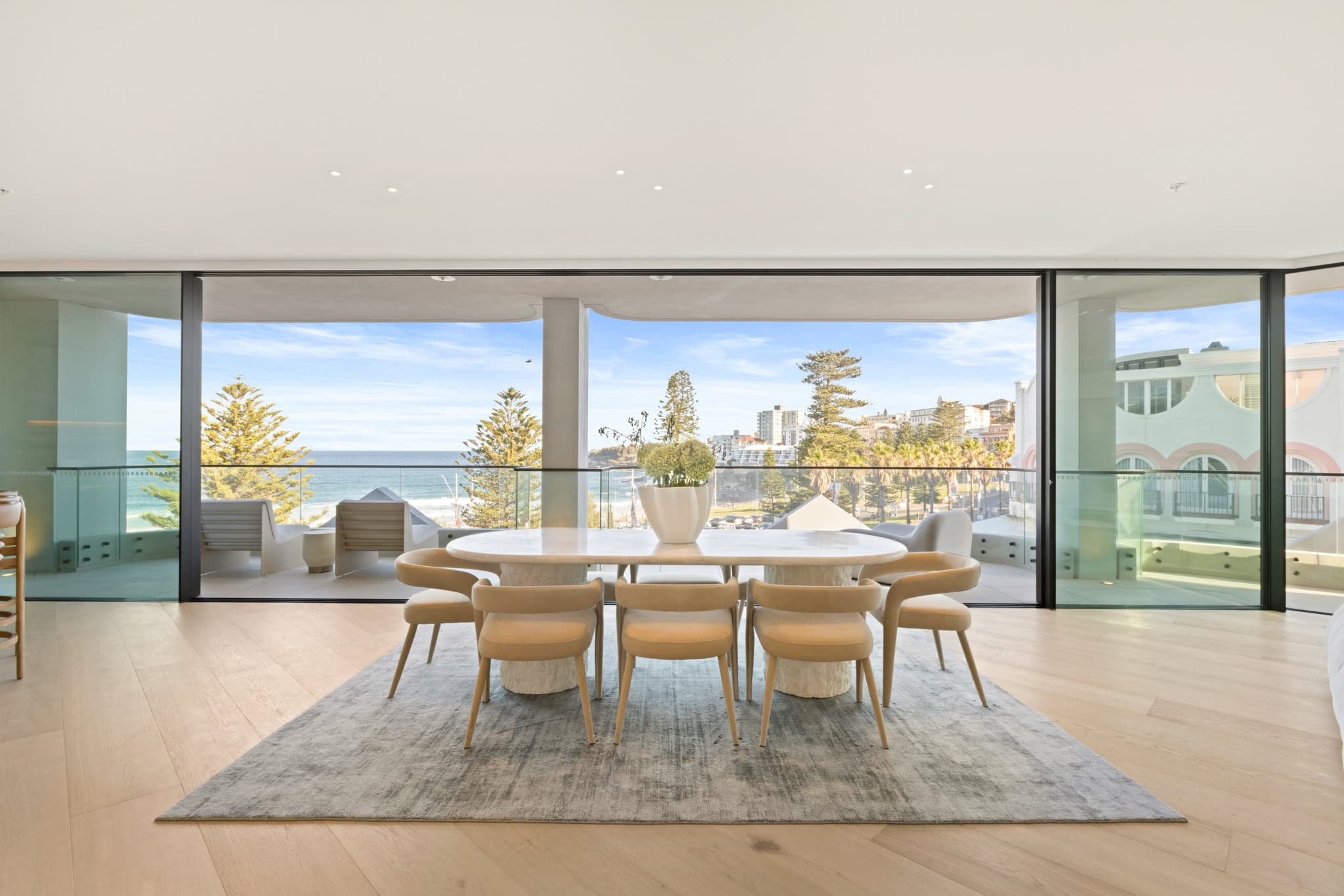

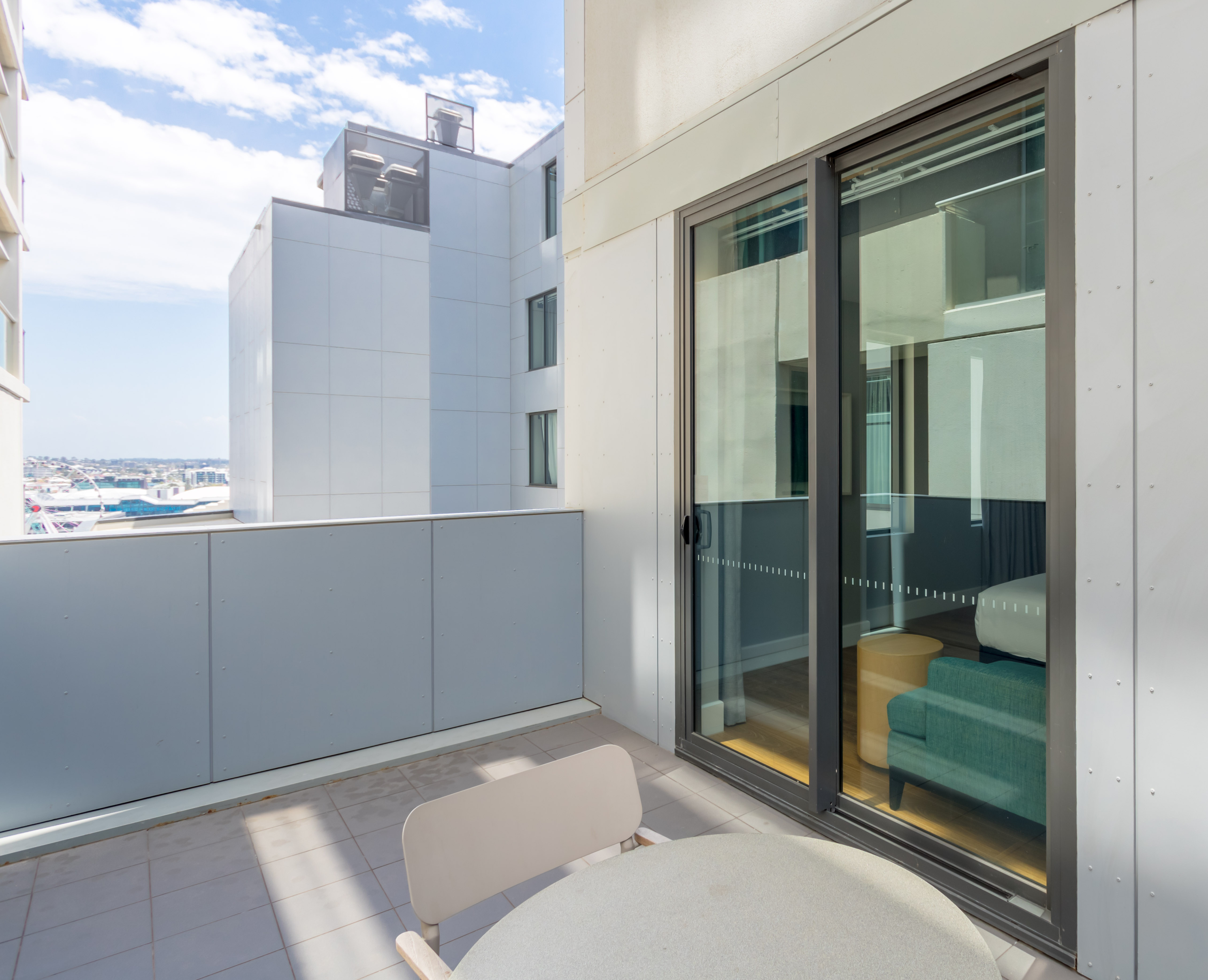

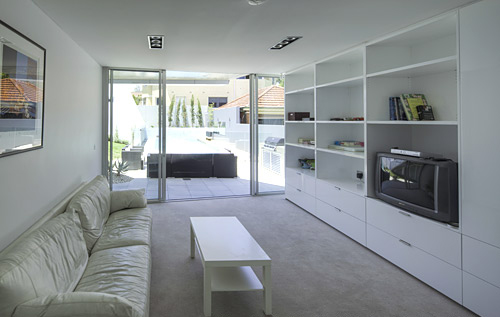

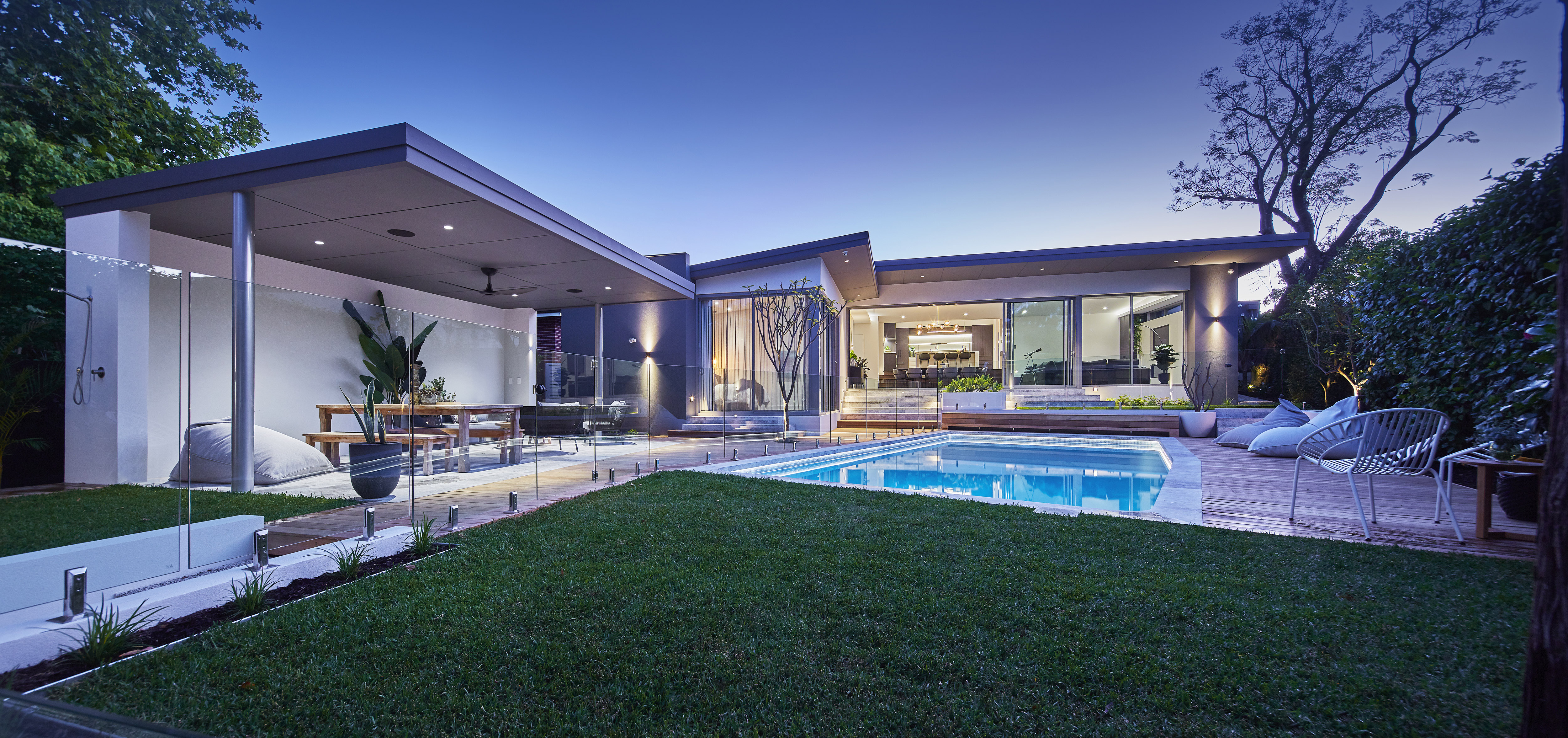

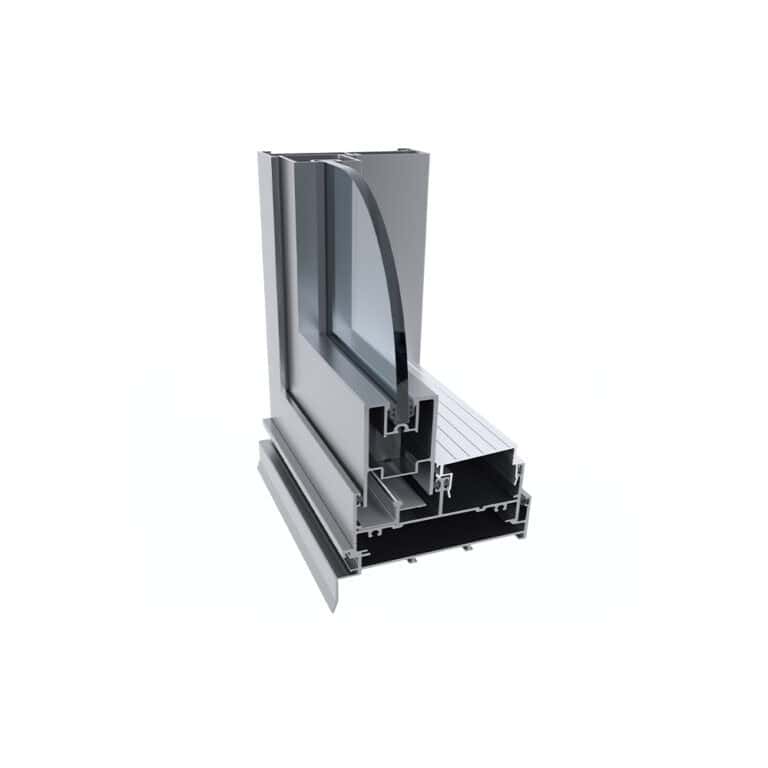

ProGlide^® High Performance Sliding Door

The ProGlide® range from Alspec has been designed with Australia’s unique architecture and climate in mind. The door allows architects and designers the freedom to achieve large expansive openings without the need to compromise on performance or aesthetics.

Specifying Alspec’s ProGlide range ensures the client receives a solid, durable, high performance product.

DOWNLOAD BROCHURE WERS Rating

Tested and Compliant Solutions

BAL40

Cyclonic

Acoustics Compliant

AS2047 Compliant

Key Features

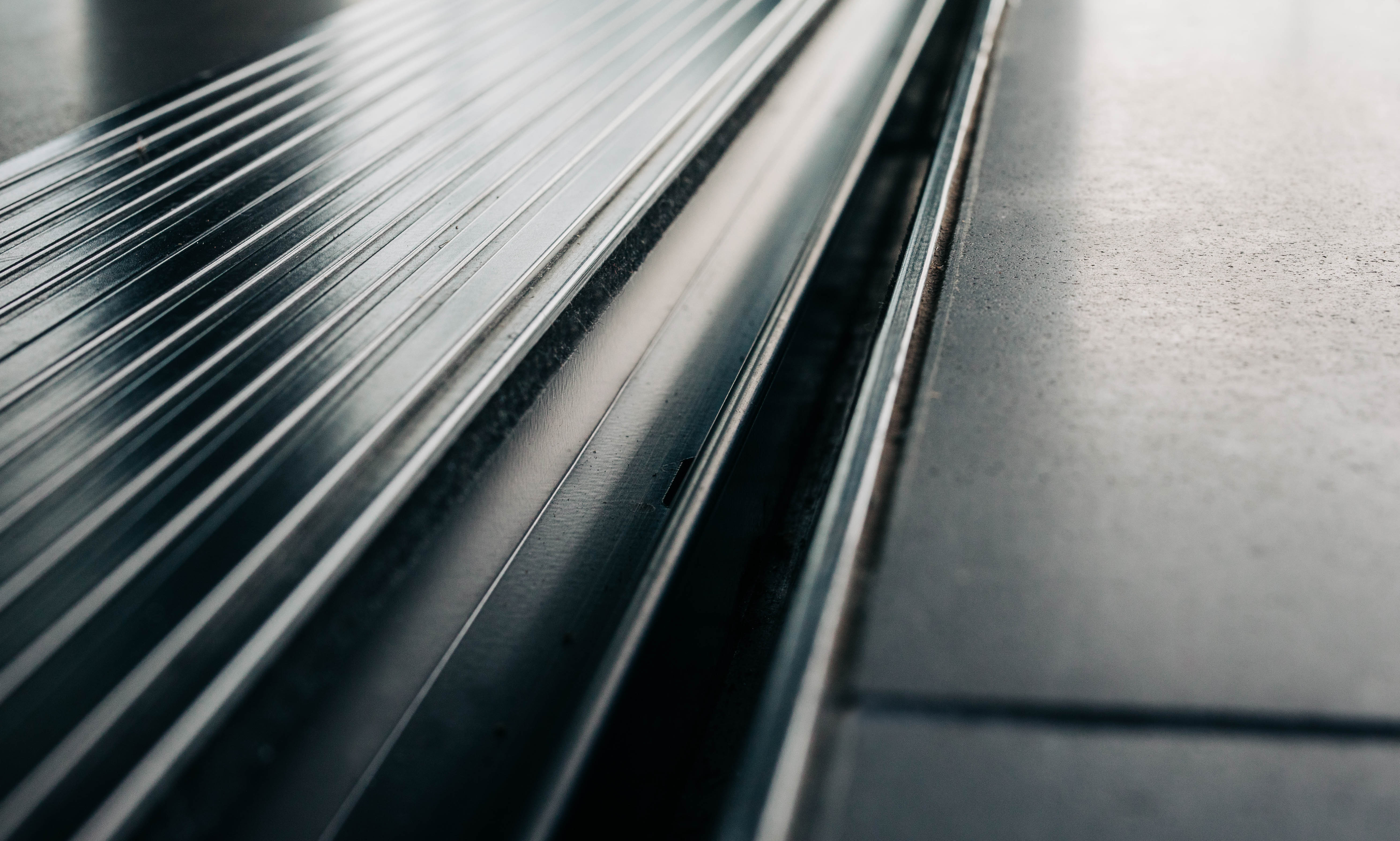

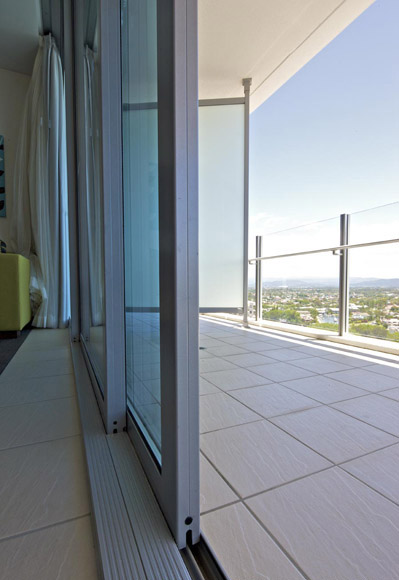

High water performance sill options

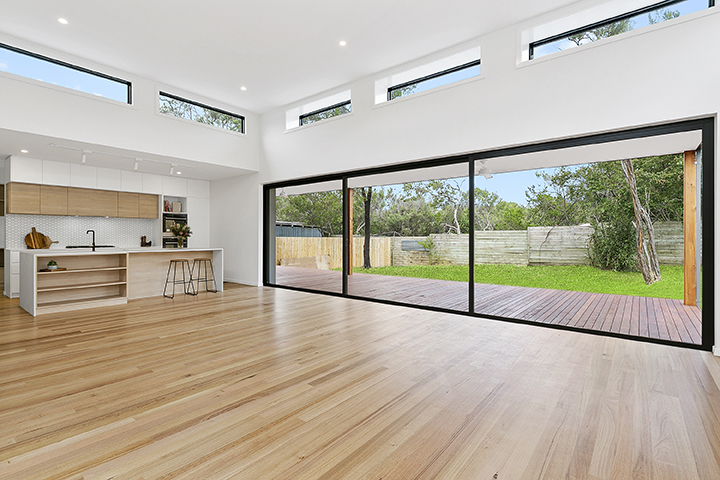

Large sliding panels, ideal for housing, apartment and commercial applications

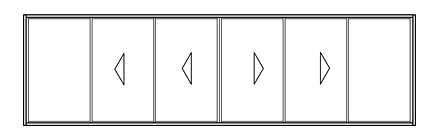

Inside or outside sliding panels, allowing multiple panel designs
Heavy duty interlocks for high wind load requirements
Accepts up to 13.52mm single glazed and up to 28mm double glazing units, allowing the designer to achieve the most demanding thermal and acoustic specifications

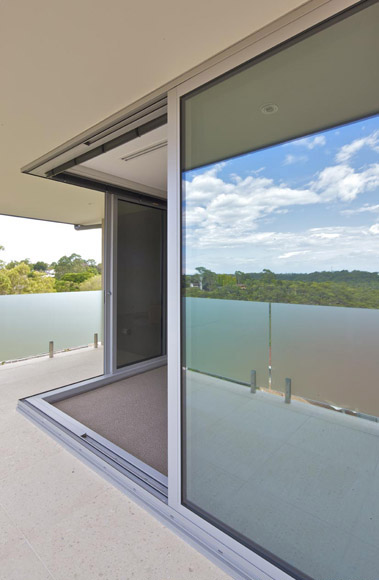

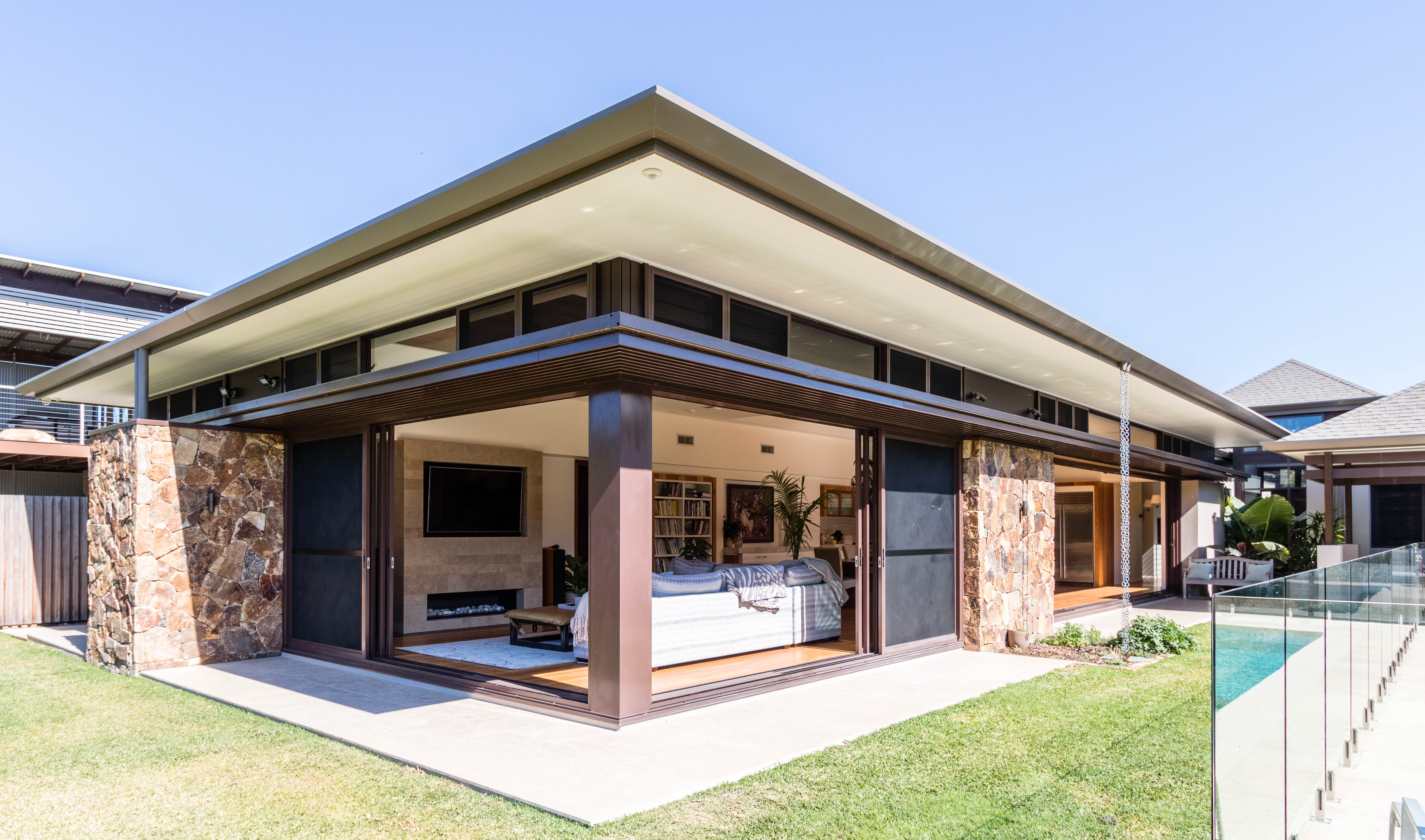

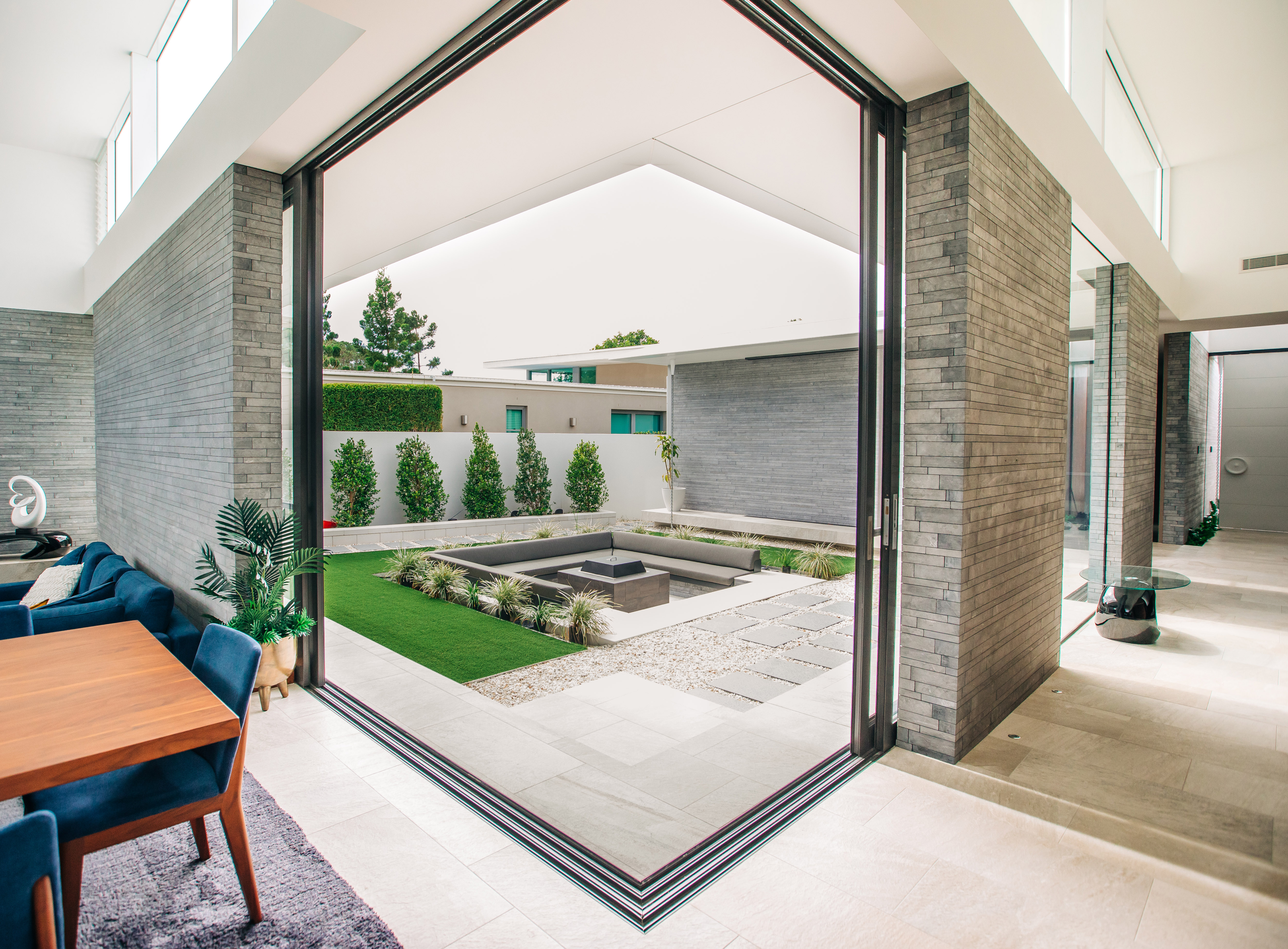

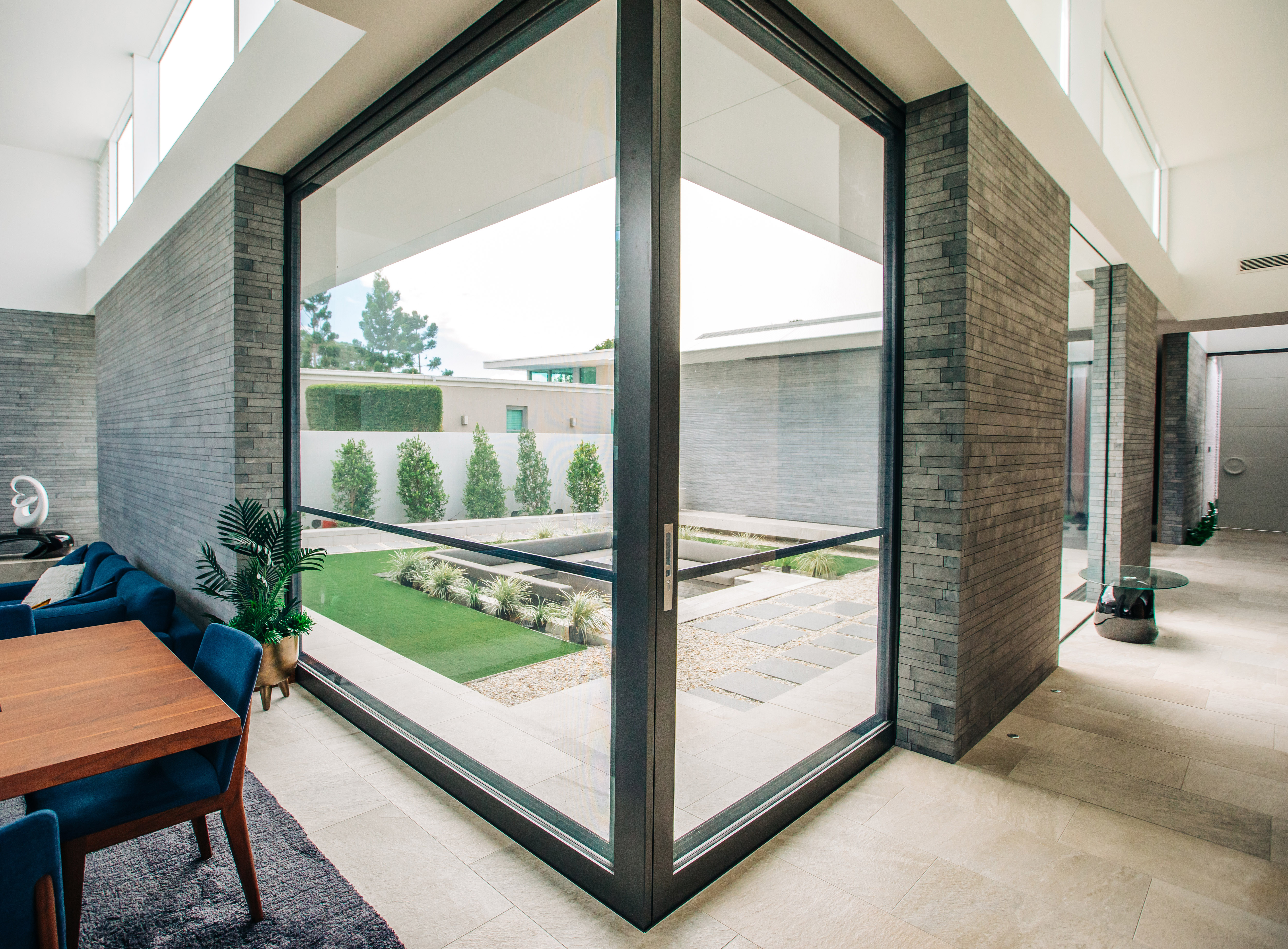

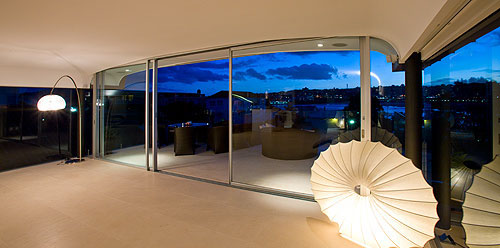

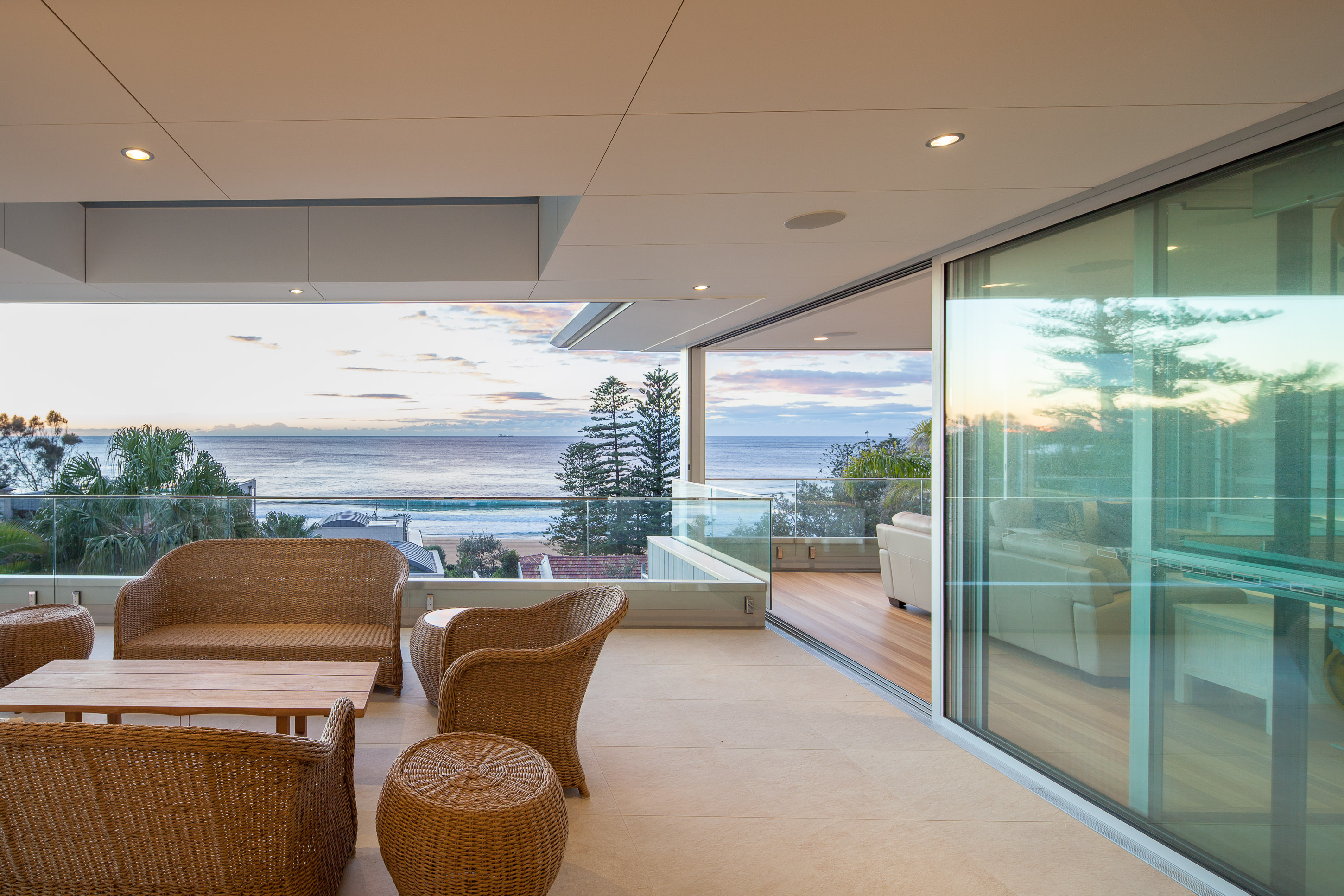

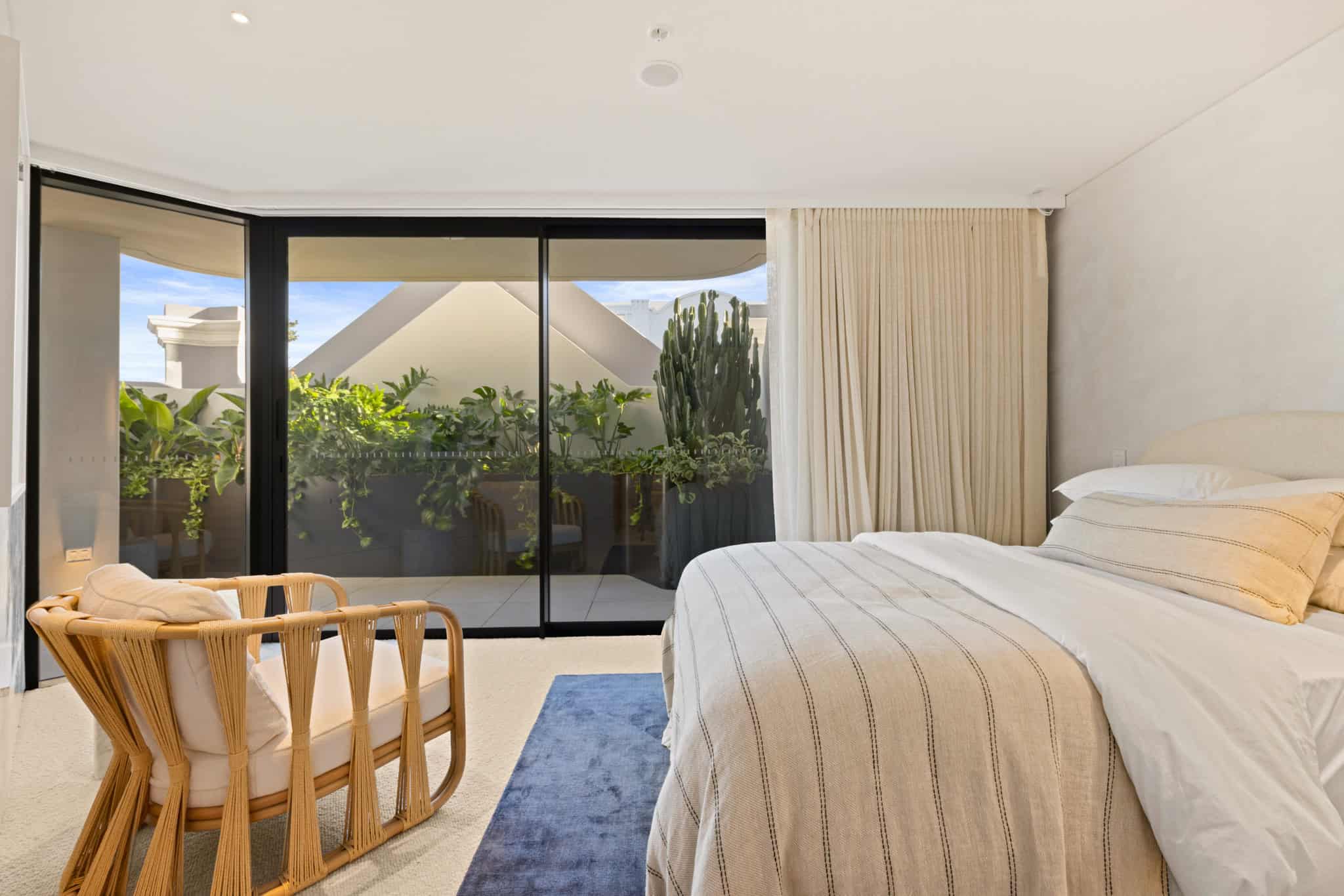

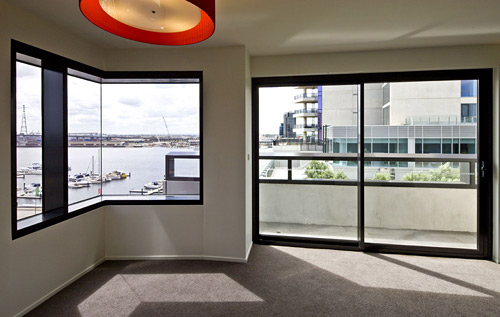

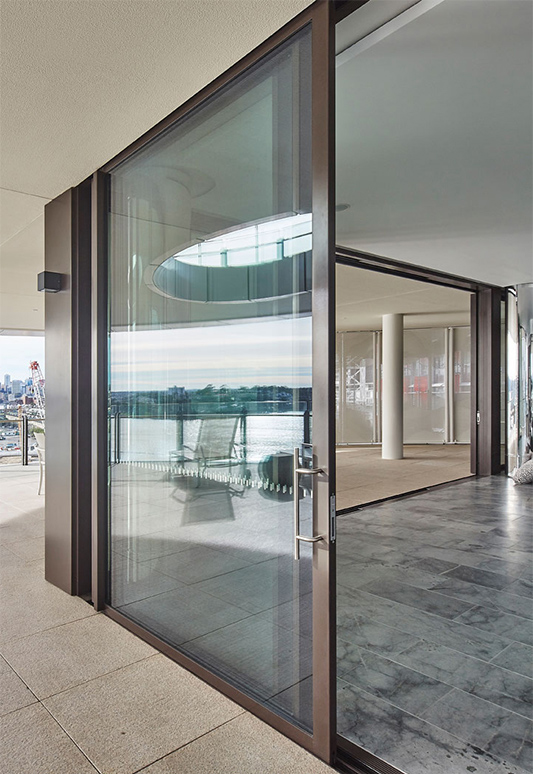

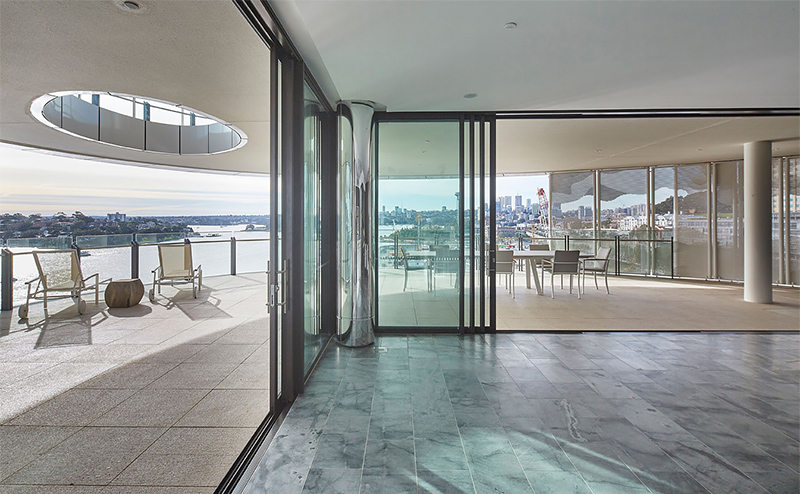

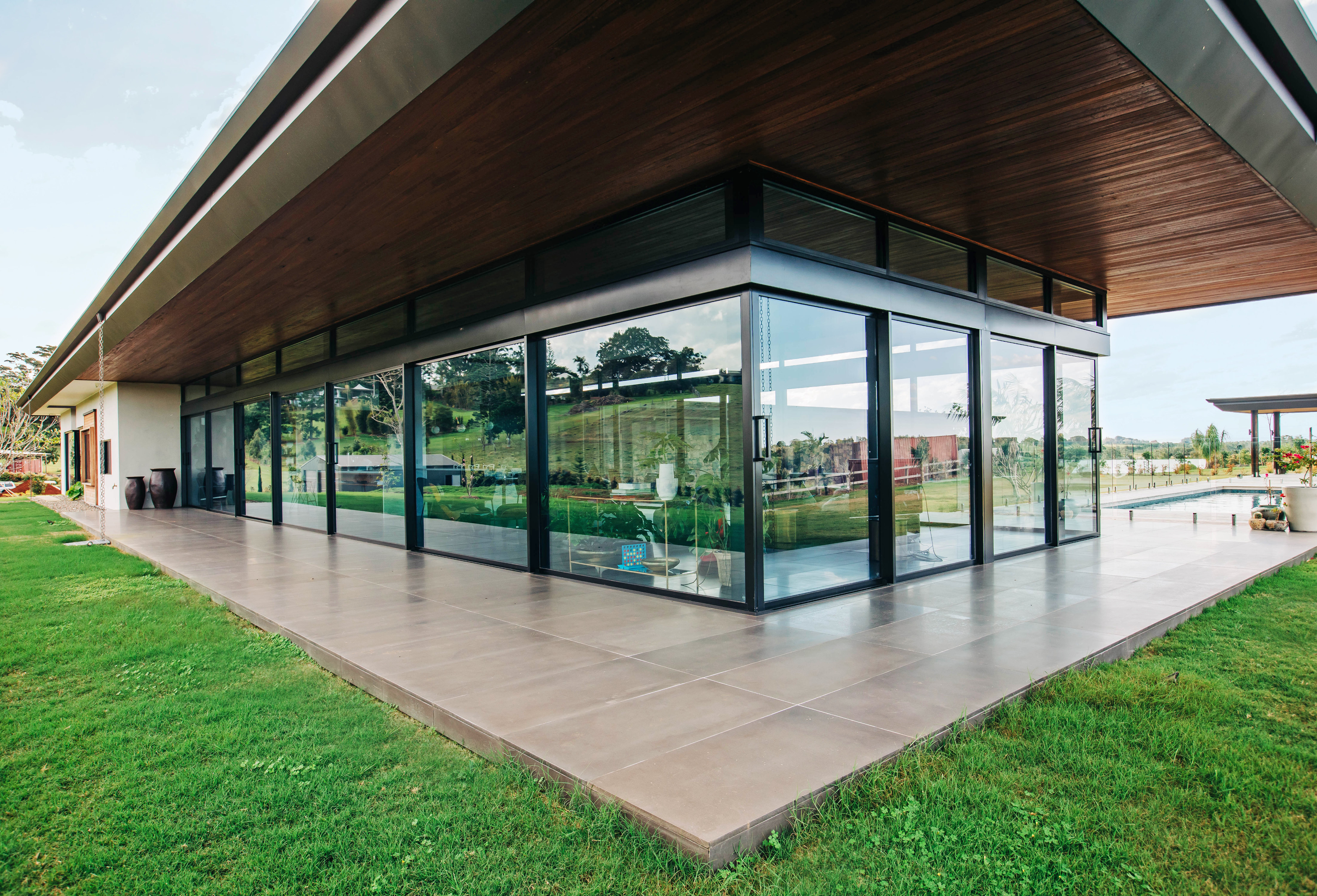

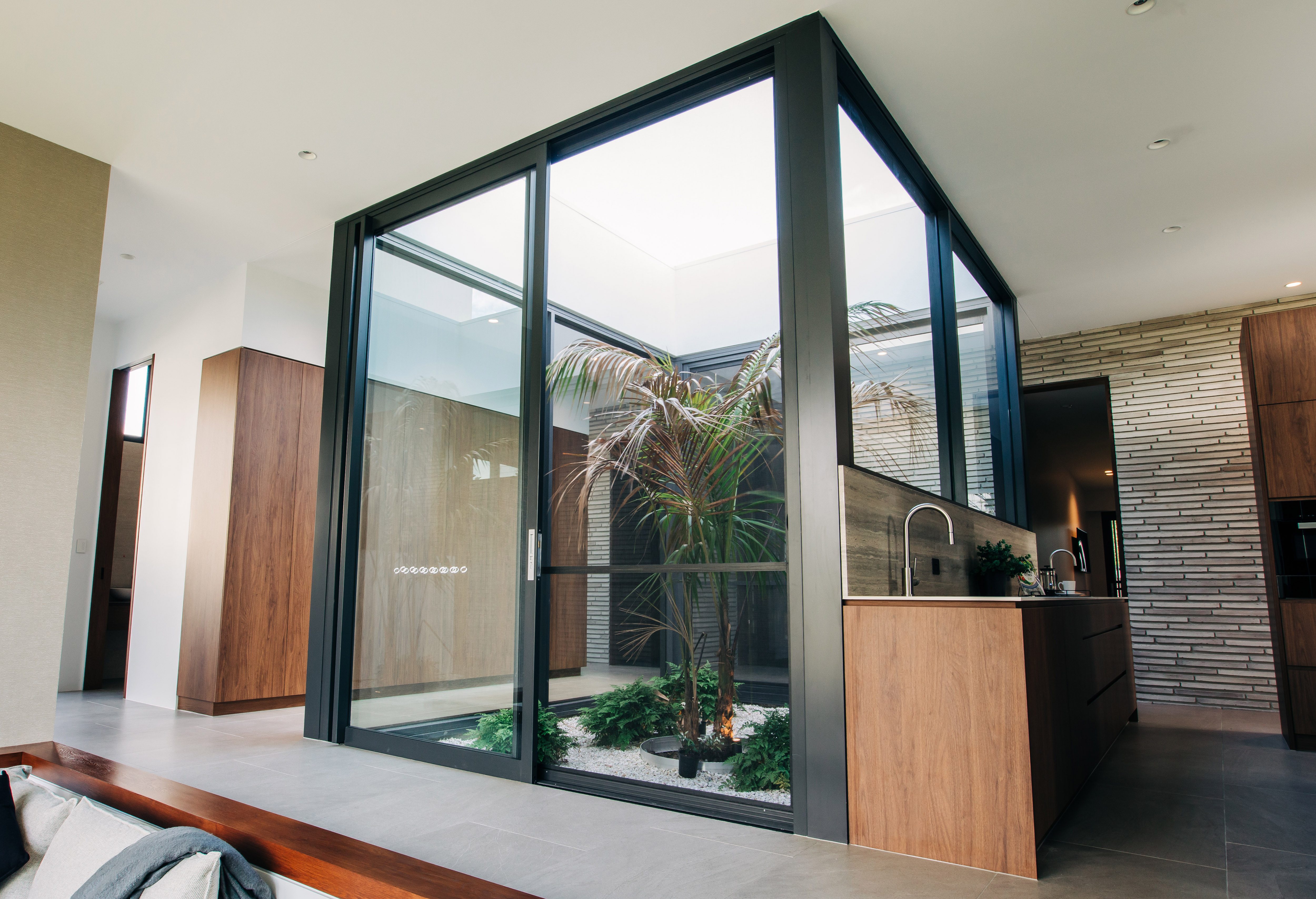

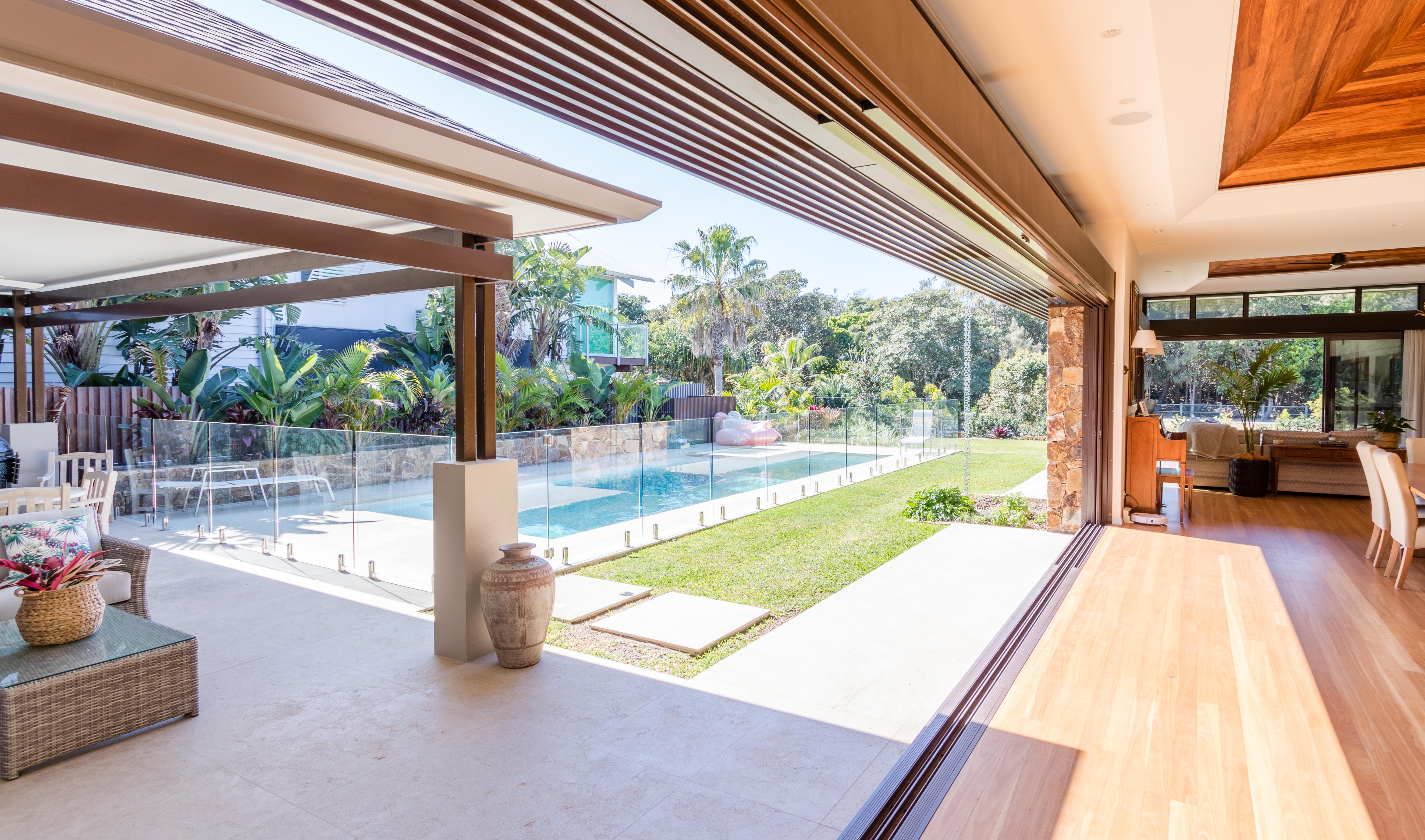

90 degree post free corner option
Heavy duty rollers up to 200kg per panel
Bevelled rail options

Frame Dimensions

Option 1	101 x 50mm
Option 2	151.5 x 50mm

Maximum Product Performance

SLS (Pa)	4500
ULS (Pa)	7000
WATER (Pa)	700

Compatible Systems

Commercial Framing	McArthur Evo 101.6mm Centre Pocket Framing
Commercial Framing	ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
Commercial Framing	Hunter Evo 101.6mm Single Flush Glazed Framing
Commercial Framing	Hunter Evo 101.6mm Double Flush Glazed Framing
Commercial Framing	Hunter Evo 150mm Single Flush Glazed Framing
Commercial Framing	Hunter Evo 150mm Double Flush Glazed Framing

Cyclonic Performance

Glass Type	12.4mm Gen II
m/sec	38
Glass Type	12.8mm Ultra Forza
m/sec	38

Glazing Details

Single Glazed	5 - 13.52mm
Double Glazed	18 - 28mm

Acoustic Performance: Rw (c;c^tr)

6.38 Laminate	32 (0,-2) dB
10.5 Vlam Hush	36 (0,-2)
12.76 Laminate	35 (0,-2)
6/12/9.52mm IGU	39 (-2,-5)
6.76/14/6.76mm IGU	38 (-2,-4)
10.38/12/6.38mm IGU	38 (-2,-4)
