Commercial Windows & Doors // ProGlide UltraFlat™ Sliding Door

Introduction

Alspec's® High Performance Wheelchair Accessible Sliding Door

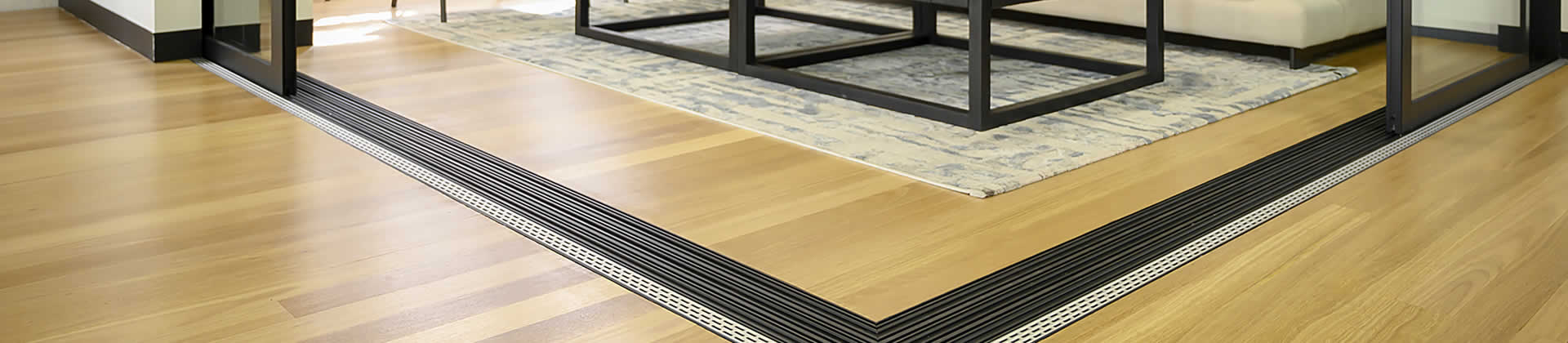

The ProGlide UltraFlat™ Sliding Door from Alspec® allows architects and designers the freedom to achieve large expansive openings whilst also offering a weather resistant wheelchair compliant sill to AS1428.1 without the need to compromise on performance or aesthetics.

Specifying Alspec’s® ProGlide UltraFlat™ ensures the client receives a solid, durable high performance product offering a continuous accessible path of seamless transition between internal and external floor finishes.

Designed and manufactured in Australia to meet the extremes of the Australian environment, the Alspec® ProGlide UltraFlat™ is the first choice amongst architects, builders, home owners and fabricators when performance and quality matter.

Key Features:

  • AS1428.1 wheelchair compliant sill ideal for aged care living applications.
  • 250Pa water resistant sill.
  • Large sliding panels, ideal for housing, apartment and commercial applications.
  • Inside, outside sliding panels, allowing multiple panel designs.
  • Allows up to 4 panels stacking in each direction.
  • Heavy duty aluminium profiles.
  • Accepts up to 14mm single glazed and up to 28mm double glazing units, allowing the designer to achieve the most demanding thermal and acoustic specifications.
  • 90 degree post free corner option.

Videos

Projects

3D Revit Files

Please log in to access this information

3D ArchiCAD Files

Please log in to access this information

Please log in to access this information

Please log in to access this information

WERS Ratings

Glazing
Frame
TVW
Air Inf
Frame Dimensions
Option 1 101 x 50mm
Option 2 151.5 x 50mm
Maximum Product Performance
SLS (Pa) 2200
ULS (Pa) 4600
WATER (Pa) 630
Compatible Systems
Commercial Framing McArthur Evo Centre Pocket Framing
Commercial Framing ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
Commercial Framing Hunter Evo 101.6mm Single Flush Glazed Framing
Commercial Framing Hunter Evo 101.6mm Double Flush Glazed Framing
Commercial Framing Hunter Evo 150mm Single Flush Glazed Framing
Commercial Framing Hunter Evo 150mm Double Flush Glazed Framing
Glazing Details
Single Glazed 5 - 13.52mm
Double Glazed 18 - 28mm
Acoustic Performance
6.38mm Laminate 32 (0, –2) dB
10.38/12/6.38 IGU 38 (–2, –4) dB
Maximum Recommended Sizes
Height 3150mm
Width 2250mm
Weight 200kg per panel
Thermal Performance
Uw range SG 4.3 - 6.1
SHGC range SG 0.38 - 0.66
Uw range DG 3.0 - 3.9
SHGC range DG 0.22 - 0.55
