Awning and Casement Windows
These Awning and Casement windows are ideal for suburban housing, multi-unit residential, hotels and commercial applications with various glazing options available.
Tested and Compliant Solutions
Alspec’s® range of Awning and Casement windows are ideal for suburban housing, multi-unit residential, hotels and commercial applications. The Awnings and Casements can integrate with a number of Alspec® Commercial Framing systems by using different awning adaptors.
The 35mm and 50mm sashes offer the benefit of overlapping internal and external seals to achieve superior weather performance. The 443 30mm sash sits inset of the framing and can offer a flush appearance.
Various glazing options for single and double glazing are available. All Awnings and Casements can be used with a range of available stays and operated with Chainwinders or Cam handles, locking or non-locking. With the use of our Chainwinder adaptor insect and security screens can easily be added from the inside of the building.
Key Features
- Wide range of applications
- Integration with a number of Alspec Commercial Framing systems
- Superior weather performance
- Various glazing options including double glazing
- Electric winder option
Technical Specifications
Frame Dimensions
| Option 1 | Sash width 30mm |
| Option 2 | Sash width 35mm |
| Option 3 | Sash width 50mm |
Glazing Details 30mm
| Single Glazed | 6mm |
| Double Glazed | 18mm |
Glazing Details 35mm
| Single Glazed | 4 - 12mm |
| Double Glazed | 18 - 24mm |
Glazing Details 50mm
| Single Glazed | 4 - 16mm |
| Double Glazed | 24 - 30mm |
Maximum Product Performance
| SLS (Pa) | 3000 |
| ULS (Pa) | 4400 |
| WATER (Pa) | 900 |
Maximum Recommended Sizes 30mm
| Height | 1100mm |
| Width | 1000mm |
| Weight | 18kg |
Maximum Recommended Sizes 35mm
| Height | 2400mm |
| Width | 2100mm |
| Weight | 35kg |
Awning - Maximum Recommended Sizes 50mm
| Height | 1800mm |
| Width | 2400mm |
| Weight | 90kg |
Maximum Product Performance 35mm
| SLS (Pa) | 1000 |
| ULS (Pa) | 2500 |
| WATER (Pa) | 600 |
Maximum Product Performance 50mm
| SLS (Pa) | 1300 |
| ULS (Pa) | 4000 |
| WATER (Pa) | 700 |
Acoustic Performance 35mm: Rw (c;ctr)
| 6.38mm Laminate | 33 (-1,-2) dB |
Acoustic Performance 50mm: Rw (c;ctr)
| 6.38mm Laminate | 33 (-1,-3) dB |
| 12.76mm Laminate | 38 (-1,-3) dB |
| 6.76mm Lam / 13.5mm Arg / 6.76mm Lam | 41 (-2,-6) dB |
Thermal Performance 35mm
| Uw range SG | 5.9 - 6.9 |
| SHGC range SG | 0.26 - 0.53 |
| Uw range DG | 4.2 - 4.8 |
| SHGC range DG | 0.15 - 0.48 |
Thermal Performance 50mm
| Uw range SG | 5.8 – 7.2 |
| SHGC range SG | 0.29 – 0.51 |
| Uw range DG | 4.3 – 5.3 |
| SHGC range DG | 0.13 - 0.45 |
Compatible Systems 35mm & 50mm
| Commercial Framing | Derwent 76mm Centre Pocket Framing |
| Commercial Framing | McArthur Evo 101.6mm Centre Pocket Framing |
| Commercial Framing | ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing |
| Commercial Framing | Hunter Evo 101.6mm Single Flush Glazed Framing |

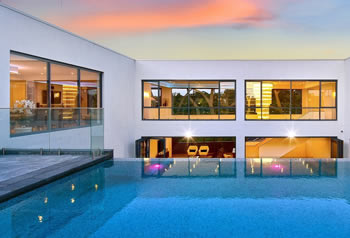

| Commercial Framing | Hunter Evo 101.6mm Double Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Single Flush Glazed Framing |

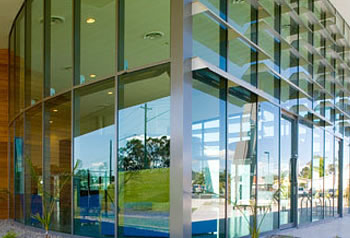

| Commercial Framing | Hunter Evo 150mm Double Flush Glazed Framing |
| Commercial Framing | Hunter Evo 150mm Acoustic Framing |

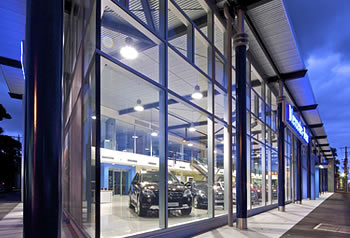

| Commercial Framing | EcoWALL 225 Flush Glazed Framing |
